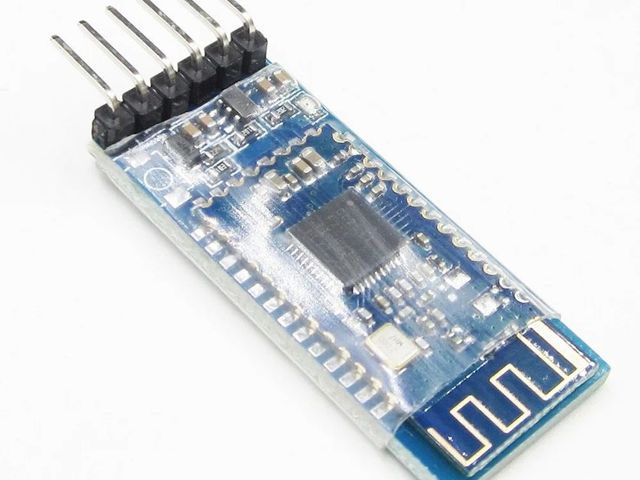

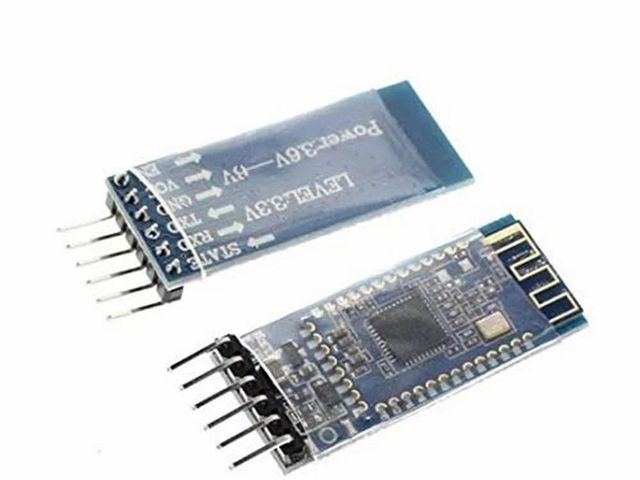

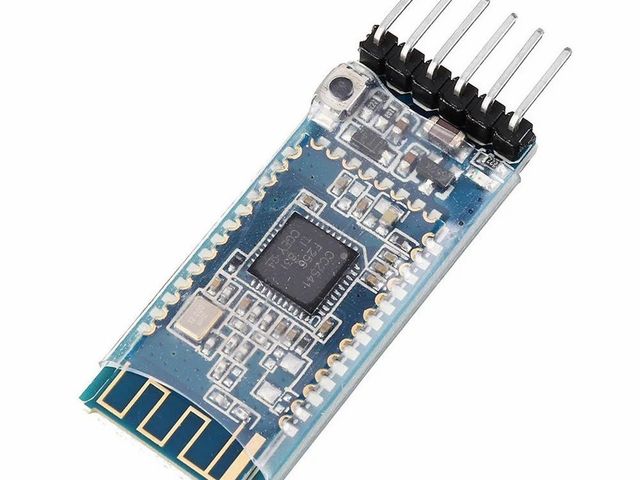

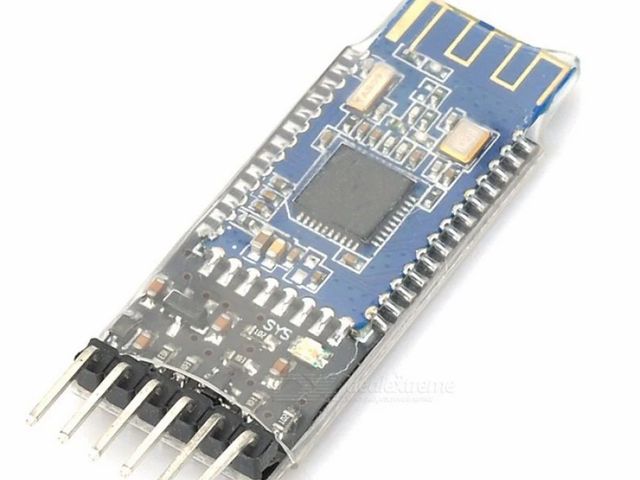

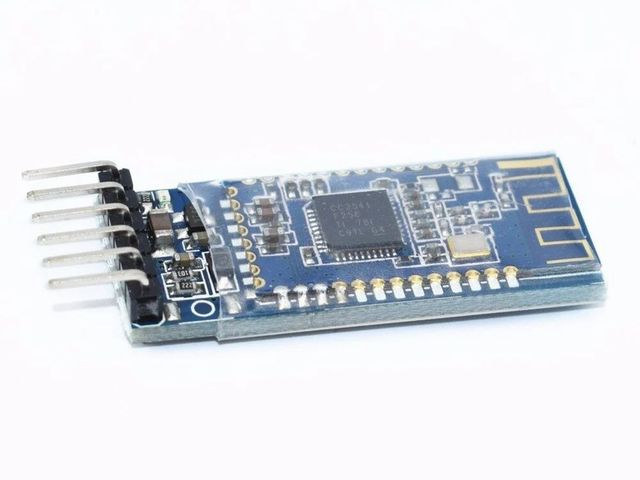

Hc05 Bluetooth Module With Ttl Output Brand Rndmfg Voltage 220V IP Rating IP55 Chipset Cc2541 Frequency 50 Hz Packaing Type
1 Piece
$1.7Product information
High-quality Hc05 Bluetooth Module With Ttl Output Brand Rndmfg Voltage 220V IP Rating IP55 Chipset Cc2541 Frequency 50 Hz Packaing Type supplied by Rndmfg. Bulk wholesale pricing is $1.7 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Adc Channels:
2 Channels, 14 Bit
Connection Interval:
20ms Default
Voltage:
220V
Pwm Output Channels:
4 Channels, 120hz
Frequency:
50 Hz
Power Supply:
5v To 3.3v
Serial Baud Rate:
9600bps
Password Management:
Anti-hijack Password Setup, Modification, And Restoration
Specifications
Adc Channels:
2 Channels, 14 Bit
Connection Interval:
20ms Default
Voltage:
220V
Pwm Output Channels:
4 Channels, 120hz
Frequency:
50 Hz
Power Supply:
5v To 3.3v
Serial Baud Rate:
9600bps
Password Management:
Anti-hijack Password Setup, Modification, And Restoration
Communication Protocol:
Ble Bluetooth 4.0
Packaing Type:
Box
Antenna Type:
Built-in Pcb Antenna
Device Role Flexibility:
Can Change Role On-demand
Chipset:
Cc2541
Power Source:
Electric
IP Rating:
IP55
Power Indicator:
Included
Voltage Regulation:
Included
Country Of Origin:
Made in India
Operating Mode:
Master Or Slave
Brand:
Rndmfg
Phase:
Single Phase
Rssi Function:
Successive Acquisition, Auto Read, And Notification To App
Remote Control Capability:
Supported
Module Name Configuration:
Supported
Data Acquisition Capability:
Supported
Io Expansion:
Supported
Trade Term:
To be discussed
Payment Term:
To be discussed
Data Transmission:
Transparent Transmission
Interface Type:
Uart
Power Consumption Mode:
Ultra-low Power Standby
Connection Range:
Up To 60 Meters
At Command Support:
Yes
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2016
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module is a BLE module for an embedded system to get BLE wireless communication with BLE capable devices (e.g. Android, iPhone, and iPad).It is fully configurable by a rich and well documented AT command-set and allows transparent data communication via serial UART (default baud rate 9600bps). The Bluetooth 4.0 HM-10 is basically a breakout board for cc2541, it broke out the LED pins, RX/TX and also adding the voltage regulator that regular 5v to 3.3 v.HM-10 and HM-11 series Bluetooth module use TI CC2540 chip, configure 256KB space and support the AT command. Users can change the role (master, slave mode) and the serial port baud rate, equipment name, matching password and other parameters on-demand. It is very flexible to use.The most complete, most convenient, and most stable Bluetooth data transmission, remote control and data acquisition module. Master-slave in one, transparent transmission, replacing the serial port. Remote control, transparent transmission, MCU is unnecessary. Remote data acquisition, transparent transmission, MCU is unnecessary.Pin Description of HM-10 BLE Bluetooth 4.0 CC2541 Wireless ModuleSTATE: state test pins, connected to an internal LED, generally keep it unconnected.BRK :break connect, it means breaking the Bluetooth connection, generally keep it unconnected.VCC :positive pole of the power source.GND : Ground.TX : serial interface, transmitting terminal.RXD :serial interface, receiving terminal.
Features:-It’s easy to use and completely encapsulated.-You can set it as a slave or master.-You can use the AT command set the baud rate.-Coverage up to 60 meters.-Built-in PCB antenna.-UART design.-Support bridge direct-driven mode simultaneously (no need for extra CPU).-20ms connection interval (default), quick to connect; Support AT instruction, to modify the baud rate of the serial port, gain MAC address and modify module name.-Support AT instruction, to adjust the Bluetooth connection interval and control the forwarding rate (dynamic power consumption adjustment).-Support APP; IO expansion.-2 channel ADC input (14 bit).-4 channel PWM (120Hz) output.-The RSSI successive acquisition, auto read, and notification to APP (used in anti-lost alarm).-Power indicator/alert.-Support anti-hijack password setup, modification, and restoration.-Ultra-low power consumption standby mode.
Features:-It’s easy to use and completely encapsulated.-You can set it as a slave or master.-You can use the AT command set the baud rate.-Coverage up to 60 meters.-Built-in PCB antenna.-UART design.-Support bridge direct-driven mode simultaneously (no need for extra CPU).-20ms connection interval (default), quick to connect; Support AT instruction, to modify the baud rate of the serial port, gain MAC address and modify module name.-Support AT instruction, to adjust the Bluetooth connection interval and control the forwarding rate (dynamic power consumption adjustment).-Support APP; IO expansion.-2 channel ADC input (14 bit).-4 channel PWM (120Hz) output.-The RSSI successive acquisition, auto read, and notification to APP (used in anti-lost alarm).-Power indicator/alert.-Support anti-hijack password setup, modification, and restoration.-Ultra-low power consumption standby mode.
