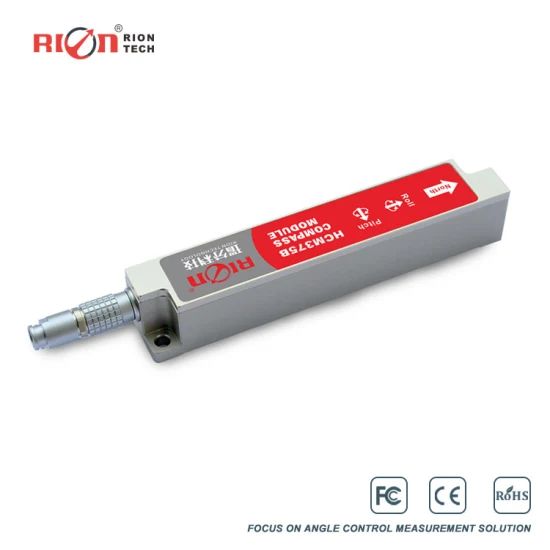

Hcm375b Hight Accuracy Industry 3D Electronic Compass Sensor Digital Signal Output Roll Pitch Angle Heading Angle Measuring Sensor
1 piece
$400Product information
High-quality Hcm375b Hight Accuracy Industry 3D Electronic Compass Sensor Digital Signal Output Roll Pitch Angle Heading Angle Measuring Sensor supplied by Shenzhen Rion Technology Co., Ltd. Bulk wholesale pricing is $400 per piece with a minimum order of 1 piece. Inquiry for latest prices.
Production Capacity::
5000
Specification:
80g(not include cable)
Carrying Type:
Car
Transport Package:
Carton
Origin:
China
Display Methods:
Digital
Trade Term:
FOB, CIF, DDP, DAP, CIP, EXW, Others
Model NO.:
HCM375B
Specifications
Production Capacity::
5000
Specification:
80g(not include cable)
Carrying Type:
Car
Transport Package:
Carton
Origin:
China
Display Methods:
Digital
Trade Term:
FOB, CIF, DDP, DAP, CIP, EXW, Others
Model NO.:
HCM375B
Usage:
Industry
Payment Terms::
L/C, T/T, Paypal
Payment Term:
LC, T/T, PayPal, Money Gram
Material:
Metal
Function:
Navigation
Condition:
New
Quakeproof:
Quakeproof
Trademark:
RION
Port::
Shenzhen, China
Application:
Special
Waterproof:
Waterproof
Noctilucence:
Without Noctilucence
Gender:
Woman
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Money Gram
Preferred Trade Term:
FOB, CIF, DDP, DAP, CIP, EXW, Others
Port Of Loading:
Not specified
Certificates:
FSC, IFS, OHSAS/ OHSMS 18001, ISO 9001
Product descriptions from the supplier
Product Description
INTRODUCTION
HCM370B-HCM375B features a slim 3D digital orientation sensor, measuring just 1.6cm in width, with IP67-rated durability, ideal for demanding applications like downhole drilling. Equipped with refined hard and soft iron compensation techniques, it delivers precise directional readings regardless of pitch or roll, across all 360-degree orientations. Its compact design and minimal power draw make it perfect for modern, space-constrained sensing systems. Both sealed units and dedicated signal boards are offered.
HCM370B-HCM375B features a patented three-axis flux-gate design. It determines direction instantly via CUP and adjusts heading accuracy across broad tilt angles using a three-axis accelerometer. This compact, energy-efficient compass offers top-tier performance and robust stability, meeting military-grade standards. Its small form factor and minimal power draw make it ideal for diverse uses including antenna alignment, automotive systems, and integrated platforms.
MAIN FEATURE
heading accuracy: 0.3°~0.5° roll&pitch measuring range:±180°
tilt resolution: 0.1° tilt accuracy: <0.2°(full range)
working temp.: -40ºC~+85ºC size: L110×W19.5×H19.5mm
with hard and soft magnetic calibration RS232/RS485/TTL output
APPLICATION
Satellite antenna search satellite Marine navigation surveying and mapping
GPS integrated navigation Antenna servo control
Gun emission system Infrared imager
Laser range finder Map for plotter
ROV underwater robot navigation Oceanography measurement instruments
Special occasion robot Unmanned aircraft
PRODUCT PARAMETERS
PRODUCT ORDERING INFORMATION
E.g:HCM375B-232:360tilt 3D with seal/RS232 output
ELECTRICAL CONNECTION
Any detail please contact me:
HCM370B-HCM375B features a slim 3D digital orientation sensor, measuring just 1.6cm in width, with IP67-rated durability, ideal for demanding applications like downhole drilling. Equipped with refined hard and soft iron compensation techniques, it delivers precise directional readings regardless of pitch or roll, across all 360-degree orientations. Its compact design and minimal power draw make it perfect for modern, space-constrained sensing systems. Both sealed units and dedicated signal boards are offered.
HCM370B-HCM375B features a patented three-axis flux-gate design. It determines direction instantly via CUP and adjusts heading accuracy across broad tilt angles using a three-axis accelerometer. This compact, energy-efficient compass offers top-tier performance and robust stability, meeting military-grade standards. Its small form factor and minimal power draw make it ideal for diverse uses including antenna alignment, automotive systems, and integrated platforms.
MAIN FEATURE
heading accuracy: 0.3°~0.5° roll&pitch measuring range:±180°
tilt resolution: 0.1° tilt accuracy: <0.2°(full range)
working temp.: -40ºC~+85ºC size: L110×W19.5×H19.5mm
with hard and soft magnetic calibration RS232/RS485/TTL output
APPLICATION
Satellite antenna search satellite Marine navigation surveying and mapping
GPS integrated navigation Antenna servo control
Gun emission system Infrared imager
Laser range finder Map for plotter
ROV underwater robot navigation Oceanography measurement instruments
Special occasion robot Unmanned aircraft
PRODUCT PARAMETERS
| HCM370B / HCM375B Index | ||
| Heading | Heading accuracy | 0.5° tilt<10° |
| 2.0° tilt>60° | ||
| resolution | 0.1° | |
| Tilt | pitch accuracy | 0.1°<15°(measure range) |
| 0.1°<30°(measure range) | ||
| 0.1°<60°(measure range) | ||
| 0.2°<90°(measure range) | ||
| Pitch range | ±85° | |
| Roll accuracy | 0.1°<15°(measure range) | |
| 0.1°<30°(measure range) | ||
| 0.1°<60°(measure range) | ||
| 0.2°<180°(measure range) | ||
| Roll range | ±180° | |
| Resolution | 0.1° | |
| Calibration | Hard magnetic calibration | available |
| soft magnetic calibration | available | |
| Magnetic filed interference calibration method | Rotate 360° horizontally; rotate 360° vertically | |
| RS-232/RS485/TTL | 5PIN quick plug connector | |
| Interface | start delay | <50mS |
| Max output rate | 20Hz/s | |
| Communication rate | 2400 to 19200baud | |
| Output format | Binary high performance protocol | |
| Power supply | Power voltage | (default)DC+5V |
| Current(max) | 30mA | |
| Ideal current | 26mA | |
| Sleep mode | TBD | |
| Environment | Working temp. | -40ºC~+85ºC |
| Storage temp. | -40ºC~+100ºC | |
| Anti-shock performance | 100g | |
| Protection level | IP67 | |
| Electromagnetic compatibility | According to EN61000and BT17626 | |
| MTBF | ≥40000 hour/time | |
| Insulation resistance | ≥100M.O. | |
| Anit-impact | 100g@11ms,3Times/Axis(half sinusoid) | |
| Anti--shock | 10grms,10~1000Hz | |
| Size | L110×W19.5×H19.5mm | |
| Weight | 80g(not include cable) | |
PRODUCT ORDERING INFORMATION
E.g:HCM375B-232:360tilt 3D with seal/RS232 output
ELECTRICAL CONNECTION
| Color and function | BLACK | WHITE | GREEN | RED | GRAY |
| GND | RS232(RXD) Or RS485(D+) | RS232(TXD) Or RS485(D-) | Vcc 5V Power supply positive pole | Factory use |
Any detail please contact me:
