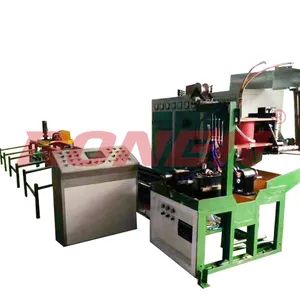

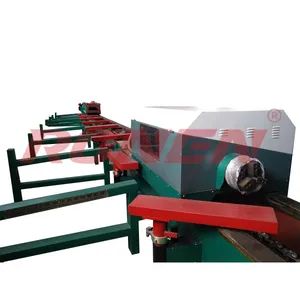

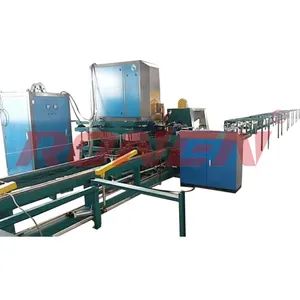

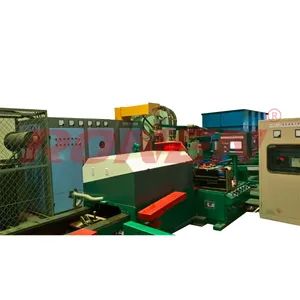

Heat Copper Finned Tube Cooling Condenser Coil Low Finned Tubes Making Machine
Piece
Negotiable
Product information
High-quality Heat Copper Finned Tube Cooling Condenser Coil Low Finned Tubes Making Machine supplied by Beijing Ron-En Machinery & Integration Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Fin Thickness(Mm):
0.8-3mm
Fin Per Inch(Fpi):
1-6
Fin Height(After Welding) (Mm):
10-35mm
Tube Wall Thickness(Mm):
2-15mm
Tube Diameters (Mm):
25-219mm
Compressed Air:
4-6 Kg/Cm2
Segment Width(Mm) For Serrated Fins:
4mm
Tube Length (Mm):
5000-28000mm
Specifications
Fin Thickness(Mm):
0.8-3mm
Fin Per Inch(Fpi):
1-6
Fin Height(After Welding) (Mm):
10-35mm
Tube Wall Thickness(Mm):
2-15mm
Tube Diameters (Mm):
25-219mm
Compressed Air:
4-6 Kg/Cm2
Segment Width(Mm) For Serrated Fins:
4mm
Tube Length (Mm):
5000-28000mm
Welding Position From Tube(Mm):
70
Uncut Base(Mm) For Serrated Fins:
8mm
Tensile Test:
Acceptance Criteria-170MPa
Tube Material:
Carbon Steel, Low Alloy Steel, Stainless Steel, He
Fin Material:
Carbon Steel, Low Alloy Steel, Stainless Steel.
Electric Current:
DC
Transport Package:
Export Packaging
Trade Term:
FOB, EXW, CFR, CIF
Origin:
Hebei, China
Frequency Range:
High Frequency
Payment Term:
LC, T/T
Fin Tube Straightness:
Max.5mm Per 3000mm
Trademark:
RONEN
Model NO.:
Ronen-CPG-005
Frequency Converter:
Simens
Port Of Loading:
Tianjin, Qingdao
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-10-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Tianjin, Qingdao
Certificates:
CE Certification, Certifaction, Certification
Product descriptions from the supplier
Ronen Groupis committed to designing and manufacturing of induction heating equipment, which are widely used inServes industries such as construction, metal processing, paper production, automotive manufacturing, and more, addressing all demands related to steel pipe joint welding, stainless steel pipe joining, strip preheating, vacuum fusion, copper tubing joining, steel pipe softening, refrigeration coil welding, metal tempering, metal casting, welding operations, brazing, thermal fitting, and various induction heating applications, featuring spring steel wire, high-strength pipe piles, PC steel bars / PC rods, pre-tensioned steel wires, pre-stressed concrete tendons, reinforcing bars, aluminum-plastic tubing, and wire and cable manufacturing machinery lines.
Ronen Group Our domestic presence exceeds 60%, and over the past few years, our equipment has been shipped to the USA, Europe, Russia, Egypt, Japan, Korea, and over 25 other nations.
Ronenwill always be here for you!
| 1.TUBES | ||||
| Tube diameters (mm) | 25~89 or 76~165 or 114~219 | |||
| Tube wall thickness(mm) | 2~15 | |||
| Tube length (mm) | 5000~28000 | |||
| Tube material | Carbon steel, low alloy steel, stainless steel, heat resistant high, high alloy steel | |||
| 2.FIN | ||||
| Fin thickness(mm) | 0.8-3 | |||
| Fin height(after welding) (mm) | 10-35 | |||
| Fin material | Carbon steel, low alloy steel, stainless steel. | |||
| Segment Width(mm)-for serrated fins | 4 | |||
| Uncut base(mm)-for serrated fins | 8(±1.7mm) | |||
| 3.ELECTRIC EQUIPMENT | ||||
| hi-frequencywelding equipment | GP300KW-H | |||
| frequency converter,PLC,Contact operation screen | SIMENS | |||
| 4.PERFORMANCE PARAMETERS(works size) | ||||
| Fin per inch(FPI) | 1-6 | |||
| Welding position from tube(mm) | 70 | |||
| 5.TESTING | ||||
| Tensile Test | Acceptance criteria-170Mpa | |||
| Fin tube straightness | MAX.5mm per 3000mm | |||
| 6.ELECTRIC POWER SUPPLY | ||||
| Voltage | 380V,3 phases | |||
| Frequency | 50 Hz | |||
| 7.AIR SUPPLY | ||||
| Compressed air | 4-6 kg/cm2 | |||
| 8. | Total Price(ex-factory) | |||
High Frequency Finned Tube ApplicationsHigh frequency welding fin tube is widely used in High-efficiency heat exchange solutions serve sectors including petrochemicals, manufacturing, metal processing, rubber, textile coloring, pharmaceuticals, food processing, power generation, automotive production, drying systems, and industrial thermal management. These solutions cover the convective zones of cracking furnaces, transformation furnaces, heat exchangers, air preheaters, economizers, crystallizers, radiators, and heat pipe systems, delivering peak thermal performance. High-frequency welded fin tubes, particularly steel fin radiators, are extensively deployed in commercial offices, homes, hospitality venues, and factories, offering superior thermal output and have fully replaced conventional cast iron and plate radiators.
1.1 The machine tool achieves full automatic working state, with automatic clamping, automatic loading, feeding and unloading functions.
1.2 Three-dimensional electric adjustment is used in welding part and electric adjustment is used in supporting part.
1.3 HF Welder power: 300KVA Electronic tubes type---suitable for welding carbon steels, alloy steels, Stainless steels.
The machine is constructed using a steel framework. The base is assembled from 12mm steel sheets and channel sections, ensuring structural integrity. The guide rail is manufactured through forging, followed by precision milling and grinding using 40Gr material, enabling smooth rolling contact between the carriage and rail.
The tractor's front drive unit uses a 7.5 kW cycloidal gearbox paired with a variable speed motor, delivering an output of 30 kW. The spiral feeding mechanism is powered by a 3.0 kW variable frequency motor via a dual-stage reducer to perform both feeding and rapid retraction operations.
The dual-directional point movement enables PLC-driven operation of two variable frequency motors. The tube support frame, finned tube support structure, and discharge mechanism are all managed via photoelectric sensors to achieve automatic length programming, mid-process welding pauses, and variable pitch tuning.
2.3 Adopt advanced pneumatic loading clamper, clamping disc adopts domestic advanced pneumatic disc.
Features an automated fin strip supply system; the loading frame, feeding unit, and discharge mechanism operate via PLC programming. The support frame for finned tubes and the discharge frame utilize an automatic flipping design.
The winding welding component uses cutting-edge international design principles. The core structure is constructed from steel and precision-machined for enhanced durability and stability. Movement in all directions—left, right, up, and down—is controlled electronically, offering smooth and reliable performance. Tube support is also electronically regulated, leveraging modern engineering for straightforward and dependable function. The electrode plate and conductor are positioned directly adjacent to the workpiece to minimize energy loss and maximize output efficiency. The electrode design features multiple forged red copper segments, ensuring solid conductivity, economical pricing, and easy maintenance.
Transformers, upper and lower contacts, support frames, tape holders, and tape pulleys are all pneumatic components equipped with pressure control valves enabling real-time adjustment of cylinder pressure
Q: Are you manufacturer?
A:Yes, We are manufacturer.
Q: How to order?
A:Please send us your inquiry by email, send message through****** , Wechat, Whatsapp or others as you want.
Q: What are the payment terms?
A: Pattern :we can acceptT/T,Western Union ,Money Gram.
Q: What is the whole business flow cooperation with us?
A: 1.Firstly,send your inquiry to us, make us have learned your requirement
2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay 30% deposit.
3.All of the goods, packing details will be send to buyer after finished production. We will arrange shipment and the buyer finished to pay the balance.
Q: Are you manufacturer?
A:Yes, We are manufacturer.
Q: How to order?
A:Please send us your inquiry by email, send message through****** , Wechat, Whatsapp or others as you want.
Q: What are the payment terms?
A: Pattern :we can acceptT/T,Western Union ,Money Gram.
Q: What is the whole business flow cooperation with us?
A: 1.Firstly,send your inquiry to us, make us have learned your requirement
2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay 30% deposit.
3.All of the goods, packing details will be send to buyer after finished production. We will arrange shipment and the buyer finished to pay the balance.
