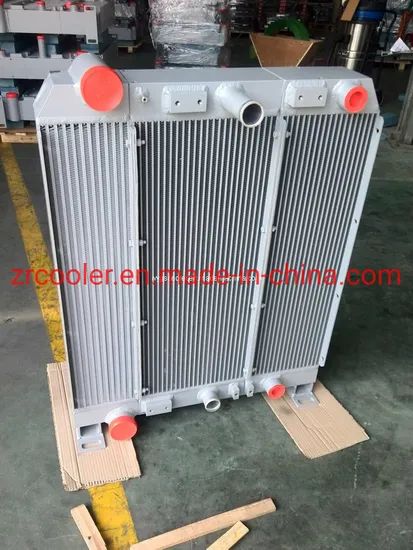

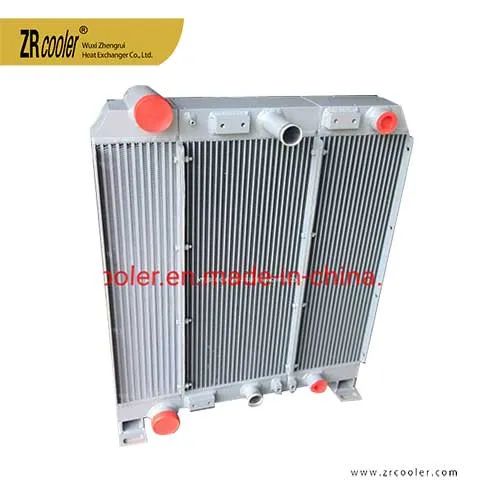

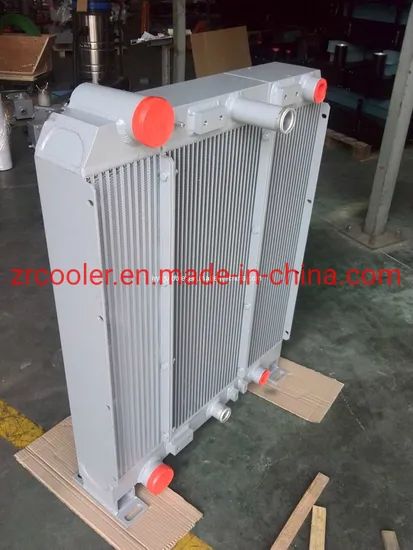

Heat Exchanger (B1001)
5 Piece
$1005 Piece
$10Product information
High-quality Heat Exchanger (B1001) supplied by Wuxi Zhengrui Heat Exchanger Co., Ltd.. Bulk wholesale pricing ranges from $10 to $100 per Piece with a minimum order of 5 Piece. Inquiry for latest prices.
Production Capacity:
10000PCS
HS Code:
87089100
Model NO.:
B1001
Trade Term:
FOB, EXW, CIF
Application:
Heater, Cooler
Origin:
Jiangsu Wuxi
Payment Term:
LC, T/T
Structure Material:
Metal Material
Specifications
Production Capacity:
10000PCS
HS Code:
87089100
Model NO.:
B1001
Trade Term:
FOB, EXW, CIF
Application:
Heater, Cooler
Origin:
Jiangsu Wuxi
Payment Term:
LC, T/T
Structure Material:
Metal Material
Principle:
Mixing Heat Exchanger
Trademark:
N/M
Heat Transfer Surface:
Plate Bar
Specification:
SGS
Port Of Loading:
Shanghai, Ningbo
Transport Package:
Wooden Pallet
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-06-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
Shanghai, Ningbo
Certificates:
a cooling structure for wind-driven generator, A heat dissipation device for wind-driven generator, An electromechanical radiator for easy installation, Easy-to-Install Heat Sink for Electromechanical Equipment, Heat Dissipation Device for Wind Turbine Generators, Heat Dissipation Mechanism for Wind Turbines, High-Strength Corrosion-Resistant Heat Exchanger, ISO 9001, ISO 9001 CHINESE, SGS supplier, TIG Welding Machine with a Cooling Device
Product descriptions from the supplier
P-Bar design for high volume OE Mobile Applications
Structure: Air cooled"plate and bar"design(P-Bar design)
Incorporates radiator, hydraulic oil and charge air coolers into one package
Material: Aluminum alloy
Application:Construction Machinery, such as excavator, roller, bulldozer, paver, pulverizer, etc
Features:

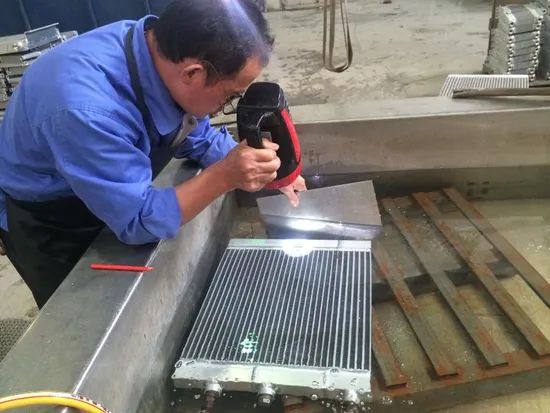

-Modules are pressure and leak tested, assembled and packaged
-prototypes and production products can be completed in a short lead time.
-production core geometries for radiators(water-air), oil coolers(oil-air), air coolers for engines(CAC). Air coolers for compressors(air-air), air-oil welded combos.
-P-Bar complete cooling packages can be equipped with fan, motor, finger guard, etc
Advantages:
-Superior performance
Aluminum, as up to 25% higher heat transfer capacity in comparison to traditional cooper/brass cooling material
-Rugged, Lightweight and compact
-Air-side fin design minimizes fouling and static pressure ensuring long-term reliable performance
-Welded aluminum fittings/ports and manifolds ensure structural integrity
-Standard prots-SAE, NPT AND BSPP ports available
-Customized units are available to meet your specific performance requirements.
If you have any interest, please contact us
Products Structure

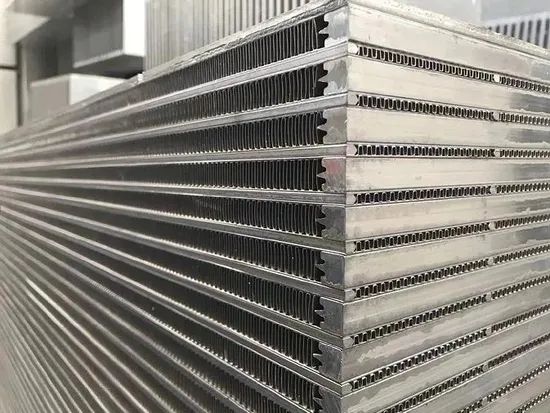

Core Structure-Aluminum plate&bar(P-BAR)
Products Range:
·Customised oil air cooler for compressors
·Compressed air coolers and combined cooler for contruction machinery
·Oil coolers for hydraulic system and engines.
·Air coolers and radiators
·Complete fan units with DC/AC and hydraulic motors Cooling systems

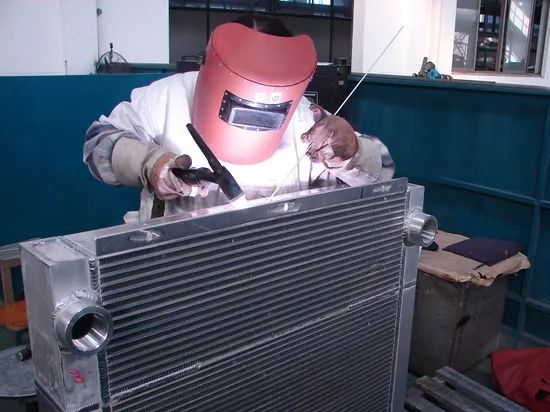

Manufacture Procsse
-Modules are pressure and leak tested, assembled and packaged
-prototypes and production products can be completed in a short lead time.
-production core geometries for radiators(water-air), oil coolers(oil-air), air coolers for engines(CAC). Air coolers for compressors(air-air), air-oil welded combos.
-P-Bar complete cooling packages can be equipped with fan, motor, finger guard, etc
FAQ
Q1. What is your terms of packing?
A: Generally, ZRcooler pack our goods in wooden boxes . If you have legally registered patent, We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your sample policy?
A: ZRcooler can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, it will take one month after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, Manuwell can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7.How do you make our business long-term and good relationship?
A: 1. ZRcooler keep good quality and competitive price to ensure our customers benefit;
2. ZRcooler respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Structure: Air cooled"plate and bar"design(P-Bar design)
Incorporates radiator, hydraulic oil and charge air coolers into one package
Material: Aluminum alloy
Application:Construction Machinery, such as excavator, roller, bulldozer, paver, pulverizer, etc
Features:
-Modules are pressure and leak tested, assembled and packaged
-prototypes and production products can be completed in a short lead time.
-production core geometries for radiators(water-air), oil coolers(oil-air), air coolers for engines(CAC). Air coolers for compressors(air-air), air-oil welded combos.
-P-Bar complete cooling packages can be equipped with fan, motor, finger guard, etc
Advantages:
-Superior performance
Aluminum, as up to 25% higher heat transfer capacity in comparison to traditional cooper/brass cooling material
-Rugged, Lightweight and compact
-Air-side fin design minimizes fouling and static pressure ensuring long-term reliable performance
-Welded aluminum fittings/ports and manifolds ensure structural integrity
-Standard prots-SAE, NPT AND BSPP ports available
-Customized units are available to meet your specific performance requirements.
If you have any interest, please contact us
Product Description
Basic Info.
| Ratings |
Maximum operating pressure |
Maximum operating temperature |
| Radiator |
30psi |
250°F |
| Charge air cooler |
30psi |
475°F |
| Oil cooler/transmission cooler |
250psi |
350°F |
P-Bar design for high volume OE Mobile Applications
Structure: Air cooled"plate and bar"design(P-Bar design)
Incorporates radiator, hydraulic oil and charge air coolers into one package
Material: Aluminum alloy
Application:Construction Machinery, such as excavator, roller, bulldozer, paver, pulverizer, etc
Products Structure
Core Structure-Aluminum plate&bar(P-BAR)
Products Range:
·Customised oil air cooler for compressors
·Compressed air coolers and combined cooler for contruction machinery
·Oil coolers for hydraulic system and engines.
·Air coolers and radiators
·Complete fan units with DC/AC and hydraulic motors Cooling systems
Manufacture Procsse
-Modules are pressure and leak tested, assembled and packaged
-prototypes and production products can be completed in a short lead time.
-production core geometries for radiators(water-air), oil coolers(oil-air), air coolers for engines(CAC). Air coolers for compressors(air-air), air-oil welded combos.
-P-Bar complete cooling packages can be equipped with fan, motor, finger guard, etc
Installation:
1.To ensure the cooling effect, adequate air suction distance shall be maintained with 1/2 of the fan dianeter as the minimum suction distance.
2.The two oil ports on the cooler can be used as the oil outlet or inlet according to the actua conditions. When installing the oil inlet and outlet pipe please tighten the screws on the cooler with proper tools to avoid damage to the cooler;
3.Applicable thread:PT(British),RC(Japan),ZG(China Standard) products of other specifications can be customized.
4. To connect the oil filter in series, it must be installed at the front stage of the cooler
5. Connect the electricity marked on the cooler to work. If it is DC or three-phase voltage, please confirm whether the wind direction is consistent with the wind direction (red arrow) marked on the cooler.
Wuxi Zhengrui Heat Exchanger Co.,LTD is a special company which is engaged in design and manufacture for "aluminum plate-bar heat-exchanger". It is established by a group of special experts who have more than twenty years' industry design and manufacture experiences.
Zhengrui supply global standard coolers and customized coolers for many uses including industrial hydraulic, air compressor, on-road&off-road vehicles and construction machinery applications etc.
Now more than 50% ZR coolers are exported to all over the world, such as UK, Germany, USA, Canada, Australia, etc. We have long and stable cooperation with all the customers.
Zhengrui professional technical team and manufacture team will provide you with excellent coolers.
| Company features: »Good business, technical communication » Years of industry design experience » Professional technical software support » Total cooling system solutions » Quality control » Professional teamwork » Delivery guarantee |
|
R&D is always as the leading force in Zhengrui development.
Our R&D team provides:
·The new product design.
·Prototype built and validation.
·The technology design.
·Cooler design and production according to thermal data and drawing.
"ONE STOP"service is what we doing now.
Varied products catalogues and flexibility is our value.
Varied products catalogues and flexibility is our value.
1.Each product must be 100% tested before delivery
2.Provide the technical design and solutions of your products
3.Provide accessories for the products you buy at any time
FAQ
Q1. What is your terms of packing?
A: Generally, ZRcooler pack our goods in wooden boxes . If you have legally registered patent, We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your sample policy?
A: ZRcooler can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, it will take one month after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, Manuwell can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7.How do you make our business long-term and good relationship?
A: 1. ZRcooler keep good quality and competitive price to ensure our customers benefit;
2. ZRcooler respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
