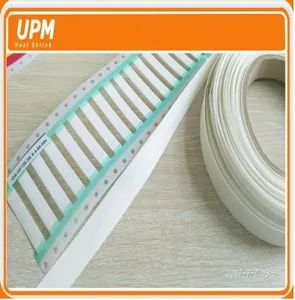

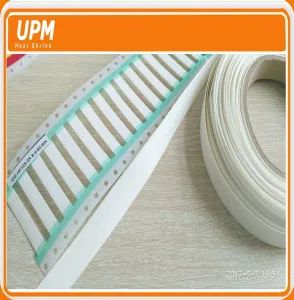

Heat Shrink Identification Sleeve for Cable Mark Insulation and Protection Continuous Length 20m/Roll or Ladder Format Ultra Thin Wall Shrinkable Tube
Meters
Negotiable
Product information
High-quality Heat Shrink Identification Sleeve for Cable Mark Insulation and Protection Continuous Length 20m/Roll or Ladder Format Ultra Thin Wall Shrinkable Tube supplied by Union Polymer Material Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Termal Endurance:
-55~125°c
Thermal Rating:
125 °c
Shrink Ratio:
2:1
HS Code:
39173200
Maximum Voltage:
600 V
Origin:
Dalian China
Port Of Loading:
Dalian Port
Trade Term:
FOB, CIF, CFR, EXW
Specifications
Termal Endurance:
-55~125°c
Thermal Rating:
125 °c
Shrink Ratio:
2:1
HS Code:
39173200
Maximum Voltage:
600 V
Origin:
Dalian China
Port Of Loading:
Dalian Port
Trade Term:
FOB, CIF, CFR, EXW
Flexible:
Flame Retardant
Model NO.:
IDS-HF125
Type:
Insulation Sleeve & Tube
Payment Term:
LC, T/T, D/P
Transport Package:
Neutral Packaging
Chemistry:
Organic Insulation
Easy To Print:
RoHS Compliant
Material:
Rubber
Trademark:
UPM
Brand:
Upm Heat Shrink
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2002-12-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
200
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Dalian Port
Certificates:
Certificate, Certificates
Product descriptions from the supplier
IDS-HF125 Halogen Free Heat Shrinkable Polyolefin Identification Sleeves
| Features | |||
| Cross linked polyolefin | Operating temperature: -55~125 ºC | ||
| Flexible,flame retardant | Shrink temperature:110 ºC | ||
| Excellent printing property, permanent identification | Shrink Ratio:2:1& 3:1 | ||
| Easy to be printed | Halogen free, RoHS and REACH compliant | ||
| Excellent electrical, physical, chemical and printing properties. | |||
| Standards | |||
| UL224 125ºC 600V | |||
| Dimensions | |||
| Reference | As supplied(mm) | After recovered(mm) | Size for conductor |
| UPM IDS-HF125 | ID min. | ID max. | mm |
| Shrink ratio: 2:1 | |||
| 2.4 | 2.4 | 1.2 | 1.3-2.3 |
| 3.2 | 3.2 | 1.6 | 1.7-3.1 |
| 4.8 | 4.8 | 2.4 | 2.5-4.7 |
| 6.4 | 6.4 | 3.2 | 3.3-6.3 |
| 9.5 | 9.5 | 4.8 | 4.9-9.0 |
| 12.7 | 12.7 | 6.4 | 6.6-12.0 |
| 19.1 | 19.1 | 9.5 | 10.0-18.5 |
| 25.4 | 25.4 | 12.7 | 13.0-24.5 |
| 38.1 | 38.1 | 19.1 | 21.0-37.0 |
| 50.8 | 50.8 | 25.4 | 27.0-48.0 |
| Shrink ratio: 3:1 | |||
| 2.4 | 2.4 | 0.8 | 0.9-2.0 |
| 3.2 | 3.2 | 1.1 | 1.1-2.7 |
| 4.8 | 4.8 | 1.6 | 1.8-4.1 |
| 6.4 | 6.4 | 2.1 | 2.3-5.5 |
| 9.5 | 9.5 | 3.2 | 3.5-8.1 |
| 12.7 | 12.7 | 4.2 | 4.6-10.8 |
| 19.1 | 19.1 | 6.3 | 7.0-16.3 |
| 25.4 | 25.4 | 8.5 | 9.3-21.6 |
| ID=Internal Diameter | |||
| Technical Data | ||||
| Property | Test method | Values | ||
| Physical | Longitudinal shrinkage | ASTM D 2671 | ≤5% | |
| Tensile strength | ASTM D 2671 | ≥12 MPa | ||
| Breakdown elongation | ASTM D 2671 | ≥300% | ||
| Aging(158ºC/168hrs) | Breakdown elongation | ASTM D 2671 | ≥200% | |
| Heat shock | ASTM D 2671 | No cracking | ||
| Low temperature flexibility(-55ºC/4hrs) | ASTM D 2671 | No cracking | ||
| Electrical | Dielectric voltage Withstand | ASTM D 2671 | 2500V,60s No breakdown | |
| Volume resistivity | ASTM D 2671 | ≥1014Ω.cm | ||
| Dielectric strength | ASTM D2671 | ≥20 KV/mm | ||
| Chemical | Flammability | ASTM D 2671 | Self-extinguish in 60s | |
| Copper corrosion | ASTM D2671 | No corrosion | ||
| Printing performance | SAE AS81531 |
50 rubs, legible 30 strokes, legible |
||
| Fluids resistance (23ºC/24hrs) | SAE AS81531 | Printing legible | ||
| Typical application | ||||
| Special designed to meet the requirements of identification of wire and cables | ||||
| Ordering | ||||
| Standard color : White, Yellow | ||||
| Standard packaging on spools | ||||
| Please specify specification,color,quantity when ordering | ||||
Frequently Asked Q & A
Q1. You are a manufacturer or trading company?
A: We are a leading manufacturer of shrinkable materials,with best price,high quality and short lead time.
Q2. Can you accept sample orders?
A:Yes, we can accept sample orders and we can also provide free samples for your test if necessary.
Q3. What is your MOQ?
A:Normally, for standard thin wall heat shrink, MOQ is 300m. For standard medium/heavy wall tube MOQ is 500m per size.
Q4. What are your payment terms?
A: As usual, the trade term is FOB Dalian. For order amount less than 10,000 USD, it should be 100% T/T in advance. For order amount over 10,000 USD, 30% deposit and 70% balance against copy of BL is acceptable.
Q5. How can I get my order?
A: Per your requirements, we will arrange the cargo delivered by express (e.g. TNT, DHL, FedEx ) ,by land,by air or by sea. After that, we will give you the tracking number or other relative files for your reference.
Q6. How about your quality?
A: We are a trust worthy supplier for GE,Siemens for more than 10 years. Most of the products got the CE,UL,DNV,CCS and Rohs approval. Let's start with a small trial order or free samples before the formal order, then you will get a clear image about the product quality and the relevant cost for transportation.
Q7. How is the delivery time?
A: Usually within 3 weeks.
Q8. Could you offer certificate of origin (e.g. Form-A,Form-E,Form-F,Form-R)?
A: It is totally not a problem. To help you enjoy the tariff concession,we can prepare the relevant certificate of origin.
