Heavy Duty Mattress Flanging Machine
1-9 Piece
$100,00010 Piece
$6,000Product information
High-quality Heavy Duty Mattress Flanging Machine supplied by TAIZHOU FOXSEW SEWING MACHINE CO., LTD.. Bulk wholesale pricing ranges from $6,000 to $100,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
100PCS/Month
HS Code:
84522190
Specification:
CE
Transport Package:
Cartons
Needle Number:
Double Needles
Drive:
Electric
Trade Term:
FOB, CFR, CIF, EXW
Trademark:
FOXSEW
Specifications
Production Capacity:
100PCS/Month
HS Code:
84522190
Specification:
CE
Transport Package:
Cartons
Needle Number:
Double Needles
Drive:
Electric
Trade Term:
FOB, CFR, CIF, EXW
Trademark:
FOXSEW
Model NO.:
FX-B5
Application Place:
Factory
Thread Number:
Four Threads
Payment Term:
LC, T/T, Western Union, Small-amount payment
Transportation:
Ocean
Stitch Type:
Overlock
Applicable Thickness:
Thick Material
Packaging:
Wooden Case
Origin:
Zhejiang, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2005-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Not specified
Product descriptions from the supplier

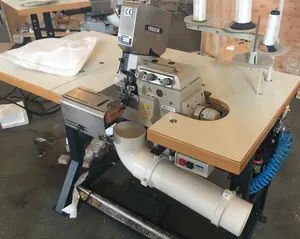

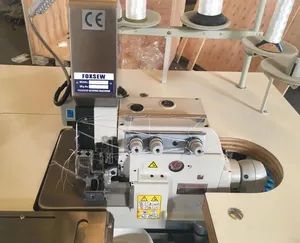

Heavy Duty Mattress Flanging Machine FX-B5
The FX-B5 Industrial Mattress Flanging Machine is primarily designed for flanging mattress cores and thick fabrics. It additionally joins non-woven material to the core through sewing.
Technical characteristics:
1, Japan PEGASUS high speed straight needle sewing head
2, Straight needle design,
3, With auto oiling system ensuring sufficient lubrication; with cartridge oil filter, easy for replacement & cleaning.
4, Push-button type stitch length regulator, no need for changing the cam
5, Micro adjustment of differential feeding ratio
6, Equipped with a thread and needle cooling mechanism, the system uses C10 oil to lubricate and cool the thread and needle, preventing breakage and thread skipping.
7, Adopt double-needle-five-thread synchronous structure and strong cloth-feeding system ensuring feeding precision and perfect seam,
8, The sewing speed is controlled with imported needle position motor and control box.
9, Equipped with pneumatic auto presser foot, equipped with special encoder to position needles,
10, Low noise, small vibration, stable performance
The FX-B5 Industrial Mattress Flanging Machine is primarily designed for flanging mattress cores and thick fabrics. It additionally joins non-woven material to the core through sewing.
Technical characteristics:
1, Japan PEGASUS high speed straight needle sewing head
2, Straight needle design,
3, With auto oiling system ensuring sufficient lubrication; with cartridge oil filter, easy for replacement & cleaning.
4, Push-button type stitch length regulator, no need for changing the cam
5, Micro adjustment of differential feeding ratio
6, Equipped with a thread and needle cooling mechanism, the system uses C10 oil to lubricate and cool the thread and needle, preventing breakage and thread skipping.
7, Adopt double-needle-five-thread synchronous structure and strong cloth-feeding system ensuring feeding precision and perfect seam,
8, The sewing speed is controlled with imported needle position motor and control box.
9, Equipped with pneumatic auto presser foot, equipped with special encoder to position needles,
10, Low noise, small vibration, stable performance
| Model No. | FX-B5 |
| Flanging Thickness | 35-80 mm |
| Flanging Width | 30 mm |
| Max. Rotate Speed | 5000 r.p.m |
| Stitch length | 2-5 mm |
| Needle Model | RM-6 22-23# |
| Needle Gauge | 2.0, 3.0, 5.0 mm |
| Air Presure | 0.5-0.8 Mpa |
| Sewing Head Type | PEGASUS |
| Upper Feed Belt Available | Yes |
| Needle Bar Type | Double-Bar |
| Pneumatic Cut Flanging | Yes |
| Power Supply | 380V/220V,50/60HZ, Single-Phase |
| Total Power | 550W |
| Machine Weight | 180 KGS |
