Heptafluoropropane Perfluorohexanone Fire Extinguishing Agent Filling Equipment
Piece
Negotiable
Product information
High-quality Heptafluoropropane Perfluorohexanone Fire Extinguishing Agent Filling Equipment supplied by Guangzhou Xingjin Fire Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Filling Pressure Alarm:
0~10 MPa (Adjustable, The Alarm Light Will Turn on
Nitrogen Decompression Range:
0~10 MPa Adjustable (Commonly Used: 4.2 MPa, 5.6 M
Drug Output Pressure:
0~3.6 MPa
Ambient Temperature:
0~50℃
Production Capacity:
30000 Sets Per Month
Equipment Size:
720×800×1280 mm (Excluding Runner)
Power Requirements:
AC 220V,50Hz
Trade Term:
FOB, EXW, CFR, CIF, DAT, DAP, CIP, CPT, Others, FCA
Specifications
Filling Pressure Alarm:
0~10 MPa (Adjustable, The Alarm Light Will Turn on
Nitrogen Decompression Range:
0~10 MPa Adjustable (Commonly Used: 4.2 MPa, 5.6 M
Drug Output Pressure:
0~3.6 MPa
Ambient Temperature:
0~50℃
Production Capacity:
30000 Sets Per Month
Equipment Size:
720×800×1280 mm (Excluding Runner)
Power Requirements:
AC 220V,50Hz
Trade Term:
FOB, EXW, CFR, CIF, DAT, DAP, CIP, CPT, Others, FCA
Port Of Loading:
Guangzhou
Origin:
Guangzhou, China
Payment Term:
LC, T/T, Western Union
External Connection Thread:
Threads for Reagent Inlet and Outlet and Nitrogen
Transport Package:
Wooden Box or Plywood Outer Box with Bubble Bag or
Model NO.:
XJ-QEO-006
Trademark:
Xingjin
Filling Accuracy:
±0.5%
Vacuum Degree:
≤ -0.09 MPa
Filling Density:
≤ 1420 Kg/M³
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2015-06-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, DAP, CIP, CPT, Others, FCA
Port Of Loading:
Guangzhou
Certificates:
CE Certificate for AFST, Certificate for China Compulsory Product Certification of Cabinet Type System, Certificate for China Compulsory Product Certification of Electromagnetic-controlled Device, Certificate for China Compulsory Product Certification of Pipe Network 4.2MPa System, Certificate for China Compulsory Product Certification of Pipe Network 5.6MPa, Certificate for China Compulsory Product Certification of Thermal Sensor Type Device, Certificate for IG100 Fire Suppression System, Certificate for IG541 Fire Suppression System, Environmental Management System Certification, Occupational Health and Safety Management System Certification, Quality Management System Certification
Product descriptions from the supplier
SONA2024 2.2.1
1 After the cylinder is valved, move it to the filling room. Secure the cylinder and connect the piping between the cylinder and the filling station. Adjust the electric contact pressure gauge alarm and the pressure reducing valve outlet pressure. Open the cylinder container valve and slowly open nitrogen valve F2 to fill with nitrogen, controlling the pressure increase rate to no more than 1 MPa/min, until the pressure reaches the specified maximum operating pressure (see Appendix 3, "Test Pressure Comparison Table" for details). Close the cylinder container valve and move the cylinder to the pressure test room for a cylinder seal test.
Product Description

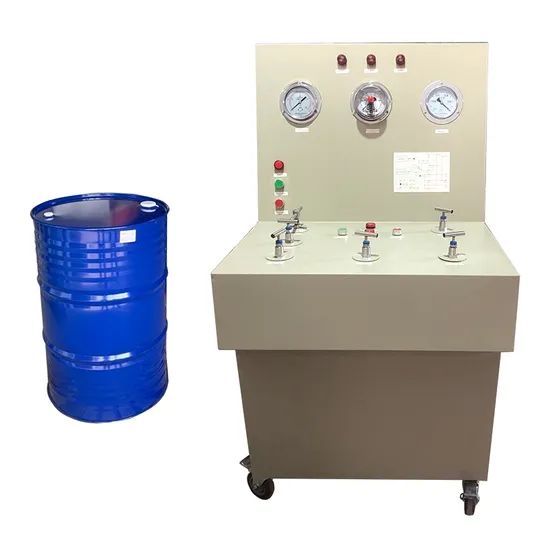

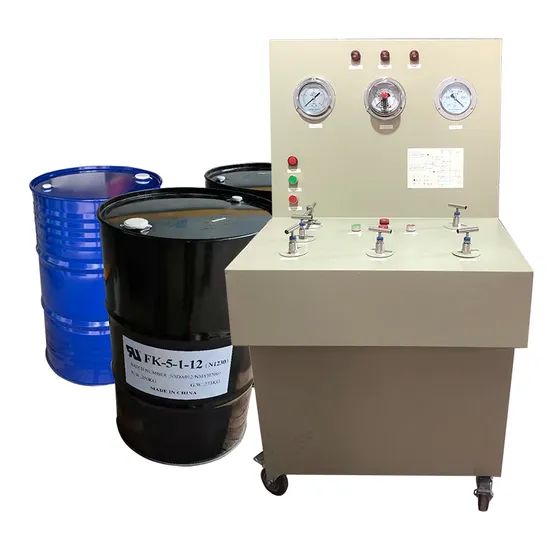

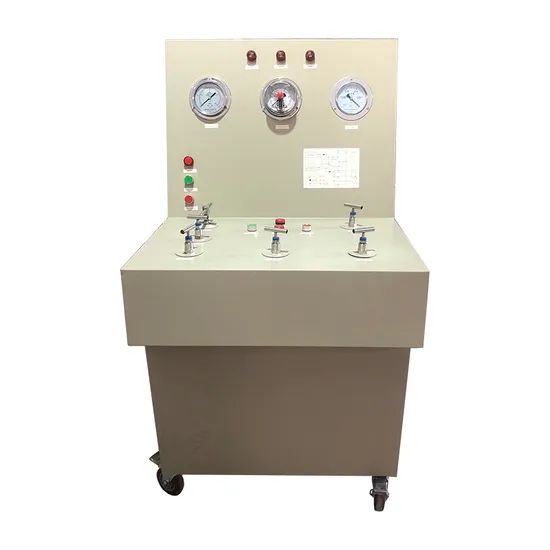

The perfluorohexanone fire extinguishing agent filling equipmentis a professional device that combines efficiency, safety, and precision, suitable for the maintenance and installation of perfluorohexanone fire extinguishing systems. Equipped with nitrogen pressure reduction, a filling pressure alarm, a vacuum system, and a reserved interface for weight alarm nodes, the equipment supports a variety of gas cylinder sizes, ensuring airtightness and accuracy during the fire extinguishing agent filling process.
Fm200is one kind of colorless and tasteless and electrically insulated gas without secondary pollution and ozone depleting potential value is zero. And after extinguishing, there is no any other residue in protection area. Meanwhile, it will not produce any corrosion which will destroy equipment or delicate device in protective zone. It is an efficient firefighting chemical substance friendly to environment. But there is one disadvantage. When the density of agent is higher than one certain point, It will produce a little toxic gas called HF. But it can be avoided or controlled by design. When we design one system, we need to calculate a appropriate density for your protection zone. Then this agent can be regarded as perfect extinguishing agent nowadays

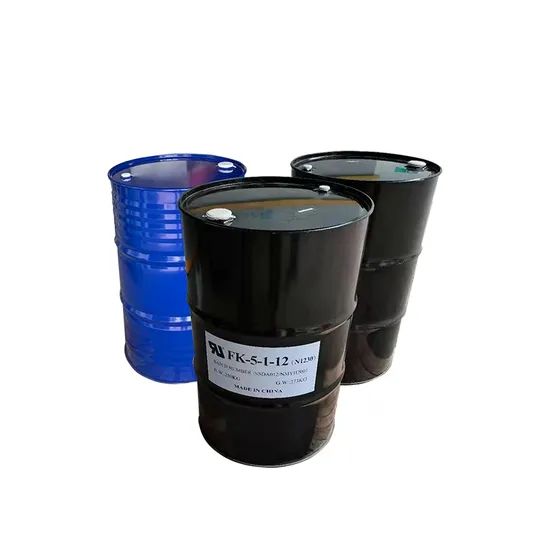

Novec1230fluid offers a unique combination of safety, low environmental impact and extinguishing performance, making it the only chemical halon replacement to offer a viable, long-term, environmentally sustainable technology for special hazards fire protection.
Specification
FM200 gas | Novec1230 gas | ||
Specification | Technical Parameter | Specification | Technical Parameter |
Appearance | Colorless liquefied gas | Appearance | Colorless liquefied gas |
Assay by GC | 99.9% min | Assay by GC | 99.9% min |
Moisture | 10ppm max | Moisture | 10ppm max |
Acidity as HF | 3 ppm max | Acidity as HF | 3 ppm max |
Non-volatile Residue | 0.05mg/100ml max | The mass fraction of the vaporized residue | 0.01% max |

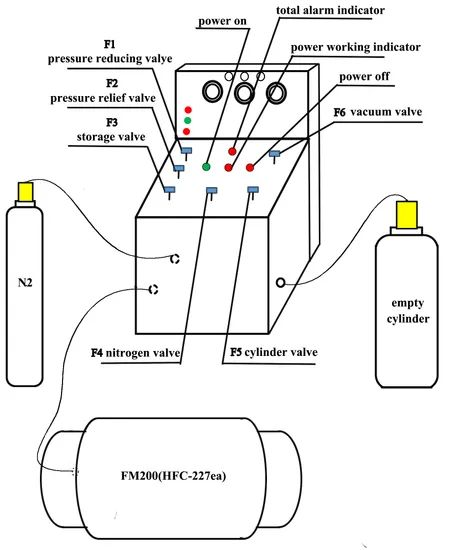

F1 Pressure Reducing Valve | Control the pressure of nitrogen when it enters the system to ensure a stable and safe filling process. |
F2 pressure relief valve | Release excess pressure in an emergency to protect equipment and gas cylinders from high pressure damage. |
F3 Chemical Storage Valve | Control the flow of fire extinguishing agent from the agent storage tank to the filling cylinder. |
F4 Nitrogen Storage Valve | Control the nitrogen gas from the storage tank into the equipment pipeline to provide pressure for filling the fire extinguishing agent. |
F5 gas cylinder valve | Used to connect fire extinguishing agent cylinders and control the opening or closing of the cylinder fluid channel. |
F6 Vacuum Valve | Used to open or close the extraction of air from the gas cylinder to reduce the pressure inside the cylinder and ensure the purity of the fire extinguishing agent. |
F7 valve | Control the flow of perfluorohexanone into the gas cylinder |
F8 valve | Controlled access to gas cylinders |
F9 valve | Control the passage of nitrogen into the gas cylinder and provide pressure for the gas cylinder. |
Heptafluoropropane filling operation:

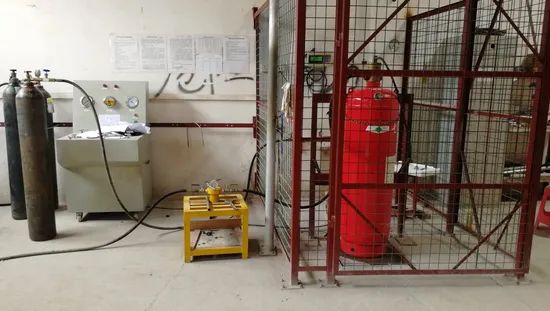

1 After the cylinder is valved, move it to the filling room. Secure the cylinder and connect the piping between the cylinder and the filling station. Adjust the electric contact pressure gauge alarm and the pressure reducing valve outlet pressure. Open the cylinder container valve and slowly open nitrogen valve F2 to fill with nitrogen, controlling the pressure increase rate to no more than 1 MPa/min, until the pressure reaches the specified maximum operating pressure (see Appendix 3, "Test Pressure Comparison Table" for details). Close the cylinder container valve and move the cylinder to the pressure test room for a cylinder seal test.
2 After the cylinder seal test passes, move it to the filling room's platform scale. Secure the cylinder and connect the piping between the cylinder and the filling station. Open the cylinder container valve and open the pressure relief valve F4 on the filling station to relieve the pressure. After pressure relief is complete, pressurize the filling station vacuum button and simultaneously open vacuum valve F5. Start the vacuum pump to evacuate the cylinder. When the pressure gauge pointer approaches -0.09 MPa and stabilizes, close vacuum valve F5 and the vacuum pump in sequence. Vacuum control schedule:
Volume | 8L-30L | 40L | 70L | 90L | 100L | 120L | 150L | 180L |
Minimum vacuum time | 30s | 40S | 50S | 56S | 60S | 65S | 78S | 93S |
3 Adjust the electric contact pressure gauge alarm and the pressure relief valve outlet pressure to 1 MPa. Then, sequentially open nitrogen valve F2 and filling valve F3 to fill the cylinder with nitrogen, displacing the gas in the cylinder. Slowly adjust the nitrogen pressure to 1 MPa. Once filling is complete, close nitrogen valve F2 and filling valve F3. Simultaneously, use a dew point meter to check the dew point of the gas in the cylinder and control it within 10 ppm. If the dew point is not within 10 ppm, re-evacuate and replace the gas with nitrogen until it is within 10 ppm before filling the agent.
4 Once the dew point in the cylinder meets the required dew point, open pressure relief valve F4. After pressure relief is complete, close pressure relief valve F4 and vacuumize the cylinder. After completion, close vacuum valve F5. First, subtract the weight of the cylinder from the scale and then set the desired weight of HFC-227ea fire extinguishing agent (according to the production order or planned requirements). Sequentially open HFC-227ea valve F1 and filling valve F3 on the filling station to fill the cylinder. Simultaneously, open the pressure gauge on the cylinder to relieve pressure. When the pressure gauge begins to release the extinguishing agent, stop relieving pressure and securely close the gauge. When the extinguishing agent reaches the set weight, the filling station will sound an overweight alarm, indicating completion and automatically shutting off the line. Then manually close HFC-227ea valve F1. During the filling process, maintain a rate of no more than 3 kg/s, with a filling volume tolerance of +0.5 to -0 kg (e.g., if the order requires 60 kg, control the filling volume to 60 to 60.5 kg).
5 Finally, perform nitrogen pressurization. First, adjust the pressure reducing valve outlet pressure to the HFC-227ea filling pressure under temperature conditions (refer to Appendix 2, "HFC-227ea Fire Extinguishing Agent Filling Temperature and Pressure"). Set the electric contact pressure gauge alarm. Then, slowly pressurize the cylinder. Open nitrogen valve F2 and filling valve F3 sequentially to increase pressure, controlling the pressurization rate to no more than 1 MPa/min. When the filling pressure reaches the specified pressure, close nitrogen valve F2 and filling valve F3. Simultaneously, close the cylinder container valve and open pressure relief valve F4 to relieve the pressure in the pipeline. After pressure relief is complete, remove the pipeline from the cylinder container valve, complete filling, and remove the cylinder.
6 After filling, allow the cylinder to rest for 1 hour. Verify the weight and pressure of the fire extinguishing agent in the cylinder. If there is no pressure or weight loss, move it to the semi-finished product area for storage. After storage for more than 24 hours, recheck the pressure before shipment. If the pressure is too low, re-pressurize to meet the corresponding pressure requirements. 3.7 If the pressure in the HFC-227ea tank is not enough to allow the agent to be discharged, the tank needs to be pressurized, and the added pressure shall not exceed 2MPa.
6 After filling, allow the cylinder to rest for 1 hour. Verify the weight and pressure of the fire extinguishing agent in the cylinder. If there is no pressure or weight loss, move it to the semi-finished product area for storage. After storage for more than 24 hours, recheck the pressure before shipment. If the pressure is too low, re-pressurize to meet the corresponding pressure requirements. 3.7 If the pressure in the HFC-227ea tank is not enough to allow the agent to be discharged, the tank needs to be pressurized, and the added pressure shall not exceed 2MPa.
