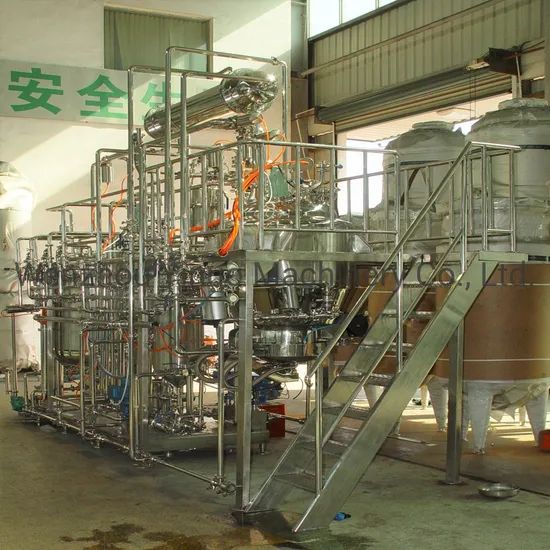

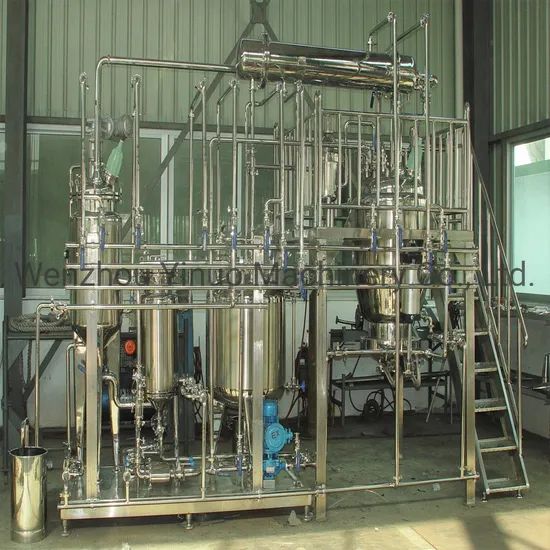

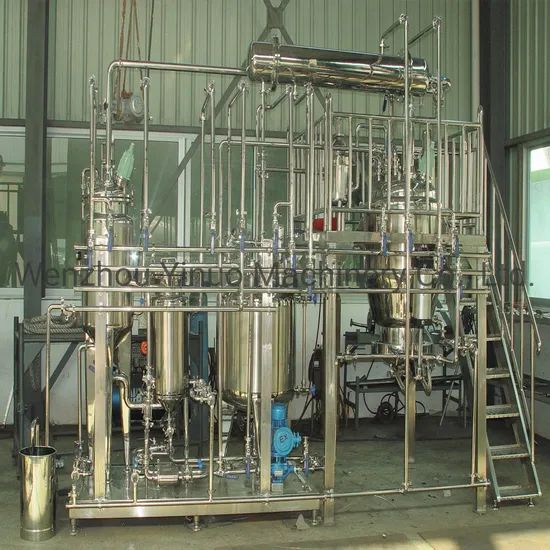

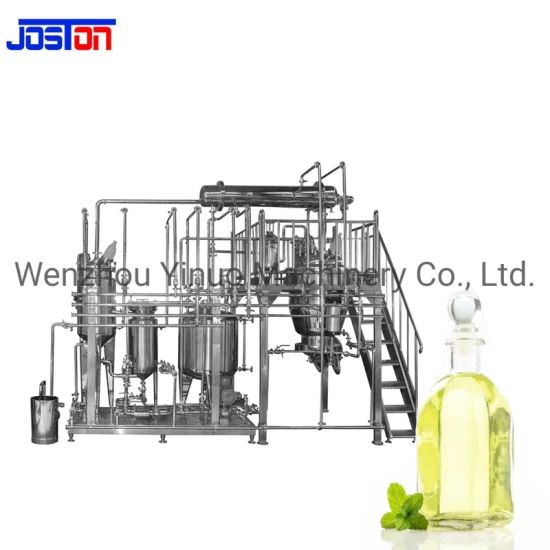

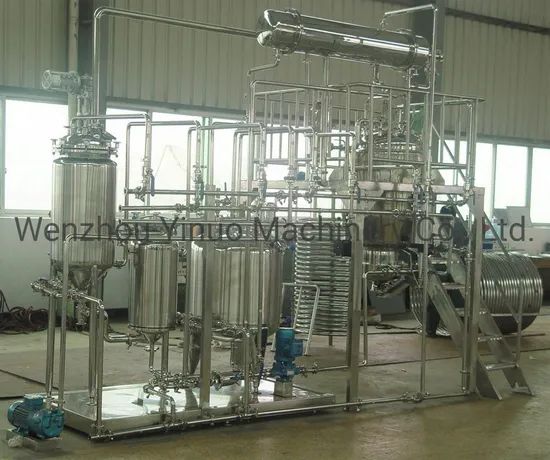

Herbal Extracts Machine for Production Extrator Plant Extracts Pharmaceutical Machine

Usage scope:
Solvent Essential Oil Extraction Machine means it is using the solvent based extraction machine equipment to extract the  essential oil active ingredents from the herbal raw material like the Plant rhizome: Aquilaria, ginger, aloe, clove ;Plant fruit: passion fruit, pepper, Oleoresin ,castor, star anise, grape seed, lemon etc

High Quality Aloe Oil Aquilaria Machine Aromatic Iso Solvent Based Essential Extraction methods :
solvent and raw material are put into in the extraction tank and start to give heat source to the inside shell raw material product. After the inside shell extraction tank boiling, and maintenance boiling for some time . then use the transfer pump to transfer the extraction solution to the collection tank , and then use the evaporator machine to evaporate the solvent and left the essential oil and collected and storage.

High Quality Aloe Oil Aquilaria Machine Aromatic Iso Solvent Based Essential Extraction including the following units:
 1.extraction distiller machine :
 1.1it can use the multifucntional tradition extraction tank ,which have the double jacketed strcture ,top equipped with manhole cover for the       flowers material loading ,bottom with the pneumatic discharge door gate .
 it is also can use the basket type extraction tank ,which flowers raw material can charge into the feeding basket ,then load the basket into the     extraction tank ,after extraction ,the residue material in the basket will can be take out too .
 1.2condenser : shell and tube type condenser material
 1.3sub-cooler : coil type sub-cooler
 1.4water /oil separator : it can be used to collect the essential
 1.5 pipeline and valve for the system

2.extraction storage tank: it can be single layer or double jacketed storage tank
3.evaporator machine : it is used to remove the solvent from the essential oil extractor solution .
4.essential oil storage tank

High Quality Aloe Oil Aquilaria Machine Aromatic Iso Solvent Based Essential Extraction technology parameter
1.contact product material is SS304 or SS316L
2.extraction volume can be made from 20L to 10000L per batch
3.evaporator machine can made for the differents type : single effect evaporator ,double effect evaporaor ,tri-effect evaporator
4.purify machine
5.storage tank
6.transfer pump and vacuum pump etc

SERVICE

We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)


FAQ

1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.

2.How will your company  control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .

3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .

4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.

5.Can  we  become  your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.

6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.

7.Do you supply installation equipment in oversea?
Yes, if need, we can  send our  engineer to your plant to help you do installation and commission.

8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every  week to make you to know the production status.When goods are finished,we will take  detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here

9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design  drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.

10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
