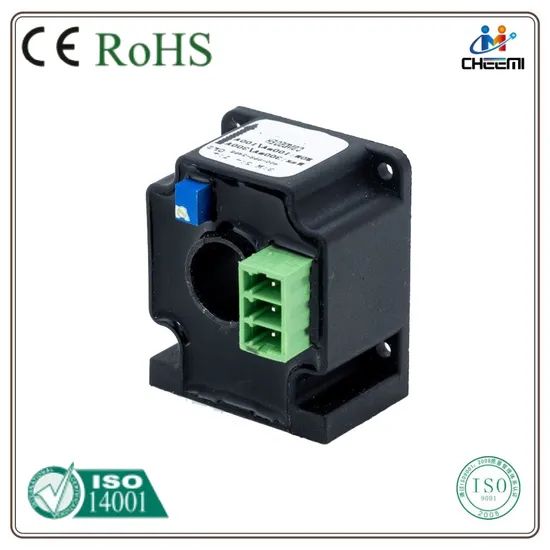

High-Accuracy Current Meter for Variable Speed Drive Systems
1 Piece
$0.1Product information
High-quality High-Accuracy Current Meter for Variable Speed Drive Systems supplied by Cheemi Technology Co., Ltd.. Bulk wholesale pricing is $0.1 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Supply Voltage:
+_12~+_18V +_5%
Accuracy Grade:
0.1G
Package Gross Weight:
1.000kg
Rated Input:
2-25/5-50/10-100/20-200
Package Size:
21.00cm * 15.00cm * 7.00cm
Production Capacity:
60000PCS/Year
HS Code:
90330000
Offset Drift:
@ -40 ~85 Degree ≤+_0.5
Specifications
Supply Voltage:
+_12~+_18V +_5%
Accuracy Grade:
0.1G
Package Gross Weight:
1.000kg
Rated Input:
2-25/5-50/10-100/20-200
Package Size:
21.00cm * 15.00cm * 7.00cm
Production Capacity:
60000PCS/Year
HS Code:
90330000
Offset Drift:
@ -40 ~85 Degree ≤+_0.5
Offset Current:
@IP=0 ≤0.2
Certification:
CE, RoHS, ISO
Model NO.:
CHB200EH15D
Trademark:
Cheemi
Origin:
China(Mainland)
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Primary Through Hole:
D10.5+-0.15mm
Trade Term:
FOB, CIF, CFR, EXW
IP Rating:
IP44
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Material:
Plastic
Production Process:
SemiConductor Integrated
Port Of Loading:
Shanghai Port
Specification:
Standard
Transport Package:
Standard Export Carton
Payment Methods:
Support payments in USD
Plastic Material:
UL94-V0.
Application:
Welding Machine, UPS, Variable Speed Drives
Power Consumption:
≤20+Ipx(Np/Ns)
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-02-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO14001, Others, ISO9001:2015
Product descriptions from the supplier
*Closed- loop (compensated) current transducer
*Supply voltage: DC±12~18V
*Capablemeasurement of currents:
DC, AC,pulse with galvanicisolationbetween primary circuit and secondary circuit.
*Supply voltage: DC±12~18V
*Capablemeasurement of currents:
DC, AC,pulse with galvanicisolationbetween primary circuit and secondary circuit.
*Variable speed drives
*Welding machine
*Battery supplied applications
*Uninterruptible Power Supplies (UPS)
*Electrochemical
*Welding machine
*Battery supplied applications
*Uninterruptible Power Supplies (UPS)
*Electrochemical
| Electrical data:(Ta=25ºC,Vc= ±15VDC) | ||||||
| Parmeter Ref |
CHB25EH15D | CHB50EH15D | CHB100EH15D | CHB200EH15D | ||
| Rated input Ipn(A) | 2-25 | 5-50 | 10-100 | 20-200 | ||
| Measuring range Ip(A) | 75(±18V,190Ω) | 150(±18V,82Ω) | 300(±18V,33Ω) | 600(±18V,10Ω) | ||
| Turns ratio Np/NS (T) | 1:1000 | 1:1000 | 1:1000 | 1:2000 | ||
| Output current rms IS(mA) | 2(2A)- 25(25A)±0.2% |
5(5A)- 50(50A)±0.2% |
10(10A)- 100(100A)±0.2% |
10(20A)- 100(200A)±0.2% |
||
| Secondary coil resistance RS (ohm) | 30 | 25 | 20 | 45 | ||
| Measure resister with ±12V RM (ohm) |
@±25Amax 390(max) | @±50Amax 190(max) | @±100Amax 90(max) | @±200Amax 82(max) | ||
| @±75Amax 115(max) | @±150Amax 45(max) | @±300Amax 15(max) | @±400Amax 10(max) | |||
| Measure resister with ±15V RM (ohm) |
@±25Amax 510(max) | @±50Amax 250(max) | @100Amax 120(max) | @±200Amax 80(max) | ||
| @±75Amax 150(max) | @±150Amax 68(max) | @±300Amax 25(max) | @600Amax 2.0(max) | |||
| Supply voltage VC(V) | (±12~±18) ±5% | |||||
| Offset current IOE(mA) | @Ip=0 ≤±0.2 | |||||
| Offset drift(mA) | @ -40ºC~85ºC ≤±0.5 | |||||
| Accuracy XG(%) | @IPN,T=25°C < ±0.2 | |||||
| Linearity error εr(%FS) | @Ip=0-±Ipn ≤0.1 | |||||
| Di/dt accurately followed(A/µs) | > 100 | |||||
| Response time tra(µs) | @100A/μS,10%-90% <1.0 | |||||
| Power consumption IC(mA) | ≤20+IpX(Np/Ns) | |||||
| Bandwidth BW(KHZ) | @ -3db DC…100 | |||||
| Insulation voltage Vd(KV) | @ 50HZ,AC,1min 3 | |||||
| General data: | |
| Parameter | Value |
| Operating temperature TA(°C) | -40 ~ +85 |
| Storage temperature TS(°C ) | -40~ +125 |
| Mass M(g ) | 30 |
| Plastic material | UL94-V0. |
| Standards | EN60947-1:2004 |
| IEC60950-1:2001 | |
| EN50178:1998 | |
| SJ 20790-2000 | |
| Dimensions(mm): |
 |
| Remarks: |
| 1. All dimensions are in mm. 2. General tolerance ±1mm. |
Package
All our sensors will be well packed with bubble & carton. (Bubble packing→4 small carton→1 big carton)
You can choose your own label(Screen Print or Laser Engraving).
Can be netural packing or OEM.
Shipping
Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
All our sensors will be well packed with bubble & carton. (Bubble packing→4 small carton→1 big carton)
You can choose your own label(Screen Print or Laser Engraving).
Can be netural packing or OEM.
Shipping
Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Q1:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
Q2:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
Q3:Can you provide help for technical issues?
A:Yes,we have more than 10 years of research and development in the electronic industry. If you need technical help in the purchase process, please feel free to contact us.
Q4 : Can I get a lower price if I order large quantities?
A : Yes,it's negotiable.
Q5: How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q6: Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
