High Accuracy Differential Pressure Transmitter Trademark GN Output 4-20mA IP Rating IP65 Origin Shanghai Certification ISO
1-49 Piece
$23450 Piece
$230Product information
High-quality High Accuracy Differential Pressure Transmitter Trademark GN Output 4-20mA IP Rating IP65 Origin Shanghai Certification ISO supplied by Shanghai Cixi Instrument Co., Ltd.. Bulk wholesale pricing ranges from $230 to $234 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Pressure Range:
0.001MPa～35MPa
Accuracy Grade:
0.5G
Connection:
1/2"NPT Female Thread
Output:
4-20mA
Production Capacity:
5000/Month
HS Code:
9026201090
Specification:
CE, ISO, SGS
Model NO.:
CX-PT-3051A
Specifications
Pressure Range:
0.001MPa～35MPa
Accuracy Grade:
0.5G
Connection:
1/2"NPT Female Thread
Output:
4-20mA
Production Capacity:
5000/Month
HS Code:
9026201090
Specification:
CE, ISO, SGS
Model NO.:
CX-PT-3051A
Body Material:
Cast Aluminiu
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
GN
IP Rating:
IP65
Certification:
ISO
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Measuring Medium:
Liquid
Transport Package:
Plywood/Carton
Origin:
Shanghai
Port Of Loading:
Shanghai Port
Diaphragm Material:
Ss316
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-11-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
39
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
Bussiness Licence, CE Certificates, conductmty meter, coriolis mass flow meter, digital pressure gauge, digital thermometer, dissolved oxygen meter, gas mass flow meter, ISO, ISO Certificate, Letter Patent, Measurement Certificate, ORP meter, oval gear flow meter, PH meter, pressure gauge, pressure switch, pressure transmitter, rotameter, SGS Certificates
Product descriptions from the supplier

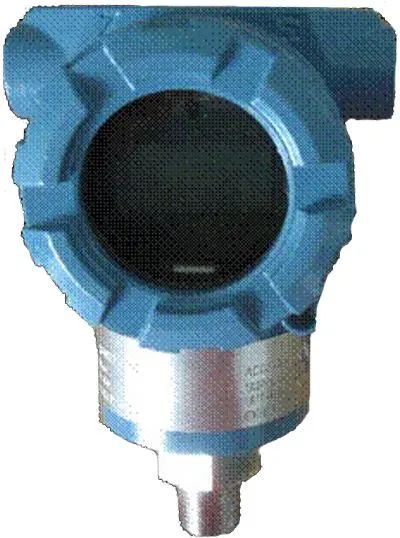

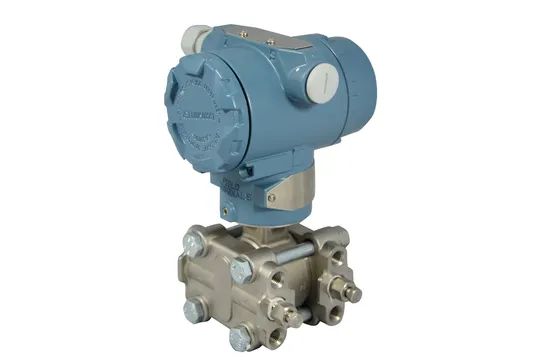

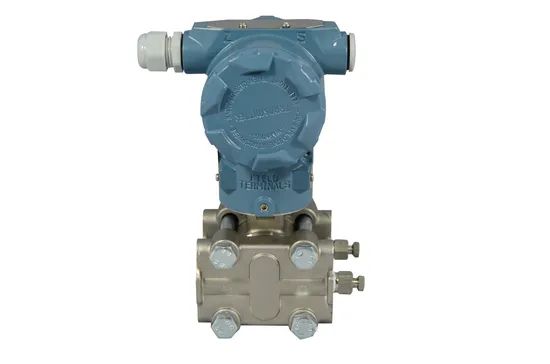

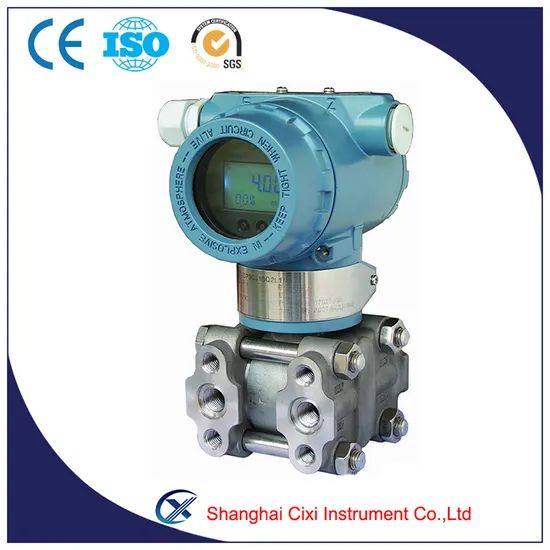

High Accuracy Differential Pressure Transmitter
Brief introduction

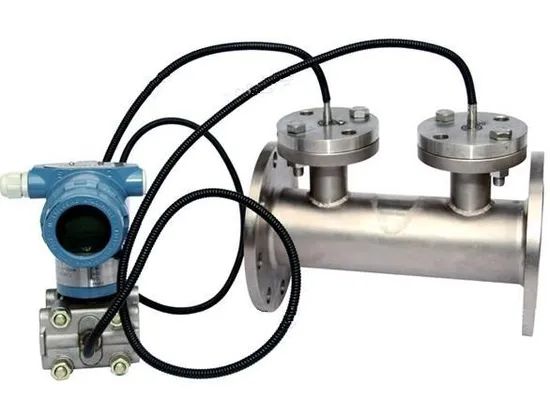

- Widely used for measuring differential pressure (or pressure), level, density of liquid, gas or steam and convert the value of above into current signal output or digital protocol output.
- The pressures are directly applied to the isolating diaphragm that provide isolation and resistance against process fluid corrosion.
- Being microprocessor based, the electronic circuit is extremely versatile and accurate.
- Combined with the sensor precision, it provides the high accuracy and range ability.
- Transmitter performance is improved by continuous monitoring of the sensor temperature and corresponding corrections.
- A local display permits easy reading and writing of data.
Wiring Diagrams
Connect the bench equipment as shown in Figure, and turn on the HART-based communicator by pressing the ON/OFF key. The communicator will search for a HART-compatible device and will indicate when the connection is made. If the communicator fails to connect, it will indicate that no device was found.
Production Line
Group Photo
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Our Integrity Promises your Quality !
Please contact with me, I will provide you professional service and high quality products.
| Medium | liquid, gas and steam | |
| Measuring Range | 0~0.1kPa to 0~40MPa | |
| Output | 4~20mA DC+HART protocol | |
| Accuracy | ±0.1%FS | |
| Range and null point | Adjustable | |
| Power Supply | 12~45V DC, generally 24V DC | |
| Protection | IP65 | |
| Storage Temperature | -40C-+125C | |
| Overload Limit | 150%-200% ofrated range | |
| Load Resistance | 750Ω(See below diagram 1 for load characteristic ) | |
| Relative Humidity | 5~95% | |
| Converter housing | Low copper cast aluminum alloy with Polyurethane paint | |
| Fill Fluid | Silicon / Fluorine Oil | |
| Process Connections | 1/2NPT, 1/4NPT | |
| Static pressure | 4, 10, 25, 32Mpa | |
| Mounting | Directly supported by piping or optionally with mounting bracket for 2" pipes or with direct or remote seals. 3-way valve | |
| Maximum positive shift | 500% of minimum adjusting span | |
| maximum negative shift | 600% of minimum adjusting span | |
| Material | Flange/Adaptor | Stainless Steel 316/Monel/ Haste alloy/Carton Steel |
| Drains/Vents | Stainless Steel 316/Monel / Haste alloy | |
| Diagrams | Stainless Steel 316/Monel /Haste alloy C/ Tantalum | |
| Wetted O-Ring | Viton/ Buna-N | |
| Seal O-Ring | Viton/ Buna-N | |
| Bolts & Nuts | Carton Steel/Stainless Steel316 | |
