High-Accuracy Measuring Machine for Micro-Quality Control (Mars)
1 set
$18,0001 set
$22,000Product information
High-quality High-Accuracy Measuring Machine for Micro-Quality Control (Mars) supplied by Zhuhai Xiangyi Technology Co., Ltd.. Bulk wholesale pricing ranges from $18,000 to $22,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Linear Scale Resolution:
0.5um
Weight(Kg):
100
Package Gross Weight:
110.000kg
Type:
2D Video Measuring System
Measurement Accuracy:
3um
Specification:
600*920*1880
Package Size:
600.00cm * 1000.00cm * 1800.00cm
HS Code:
9031499000
Specifications
Linear Scale Resolution:
0.5um
Weight(Kg):
100
Package Gross Weight:
110.000kg
Type:
2D Video Measuring System
Measurement Accuracy:
3um
Specification:
600*920*1880
Package Size:
600.00cm * 1000.00cm * 1800.00cm
HS Code:
9031499000
Operate Method:
CNC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB
Trademark:
MEAXPERT
Lens:
Manual Dented Zoom Lens with Magnification Signal
Model NO.:
Mars 190
Payment Methods:
Support payments in USD
Payment Term:
To be discussed
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
Certificate of Computer Software Copyright Registration of the National Copyright Administration of the People's Republic of China, QUALITY MANAGEMENT SYSTEM CERTIFICATION
Product descriptions from the supplier
SONA2024 2.2.1
Product Description

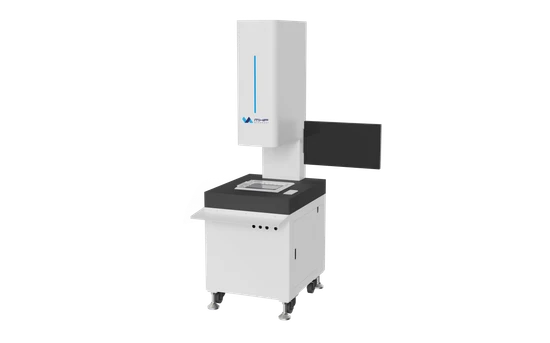

Mars series Vision Measuring Machine
The one-touch measuring instrument is named "Mars" to highlight the planet's harsh environment—dust storms, extreme cold, and high radiation—and its spirit of tenacious exploration. This resilience aligns with the industrial reliability demands of this imaging measuring device. Its marble base and high-precision guide rail design withstand workshop vibrations and temperature fluctuations to maintain measurement accuracy.
Equipped with digital image archiving, an ultra-high-definition CCD, and an optical zoom lens, the device clearly identifies micron-level defects and minute scratches on workpieces—the "microscopic battlefield"—providing traceable quality data for industrial production.It empowers manufacturing to make the shift from "experience-based judgment" to "data-driven decision-making," earning its reputation as the "Mars rover of the industrial world."
Specification
ltem | MARS 100 | MARS 190 | |
Dimension (mm) (X/Y/Z) | 540/830/1080 | 640/830/1080 | |
Measuring range (mm) (X/Y/Z) | 200/200/200 | 300/200/200 | |
Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 | |
Repeatabilty (μm) | 2.5 | 2.5 | |
Weight (kg) | 140 | 180 | |
CCD | 1.3M pixel digital camera | ||
Lens | Manual dented zoom lens with magnification signal feedback 0.7-4.5X | ||
Magnification | 24.7-160X (The value is for reference only and the actual magnification will change according to different combinations of camera and lens.) | ||
Field of view | 8.5~1.3mm (The value is for reference only and the actual FOV will change according to different combinations of camera and lens.) | ||
Working distance (mm) | 80 | ||
Linear scale resolution (μm) | 0.5 | ||
Driving system | X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function) | ||
Illumination | Programmable LED 8 section ring surface light, LED bottom parallel light | ||
Product Application
Aerospace Industry
Automotive Industry
Electronics Industry
Company Profile
Who is MEAXPERT (MXP)?
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
