High Accuracy Mini Navigation Compass
1 Piece
$2101 Piece
$235Product information
High-quality High Accuracy Mini Navigation Compass supplied by Nanjing Sky Mems Technology Co., Ltd.. Bulk wholesale pricing ranges from $210 to $235 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Pitch And Roll Accuracy:
0.1degree
Specification:
16.5*16.5*6.5mm
Production Capacity:
2000/Month
Power Supply:
3.3+-0.3VDC
HS Code:
9014100000
Transport Package:
Carton
Origin:
China
Model NO.:
ECB100
Specifications
Pitch And Roll Accuracy:
0.1degree
Specification:
16.5*16.5*6.5mm
Production Capacity:
2000/Month
Power Supply:
3.3+-0.3VDC
HS Code:
9014100000
Transport Package:
Carton
Origin:
China
Model NO.:
ECB100
Trade Term:
FOB, EXW, CFR, CIF, CIP
Accuracy Grade:
Heading 0.8degree
Certification:
ISO
Payment Term:
LC, T/T, Western Union, Money Gram
Customized:
Non-Customized
IP Rating:
PCB Based
Port Of Loading:
Shanghai
Trademark:
SkyMEMS
Interface:
Ttl
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-03-09
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, CIP
Port Of Loading:
Shanghai
Certificates:
SGS certificate
Product descriptions from the supplier
ECB100 Low cost 3d electronic compass
Main Features

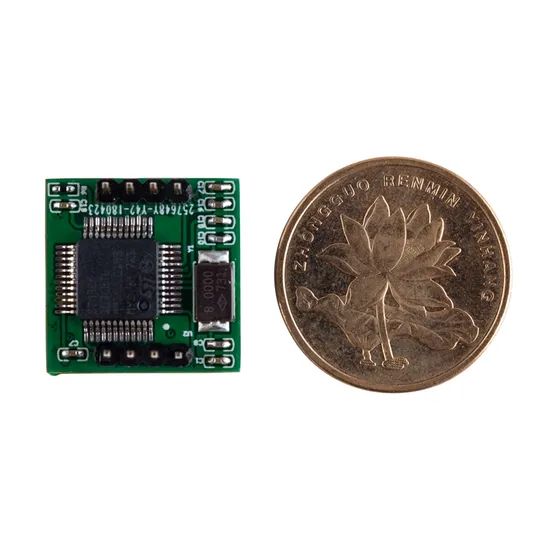

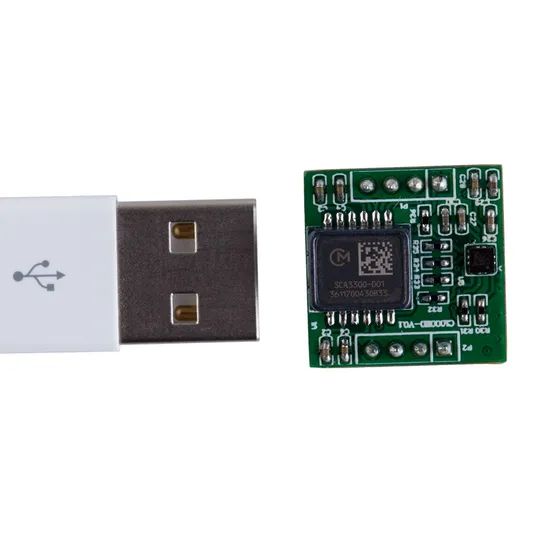

-SmallestSize: 16.5*16.5*6.5mm
-3D Angle (Heading, Pitch, Roll) Output
-Heading Accuracy: 0.8°RMS (25°C, Tilt Angle<30°)
-Pitch and Roll Accuracy: ±0.1°(25°C, Full Range)
-Hard/Soft Magnetic Compensation, Tilt Compensation
-Support User Calibration
-Power Supply: 3.3±0.3VDC,Interface: LV-TTL
-Widely Working Temperature: -40~+85°C
Brief Introduction

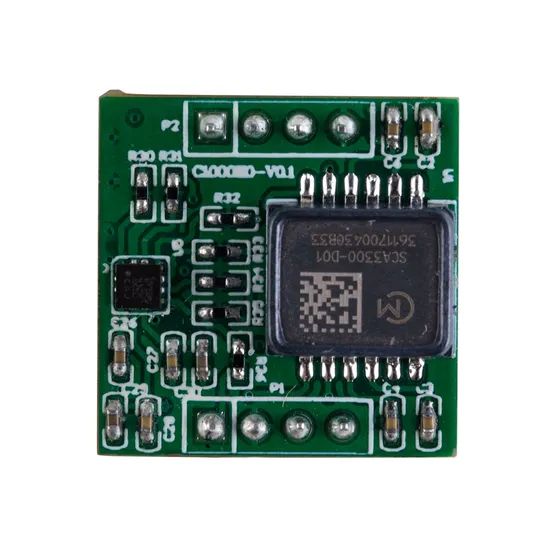

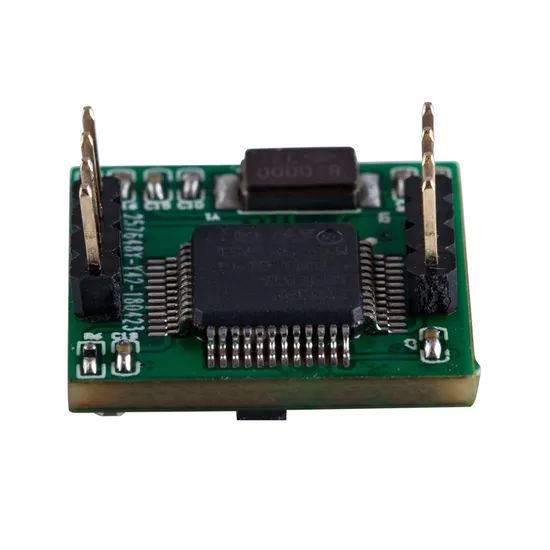

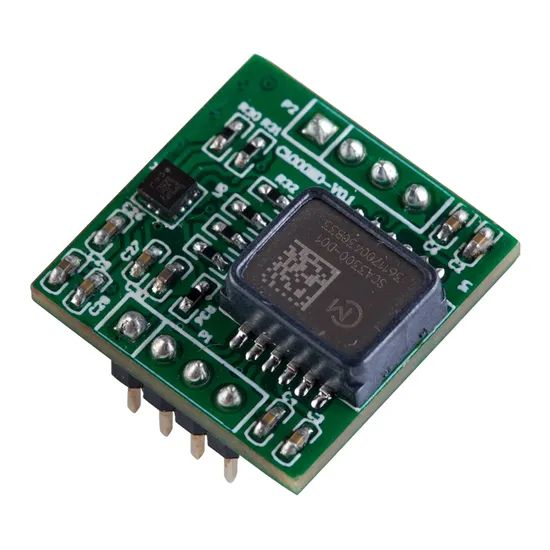

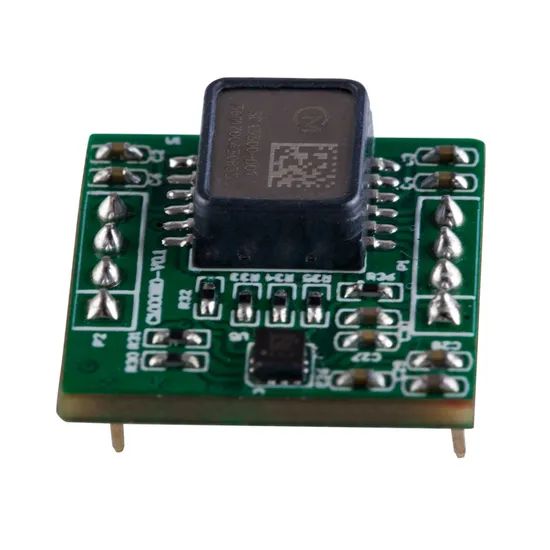

ECB100 electronic compass board is the smallest compass module that provides accurate heading and tilt readings, SkyMEMS'sadvanced hard and soft iron correction algorithms allow for compensation of magnetic distortions inherent in the user's system, resulting in reliable and consistent readings.
ECB100 integrates 3-axis magneto-inductive sensors, 3-axis MEMS accelerometer and central processing unit to calculate the heading data in real time and compensate the heading when it has inclination angle. ECB100 enjoys smallest size, high accuracy, low power consumption and low cost, which is very convenient to be integrated into different sytems, it has been widely used in infrared imager, antenna pointing, buoy, laser rangefinders, marine navigation fields, etc.
Technical Specifications
Typical Applications
-laser rangefinders
-antenna positioning
-buoy
-unmanned systems
-marine navigation fields
Heart and Fast Service
Main Features
-SmallestSize: 16.5*16.5*6.5mm
-3D Angle (Heading, Pitch, Roll) Output
-Heading Accuracy: 0.8°RMS (25°C, Tilt Angle<30°)
-Pitch and Roll Accuracy: ±0.1°(25°C, Full Range)
-Hard/Soft Magnetic Compensation, Tilt Compensation
-Support User Calibration
-Power Supply: 3.3±0.3VDC,Interface: LV-TTL
-Widely Working Temperature: -40~+85°C
Brief Introduction
ECB100 electronic compass board is the smallest compass module that provides accurate heading and tilt readings, SkyMEMS'sadvanced hard and soft iron correction algorithms allow for compensation of magnetic distortions inherent in the user's system, resulting in reliable and consistent readings.
ECB100 integrates 3-axis magneto-inductive sensors, 3-axis MEMS accelerometer and central processing unit to calculate the heading data in real time and compensate the heading when it has inclination angle. ECB100 enjoys smallest size, high accuracy, low power consumption and low cost, which is very convenient to be integrated into different sytems, it has been widely used in infrared imager, antenna pointing, buoy, laser rangefinders, marine navigation fields, etc.
Technical Specifications
| Parameter | Value | Remarks |
| Heading | ||
| Range | 0~360° | |
| Accuracy | 0.8° RMS | 25°C, tilt angle<30° |
| 1.2° RMS | 25°C, tilt angle<60° | |
| 1.5° RMS | 25°C, tilt angle<85° | |
| Resolution | <0.1° | |
| Tilt Performance Specs | ||
| Range | roll: ±180º , pitch: ±85º | |
| Accuracy | 0.1° RMS | 25°C |
| Resolution | < 0.01° | |
| Electronical Performance | ||
| Input Voltage | 3.3±0.3VDC | |
| Current | [email protected] | |
| Power Consumption | <0.15W | |
| Startup Time | ≤200ms | |
| Environment Condition | ||
| Working Temperature | -40~+85°C | |
| Communication Protocol | ||
| Communication Mode | LV-TTL | |
| Braud Rate | 2400~115200 | settable |
| Maximum Output Speed | 100Hz | ODM supported |
| Physical Parameter | ||
| Dimensions (L x W x H) | 16.5*16.5*6.5mm | without pins |
| Weight | around 6grams | |
Typical Applications
-laser rangefinders
-antenna positioning
-buoy
-unmanned systems
-marine navigation fields
Heart and Fast Service
