High Accuracy Small Lump Radar Level Meter for Small Particles
1 Piece
$2,0001 Piece
$480Product information
High-quality High Accuracy Small Lump Radar Level Meter for Small Particles supplied by Holykell Technology Company Limited. Bulk wholesale pricing ranges from $480 to $2,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Process Temperature:
-40~120℃
Range:
0-70m
Martial:
316 Sst or 304 Sst
Accuracy Grade:
3mm
Production Capacity:
5000 PCS / Month
Certification:
Ce RoHS FCC
Origin:
China
Medium:
Corrosive Liquid Measurement in Chemical Industry
Specifications
Process Temperature:
-40~120℃
Range:
0-70m
Martial:
316 Sst or 304 Sst
Accuracy Grade:
3mm
Production Capacity:
5000 PCS / Month
Certification:
Ce RoHS FCC
Origin:
China
Medium:
Corrosive Liquid Measurement in Chemical Industry
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
HR263
Trademark:
Holykell
IP Rating:
IP68
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, D/P
Display Type:
LCD
Port Of Loading:
Shanghai Port.Shenzhen Port.Guangzhou Port.
Transport Package:
Wooden Package
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-01-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
44
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port.Shenzhen Port.Guangzhou Port.
Certificates:
FCC, CE
Product descriptions from the supplier

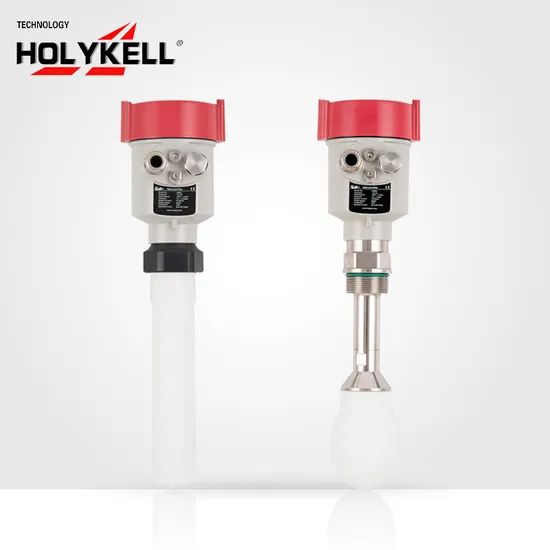

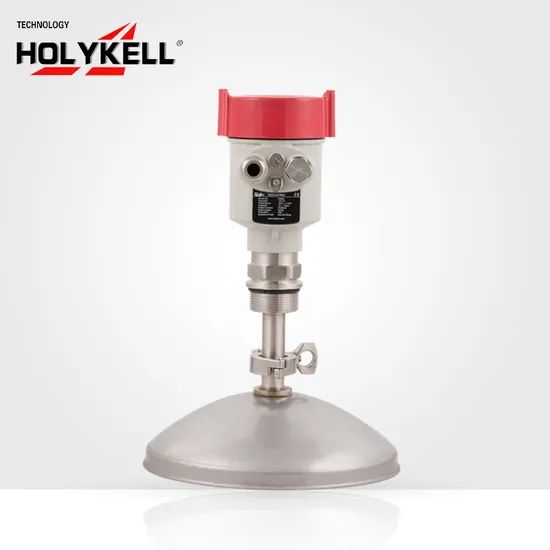

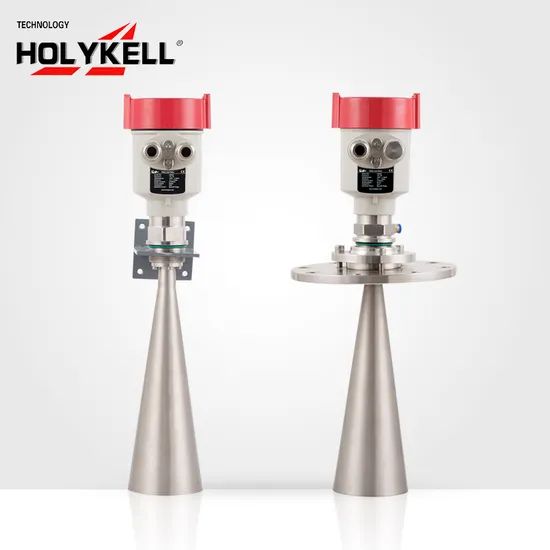

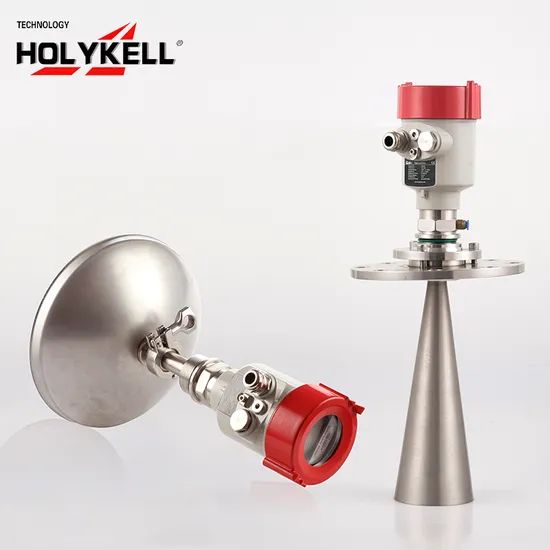

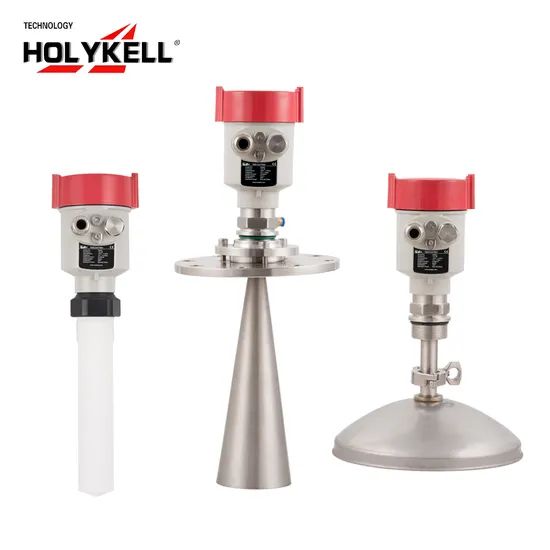

High Accuracy Small Lump Radar Level Meter for Small Particles
High frequency radar level measurment instrument, measure the maximum distance to 70 meters. Antenna being further optimized, fast new Microprocessor could be higher-speed signals processing, makes the instrument can be used in reactors, solid-state storage bin and some complicated measuring conditions.
| HR263 | |
| Range | 0~70 m |
| Output | 4-20mA/HART(2/4 wires), RS485 |
| Power Supply | 24 VDC |
| Electronic Connector | |
| Pressure/Process Port | Multidirectional Flanges |
| Accuracy | ± 15 mm |
| Working Temperature | -40C~250C |
| Explosion Proof Grade | Exib II CT6 Gb |
| Blind Zone | 500mm |
| Application | All kinds of common liquids + Solid materials (Small Particles) |
HR260 Series Radar Level meteris high-frequency level measuring instruments with the maximum measuring distance up to 70 meters. The antenna is further optimized, and the new-type microprocessor can perform higher rate of signal analysis and processing, making the instrument available for complex measurement conditions, such as reactors, solid silos.
OEM / ODM services
To meet the user diversified requirement, Holykell have established a set of customer service and technical support system with OEM / ODM order as the center, and responded and Handle the customer's requirements in a timely manner to ensure accurate delivery time and product quality.
Order services
Fastest reply:Professional sales engineers 7/24 online services
Payment terms:T/T ,Western union, Paypal, Credit Card, L/C others
Fast delivery: within 24 hours release the cargo (normal spec.), Customized 7-12 days after payment .
MAINTENANCE & AFTER-SALES SERVICES
Customer Feedback: Sales engineers and technical engineers will be one-on-one service for you to exclude all obstacles when use our sensors.
Warranty period:18 months
Product life-long maintenance: Holykell can provide you with the maintenance of the whole life of the sensors
Ordering guide
Please confirm below data before ordering:
√ Level range?
√ Measurement Medium?
√ Flange dimension?
√ Power supply?
√ Temperature range?
