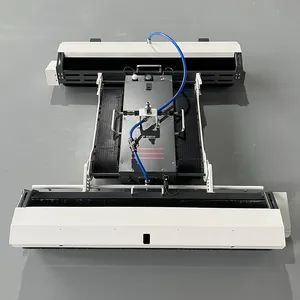

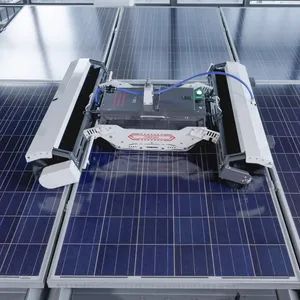

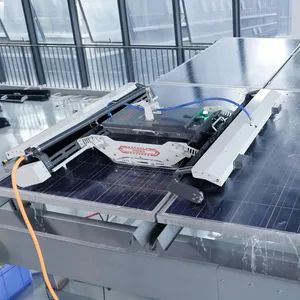

High Efficiency D1000PRO Crawler Type Remote Control Solar Photovoltaic Panel Cleaning Machine
Set
Negotiable
Product information
High-quality High Efficiency D1000PRO Crawler Type Remote Control Solar Photovoltaic Panel Cleaning Machine supplied by Guangdong WinSton Technology Co., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Battery Configuration:
1 Piece
Charging Duration:
1.5h
Brush Size:
1000mm
Maximum Speed Of Chassis:
1000mm/S
Roller Brush Component Size:
1132mm
Package Size:
114.50cm * 45.50cm * 100.00cm
Body Weight:
22kg (Including Battery)
Maximum Speed Of Roller Brush:
330rpm
Specifications
Battery Configuration:
1 Piece
Charging Duration:
1.5h
Brush Size:
1000mm
Maximum Speed Of Chassis:
1000mm/S
Roller Brush Component Size:
1132mm
Package Size:
114.50cm * 45.50cm * 100.00cm
Body Weight:
22kg (Including Battery)
Maximum Speed Of Roller Brush:
330rpm
Battery Capacity:
36V / 15ah
Total Weight:
40kg
Battery Life:
4h
Package Gross Weight:
50.000kg
Production Capacity:
5000 Units / Year
Specification:
600×530×220mm
HS Code:
8479899990
Roller Brush Weight:
9kg (Per Piece)
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Clean Type:
Clean-In-Place
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Style:
Crawler Style
Customized:
Customized
Model NO.:
D1000Pro
Cleaning Process:
Dry Cleaning / Water Washing
Fuel:
Electric
Trade Term:
FOB, CIF, EXW
Port Of Loading:
Guangzhou Port, Shenzhen Port
Protection Class:
IP65
Payment Term:
LC, T/T, PayPal, D/P
Control:
PLC
Principle:
Physical Cleaning
Payment Methods:
Support payments in USD
Trademark:
TEMPUSX
Edge Anti Fall Protection:
Ultrasonic Detection
Remote Control:
With Remote Control
Transport Package:
Wooden Case
Tilt Angle Of PV Modules:
≤20°
Horizontal Gap Of PV Modules:
≤300mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2023
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, D/P
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
Guangzhou Port, Shenzhen Port
Certificates:
TUV
Product descriptions from the supplier
D Series Crawler-Type Remote-Controlled Double Roller Brush Solar PV Panel Cleaning Machine Robot is designed for efficient operation and maintenance of industrial and commercial photovoltaic roofs, with a multi model matrix that flexibly adapts to various industrial and commercial roof scenarios and needs.
Product Advantage:
1. High Quality Battery: Our battery uses the high-quality cell, with a capacity of 36V / 15Ah, it can be charged and discharged up to 3000 times. One battery can be used for 4 hours, and it takes only 1.5 hours to fully charge.
2. High Performance Motor: Our machine adopts an integrated joint motor module, which includes a motor, driver, reducer, and encoder. It weighs 405g, has a rated power of 170w, a reduction ratio of 7.75:1, a peak torque of 17nm, and a 14 bit dual encoder. The maximum running speed of the chassis can reach 1000mm/s, and the maximum rotation speed of the roller brush can reach 330rpm.
3. High Efficiency Cleaning: On the basis of equipping the front roller brush and nozzle component, our machine adds a rear roller brush and nozzle component. The single roller brush machine sweeps once, while our double roller brush machine sweeps twice. The quadruple cleaning system makes cleaning more efficient, and the daily capacity of cleaned solar panels can reach 1~2 MW.
4. Intelligent and Safety: Our machine adopts a high-end model airplane remote control, with a remote control distance of up to 200m, and with intelligent operation control algorithms and user-friendly interactive design. In addition to being equipped with edge anti-fall protection function, D1000Pro is also equipped with heading hold and automatic line wrapping walking function, making operations more intelligent, flexible and safety.
5. Flexible Deployment: Our machine is made of aviation aluminum material, which is sturdy and durable, with a modular and lightweight design, smaller in size and lighter in weight that is easy to disassemble and transport. It can adapt to complex application environments, and D1000Pro can operate on the solar panel modules with the maximum tilt angle of 20°.
6. High Protection Class: The protection class of our machine up to IP65, it can effectively isolate the dust and rainwater, ensuring that the machine can operate normally in the complex environments.
D1000Pro Exploded Diagram
Connecting Water Pipe Diagram
D1000Pro Standard Configuration List
| Model | D1000 | D1000Pro | D1300 | D1300Pro |
| Body Size | 600×490×220mm | 600×530×220mm | 600×490×220mm | 600×530×220mm |
| Roller Brush Component Size | 1132mm | 1132mm | 1420mm | 1420mm |
| Brush Size | 1000mm | 1000mm | 1300mm | 1300mm |
| Body Weight | 20kg (including battery) | 22kg (including battery) | 20kg (including battery) | 22kg (including battery) |
| Roller Brush Weight | 9kg (per piece) | 9kg (per piece) | 10kg (per piece) | 10kg (per piece) |
| Total Weight | 38kg | 40kg | 40kg | 42kg |
| Maximum Speed of Chassis | 1000mm/s | 1000mm/s | 1000mm/s | 1000mm/s |
| Stepless Speed Regulation of Chassis | yes | yes | yes | yes |
| Maximum Speed of Roller Brush | 330rpm | 330rpm | 330rpm | 330rpm |
| Stepless Speed Regulation of Roller Brush | yes | yes | yes | yes |
| Battery Configuration | 1 piece | 1 piece | 2 pieces | 2 pieces |
| Battery Capacity | 36V / 15Ah | 36V / 15Ah | 36V / 15Ah | 36V / 15Ah |
| Battery Life | 4h | 4h | 6h | 6h |
| Charging Duration | 1.5h | 1.5h | 1.5h | 1.5h |
| Tilt Angle of PV Modules | ≤10° | ≤20° | ≤10° | ≤20° |
| Horizontal Gap of PV Modules | ≤300mm | ≤300mm | ≤300mm | ≤300mm |
| Height Difference of PV Modules | ≤40mm | ≤40mm | ≤40mm | ≤40mm |
| Edge Anti-Fall Protection | ultrasonic detection | ultrasonic detection | ultrasonic detection | ultrasonic detection |
| Heading Hold | no | yes | no | yes |
|
Protection Class
|
IP65 | IP65 | IP65 | IP65 |
D1000Pro Dimension Drawing
Q1: How long is the warranty period?
A1: It is 1 year.
Q2: Would you accept using customer's logo?
A2: Yes, we can provide OEM and ODM service.
Q3: What's the MOQ?
A3: It is 1 set.
Q4: What's the payment terms?
A4: We accept T/T, Western Union, PayPal, etc.
Q5: How long is the lead time?
A5: Generally it is 20-30 days, it depends on the order quantity.
Q6: What is the standard of package?
A6: Export standard package or special package according to customer's requirement.
