High-Efficiency Helical Gear Reducer for Industrial Automation

TOTEM Machinery delivers robust planetary gear reducers engineered for the toughest mining and aggregate processing challenges. Our reducers are built with heavy-duty housings and precision gears to deliver exceptional high torque and reliable shock load resistance. Designed for crushers, conveyors, and screens, they ensure maximum uptime and durability in harsh environments. Partner with TOTEM for drive solutions that combine power, reliability, and expert engineering support.

The drilling of a gear reducer housing focuses on creating mounting holes and lubrication channels. Using CNC machining centers, operators first secure the cast iron or steel housing. Precision drill bits then create bolt holes for assembly and foundation mounting. Additionally, deep hole drilling techniques are employed to form internal oil passages, ensuring effective lubrication to all critical gears and bearings during operation.

The pre-turned worm wheel blank is ready for gear generation. The custom hob, designed to match the mating worm, is mounted on the hobbing machine. The process will synchronize the rotation of the blank and the hob to precisely cut the required tooth profile into the wheel, ensuring optimal meshing with the worm shaft.

With the dedicated worm wheel hob now available, machining of the gear pair begins. The worm shaft undergoes thread cutting or grinding, while the wheel blank is set up for hobbing. The focus is on achieving precise synchronization of the lead angles and tooth profiles between the worm and wheel for efficient power transmission.

This step prepares the bevel gear blanks for final tooth grinding. The internal bore and critical external datum surfaces are precision-ground on a cylindrical grinder. Establishing these accurate reference surfaces is essential to ensure the subsequent gear teeth are ground in perfect concentric alignment with the gear's axis.

This image shows the reducer's end cover and its integrated bearing housing. The end cover seals the unit, while the precision-machined bearing housing provides the rigid and accurately aligned support necessary for the output shaft and its bearings, ensuring smooth rotation and minimal vibration.

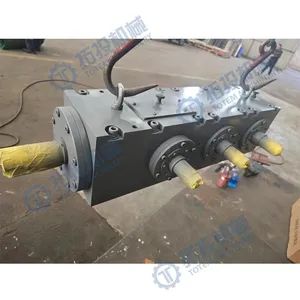

The gear reducer is in the final assembly stage. Key components like gears, shafts, and bearings are being precisely fitted into the housing. This phase involves critical adjustments to ensure proper gear meshing, correct bearing preload, and verification of all clearances for optimal performance and longevity.

Q.What type of your company?
A.TOTEM is a technology-driven manufacturer expert in R&D and complex machining of medium-to-large precision parts. By strategically investing in or forming joint ventures with trusted foundries, forging plants, and processors, we have built deeply integrated partnerships. This ensures smooth production from raw materials to finished products and allows flexible handling of urgent orders through external cooperation, minimizing bottlenecks and delays.

Q.What exactly is your machining capability? Is your equipment advanced?
A.Our production base is equipped with comprehensive modern CNC machine tools, such as three-axis, four-axis, and five-axis machining centers, CNC lathes, milling machines, and grinding machines. We handle everything from simple to highly complex parts. Our technical team know each machine's capabilities and choose the best equipment and process to ensure precision and control costs from your drawings.

Q.If the drawings I provide may contain design challenges or conflicts with actual manufacturing processes, can you handle them?
A.We offer DFM analysis to spot potential issues early and suggest design modifications to reduce costs and improve manufacturability.

Q.What is your quality control process?
A.We ensure quality at every stage with precision inspections and advanced tools supported by third-party verification.

Q.What is the entire collaboration process from inquiry to delivery?
A.From inquiry to delivery: sharing requirements, technical review (DFM), quotation, production with updates, final inspection, and delivery.

Q.What is your primary advantage over other suppliers?
A.We provide not just parts but also manufacturing solutions, acting as your external expert team for seamless project execution.

Q.How do we begin our first collaboration? What information is required?
A.Send us your product drawings, materials, quantities, and budget.Our sales engineer will coordinate with you on the details.
