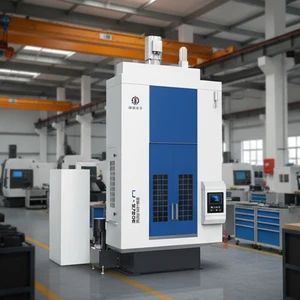

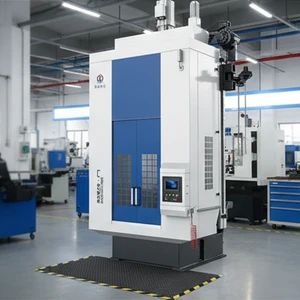

High Efficiency LJ57 Broaching Machine Internal Lathe with Adjustable Speed
Set
Negotiable
Product information
High-quality High Efficiency LJ57 Broaching Machine Internal Lathe with Adjustable Speed supplied by Yuhuan Cnc Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Control Method:
/
Processing Precision:
/
Pulling Speed(Servo Speed Regulation):
1-7m/min
Rated Pull:
100kN
Rated Travel:
1250/1600mm
Maximum Length Of The Puller:
1450/1800mm
Package Size:
3200.00cm * 2800.00cm * 3585.00cm
Specification:
3600×3200×4000mm
Specifications
Control Method:
/
Processing Precision:
/
Pulling Speed(Servo Speed Regulation):
1-7m/min
Rated Pull:
100kN
Rated Travel:
1250/1600mm
Maximum Length Of The Puller:
1450/1800mm
Package Size:
3200.00cm * 2800.00cm * 3585.00cm
Specification:
3600×3200×4000mm
Package Gross Weight:
5000.000kg
Total Electrical Capacity:
About 27kW
Numerical Control:
CNC/MNC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Performance Classification:
High-End CNC Machine Tools
Origin:
Hunan, China
Certification:
ISO 9001
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Model NO.:
LJ5710
Movement Method:
Linear Control
Application:
Metal
Process Usage:
Metal-Forming CNC Machine Tools
Condition:
New
Transport Package:
Provided
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Trademark:
YUHUAN
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-08-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
241
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
01, 02, 03, 04, 05
Product descriptions from the supplier
Introducing the LJ5710 Servo-Pull-Up Broaching Machine, expertly crafted for internal teeth processing. This state-of-the-art machine combines cutting-edge technology with unmatched precision.
LJ57 Series Servo-Pull-Up Internal Broaching Machine: Unleash the power of advanced engineering with our LJ57 Series, designed to redefine efficiency and precision in broaching.
This exceptional mechanical CNC pull-up internal lathe stands as a beacon of high-precision engineering, offering high efficiency and unwavering stability. It is optimally designed for the intricate processing of through-hole internal teeth and diverse geometric shapes. Its versatility finds applications in revolutionary industries such as new energy solutions, humanoid robotics, sophisticated planetary gearboxes, cutting-edge aerospace technology, and robust construction machinery.
Features:
1. Low Overturning Torque: Experience reduced resistance and enhanced operation.
The innovative E-type design integrates a four-wire rail bearing structure, forming a 'stable trapezoidal structure' that aligns one driving center and one pulling center with two linear rails. This unique configuration provides exceptional symmetry in force direction, effectively eliminating the majority of 'pulling overturning moment' typically caused by traditional lathe structures. Backed by Invention Patent No. :ZL 2020 10920618. 5, it represents a leap in structural design.
2. Long Lifespan and High Stability: Engineered for endurance, offering uncompromised performance over time.
Featuring large steel balls and a robust, imported heavy-duty ball screw pair, this machine promises high precision and rigidity. The inclusion of a premium brand heavy-duty roller linear guide ensures steadfast operation and extended lifespan.
3. Precise Control, High Precision: Attain impeccable cutting accuracy with our advanced drive systems.
Empowered by a sophisticated servo drive and screw drive system, our machine boasts a well-balanced force structure, guaranteeing flawless cutting precision.
4. Flexible and Versatile Spatial Layout: Tailored to meet diverse operational needs with ease.
Fully customizable, the equipment's layout can be adapted to cater to specific customer requirements, offering flexibility and versatility to fulfill varied automation demands seamlessly.
5. One Click Intelligent Control: Simplify operations with intuitive technology.
With an intelligent CNC system, embedded programming, and extensive secondary development, users can fill parameters effortlessly and enjoy a zero programming operation experience that is both safe and highly efficient.
6. Convenient and Easy to Operate: User-friendly design for streamlined efficiency.
Operators can swiftly change tooling and leverage automatic positioning for practical, hands-on machine operation, even with 'zero foundation' knowledge, ensuring a smooth and user-friendly experience.
| SERIAL NUMBER |
TECHNICAL PARAMETER NAME |
UNIT | LJ5705 | LJ5710 | LJ5715 | LJ5720 | LJ5730 | LJ5740 |
| NUMERICAL VALUE | ||||||||
| 1 | Rated Pull | kN | 50 | 100 | 150 | 200 | 300 | 400 |
| 2 | rated travel | mm | 800 | 1250/1600 | 1250/1600 | 1600/1800 | 1600/1800 | 1800 |
| 3 | Pulling speed (servo speed regulation) |
m/ min |
1~7 | 1~7 | 1~7 | 1~7 | 1~7 | 1~5 |
| 4 | Maximum length of the puller |
mm | 1000 | 1450/1800 | 1450/1800 | 1800/2000 | 1800/2000 | 2000 |
| 5 | Total electrical capacity |
kW | About 22 | About 27 | About38 | About 45 | About 53 | About 60 |
| 6 | Net weight of machine tool |
kg | About 5000 | About 8000 (Stroke 1250) |
About 8500 (Stroke 1250) |
About 12000 (Stroke1600) |
Approximately 12500 (Stroke1600) |
Approximately 19500 (itinerary 1800) |
| 7 | Machine tool workspace (lengthx width x height) |
mm | 3200×2800 ×3585 |
3600×3200 ×4000 (Stroke1250) |
3600×3200 ×4100 (Stroke1250) |
3850×3800 ×4800 (Stroke1600) |
3850×3800 ×4900 (Stroke1600) |
4000×3800 ×5500 (Stroke1800) |
Q: What types of machine tools does YUHUAN CNC offer?
A: YUHUAN specializes in CNC double-end grinding machines, vertical/horizontal polishing machines, CNC broaching machines, and fully automated grinding-polishing lines.
Q: Can l request customized solutions based on my part drawings?
A: Yes, We provide one-stop custom solutions. Just share your workpiece drawings, materials, and tolerance requirements, and our R&D team will design a suitable plan.
Q:What industries are your machines widely used in?
A: Our machines are widely used in the automotive, aerospace, hydraulic, bearings, semiconductors, and precision machinery industries.
Q: What is the lead time for standard and customized machines?
A: Standard machines: approx.30-45 working days.
Customized machines: 60-90 working days depending on complexity.
Q: What are your payment terms?
A: We usually accept T/T, L/C, or negotiable international payment methods.
Q: How does YUHUAN guarantee product quality before shipment?
A: We conduct full machine testing, geometric accuracy inspection, trial operation, and issue inspection reportsbefore every shipment.
Q: What after-sales service do you provide to overseas clients?
A: We provide remote video technical support, online troubleshooting, overseas engineer dispatch, spare partssupply,and training services.
Q: Can you help with international logistics and customs clearance?
A: Yes, We work with reliable freight forwarders and can handle FOB, ClF, DAP terms. Export documentation andcustoms support are available.
Q: How can l get a quotation or start cooperation?
A: Please contact us via email, send your inquiry or part drawing, and our sales team will respond within 24 hours.

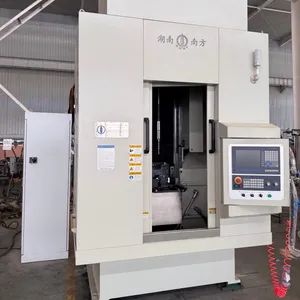

LJ5710 Servo-Pull-Up Broaching Machine for internal teeth
