High-Efficiency Sheet Metal Cut to Length Production Line
Set
Negotiable
Product information
High-quality High-Efficiency Sheet Metal Cut to Length Production Line supplied by Foshan Shunde Jinyujie Mechanical and Electrical Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
1 Year
Package Size:
1.00cm * 1.00cm * 1.00cm
Package Gross Weight:
100.000kg
Model NO.:
3-14*2200mm Cut to length Line
Production Capacity:
5
Specification:
80 * 6 meters, 100 tons
HS Code:
8462329000
Origin:
China
Specifications
Warranty:
1 Year
Package Size:
1.00cm * 1.00cm * 1.00cm
Package Gross Weight:
100.000kg
Model NO.:
3-14*2200mm Cut to length Line
Production Capacity:
5
Specification:
80 * 6 meters, 100 tons
HS Code:
8462329000
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB
Port Of Loading:
Foshan Port
Payment Term:
LC, T/T
Maintenance:
Maintenance Machinery
Refurbishment:
Refurbishment Machinery
Silicon Steel:
Silicon Steel Cut to Length Line
Payment Methods:
Support payments in USD
Used:
Used Cut to Lenght Linee
Transport Package:
Wooden Package
Second Hand:
second Hand Made in China Machinery
Trademark:
that depands
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-11-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
12
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB
Port Of Loading:
Foshan Port
Certificates:
Others
Product descriptions from the supplier
Product Description
Basic Info.
| Model NO. | 2200mm Used Cut to length Line | Application | Industry |
| Type | Cut to length Line | Product Name | China Factory PriceCut to length Line |
| Usage | Stainless steel, Plain carbon steel,silicon steel | Total weight of equipment | About 155 ton |
| Coil width | Max2200 mm | Coil thickness | 3-14 mm |
| Coil Weight | 32 ton | Eqipment status | Refurbishment and maintenance |
| Origin | China | Export Port | Jiujiang |
| Characteristic | with cutting edgy | Machine Color | Green |
| HS Code | 8462329000 | Production Capacity |
Cut to length line series
A cut to length line is generally includes uncoiling, straightening, measuring, cross-cutting to length and stacking of various materials such as cold or hot rolling carbon steel, tinplate, stainless steel, and other kinds of metal with coated surfaces.
| Eqipment composition |
| Configuration | |||
| No. | Item | Detailed introduction | Quantity |
| 1 | Uncoiler | Double cone Uncoiler | 1 |
| 2 | seeker | Gantry straight head seeker | 1 |
| 3 | Feeding device | 2+2 roller feeding | 1 |
| 4 | blade shaft | Φ320 diameter cut to length blade shaft | 1 |
| 5 | motor | 132kw | 1 |
| 6 | leveler | 11roller fine leveler | 1 |
| 7 | roller diameter | 250mm | 1 |
| 8 | motor | 200kw | 1 |
| 9 | steel plate Shear machine | 25*2500 Hydraulic shear machine(hydraulic system) | 1 |
| 10 | run out table | 8m Gantry run out table | 1 |
| 11 | Hydraulic System | 1 | |
| 12 | Electrical system | 1 | |
Features of Cut to Length Line:
1. Our cut to length line uses a roll feeding, AC servo drive.
2. It has a fully digital length control system that ensures fast positioning with little error.
3. It has a hard chrome plated surface and is durable and abrasion resistant.
4. It is used together with a hydraulic shear or an air-clutch shear to carry out fast shearing and convenient clearance adjustment.
5. Our cut to length line is suitable for hot rolling carbon steel, tinplate, stainless steel, and other kinds of metals with coated surfaces.
Advantage:
1. High degree of automation, easy & reliable operation
2. High length precision, high sheet flatness
3. Good order stacking
Uncoiling Unit
This uncoiling unit of our cut to length line allows several coil stocks to be pre-placed on the loading station. It is available with single head or double heads to suit different requirements.

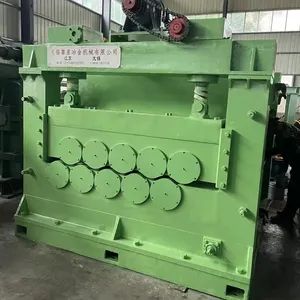

Leveler
The leveler of our cut to length line may have various designs, from 2H, 4H or 6H. It can be flexibly controlled and can carry out good leveling of the plate materials. Its leveling roll is made of roll steel with a chrome-plated surface. It is of good abrasion resistance and long service life.
Feeder and Shear
Our cut to length line employs a pair or two pairs of feed rolls, driven by an AC servo motor, to feed the strip to the set length precisely. They ensure fast positioning with little error. These feed rolls are compatible with a hydraulic shear or an air-clutch shear to carry out fast shearing and convenient clearance adjustment. It can be equipped with a roll type or a belt type conveyor.
Stacking Unit
Our cut to length line can be equipped with a pneumatic or electromagnetic stacking unit. Both longitudinal and transverse stacking are available.
Our products are widely used in transfomer, motor, household appliance, automobiles, hardware, steel industries, etc. It can be used for processing cold and hot rolled steell, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminium, copper and other metals.
Foshan Shunde jinyujiemechanical and Electrical Equipment Co., Ltd. (hereinafter referred to as jinyujie mechanical and Electrical Equipment Co., Ltd.): the company was established in 2001, the main business is the acquisition and transfer of second-hand welded pipe units, and one-stop to provide customers with installation, commissioning, maintenance, customization and other services. Focusing on the high frequency welded pipe industry for 30 years, 17 years of high frequency manufacturing and service experience. In the past 17 years, we have provided more than 2000 enterprises with high quality products and one-stop service support. Second hand welded pipe production equipment and accessories, talent and technology war.
A large number of second-hand real source, rapid integration of the entire second-hand welded pipe production line. Installation and commissioning services can be provided at home and abroad to ensure the rapid production of qualified steel pipes. Long term cooperation with a number of welded pipe equipment manufacturers, complete spare parts. Adhering to the development concept of "honesty, pragmatism, creating value for customers", we are committed to providing valuable services for customers.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. 12 Months guarantee and life-long technical support.
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
5.24 hours for engineer response.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered,please get back to us if you got any questions.
Quality Control
Our engineer would test the machine to ensure the machine running smoothly.
