High Efficient Stretch Film Mobile Packing Machine for Manual Vertical Pallet Online Wrapping Machine with Lift Membrane Frame
Piece
Negotiable
Product information
High-quality High Efficient Stretch Film Mobile Packing Machine for Manual Vertical Pallet Online Wrapping Machine with Lift Membrane Frame supplied by Huanyu (Shandong) Intelligent Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
10000 Sets/Month
Turntable Bearing:
1500kg
Machine Power/Voltage:
3.0 Kw/380V AC Three Phases and Five Lines 50Hz
Turntable Height:
500mm(Conveyor Line Height Can Be Customized0)
Customized:
Accept
Automatic Grade:
Automatic
Application:
Beverage, Food, Medical, Chemical, Textile, Electrical & Electronics, Machinery, Commodity, Apparel
Applicable Goods:
Cartons
Specifications
Production Capacity:
10000 Sets/Month
Turntable Bearing:
1500kg
Machine Power/Voltage:
3.0 Kw/380V AC Three Phases and Five Lines 50Hz
Turntable Height:
500mm(Conveyor Line Height Can Be Customized0)
Customized:
Accept
Automatic Grade:
Automatic
Application:
Beverage, Food, Medical, Chemical, Textile, Electrical & Electronics, Machinery, Commodity, Apparel
Applicable Goods:
Cartons
Driven Type:
Electric
Transport Package:
Export Packing
Trade Term:
FOB, CIF, CFR, EXW
Inclusion Degree:
Fully Wrapped Winding Machine
Specification:
H: 1500mml*W: 1200*1100mm
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Film Frame Structure:
Mechanical Stretch
Model NO.:
Online Pallet Wrapping Machine
Type:
Online Pallet Wrapping Machine
Structure:
Pallet Wrapping Machine
Port Of Loading:
Qingdao
Origin:
Shandong, China
Material:
Steel
Series:
T Series - Pallet Wrapping Machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2025-08-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
37
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao
Certificates:
CE, CE Certificates, Certificates
Product descriptions from the supplier
It refers to the equipment that drives the pallet goods to rotate by rotating the turntable, and then realizes the wrapping of the goods.
This model turntable with power line, with automatic film breaking components suitable for online use. It is suitable for the packaging of goods shipped with pallets (such as container transportation of bulk goods and packaging of loose pallets, etc.).
Features
Product selection is mainly based on the size of the goods, chassis 2000/2400, column 2400/2800/3200.Optional part Door opening membrane holder.
| Goods height | 1500 mm |
| Pallet size | 1200*1100mm |
| Winding specifications | H:1500MM L*W:1200*1100mm |
| Packaging efficiency | 1-30 tots per hour |
| Machine weight | 1000kg |
| Turntable bearing | 1500kg |
| Turntable height | 500mm(Conveyor line height can be customized0) |
| Machine power/voltage | 3.0 kw/380v AC Three phases and five lines 50HZ |
Detailed Pictures

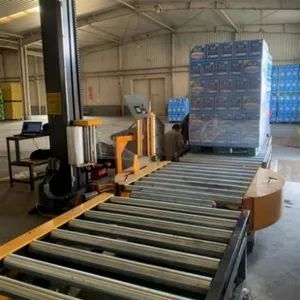

(1) the components of the turntable are composed of the delivery conveyor and the turntable: the delivery conveyor adopts the roller conveying mode; the turntable adopts the slewing bearing drive; the height of the turntable: 500mm (matching with the conveyor) ; the rotating speed of the turntable: 6-12RPM, the rotating speed is adjustable by frequency conversion; Turntable motor: Power: 1.5 kw roller speed: 10m/min transmission reducer: Power: 1.5 kw
(2) lifting column: the appearance of the overall electrical cabinet with electrostatic spray technology, double-chain structure is adopted for up-down transmission of large square membrane frame with beautiful appearance and stable operation, up and down speed variable frequency adjustable up and down motor: Power: 0.37 kw
(3) film frame system: pre-stretching film frame: the maximum stretching ratio is 1:2, automatic film feed, film feed speed is adjustable. Easy to pull out the film, a film frame can automatically stop operation. AC film-feeding motor: Power: 0.2 kw film-breaking adopts electric heating film-breaking mode, convenient and reliable, film-breaking cylinder automatically flick film action. The clamping device and the membrane contact part are made of wear-resistant and elastic materials.
(4) electronic control system: the system is controlled by PLC, the number of layers and the number of layers can be adjusted from 1 to 9, and the winding speed can be adjusted by frequency conversion. Opto-electronic sensing height and movable limit block limit the arbitrary selection of packaging height, turntable, film frame lift are stepless frequency control, easy to control the packaging effect.
(1) the components of the turntable are composed of the delivery conveyor and the turntable: the delivery conveyor adopts the roller conveying mode; the turntable adopts the slewing bearing drive; the height of the turntable: 500mm (matching with the conveyor) ; the rotating speed of the turntable: 6-12RPM, the rotating speed is adjustable by frequency conversion; Turntable motor: Power: 1.5 kw roller speed: 10m/min transmission reducer: Power: 1.5 kw
(2) lifting column: the appearance of the overall electrical cabinet with electrostatic spray technology, double-chain structure is adopted for up-down transmission of large square membrane frame with beautiful appearance and stable operation, up and down speed variable frequency adjustable up and down motor: Power: 0.37 kw
(4) electronic control system: the system is controlled by PLC, the number of layers and the number of layers can be adjusted from 1 to 9, and the winding speed can be adjusted by frequency conversion. Opto-electronic sensing height and movable limit block limit the arbitrary selection of packaging height, turntable, film frame lift are stepless frequency control, easy to control the packaging effect.
Q:What's the information should I provide when inquiry?
More details or drawings,better. A: life capacity B:span C:lift height D: crane traveling distance E: power source
Q: What is your minimum order quantity?
A: 1 set;
Q: What is your package?
A: The main body is packaged with plywood boxes or plastic woven fabrics; Spare parts inside the plywood box;
Q: What is your delivery cycle time?
A: Within 10/25/40 days after receiving the advance payment; The specific deadline shall be based on the detailed requirements and actual deadline;
Q: Do you provide lifting accessories?
A: Yes, we can provide any type of crane accessories, such as hooks, grab buckets, magnets, pulley blocks, hooks, locks, wire ropes, fiber ropes, etc.
Q: Do you provide custom service codes?
A: Yes, our factory supports OEM/ODM services.
