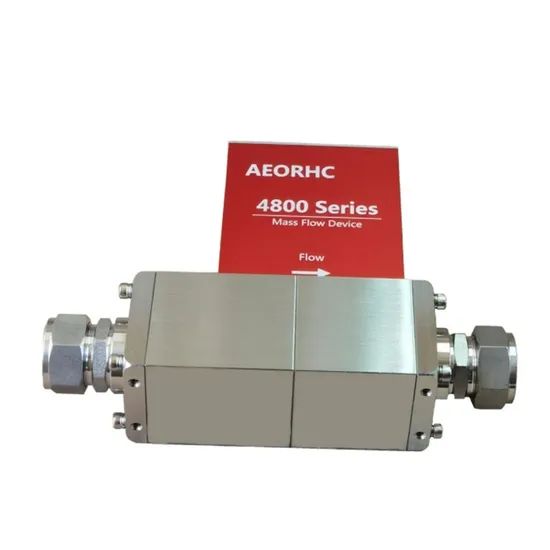

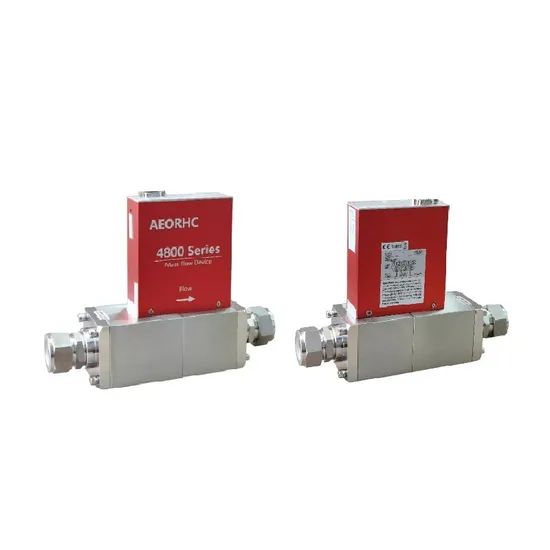

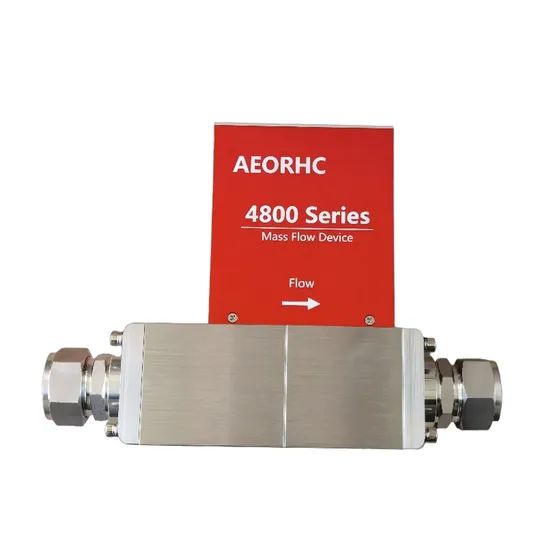

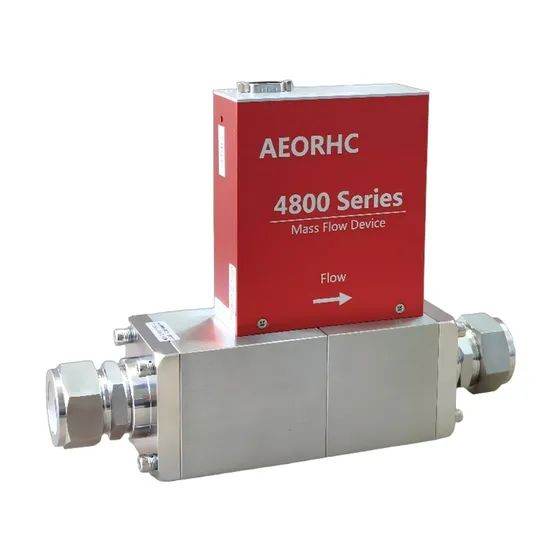

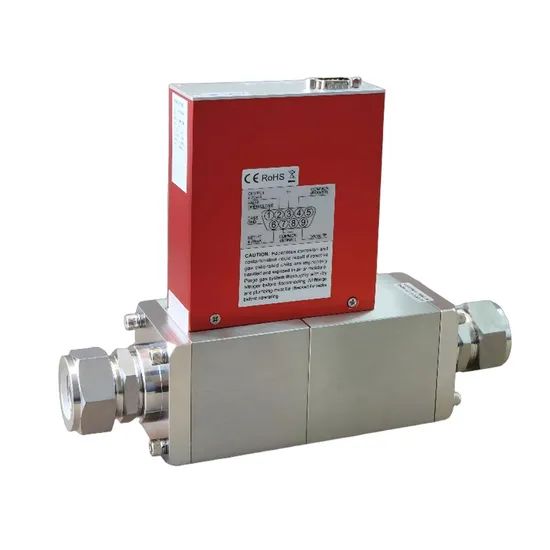

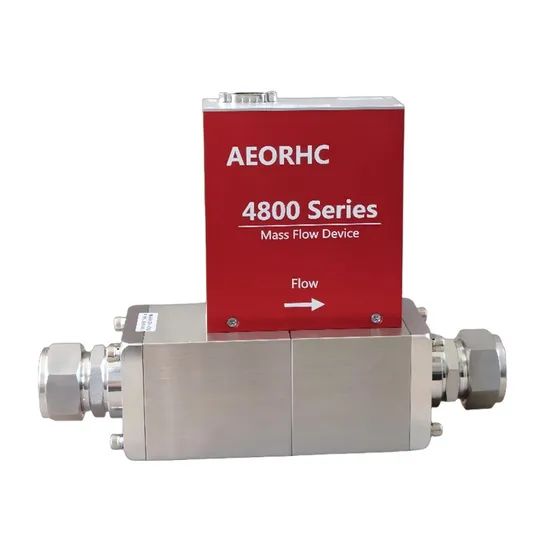

High Flow Mass Flow Controller and Analog Mass Flow Meter for Gas
1 Piece
$2,5001 Piece
$2,000Product information
High-quality High Flow Mass Flow Controller and Analog Mass Flow Meter for Gas supplied by Shenzhen Daxinda Machinery & Electric Equipment Co., Ltd. Bulk wholesale pricing ranges from $2,000 to $2,500 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Specification:
300SLM-2000SLM
Model NO.:
4800 Series
HS Code:
9026801000
Trademark:
AEORHC
Certification:
CE, RoHS
Transport Package:
Carton Packing
Origin:
China
Measurement Object:
Closed Pipeline
Specifications
Specification:
300SLM-2000SLM
Model NO.:
4800 Series
HS Code:
9026801000
Trademark:
AEORHC
Certification:
CE, RoHS
Transport Package:
Carton Packing
Origin:
China
Measurement Object:
Closed Pipeline
Size:
DN5-10
Trade Term:
FOB
Measuring Media:
Gas
Application:
Industrial Production
Main Application:
Nature Gas
Port Of Loading:
Shenzhen Huanggang Port
Payment Term:
T/T
Measuring Principle:
Thermal Flow
Sensor:
Thermal Flow
Type:
Thermal Flow Controller
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-01-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
5
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB
Port Of Loading:
Shenzhen Huanggang Port
Certificates:
RoHS, CE
Product descriptions from the supplier
APPENDIX 3SELECTION GUIDE
4800 AnalogUP TO 2000SLM MASS FLOW CONTROLLER/METER| Model | 1.125" width | 48 | |||||||||
| Series | Standard model | 00 | |||||||||
| Product Type | Mass Flow Controller | FC | |||||||||
| Mass Flow Meter | FM | ||||||||||
| Seal | FKM | R | |||||||||
| Metal | M | ||||||||||
| All Metal | T | ||||||||||
| Communication | Analog 9pin/±15v | AN | |||||||||
| Analog 9pin/12-32v | AV | ||||||||||
| Control Valve | Normally Closed | C | |||||||||
| Normally Open(*1) | O | ||||||||||
| I/O Signal | 0 - 5VDC | V | |||||||||
| 4 - 20mA | I | ||||||||||
| Fitting(*2) | 1/8" VCR | E2V | |||||||||
| 1/4" VCR | E4V | ||||||||||
| 1/8" Swagelok Compatible | E2S | ||||||||||
| 1/4" Swagelok Compatible | E4S | ||||||||||
| 3/8" Swagelok Compatible | E6S | ||||||||||
| 1/2" Swagelok Compatible | E8S | ||||||||||
| 1" Swagelok Compatible | EGS | ||||||||||
| 6mm LOK | G6S | ||||||||||
| 8mm LOK | G8S | ||||||||||
| 10mm LOK | GXS | ||||||||||
| IGS 1.125"C-SEAL | IGC | ||||||||||
| IGS 1.125"W-SEAL | IGW | ||||||||||
| GAS | Gas | N2 | |||||||||
| Full Scale | Flow Rate | 100 SCCM |
| EXAMPLE MFC:4800-FCRANCV-E4V-N2-100SCCM/MFM:4800-FMRANV-E4V-N2-100SCCM |
| (*1) For customized models, please contact your sales representative. (*2) For more fitting options, please contact your sales representative. (*3) Flow rate is calibrated (N2 eqv.) at standard temperature and pressure. (Standard: 0 Deg C and 101kPa) (*4)More requirement of Electrolytic Polishing or Passivating, please contact your sales representative. (*5)Model of 4-20mA control could only be chosen with12-32VDC. |
4800 AnalogUP TO 50SLM MASS FLOW CONTROLLER/METER
| Model | 4800 | |
| Full Scale Range (N2 eqv.) | 2 SCCM - 50 SLM | |
| Control Valve | Normally closed/Normally Open | |
| Fitting | 1/4"VCR or 1/4" Swagelok Compatible | |
| Seal | FKM Seal | FKM |
| Metal Seal | Ni | |
| Response Time | ≤0.8 sec | |
| Accuracy | ≤±1% F.S. | |
| Linearity | ≤±0.5% F.S.(≥30SLM:≤1%) | |
| Repeatability | ≤±0.1% F.S. | |
| Operating Differential Pressure |
2 SCCM - 5 SLM | 0.05 - 0.28 MPa |
| 6 SLM - 50 SLM | 0.1 - 0.28 MPa | |
| Leak Integrity | FKM Seal | Max 1x10-9Pa.m3/sec (He) |
| Metal Seal | Max 1x10-11Pa.m3/sec (He) | |
| Control Range | 2-100% F.S. | |
| Max operating Pressure | 0.48 MPa | |
| Proof Pressure | 1 MPa | |
| Communication Type | DC 0-5V/ 4-20mA | |
| Power Supply | ±15VDC | +15VDC ±2% 25mA |
| -15VDC ±2% 180mA | ||
| +12VDC - +32VDC | +12VDC 500mA-+32VDC 180mA | |
| Output Signal | DC 0-5V/ 4-20mA | |
| Power Consumption | ±15VDC | 3.1W |
| +12VDC-+32VDC | 6W | |
| Operation Temperature | 5-45 Deg C | |
| Material | FKM Seal | SUS316L, FKM, PTFE, Electromagnetic stainless steel |
| Metal Seal | SUS316L, Ni, PTFE, Electromagnetic stainless steel | |
| AllMetal Seal | SUS316L, Ni, Electromagnetic stainless steel | |
| Surface Finish | FKM Seal | ≤5RA |
| Metal Seal | TC,≤5RA | |
| Weight | appr. 0.8 KG | |
4800 AnalogUP TO150SLM MASS FLOW CONTROLLER/METER
| Model | 4800 | |
| Full Scale Range (N2 eqv.) | 50 SLM -150 SLM | |
| Control Valve | Normally closed/Normally Open | |
| Fitting | 3/8"VCR or 1/2" Swagelok Compatible | |
| Seal | FKM Seal | FKM |
| Metal Seal | Ni | |
| Response Time | ≤2sec | |
| Accuracy | ≤±1.5% F.S. | |
| Linearity | ≤±0.5% F.S. | |
| Repeatability | ≤±0.2% F.S. | |
| Operating Differential Pressure |
0.15 - 0.28 MPa | |
| Leak Integrity | FKM Seal | Max 1x10-9Pa.m3/sec (He) |
| Metal Seal | Max 1x10-11Pa.m3/sec (He) | |
| Control Range | 2-100% F.S. | |
| Max operating Pressure | 0.49MPa | |
| Proof Pressure | 1 MPa | |
| Communication Type | DC 0-5V/ 4-20mA | |
| Power Supply | ±15VDC | +15VDC ±2% 25mA |
| -15VDC ±2% 180mA | ||
| +12VDC - +32VDC | +12VDC 500mA-+32VDC 180mA | |
| Output Signal | DC 0-5V/ 4-20mA | |
| Power Consumption | ±15VDC | 3.1W |
| +12VDC-+32VDC | 6W | |
| Operation Temperature | 5-45 Deg C | |
| Material | FKM Seal | SUS316L, FKM, PTFE, Electromagnetic stainless steel |
| Metal Seal | SUS316L, Ni, PTFE, Electromagnetic stainless steel | |
| AllMetal Seal | SUS316L, Ni, Electromagnetic stainless steel | |
| Surface Finish | FKM Seal | ≤5RA |
| Metal Seal | TC,≤5RA | |
| Weight | appr.1.8 KG | |
4800 AnalogUP TO300SLM MASS FLOW CONTROLLER/METER
| Model | 4800 | ||
| Full Scale Range (N2 eqv.) | 100 SLM -300 SLM | ||
| Control Valve | Normally closed/Normally Open | ||
| Fitting | 3/8"VCR or 1/2" Swagelok Compatible | ||
| Seal | FKM Seal | FKM | |
| Metal Seal | Ni | ||
| Response Time | ≤2sec | ||
| Accuracy | ≤±2% F.S. | ||
| Linearity | ≤±0.5% F.S. | ||
| Repeatability | ≤±0.2% F.S. | ||
| Operating Differential Pressure |
100 SLM-150 SLM | 0.15Mpa- 0.3MPa | |
| 150 SLM-200 SLM | 0.18 Mpa- 0.3MPa | ||
| 200 SLM-300 SLM | 0.21 Mpa- 0.3MPa | ||
| Leak Integrity | FKM Seal | Max 1x10-9Pa.m3/sec (He) | |
| Metal Seal | Max 1x10-11Pa.m3/sec (He) | ||
| Control Range | 2-100% F.S. | ||
| Max operating Pressure | 0.49MPa | ||
| Proof Pressure | 1 MPa | ||
| Communication Type | DC 0-5V/ 4-20mA | ||
| Power Supply | ±15VDC | +15VDC ±2% 25mA | |
| -15VDC ±2% 180mA | |||
| +12VDC - +32VDC | +12VDC 500mA-+32VDC 180mA | ||
| Output Signal | DC 0-5V/ 4-20mA | ||
| Power Consumption | ±15VDC | 3.1W | |
| +12VDC-+32VDC | 6W | ||
| Operation Temperature | 5-45 Deg C | ||
| Material | FKM Seal | SUS316L,FKM, PTFE, Electromagnetic stainless steel | |
| Metal Seal | SUS316L, Ni, PTFE, Electromagnetic stainless steel | ||
| AllMetal Seal | SUS316L, Ni, Electromagnetic stainless steel | ||
| Surface Finish | FKM Seal | ≤5RA | |
| Metal Seal | TC,≤5RA | ||
| Weight | appr.1.93KG | ||
4800 AnalogUP TO2000SLM MASS FLOW CONTROLLER/METER
| Model | 4800 | |
| Full Scale Range (N2 eqv.) | 300 SLM -2000 SLM | |
| Control Valve | Normally closed/Normally Open | |
| Fitting | 3/4"VCR or 1" Swagelok Compatible | |
| Seal | FKM Seal | FKM |
| Response Time | ≤2sec | |
| Accuracy | ≤±2% F.S. | |
| Linearity | ≤±1% F.S. | |
| Repeatability | ≤±0.25% F.S. | |
| Operating Differential Pressure |
0.25 Mpa- 0.7MPa | |
| Leak Integrity | FKM Seal | Max 1x10-9Pa.m3/sec (He) |
| Control Range | 2-100% F.S. | |
| Max operating Pressure | 0.7MPa | |
| Proof Pressure | 3MPa | |
| Communication Type | DC 0-5V/ 4-20mA | |
| Power Supply | ±15VDC | +15VDC ±2% 25mA |
| -15VDC ±2% 180mA | ||
| +12VDC - +32VDC | +12VDC 500mA-+32VDC 180mA | |
| Output Signal | DC 0-5V/ 4-20mA | |
| Power Consumption | ±15VDC | 3.1W |
| +12VDC-+32VDC | 6W | |
| Operation Temperature | 5-45ºC | |
| Material | FKM Seal | SUS316L, FKM, PTFE, Electromagnetic stainless steel |
| Surface Finish | FKM Seal | ≤5RA |
| Weight | appr.5.22KG | |
