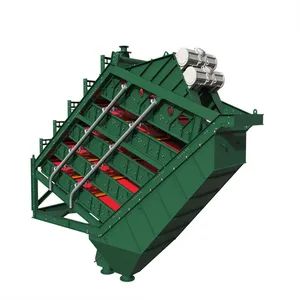

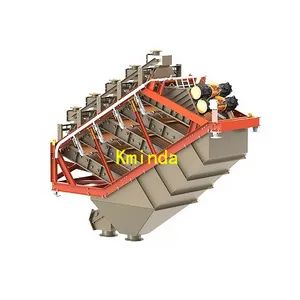

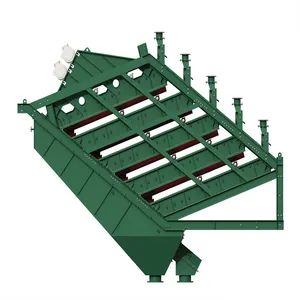

High Frequency Multi Deck Shaker Vibrating Fine Screen
Set
Negotiable
Product information
High-quality High Frequency Multi Deck Shaker Vibrating Fine Screen supplied by SHANGHAI KMINDA TECH. CO., LTD. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
1 Year
Production Capacity:
2000 Sets/Year
Package Gross Weight:
5600.000kg
Package Size:
620.00cm * 360.00cm * 270.00cm
HS Code:
84741000
Product Certificate:
CE
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Specifications
Warranty:
1 Year
Production Capacity:
2000 Sets/Year
Package Gross Weight:
5600.000kg
Package Size:
620.00cm * 360.00cm * 270.00cm
HS Code:
84741000
Product Certificate:
CE
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Model NO.:
D3Z1021
Shaft Number:
Double
Trade Term:
FOB, CIF, Others
Company Certificate:
ISO
Payment Term:
LC, T/T, Western Union
Running Track:
Linear Vibrating Screen
Usage:
Mine Shaker
Technical Patents:
Multiple
Condition:
New
Object:
Ore
Supporting Device:
Rubber Spring
Enterprise Certification:
SGS
Works:
Spiral Flash Shaker
Transport Package:
Standard Wooden Case
Payment Methods:
Support payments in USD
Port Of Loading:
TIANJIN, SHANGHAI
Transmission Structure:
Vibrating Screen
Manufacturer:
Yes
After Sales Service:
Yes
Trademark:
landsky
Specification:
to be continue
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-08-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, Others
Port Of Loading:
TIANJIN, SHANGHAI
Certificates:
CE Certificate for DZ Series, CE of high frequency screen, CE of linear vibrating screen, ISO9001
Product descriptions from the supplier
SONA2024 2.2.1
Introduction
KMD High Frequency Multi Deck Layer Vibrating fine Screen is arranged in staggered layer from top to bottom. That is to integrate multiple screen boxes on a screen machine. Each screen box completes the feeding and screening operation independently, the undersize material and on oversize material of each screen box is collected and discharged separately, this special design can reduce footprint while ensuring processing capacity. According to the size of processing capacity, 1-5 layers of screen boxes can be selected. The most common is 5 layers of screen boxes overlapped on one screen machine, also known as a High Frequency fine sizer.
Multi deck sizer Feature and Advantage
1. fine particle screening efficiency can reach more than 90%.
The use of multi-layer screen box superimposed structural design, greatly improve the screening area of a single vibrating screen, equivalent to many ordinary screen machine at the same time, screening efficiency and processing capacity greatly improved.
2.The average service life of polyurethane wear-resistant screen panel is more than 6 months
High frequency multi deck screen adopts polyurethane panels. Our polyurethane wear-resistant panels have good quality, high opening rate, un-blocking design and high-wearing feature. High frequency multi deck screen also uses a special flow-divider and overflow feed box for feeding. The material is evenly distributed on the screen surface, and the overflow feed can also reduce the impact of the screen surface caused by too fast pulp flow rate, increase the service life of the polyurethane wear-resistant panel, making the average life of the polyurethane wear-resistant panel in more than 6 months.
Details
Multi deck fine screen listing
Landsky Model | Decks | Length (mm) | Width (mm) | Working Area | Power (kW) | Mesh Type (mm) | Aperture Range (mm) | Aprox. Weight (kg) |
D1Z1014 | 1 | 1.4 | 1.0 | 1.4 | 2 X 0.55 | Flexible (1045x700) | 0.053-4.2 | 2,020.00 |
D1Z1021 | 1 | 2.1 | 1.0 | 2.1 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,100.00 |
D2Z1014 | 2 | 1.4 | 1.0 | 2.8 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,216.00 |
D2Z1021 | 2 | 2.1 | 1.0 | 4.2 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 5,014.00 |
D3Z1014 | 3 | 1.4 | 1.0 | 4.2 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,841.00 |
D3Z1021 | 3 | 2.1 | 1.0 | 6.3 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 6,250.00 |
D4Z1014 | 4 | 1.4 | 1.0 | 5.6 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 4,664.00 |
D4Z1021 | 4 | 2.1 | 1.0 | 8.4 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 7,695.00 |
D5Z1014 | 5 | 1.4 | 1.0 | 7 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 5,496.25 |
D5Z1021 | 5 | 2.1 | 1.0 | 10.5 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 6,000.00 |
D8Z1021 | 8 | 2.1 | 1.0 | 16.8 | 2 x 3.4 | Flexible (1045x700) | 0.053-4.2 | 13,038.00 |
D1Z1014 | 1 | 1.4 | 1.0 | 1.4 | 2 X 0.55 | Flexible (1045x700) | 0.053-4.2 | 2,020.00 |
D1Z1021 | 1 | 2.1 | 1.0 | 2.1 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,100.00 |
D2Z1014 | 2 | 1.4 | 1.0 | 2.8 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,216.00 |
D2Z1021 | 2 | 2.1 | 1.0 | 4.2 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 5,014.00 |
D3Z1014 | 3 | 1.4 | 1.0 | 4.2 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,841.00 |
D3Z1021 | 3 | 2.1 | 1.0 | 6.3 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 6,250.00 |
D4Z1014 | 4 | 1.4 | 1.0 | 5.6 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 4,664.00 |
D4Z1021 | 4 | 2.1 | 1.0 | 8.4 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 7,695.00 |
D5Z1014 | 5 | 1.4 | 1.0 | 7 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 5,496.25 |
D5Z1021 | 5 | 2.1 | 1.0 | 10.5 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 6,000.00 |
D6Z1021 | 6 | 2.1 | 1.0 | 12.6 | 2 x 3.4 | Flexible (1045x700) | 0.053-4.2 | 10,700.00 |
D7Z1021 | 7 | 2.1 | 1.0 | 14.7 | 2 x 3.4 | Flexible (1045x700) | 0.053-4.2 | 11,756.00 |
D8Z1014 | 8 | 1.4 | 1.0 | 11.2 | 2 x 3.4 | Flexible (1045x700) | 0.053-4.2 | 9,568.00 |
D8Z1021 | 8 | 2.1 | 1.0 | 16.8 | 2 x 3.4 | Flexible (1045x700) | 0.053-4.2 | 13,038.00 |
D5Z1216 | 5 | 1.6 | 1.2 | 9.6 | 2 x2.2 | Flexible (1245x840) | 0.053-4.2 | |
D5Z1224 | 5 | 2.4 | 1.2 | 14.4 | 2 x 2.2 | Flexible (1245x840) | 0.053-4.2 |
Customer Case
Black Mountain Mine, Vedenta
Ore Type: Zinc & Lead
Model: D5FG1021
Quantity: 12
Cut Size: 0.125mm
Process: Screen feed from mixture of
rod mill and ball mill, undersize reports
to flotation while oversize reports back
to ball mill.
Bakubang Platinum Mining
Ore Type: Platinum
Model: D5FG1021
Quantity: 4
Cut Size: 0.1mm
Process: Screen feed from ball mill,
undersize reports to flotation while
oversize is the final tailing.
Application
Mainly used in mineral processing, coal preparation, non-ferrous, non-metallic and other industries of fine material wet screening, grading operations.
