High Frequency Multi Layer Deck Vibrating Fine Screen for Mining Industry
1 Set
$50,0001 Set
$300,000Product information
High-quality High Frequency Multi Layer Deck Vibrating Fine Screen for Mining Industry supplied by SHANGHAI KMINDA TECH. CO., LTD. Bulk wholesale pricing ranges from $50,000 to $300,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Warranty:
1 Year
Production Capacity:
2000 Sets/Year
Package Size:
680.00cm * 420.00cm * 420.00cm
HS Code:
84741000
Package Gross Weight:
8500.000kg
Product Certificate:
CE
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Specifications
Warranty:
1 Year
Production Capacity:
2000 Sets/Year
Package Size:
680.00cm * 420.00cm * 420.00cm
HS Code:
84741000
Package Gross Weight:
8500.000kg
Product Certificate:
CE
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Model NO.:
D2FG1021
Shaft Number:
Double
Trade Term:
FOB, CIF, Others
Company Certificate:
ISO
Payment Term:
LC, T/T, Western Union
Running Track:
Linear Vibrating Screen
Usage:
Mine Shaker
Technical Patents:
Multiple
Condition:
New
Object:
Ore
Supporting Device:
Rubber Spring
Enterprise Certification:
SGS
Works:
Spiral Flash Shaker
Transport Package:
Standard Wooden Case
Payment Methods:
Support payments in USD
Port Of Loading:
TIANJIN, SHANGHAI
Transmission Structure:
Vibrating Screen
Manufacturer:
Yes
After Sales Service:
Yes
Trademark:
landsky
Specification:
to be continue
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-08-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, Others
Port Of Loading:
TIANJIN, SHANGHAI
Certificates:
CE Certificate for DZ Series, CE of high frequency screen, CE of linear vibrating screen, ISO9001
Product descriptions from the supplier
SONA2024 2.2.1
Introduction

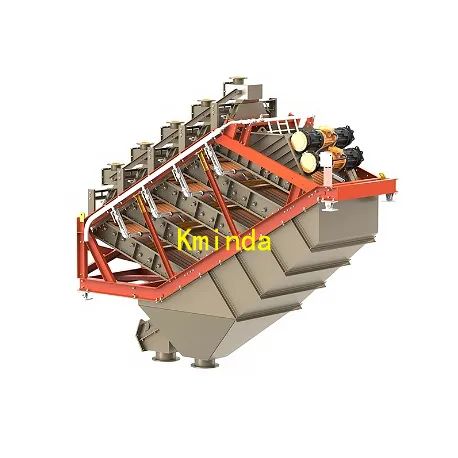

The KMD High Frequency Multi-Deck Vibrating Fine Screen features a stacked configuration from top to bottom, combining several screening units onto a single vibrating platform. Each unit operates autonomously, handling feed and separation processes, with both fine and coarse fractions being gathered and expelled individually. This architectural approach minimizes floor space without compromising throughput. Depending on required output, configurations ranging from one to five screening decks are available. The standard setup typically uses five decks stacked together on one unit, commonly referred to as a High Frequency Fine Sizer.
Multi deck sizer Feature and Advantage
1. fine particle screening efficiency can reach more than 90%.
Incorporating a multi-layer stacked screen box structure significantly expands the surface area of one vibrating screen, matching the output of multiple conventional screens, thereby enhancing both efficiency and throughput.
2.The average service life of polyurethane wear-resistant screen panel is more than 6 months
The high-frequency multi-deck screen features polyurethane panels designed for durability. These panels offer superior resistance to wear, excellent opening efficiency, anti-clogging properties, and long-term performance. A unique flow splitter and overflow feeding system are integrated to manage material input. This ensures even distribution across the screen surface and minimizes surface stress from rapid pulp flow, thereby extending the lifespan of the polyurethane panels—achieving an average operational life exceeding six months.
Details
Multi deck fine screen listing
Landsky Model | Decks | Length (mm) | Width (mm) | Working Area | Power (kW) | Mesh Type (mm) | Aperture Range (mm) | Aprox. Weight (kg) |
D1Z1014 | 1 | 1.4 | 1.0 | 1.4 | 2 X 0.55 | Flexible (1045x700) | 0.053-4.2 | 2,020.00 |
D1Z1021 | 1 | 2.1 | 1.0 | 2.1 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,100.00 |
D2Z1014 | 2 | 1.4 | 1.0 | 2.8 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,216.00 |
D2Z1021 | 2 | 2.1 | 1.0 | 4.2 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 5,014.00 |
D3Z1014 | 3 | 1.4 | 1.0 | 4.2 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,841.00 |
D3Z1021 | 3 | 2.1 | 1.0 | 6.3 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 6,250.00 |
D4Z1014 | 4 | 1.4 | 1.0 | 5.6 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 4,664.00 |
D4Z1021 | 4 | 2.1 | 1.0 | 8.4 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 7,695.00 |
D5Z1014 | 5 | 1.4 | 1.0 | 7 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 5,496.25 |
D5Z1021 | 5 | 2.1 | 1.0 | 10.5 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 6,000.00 |
D8Z1021 | 8 | 2.1 | 1.0 | 16.8 | 2 x 3.4 | Flexible (1045x700) | 0.053-4.2 | 13,038.00 |
D1Z1014 | 1 | 1.4 | 1.0 | 1.4 | 2 X 0.55 | Flexible (1045x700) | 0.053-4.2 | 2,020.00 |
D1Z1021 | 1 | 2.1 | 1.0 | 2.1 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,100.00 |
D2Z1014 | 2 | 1.4 | 1.0 | 2.8 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,216.00 |
D2Z1021 | 2 | 2.1 | 1.0 | 4.2 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 5,014.00 |
D3Z1014 | 3 | 1.4 | 1.0 | 4.2 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 3,841.00 |
D3Z1021 | 3 | 2.1 | 1.0 | 6.3 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 6,250.00 |
D4Z1014 | 4 | 1.4 | 1.0 | 5.6 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 4,664.00 |
D4Z1021 | 4 | 2.1 | 1.0 | 8.4 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 7,695.00 |
D5Z1014 | 5 | 1.4 | 1.0 | 7 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 5,496.25 |
D5Z1021 | 5 | 2.1 | 1.0 | 10.5 | 2 x 2.2 | Flexible (1045x700) | 0.053-4.2 | 6,000.00 |
D6Z1021 | 6 | 2.1 | 1.0 | 12.6 | 2 x 3.4 | Flexible (1045x700) | 0.053-4.2 | 10,700.00 |
D7Z1021 | 7 | 2.1 | 1.0 | 14.7 | 2 x 3.4 | Flexible (1045x700) | 0.053-4.2 | 11,756.00 |
D8Z1014 | 8 | 1.4 | 1.0 | 11.2 | 2 x 3.4 | Flexible (1045x700) | 0.053-4.2 | 9,568.00 |
D8Z1021 | 8 | 2.1 | 1.0 | 16.8 | 2 x 3.4 | Flexible (1045x700) | 0.053-4.2 | 13,038.00 |
D5Z1216 | 5 | 1.6 | 1.2 | 9.6 | 2 x2.2 | Flexible (1245x840) | 0.053-4.2 | |
D5Z1224 | 5 | 2.4 | 1.2 | 14.4 | 2 x 2.2 | Flexible (1245x840) | 0.053-4.2 |
Customer Case
Black Mountain Mine, Vedenta
Ore Type: Zinc & Lead
Model: D5FG1021
Quantity: 12
Cut Size: 0.125mm
Process: Screen feed from mixture of
rod mill and ball mill, undersize reports
to flotation while oversize reports back
to ball mill.
Bakubang Platinum Mining
Ore Type: Platinum
Model: D5FG1021
Quantity: 4
Cut Size: 0.1mm
Process: Screen feed from ball mill,
undersize reports to flotation while
oversize is the final tailing.
Application
Mainly used in mineral processing, coal preparation, non-ferrous, non-metallic and other industries of fine material wet screening, grading operations.
