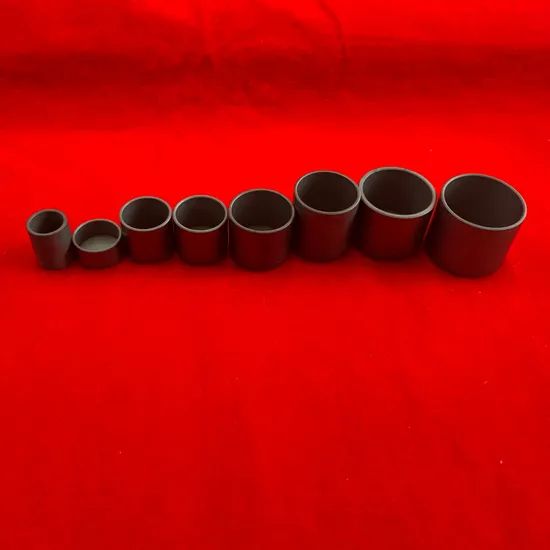

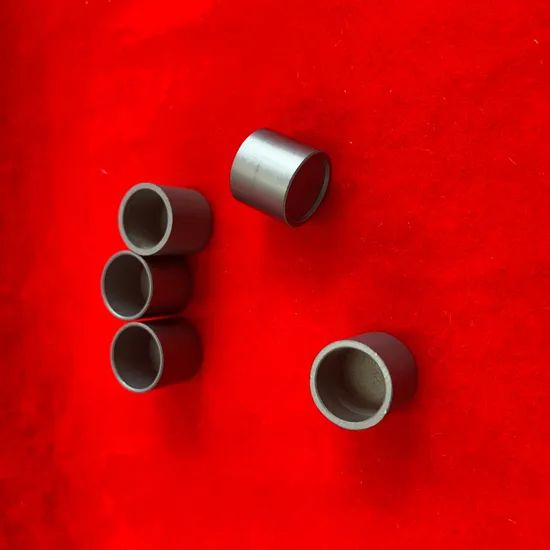

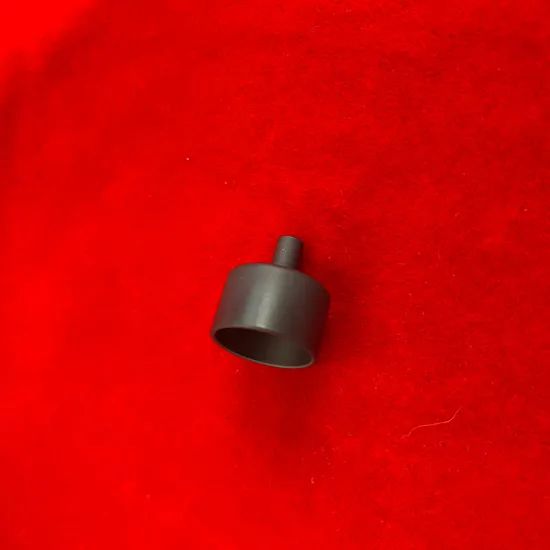

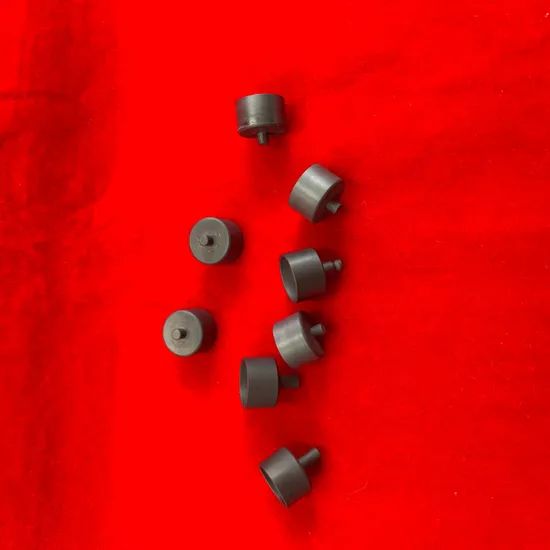

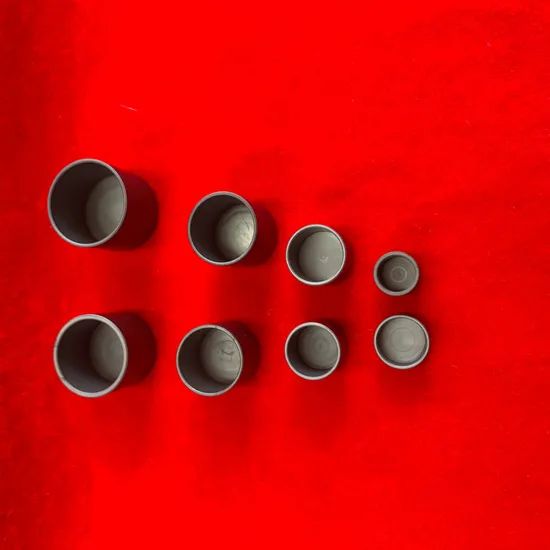

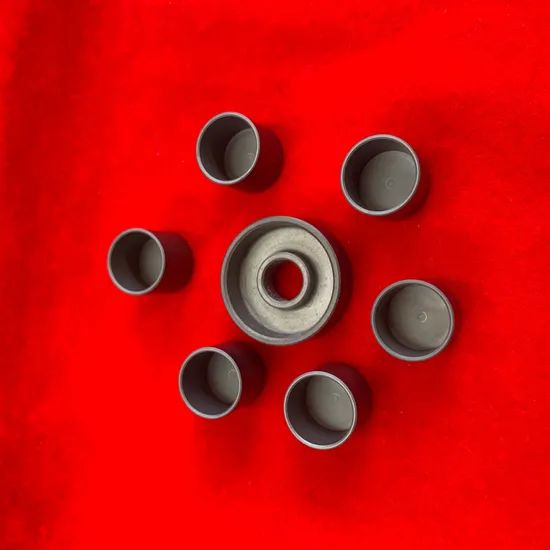

High Hardness Flat Bottom Customize Silicon Carbide Ceramic Crucible
50-499 Piece
$6500-999 Piece
$51000 Piece
$4.5Product information
High-quality High Hardness Flat Bottom Customize Silicon Carbide Ceramic Crucible supplied by Lianyungang Highborn Technology Co., Ltd.. Bulk wholesale pricing ranges from $4.5 to $6 per Piece with a minimum order of 50 Piece. Inquiry for latest prices.
MOQ:
10
Max Temperature Of Application:
1650℃
Production Capacity:
200000piece Per Month
HS Code:
854710000
Hardness:
92-94hra
Density:
>3.13G/Cm3
Bending Strength:
>400MPa
Colour:
Black
Specifications
MOQ:
10
Max Temperature Of Application:
1650℃
Production Capacity:
200000piece Per Month
HS Code:
854710000
Hardness:
92-94hra
Density:
>3.13G/Cm3
Bending Strength:
>400MPa
Colour:
Black
Type:
Ceramic Parts
Origin:
China
Shape:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Property:
High Wear Resistance
Feature:
Insulation
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Lianyungang Port
Advantage:
Long Working Life
Appearance:
Neat
Trademark:
OEM
Certificate:
RoHS
Model NO.:
SC
Transport Package:
Safe Package
Material:
Silicon Carbide
Keyword1:
Silicon Carbide Crucible
Surface:
Smooth
Specification:
custom
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-02-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
50
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Lianyungang Port
Certificates:
EMC CERTIFICATE OF OZONE STERILIZER, EMC CERTIFICATE OF QUARTZ TUBE OZONE GENERATOR, Highborn Ceramics Rohs cerficicate, Highborn Export Liscense, ISO certificate, LVD CERTIFICATE OF OZONE STERILIZER, LVD CERTIFICATE OF QUARTZ TUBE OZONE GENERATOR, Quartz Glass Tube Rohs Certificate, ROHS CERTIFICATE OF OZONE STERILIZER, ROHS CERTIFICATE OF QUARTZ TUBE OZONE GENERATOR
Product descriptions from the supplier
Customize Silicon Carbide Ceramic Crucible :
The crucible is made of Silicon Carbide Ceramic which is with good wear resistance and Small coefficient of thermal expansion. We can customize the silicon carbide ceramic crucible according to customers' reqirements.
Introduction to Silicon carbide:
SiC ceramics, also known as emery.Not only have excellent room temperature mechanical properties, but also high temperature mechanical properties (strength, creep resistance, etc.) is the best known ceramic materials.Oxidation resistance is also the best of all non-oxide ceramics.
SiC ceramics, also known as emery.Not only have excellent room temperature mechanical properties, but also high temperature mechanical properties (strength, creep resistance, etc.) is the best known ceramic materials.Oxidation resistance is also the best of all non-oxide ceramics.
Advantages of Silicon carbide crucible:
1.High hardness
2.Good wear resistance
3.High thermal conductivity
4.Small coefficient of thermal expansion
5.Good chemical stability
Features of Silicon carbide crucible:
1. High Temperature resistance, SiSiC can withstand 1380C, SSiC can withstand 1600C at most.
2. High strength and excellent hardness.
3. Good Corrosion and Oxidization resistance.
4. Tight tolerance and good surface roughness.
| Item | Unit | SSIC | RBSIC/SISIC | RBSIC |
| Max temperature of Application | ºC | 1650 | 1300 | 1650 |
| Density | g/cm3 | >3.13 | >3.03 | >2.6 |
| Open Porosity | % | <0.2<> | <0.2<> | 15 |
| Bending Strength | Mpa | ≥400 | ≥350 | 90-100(20ºC) |
| Mpa | -- | -- | 100-120(1100ºC) | |
| Modulus of Elasticity | W/m.k | 120-150 | 90-110 | 24 |
| Coefficient of Thermal Expansion | K-1x10-6 | 4.0 | 4.0 | 4.8 |
| Hardness | HRV | 92-94 | 91-93 | -- |
| Acid Alkaline-proof | -- | excellent | excellent | excellent |
Based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics, thick film resistor, ozone generator, metal fiber felt, polyester fiber cotton products and we have been offering our products and services to our clients from more than 109 countries or regions.
Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients' expectation. We have custom-made new products and promoted the specifications for more than 1000 clients, and we have gotten good reputation from our clients.
Group had declared more than 20 patents, including 11 authorized patents and 3 invention patents, which a national high-tech enterprise.
| 1. High-quality products | 2. Optimal price | 3.SafeTransportation |
| 4. Sample service | 5. Customized size | 6. Compensate for broken goods |
| 7. Safe package | 8. Transportation safety | 9. Low procurement risk |
Packing Details |
We will packing by plastic/ polybay and bubble bags first , and then into the foam box,finally into the wooden cases/ carton/pallet or customized package.Every package can be offered with English installation instruction. |
Delivery Details |
We can deliver by any courier, eg, TNT, UPS, FedEx, EMS etc.We can also by air, sea etc.We can choose the way according to the requirements of customers to ensure the most safe, efficient and convenient transportation. |
1:What products and service can you offer us?
Answer: With the development more than 20 years, now we have 6 business division and we are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator,porous metal fiber felt and polyester fiber cotton products . For all the products, we can design and customize according to the clients' demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3days, however if need processing, we can deliver out within 15days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area? Can you export your products directly?
Answer: Till the end of 2021, we haven't authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 109 countries and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do?
Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
