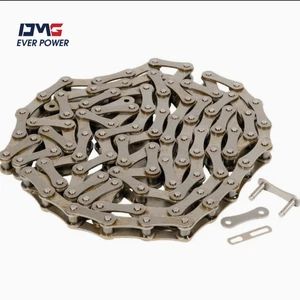

High Load Double Pitch Transmission Chain for Precision Applications 208b
Meters
Negotiable
Product information
High-quality High Load Double Pitch Transmission Chain for Precision Applications 208b supplied by Hangzhou Camel Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Chain Size:
1/2"*3/32"
Package Gross Weight:
10.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Model NO.:
208B
Production Capacity:
5000000pieces
HS Code:
73151190
Quality:
Advanced
Size:
Carbon Steel
Specifications
Chain Size:
1/2"*3/32"
Package Gross Weight:
10.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Model NO.:
208B
Production Capacity:
5000000pieces
HS Code:
73151190
Quality:
Advanced
Size:
Carbon Steel
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Feature:
Fire Resistant
Origin:
Hangzhou
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Price:
Negotiable
Surface Treatment:
Polish
Specification:
Roller Chain
Transport Package:
Sea and Air Freight
Port Of Loading:
Shanghai port, Ningbo port
Payment Methods:
Support payments in USD
Color:
True Colors
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-02-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
10
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai port, Ningbo port
Certificates:
Our certificate, Our production line
Product descriptions from the supplier
The High Precision Double Pitch Transmission Chain features a pitch twice as large as conventional short pitch precision roller chains, while keeping all other standard dimensions unchanged. This engineered configuration delivers the same tensile performance and hinge load capacity as traditional short pitch chains. Significantly reduced in weight, this double pitch chain excels in low-speed operations and long center span setups, combining reliable performance with flexible design.
DIN/ISO |
ANSI |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Innerplate depth |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
Weight per meter |
|
| DIN/ISO Chain No. | ANSI Chain No. | P | m(d)a(1)x | m(b)in(1) | m(d)a(2)x | L max | Lc max | m(h)a(2)x | T max | Q min | Q0 | q |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
| 208A | 2040 | 25.40 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12.0 | 1.50 | 14.1/3205 | 16.7 | 0.42 |
| 208B | 25.40 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | 18.0/4091 | 19.4 | 0.45 | |
| 210A | 2050 | 31.75 | 10.16 | 9.40 | 5.08 | 20.7 | 22.2 | 15.0 | 2.03 | 22.2/5045 | 28.1 | 0.73 |
| 210B | 31.75 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.70 | 22.4/5091 | 27.5 | 0.65 | |
| 212A | 2060 | 38.10 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18.0 | 2.42 | 31.8/7227 | 36.8 | 1.02 |
| 212B | 38.10 | 12.07 | 11.68 | 5.72 | 22.5 | 25.2 | 16.0 | 1.85 | 29.0/6591 | 32.2 | 0.76 | |
| 216A | 2080 | 50.80 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | 56.7/12886 | 65.7 | 1.70 |
| 216AH | 2080H | 50.80 | 15.88 | 15.75 | 7.92 | 36.2 | 39.4 | 24.0 | 4.00 | 56.7/12886 | 70.0 | 2.17 |
| 216B | 50.80 | 15.88 | 17.02 | 8.28 | 36.1 | 39.1 | 21.0 | 4.15/3.1 | 60.0/13636 | 72.8 | 1.75 | |
| 220A | 2100 | 63.50 | 19.05 | 18.90 | 9.53 | 40.4 | 44.7 | 30.0 | 4.00 | 88.5/20114 | 102.6 | 2.55 |
| 220B | 63.50 | 19.05 | 19.56 | 10.19 | 41.3 | 45.0 | 26.4 | 4.5/3.5 | 95.0/14773 | 106.7 | 2.62 | |
| 224A | 2120 | 76.20 | 22.23 | 25.22 | 11.10 | 50.3 | 54.3 | 35.7 | 4.80 | 127.0/28864 | 147.3 | 4.06 |
| 224B | 76.20 | 25.40 | 25.40 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 160.0/36364 | 178.0 | 4.70 | |
| 228B | 88.90 | 27.94 | 30.99 | 15.90 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | 200.0/45455 | 222.0 | 6.23 | |
| 232B | 101.60 | 29.21 | 30.99 | 17.81 | 66.0 | 71.0 | 42.0 | 7.0/6.0 | 250.0/56818 | 277.5 | 6.72 | |
Since 1984, Hangzhou Camel Machinery Co., Ltd. has grown steadily under the forward-thinking guidance of SARL Camel Material Agricole-F.Z.C, becoming a worldwide pioneer recognized for exceptional craftsmanship and continuous innovation. Through advanced manufacturing hubs in Dubai and Egypt covering 33,000 square meters, the company maintains a steadfast dedication to performance. Powered by more than 100 state-of-the-art production and inspection tools, all operations follow ISO 9001 protocols, guaranteeing consistent quality in a broad array of products. Exporting to more than 50 nations, our offerings—such as roller chains, sprockets, pulleys, and agricultural components—support key sectors including food processing, engineering design, printing, woodwork, textiles, rubber, and niche chemical equipment, delivering top-tier results.
machinery, plastic machinery, and a vast spectrum of industries.
SARL Camel Material Agricole-F.Z.C leads the industry with deep specialization in distributing farm machinery components and industrial gear systems. Tailored, high-performance offerings are designed to boost efficiency, delivering top-tier goods and support that propel your enterprise toward exceptional results.
Located at key hubs, our large-scale storage and manufacturing sites in Oran, Algeria, complemented by operations in Egypt and Dubai, UAE, deliver exceptional support and customized responses for your agricultural and industrial transmission requirements. A strong focus on excellence ensures you get precisely engineered, superior-grade products.
At Camel, we blend refined craftsmanship with precise delivery to deliver outstanding results. Our committed group serves as your reliable ally, treating you like family and building enduring connections that last forever. Side by side, we build a story of progress and top-tier performance that echoes across decades.
Our transmission chain drives mechanical systems with exceptional power transfer and precision. It enables smooth, reliable motion conversion—whether rotational or linear—via exact sprocket engagement, delivering consistent and efficient performance. Choose our transmission chains for outstanding performance and dependable results.
Our conveyor chains are precisely engineered for accuracy, featuring precisely positioned bearings firmly embedded in robust chain plates. Every bearing combines a pin shaft with a sleeve, enabling rollers to move smoothly for optimal efficiency and steady performance. Rely on our steadfast dedication to excellence and exacting mechanical design.
Engineered from premium stainless steel wire or solid round steel, our stainless steel chains come in short-link and long-link forms to suit a wide range of operational needs. Count on our stainless steel chains for solid, consistent performance, outstanding longevity, and unmatched tensile power.
Our farm equipment chains offer a wide range of choices, such as feed chains featuring P2-type fitted plates, haul chains with Ld2-type fitted plates, and corn harvest chains equipped with WK-type fitted plates. Every model is thoughtfully designed to deliver peak performance and outstanding results, boosting your farming activities through cutting-edge chain technology.
Traction chains form the core of efficient mechanical systems, critical in forklifts, port cranes, textile equipment, parking structures, drilling units, elevated work platforms, pipe shaping machines, and numerous other applications. They ensure consistent, dependable operation, markedly boosting output and performance in diverse industrial environments.
2. Is OEM available?
-Ves, OEM is available
3. Are you a Manufacturer or Trade Company?
-We are a factory focused on producing and exporting chains for over 37 years and have a professional internationaltrade team.
4.What terms ofpayment you usually use?T/T 30% deposit and 70% against document, Western Union,L/C at sight
5. Do you have after-sale service?
Resposible After-sale service team ,solving your problem at any time.
