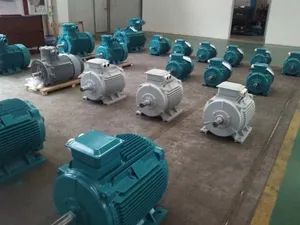

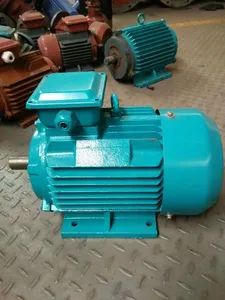

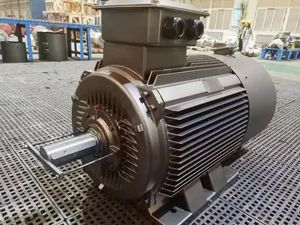

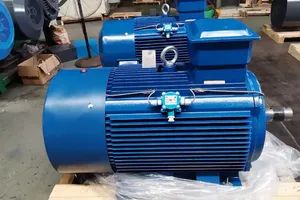

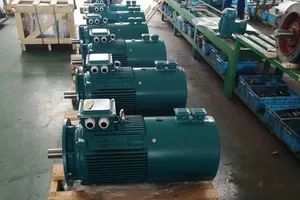

High-Performance AC Induction Motor with Class F Insulation

Induction motors are highly versatile powerhouse machines, widely embraced across varying scales of applications. At the domestic front, compact induction motors deliver reliable performance, while large-scale industrial operations depend on robust, heavy-duty induction motors engineered for diverse industrial tasks. These motors are meticulously classified by their efficiency standards as defined in the International Efficiency 60034-30-1. There are four distinguished categories: IE1, IE2, IE3, and IE4. Each of these categories signifies a leap in efficiency: IE1 motors fall within the Standard Efficiency range, offering a fundamental yet effective performance. IE2 motors step up to deliver High Efficiency, marking an advancement in energy conservation. IE3 motors are categorized under Premium Efficiency, setting a standard for superior performance. Lastly, IE4 motors embody the pinnacle of efficiency with their Super Premium Efficiency classification, ensuring optimum energy utilization and cost savings. The progressive enhancement in each series signifies a continual commitment to increasing energy efficiency and performance.

IE1 Motors (Standard Efficiency Motors)
The IE1 motors proudly belong to the IE1 class under the international efficiency standards. These motors deliver an impressive output range from 0.75kW to 355kW, accommodating a variety of performance needs. They are available in multiple pole configurations including 2, 4, 6, 8, 10, and 12, with a dynamic speed spectrum extending from 500rpm to 3600rpm. Operating at a frequency of 50Hz or 60Hz, they offer flexibility for different requirements. The IE1 motor's robust aluminum frames are sized between 56-200, while the cast iron frames range from 80-400. These motors are built to withstand higher temperatures with a B class temperature rating and utilize state-of-the-art IC411 cooling technology. The insulation class F further ensures durability and reliability. Designed for Type S duty, they incorporate advanced protection technologies including IP55, IP56, IP65, and IP66, conforming to international standards IEC 60034-30 and IEC 60034-2-1, promising uncompromised performance and safety.

IE2 Motors (High Efficiency)
The IE2 motors stand proudly within the IE2 class of international efficiency standards, offering a robust output range from 0.75kW to 355kW. These motors are available with 2, 4, and 6 pole configurations, catering to varying operational requirements. Their speed range spans from 1000rpm to 3600rpm, making them adaptable to diverse applications. Operating frequencies of 50Hz or 60Hz ensure compatibility with global standards. The IE2 motors boast aluminum frames sized between 80-160 and cast iron frames ranging from 80-400, crafted for strength and endurance. With a B class temperature rating and IC411 cooling technology, these motors maintain optimal performance. The F class insulation provides added reliability. Engineered for Type S duty, they feature advanced protection technologies like IP55, IP56, IP65, and IP66. Adhering to international standards IEC 60034-30 and IEC 60034-2-1, IE2 motors promise efficiency and reliability in demanding environments.

IE3 Motors (Premium Efficiency)
The IE3 motors, within the distinguished IE3 class of international efficiency standards, offer outputs from 0.75kW to 355kW, designed for demanding applications. Available in 2, 4, 6, and 8 pole configurations, they cover a wide speed range of 750rpm to 3600rpm, offering versatility across uses. With operating frequencies of 50Hz or 60Hz, they are globally efficient. Their aluminum frame sizes range from 80-160, while cast iron frames span 80-400, ensuring durability. Rated with a B temperature class and equipped with dual cooling technologies, IC411 and IC416, these motors maintain superior performance. The insulation class F enhances reliability, complemented by duty types S1, S2, and S3 for varied operations. Equipped with comprehensive protection technologies including IP55, IP56, IP65, and IP66, and compliant with IEC 60034-1-30 standards, IE3 motors are engineered for excellence in efficiency and resilience.

IE4 Motors (Super Premium Efficiency)
