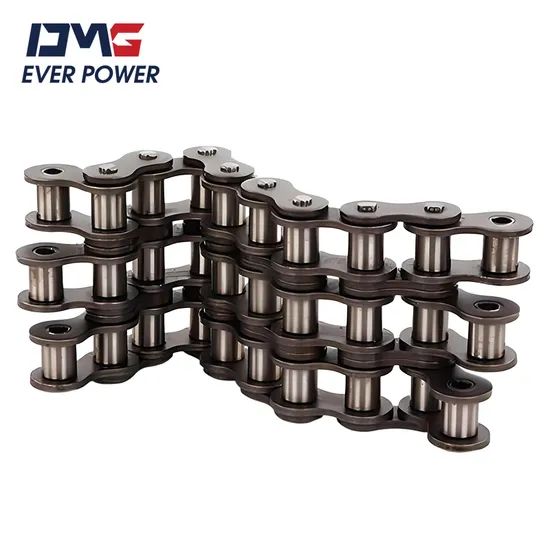

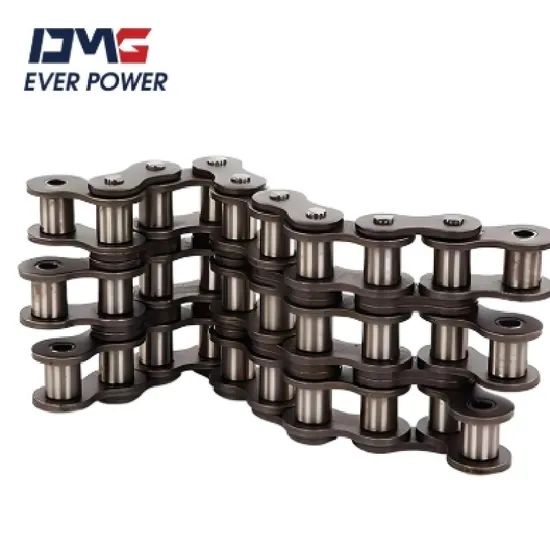

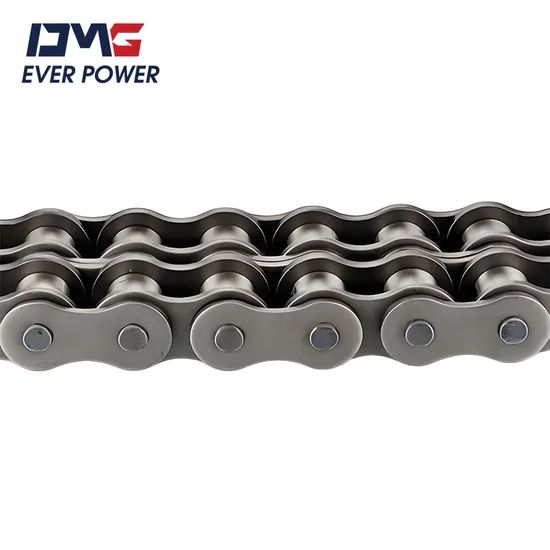

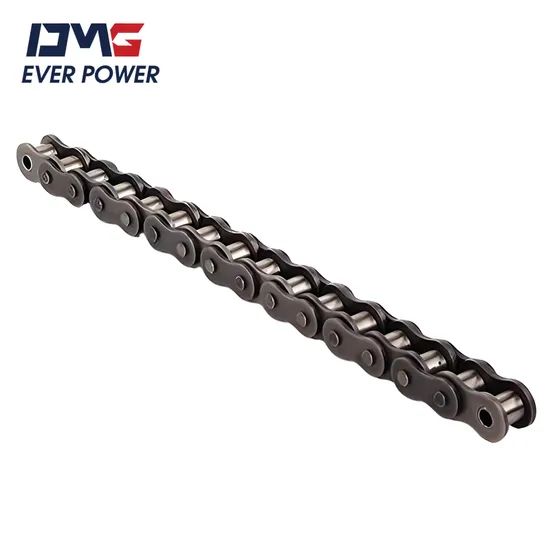

High Performance Cottered Short Pitch Precision Roller Chain 20A 2
1 Meter
$0.591 Meter
$20Product information
High-quality High Performance Cottered Short Pitch Precision Roller Chain 20A 2 supplied by Hangzhou Camel Machinery Co., Ltd.. Bulk wholesale pricing ranges from $0.59 to $20 per Meter with a minimum order of 1 Meter. Inquiry for latest prices.
Chain Size:
1/2"*3/32"
Package Gross Weight:
10.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Lead Time For Standard Chain:
20-30 Days
Model NO.:
20A-2
Production Capacity:
5000000pieces
HS Code:
73151190
Quality:
Advanced
Specifications
Chain Size:
1/2"*3/32"
Package Gross Weight:
10.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Lead Time For Standard Chain:
20-30 Days
Model NO.:
20A-2
Production Capacity:
5000000pieces
HS Code:
73151190
Quality:
Advanced
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Feature:
Fire Resistant
Origin:
Hangzhou
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Surface Treatment:
Polishing
Transport Package:
Sea and Air Freight
Port Of Loading:
Shanghai port, Ningbo port
Specification:
Stainless steel material
Payment Methods:
Support payments in USD
Color:
True Colors
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-02-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
10
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai port, Ningbo port
Certificates:
Our certificate, Our production line
Product descriptions from the supplier
A type of connection using an open cotter pin secures the outer link plate to the pin shaft. This design is straightforward and dependable, making it ideal for applications needing regular servicing or removal.
DIN/ISO |
ANSI |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Innerplate depth |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
Weight per meter |
| DIN/ISO Chain No. | ANSI Chain No. | P | m(d)a(1)x | m(b)in(1) | m(d)a(2)x | Lc max | m(h)a(2)x | T max | Q min | Q0 | q |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
| 10A-1 | 50-1 | 15.875 | 10.16 | 9.40 | 5.08 | 23.3 | 15.09 | 2.03 | 22.2/5045 | 29.4 | 1.02 |
| 12A-1 | 60-1 | 19.050 | 11.91 | 12.57 | 5.94 | 28.3 | 18.00 | 2.42 | 31.8/7227 | 41.5 | 1.50 |
| 16A-1 | 80-1 | 25.400 | 15.88 | 15.75 | 7.92 | 36.5 | 24.00 | 3.25 | 56.7/12886 | 69.4 | 2.60 |
| 20A-1 | 100-1 | 31.750 | 19.05 | 18.90 | 9.53 | 44.7 | 30.00 | 4.00 | 88.5/20114 | 109.2 | 3.91 |
| 24A-1 | 120-1 | 38.100 | 22.23 | 25.22 | 11.10 | 54.3 | 35.70 | 4.80 | 127.0/28864 | 156.3 | 5.62 |
| 28A-1 | 140-1 | 44.450 | 25.40 | 25.22 | 12.70 | 59.0 | 41.00 | 5.60 | 172.4/39182 | 212.0 | 7.50 |
| 32A-1 | 160-1 | 50.800 | 28.58 | 31.55 | 14.27 | 69.6 | 47.80 | 6.40 | 226.8/51545 | 278.9 | 10.10 |
| 36A-1 | 180-1 | 57.150 | 35.71 | 35.48 | 17.46 | 78.6 | 53.60 | 7.20 | 280.2/63682 | 341.8 | 13.45 |
| 40A-1 | 200-1 | 63.500 | 39.68 | 37.85 | 19.85 | 87.2 | 60.00 | 8.00 | 353.8/80409 | 431.6 | 16.15 |
| 48A-1 | 240-1 | 76.200 | 47.63 | 47.35 | 23.81 | 103.0 | 72.39 | 9.50 | 510.3/115977 | 622.5 | 23.20 |
DIN/ISO |
ANSI |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Innerplate depth |
Plate thickness |
Transverse pitch |
Ultimate tensile strength |
Average tensile strength |
Weight per meter |
| DIN/ISO Chain No. | ANSI Chain No. | P | m(d)a(1)x | m(b)in(1) | m(d)a(2)x | Lc max | m(h)a(2)x | T max | Pt | Q min | Q0 | q |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
| 10A-2 | 50-2 | 15.875 | 10.16 | 9.40 | 5.08 | 41.2 | 15.09 | 2.03 | 18.11 | 44.4/10091 | 58.1 | 2.00 |
| 12A-2 | 60-2 | 19.050 | 11.91 | 12.57 | 5.94 | 51.1 | 18.00 | 2.42 | 22.78 | 63.6/14455 | 82.1 | 2.92 |
| 16A-2 | 80-2 | 25.400 | 15.88 | 15.75 | 7.92 | 65.8 | 24.00 | 3.25 | 29.29 | 113.4/25773 | 141.8 | 5.15 |
| 20A-2 | 100-2 | 31.750 | 19.05 | 18.90 | 9.53 | 80.5 | 30.00 | 4.00 | 35.76 | 177.0/40227 | 219.4 | 7.80 |
| 24A-2 | 120-2 | 38.100 | 22.23 | 25.22 | 11.10 | 99.7 | 35.70 | 4.80 | 45.44 | 254.0/57727 | 314.9 | 11.70 |
| 28A-2 | 140-2 | 44.450 | 25.40 | 25.22 | 12.70 | 107.9 | 41.00 | 5.60 | 48.87 | 344.8/78364 | 427.5 | 15.14 |
| 32A-2 | 160-2 | 50.800 | 28.58 | 31.55 | 14.27 | 128.1 | 47.80 | 6.40 | 58.55 | 453.6/103091 | 562.4 | 20.14 |
| 36A-2 | 180-2 | 57.150 | 35.71 | 35.48 | 17.46 | 144.4 | 53.60 | 7.20 | 65.84 | 560.5/127386 | 695.0 | 29.22 |
| 40A-2 | 200-2 | 63.500 | 39.68 | 37.85 | 19.85 | 158.8 | 60.00 | 8.00 | 71.55 | 707.6/160818 | 877.4 | 32.24 |
| 48A-2 | 240-2 | 76.200 | 47.63 | 47.35 | 23.81 | 190.8 | 72.39 | 9.50 | 87.83 | 1020.6/231955 | 1255.3 | 45.23 |
DIN/ISO |
ANSI |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Innerplate depth |
Plate thickness |
Transverse pitch |
Ultimate tensile strength |
Average tensile strength |
Weight per meter |
| DIN/ISO Chain No. | ANSI Chain No. | P | m(d)a(1)x | m(b)in(1) | m(d)a(2)x | Lc max | m(h)a(2)x | T max | Pt | Q min | Q0 | q |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
| 10A-3 | 50-3 | 15.875 | 10.16 | 9.40 | 5.08 | 59.3 | 15.09 | 2.03 | 18.11 | 66.6/15136 | 77.8 | 3.09 |
| 12A-3 | 60-3 | 19.050 | 11.91 | 12.57 | 5.94 | 73.9 | 18.00 | 2.42 | 22.78 | 95.4/21682 | 111.1 | 4.54 |
| 16A-3 | 80-3 | 25.400 | 15.88 | 15.75 | 7.92 | 95.1 | 24.00 | 3.25 | 29.29 | 170.1/38659 | 198.4 | 7.89 |
| 20A-3 | 100-3 | 31.750 | 19.05 | 18.90 | 9.53 | 116.3 | 30.00 | 4.00 | 35.76 | 265.5/60341 | 309.6 | 11.77 |
| 24A-3 | 120-3 | 38.100 | 22.23 | 25.22 | 11.10 | 145.2 | 35.70 | 4.80 | 45.44 | 381.0/86591 | 437.2 | 17.53 |
| 28A-3 | 140-3 | 44.450 | 25.40 | 25.22 | 12.70 | 156.8 | 41.00 | 5.60 | 48.87 | 517.2/117545 | 593.3 | 22.20 |
| 32A-3 | 160-3 | 50.800 | 28.58 | 31.55 | 14.27 | 186.6 | 47.80 | 6.40 | 58.55 | 680.4/154636 | 780.6 | 30.02 |
| 36A-3 | 180-3 | 57.150 | 35.71 | 35.48 | 17.46 | 210.2 | 53.60 | 7.20 | 65.84 | 840.7/191068 | 983.6 | 38.22 |
| 40A-3 | 200-3 | 63.500 | 39.68 | 37.85 | 19.85 | 230.4 | 60.00 | 8.00 | 71.55 | 1061.4/241227 | 1217.8 | 49.03 |
| 48A-3 | 240-3 | 76.200 | 47.63 | 47.35 | 23.81 | 278.6 | 72.39 | 9.50 | 87.83 | 1530.9/347932 | 1756.5 | 71.60 |
Established in 1984 in Algeria, under the parent entity SARL Camel Material Agricole-F.Z.C, the company operates regional headquarters in Dubai, UAE, and Egypt. Camel Machinery Co. focuses on research, production, and distribution of mechanical components. The manufacturing facility spans over 33,000 square meters and is equipped with more than 100 state-of-the-art processing units and testing tools. Core offerings include roller chains, sprockets, pulleys, and agricultural accessories, all certified to ISO 9001 standards. These products are distributed to over 50 countries globally, serving sectors such as food processing, engineering equipment, printing systems, woodworking tools, small textile machines, rubber manufacturing, and small-scale chemical industries.
machinery,plastic machinery etc.
SARL Camel Material Agricole-F.Z.C, our parent enterprise, specializes in distributing agricultural machinery components and industrial drive systems, offering you the optimal solutions
specialized agricultural and industrial drive systems. Our largest storage and manufacturing facility is situated in Oran, Algeria, and Egypt, as well as Dubai, UAE, ensuring top-tier support and tailored solutions for your needs.
At Camel, we trust that flawless outcomes stem from thoughtful design and consistent effort—our team stands by you as one extended family, always and forever!
A transmission chain serves as a mechanical component to transfer energy and movement. It enables the transformation between rotational or straight-line motion via interlocking sprocket engagement.
Precision conveyor systems incorporate multiple bearings arranged in a tightly controlled configuration. These bearings are secured using chain plates that enforce exact positioning, ensuring consistent alignment. Each bearing unit consists of a pin shaft and a housing, with the chain rollers spinning directly on these components.
Stainless steel chain is a type of linked cable constructed from stainless steel wire or round steel rods. Typically, it comes in two forms: short-link and long-link stainless steel chains.
Agricultural chain systems typically feature feed chains equipped with P2-style plate attachments, raise chains fitted with Ld2-style plates, and corn collection chains using WK-type plates.
Traction chains are widely used in forklifts, port stackers, textile machinery, parking garages, drilling rigs, aerial work platforms, pipe benders and other occasions.
2. Is OEM available?
-Ves, OEM is available
3. Are you a Manufacturer or Trade Company?
-We are a factory focused on producing and exporting chains for over 37 years and have a professional internationaltrade team.
4.What terms ofpayment you usually use?T/T 30% deposit and 70% against document, Western Union,L/C at sight
5. Do you have after-sale service?
Resposible After-sale service team ,solving your problem at any time.
