High-Performance Electrical Insulating SMC and BMC Molding Components
100 kg
$5100 kg
$1Product information
High-quality High-Performance Electrical Insulating SMC and BMC Molding Components supplied by Beijing Red Sun Technology Co.,Ltd.. Bulk wholesale pricing ranges from $1 to $5 per kg with a minimum order of 100 kg. Inquiry for latest prices.
Thickness:
1 mm
Density:
1.9
Maximum Voltage:
20KV~100KV
Package Gross Weight:
25.000kg
Package Size:
30.00cm * 30.00cm * 30.00cm
Production Capacity:
50 Tons/Month
HS Code:
85472000
Origin:
Beijing, China
Specifications
Thickness:
1 mm
Density:
1.9
Maximum Voltage:
20KV~100KV
Package Gross Weight:
25.000kg
Package Size:
30.00cm * 30.00cm * 30.00cm
Production Capacity:
50 Tons/Month
HS Code:
85472000
Origin:
Beijing, China
Transport Package:
Carton and Pallet
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Thermal Rating:
F 155
Trade Term:
FOB, CFR, CIF, FCA, EXW
Material:
Fiberglass, Resin
Certification:
ISO9001
Type:
Insulation Sheet
Payment Term:
LC, T/T, PayPal, Small-amount payment
Trademark:
Redsun
Model NO.:
SMC parts
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin, Shanghai, Ningbo
Flammability:
V0
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-04-09
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF, FCA, EXW
Port Of Loading:
Tianjin, Shanghai, Ningbo
Certificates:
QUALITY MANAGEMENT SYSTEM CERTIFICATION, ROHS1, ROHS2, ROHS3, ROHS4, ROHS5, SGS1, SGS2, SGS3, SGS4, SGS5, SGS6, SGS7, SGS8, TUV
Product descriptions from the supplier

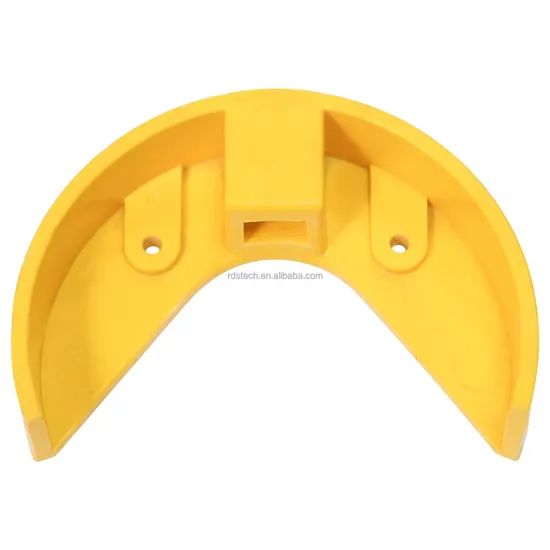

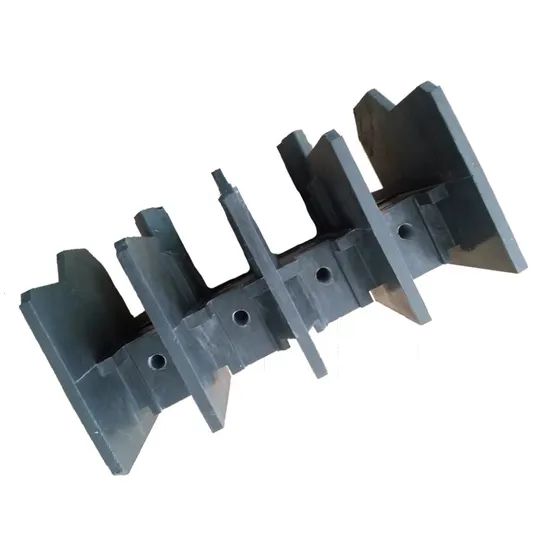

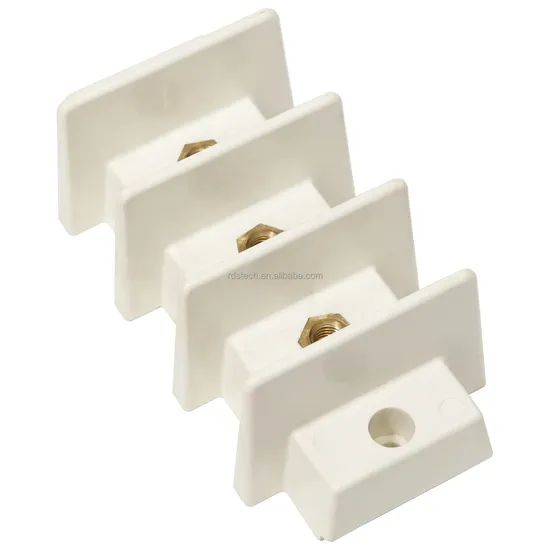

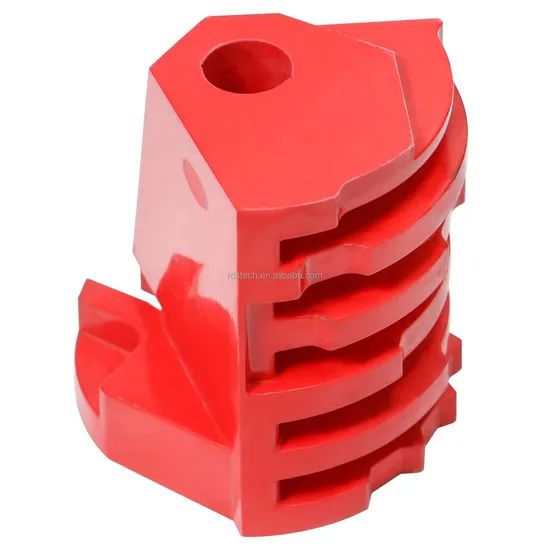

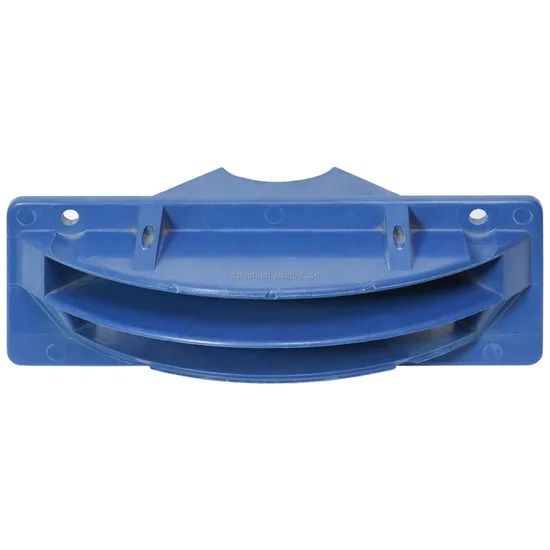

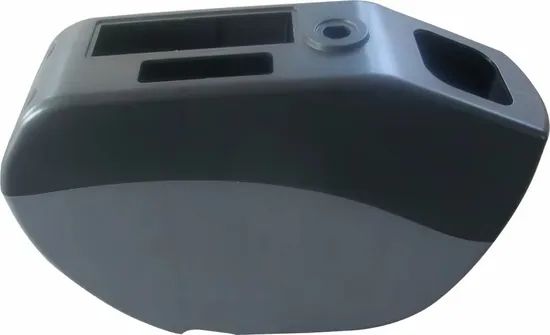

SMC and DMC Parts
SMC and DMC are all composed by unsaturated polyester resin as the bonding material,filled with glass fiber, fillings, pigment and other chemical agents. SMC is covered by film on both sides and in sheet shape, while DMC is a kind of dough-like material. Both materials have good insulating property, high mechanical property, thermal resistance,flame retardant, corrosion stability, and especially the molded properties, such as good fluidity, lower molding pressure and temperature, short molding time. SMC has better mechanical property than DMC. They are widely applied into automobile industry, railway vehicles, building, electric industry and communication project.
| Products | sheet/dough molding compouds | Test method | |||||||
| Properties | Value | - | |||||||
| Types | Unit | SMC-A | SMC-B | SMC-C | DMC-A | DMC-B | DMC-C | - | |
| Density | g/cm 3 | 1.75-1.95 | 1.75-1.95 | 1.75-1.95 | 1.75-1.95 | 1.75-1.95 | 1.75-1.95 | GB 1033-86 | |
| Water Absorption | mg | ≤ 20 | ≤ 20 | - | ≤ 20 | ≤ 20 | - | JB3961-85 | |
| Mould shrink Rate | % | ≤ 0.15 | ≤ 0.15 | ≤ 0.30 | ≤ 0.15 | ≤ 0.15 | ≤ 0.30 | JB3961-85 | |
| Heat Distortion Temp. | Centigrade | ≥ 240 | ≥ 240 | ≥ 220 | ≥ 240 | ≥ 240 | ≥ 220 | JB3961-85 | |
| Impact strength Charpy | kJ/m 2 | ≥ 90 | ≥ 60 | ≥ 45 | ≥ 30 | ≥ 25 | ≥ 20 | GB1043-79 | |
| Flexural Strength | MPa | ≥ 170 | ≥ 150 | ≥ 135 | ≥ 90 | ≥ 80 | ≥ 70 | JB3961-85 | |
| Insulation Resistance | Under normal conditions | Ω | ≥ 1.0×10 13 | ≥ 1.0×10 13 | ≥ 1.0×10 12 | ≥ 1.0×10 13 | ≥ 1.0×10 13 | ≥ 1.0×10 12 | GB10064-88 |
| Impregnated water after 24h | ≥ 1.0×10 12 | ≥ 1.0×10 12 | - | ≥ 1.0×10 12 | ≥ 1.0×10 12 | - | GB10064-88 | ||
| Dielectric strength | MV/m | ≥ 12.0 | ≥ 12.0 | ≥ 10.0 | ≥ 12.0 | ≥ 12.0 | ≥ 10.0 | GB1408-89 | |
| Medium loss factor (1MHZ) | - | ≤ 0.015 | ≤ 0.015 | ≤ 0.015 | ≤ 0.015 | ≤ 0.015 | - | GB1408-88 | |
| Relative dielectric coeff (1MHZ) | - | ≤ 4.5 | ≤ 4.5 | ≤ 4.5 | ≤ 4.5 | ≤ 4.5 | - | GB1409-88 | |
| Arc Resistance | S | ≥ 180 | ≥ 150 | ≥ 180 | ≥ 180 | ≥ 180 | ≥ 180 | GB1411-88 | |
| Proof tracking index (PTI) | V | ≥ 600 | ≥ 600 | ≥ 600 | ≥ 600 | ≥ 600 | ≥ 600 | GB4207-84 | |
| Flame Retardant | Grand | FV0 | FV0 | - | FV0 | FV0 | - | GB11020-89 | |
| Temperature Index | ° C | 155 | 155 | 130 | 155 | 155 | 130 | JB3961-85 | |
| Appearance | - | Smooth surface, no air bubble and crack, no sundries | JB/T7770-1995 | ||||||
Shiping way: By sea,By air or By express according your choice.
We try our best to pack and protect the goods according to custome's requirment base on different
sizes,hardness and other details.
5. Our Service
Your inquiry related to our products or prices will be replied within 24hours.
Experienced staffs to answer all your enquires in fluent English with professional knowledge.
What we supplied for you is not only the products but also the best service and confidence.
Protection of all your private business information.
One time cooperation, long time partners.
In case of any quality problem, we will firstly compenstate customer and not let the customer has any lost.
We will provide you any update news about your order status.
