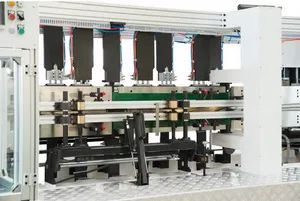

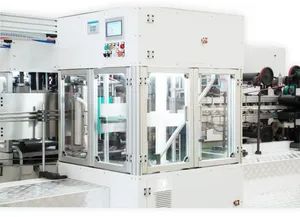

High Performance Paper Sack Paper Bag Making Machine Lines 4 MOQ 1 Set Speed High Voltage 380V Layer Double Trademark DeSheng
Set
Negotiable
Product information
High-quality High Performance Paper Sack Paper Bag Making Machine Lines 4 MOQ 1 Set Speed High Voltage 380V Layer Double Trademark DeSheng supplied by Enping Desheng Intelligent Technology Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
MOQ:
1 Set
Capacity:
130-150 Pieces/Minute
Production Capacity:
32 Million to 35 Million Yuan Per Year
Voltage:
380V
Lines:
4
Delivery Time:
60 Days
Package Gross Weight:
6500.000kg
Package Size:
790.00cm * 230.00cm * 235.00cm
Specifications
MOQ:
1 Set
Capacity:
130-150 Pieces/Minute
Production Capacity:
32 Million to 35 Million Yuan Per Year
Voltage:
380V
Lines:
4
Delivery Time:
60 Days
Package Gross Weight:
6500.000kg
Package Size:
790.00cm * 230.00cm * 235.00cm
HS Code:
8441200000
Model NO.:
BM2022-2F-2B-2D
Machine Type:
Bag Forming Machine
Product Line:
Bag Making Machine
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Voltage And Frequency:
Customized
Trademark:
DeSheng
Layer:
Double
Trade Term:
EXW, FOB, CIF
Origin:
Guangdong China
Sealing & Cutting:
Heat-Sealing Cold-Cutting
Speed:
High
Seals Mode:
Hot Sealing
Specification:
ISO9001. CE
Port Of Loading:
Jiangmen Port
Bag Body Size:
L:370-900mm,W:320-600mm
Payment Term:
LC, T/T
Type:
Paper Bag Making Machine
Payment Methods:
Support payments in USD
Product Type:
Valve Bagsfor Cement;Dry Mortar;Chemical
Bag Valve Size:
W:90-200mm, L:100-250mm
Transport Package:
Wooden Box /Pallet
Continuous Rolled:
Yes
Bag Size Tolerance:
±3 mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2021-03-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
22
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
EXW, FOB, CIF
Port Of Loading:
Jiangmen Port
Certificates:
A bottom forming mechanism for paper bags, A bottom imprinting mechanism for paper bags, A defective paper bag rejection mechanism, A differential adjustment mechanism for inserting paper tape into valve opening, A differential-speed creasing and cutting mechanism for paper bags, A gear box with planetary differential adjustment, A glue application and conveying mechanism for paper bag bottoms, A roller structure for conveyor belt, A switching structure for positive/negative paper clamping at valve opening, Adhesive Application Structure for Bottom of Paper Bag, Adjustable Creasing Depth Mechanism, Adjustable Differential Gear Mechanism for Transmission System, Air Distribution Structure for Paper Feeding Component, An automatic alignment adjustment structure for cutting edge, Automatic Gluing Device for Bottom of Paper Bags, Paper Feeding Unit for Loading Mechanism, Reinforcement Strip Insertion and Conveyance System for Internal/External Use, Suction Opening Mechanism for Paper Bag Production Equipment, Valve mouth paper bag paper tape insertion transmission device, Valve port double-layer paper bag composite forming mechanism
Product descriptions from the supplier
| Product Description |
Multi-Layers Cement Valve Pocket Sack Kraft Paper Bag Paste Bottom Making Machine
This Bottomer machine is designed for the production of industrial-grade multi-layer kraft paper valve bags. It is mainly used to produce cement bags, mortar bags, chemical bags and food-grade paper bags. It is suitable for high-strength packaging needs in industries such as cement, dry-mixed building materials, and chemicals.
It adopts PLC intelligent control and servo drive system, supports 2-5 layers of material lamination (including kraft paper + PE film), integrates tube making, printing, and bottom pasting, and achieves high-speed production of 120-150 bags per minute.
| Detailed Photos and Machine Process |
| 1.Eight groups of suction and discharge high-speed rotating vaccum adsorbent materials
There are eight groups of rows in the large disc roller.each group of suction rows rotates in reverse to the vacuumair input, and the bag tube rotates to the closed air place withthe large disc roller after suctioning, and the paper bag is sentout at the tangent place of the upper and lower conveying belts in reverse. The vacuum closed air adopts positive pressure air interference and mechanical cam deflation methodsso that the feeding effect of the unit can reach high speed and smooth. |
2.Steps arrangement (with abnormal rejection function) After the bag tube enters from the previous process, the lower conveyor belt and the upper acceleration and sorting belt are clamped and sent to the step synchronous belt. At the same time, the right vertical belt will make left and right aligning movements for each bag tube passing by until the edge of the paper bag is stuck to the step synchronous belt block tightly. At this time, the acceleration and sorting belt is in a slipping state, but the bag tube will not be sent over. |
| 3.Center distance direct imprinting, 45° diagonal imprinting(with piercing mechanism) The bag barrel is sent by the upper and lower auxiliaryconveyor rails and the upper and lower main conveying rallsto the direct imprinting of the center distance (the center dis-tance can be adjusted: 260-700mm), and then enters the frontand rear 45° imprinting (to prepare for the pre-printing ofcreases for the unfolding of the bag mouth). |
4.Extra removement Two incisions are cut on the left and right sides of the bagmouth, the length of the cut is manually adjusted, and thestraight cut of the bag mouth is adjusted according to the needsof the width of the bag tube and the width of the bottom (servodata can be adusted) |
| 5.Suck open & spread, smoothwith the horns After the pre-process of direct imprinting, 45° imprinting.and straight incision of the ear of the bag tube, the suctionmechanism will synchronously open the bag tube to form a con-ical opening. The suction is operated by the relative rotation ofthe vacuum distribution plate and the upper and lower suctionarms, After the bag tube is opened to a height of 80mm, theupper and lower horns are inserted into the bag tube. After ad.justing the delay function of the horn, the tail of the horn pick isstretched out from the rear incision and the rear horn issmoothed and fed into the shaping pressure wheel. |
6.First valve insertion (Optional) The bag barrel is unfolded and transported to the zero detection arealor anomaly detection. When the valve port paper strip is normally unfolded, the paper stripis normally glued, and sent to the corresponding position of the bagbarrel that has been normally unfolded in the past to complete the pro-cessinsertion; When the valve port paper strip is not clamped when the unfolded isabnormal, it turns into a rejection and sending state, and the bagbarrel with abnormal expansion is sent out with the abnormal rejectionfunction at the back. |
| 7.Secondary valve insertion (Additional option) 1)The length of the paper strip is fixed by servo data; 2.)The clamping length can be adjusted by servo dataWhenthe clamping position increases, the cutter position should be adjusted forward,When the clamping positlon is reduced, the cutter posi-tion should be adjusted backwards; 3)The insertion position (front and back) of the walve portpaper is adjusted by servo data. 4)The offset plate can be replaced with a vertical hanging type; 5)Adjustable function of glue supply. |
8.Valve end single-sided internal enhanced insertion (optional) After the bag tube is unfolded, it is transported to thezero detection area, and when the expansion is normal, the re-inforcing paper strip is normally clamped and glued, and thensent to the corresponding position to complete the process in-sertion; When the expansion is abnormal, the inner reinforcingpaper strip does not clamp the paper and turns to the rejectionand sending state, and will be sent out by the abnormal rejec.tion function later. |
| 9.Bottom stamped & bottom smeared The bag tube enters the bottom embossing and closingthe bottom glue process,The bottom embossing pre-emboss.ing is to prepare for the folding of the bottom molding. After the bottom embossing is com-pleted, enter the bottom gluing process, the gluing layout isdesigned according to the requirements of the productionprocess, and fixed on the hanging plate, when necessary. thedesigned offset plate is manually hung on the glued alumi-num wheel, and there is a group up and down the gluing alu-minum wheel, and the rotation is a circle for the gluing of twobags. |
10.Bottom closure & molding The bag tube is folded and forrned, glued and shaped successively, After the bag tube enters the molding, the forming heartplate plays a fixed role up and down, and the fixing point is theinner side of the bottom embossing line and the upper and lower sides of the bag tube arepre-folded to 90 " under the promotion of conveying. and enterthe upper and lower vertical belts for auxiliary pushing, and theupper side of the bag tube is folded down to 180 * by the upturnedforming plate, and the lower side of the bag tube is folded up to180 ° by the upturned forming plate (the delay distance betweenthe top and bottom is 300m), After the folding is completed, thefolding edge is fixed, compacted, pre-bonded and transported tothe next process through the tapered wheel. |
| 11.External enchanced insertion (optional) QR code wirtual incision, ordinary reinforcing paper, hot meltadhesive reinforcing paper. 1) The length of the paper strip is fixed by servo data, and thecolor mark is tracked; 2) The clamping length can be adjusted by servo dataWhen the clamping position increases, the cutter positionshould be adjusted forward, and when the clamping position isreduced, the cutter position should be adjusted backward. 3) The insertion position (front and back} of the valve portpaper is adjusted by servo data. 4) Installation of the dislocation groove between the gluingroller and the sticker tube; 5) There is no need to replace the glue plate; |
12.Flip bottom & compaction (with anomalous rejection) Process: After the processed bottom enters, the center hand.rail and the upper and lower supporting plates continue tomove forward in a straight line, and after the relative action ofthe upper and lower turning rods (which can be selecteddownward or upward flipping according to the process requirements), the bottom of the bag begins to be flipped hori.zontally from the inside to the outside, and we enter the compaction belt group for reshaping and bonding. |
| 13.Small Scompaction mechanism/simple compaction mechanism (optional) There are two main types of compaction mechanisms: The main characteristics of the small S compaction mechanism arethat the compaction line is S-shaped, the line is long, the compac.tion effect is smooth and wrinkle-free, the glue bonding is morecomprehensive and firm, and the sealing is stronger in filling:The maln feature ofthe simple compaction mechanlsm ls that it lssimple, the compaction line is slope type, and the compaction lineis medium, The compaction effect is slightly weaker than that ofsmall S, but the glue bonding effect is the same. |
14.Counting, stacking & output After the compacting output, the mechanicalcounting is stacked and fed. The number of stackscan be set according to production needs. |
| Sample Product |
| Product Parameters |
| Model | Name | Bag Types Capable of Production | Specifications | Normal Production Speed | ||
| 1 | BM2022-1F | Standard Bottom Gluing Machine | Standard Cement Bags | Finished Bag Length: 370-900 mm | Bag Tube Width: 320-600 mm | 130-150 bags/min |
| Bottom Width Dimension: 90-200 mm | Valve Mouth Length: 100-250 mm | |||||
| Bottom Width Tolerance: ≤3 mm | Finished Product Tolerance: ±3 mm | |||||
| Valve Type: Single Paper Inlay Valve, Film Laminated Inlay Valve. | ||||||
| 2 | BM2022-1F-2D | Standard Type Bottom Gluing Machine | Standard Cement Bags | Finished Bag Length: 370-900 mm | Bag Tube Width: 320-600 mm | 130-150 bags/min |
| Bottom Width Dimension: 90-200 mm | Valve Mouth Length: 100-250 mm | |||||
| Mortar Bags | Outer Reinforcement Length: 100-520 mm | |||||
| Bottom Width Tolerance: ≤3 mm | Finished Product Tolerance: ±3 mm | |||||
| Valve types include single paper inlets, film laminated inlets, ultrasonic sealed valves and heat sealed valves | ||||||
| 3 | BM2022-1F-1B-2D | Enhanced Type Bottom Gluing Machine | Standard Cement Bags | Finished Bag Length: 370-900 mm | Bag Tube Width: 320-600 mm | 130-150 bags/min |
| Mortar Bags | Bottom Width Dimension: 90-200 mm | Valve Mouth Length: 100-250 mm | ||||
| Outer Reinforcement Length: 100-520 mm | Inner Reinforcement Length: 100-520 mm | |||||
| Standard Chemical Bags | Bottom Width Tolerance: ≤3 mm | Finished Product Tolerance: ±3 mm | ||||
| Valve types include single paper inlets, film laminated inlets, ultrasonic sealed valves, heat sealed valves, left external valves with snap fasteners and double layer ultrasonic sealed valves. | ||||||
| 4 | BM2022-1F-2B-2D | Grade B Reinforced Bottom Gluing Machine | Standard Cement Bags | Finished Bag Length: 370-900 mm | Bag Tube Width: 320-600 mm | 130-150 bags/min |
| Mortar Bags | Bottom Width Dimension: 90-200 mm | Valve Mouth Length: 100-250 mm | ||||
| Reinforced Chemical Bags | Outer Reinforcement Length: 100-520 mm | Outer Reinforcement Length: 100-520 mm | ||||
| Standard Food-Grade Paper Bag | Bottom Width Tolerance: ≤3 mm | Finished Product Tolerance: ±3 mm | ||||
| Valve types include single paper inlets, film laminated inlets, ultrasonic sealed valves, heat sealed valves, left external valves with snap fasteners and double layer ultrasonic sealed valves. | ||||||
| 5 | BM2022-2F-2B-2D | Grade A Reinforced Bottom Gluing Machine | Standard Cement Bags | Finished Bag Length: 370-900 mm | Bag Tube Width: 320-600 mm | 130-150 bags/min |
| Mortar Bags | Bottom Width Dimension: 90-200 mm | Valve Mouth Length: 100-250 mm | ||||
| Reinforced Chemical Bags | Outer Reinforcement Length: 100-520 mm | Inner Reinforcement Length: 100-520 mm | ||||
| Reinforced Food Grade Bags | Bottom Width Tolerance: ≤3 mm | Finished Product Tolerance: ±3 mm | ||||
| Valve types include single paper inlets, film laminated inlets, ultrasonic sealed valves, heat sealed valves, left external valves with snap fasteners, double layer ultrasonic sealed valves, and large base valves with small inlets. | ||||||
| Note: On the machine model, "F" refers to the valve, "B" refers to the inner reinforcement, and "D" refers to the outer reinforcement. The number preceding each letter indicates the quantity of that feature. | ||||||
1) What is the suitable material for your machines? Kraft paper , and PE film . 2~4 layer papers , 1 film, up to 5 layers
2) How many years of your factory?
Our factory since 2021,focus on the kraft paper cement bag making product line , include Tubmer machine & Botttomer machine . Have more than 114 Patents of machine . Export business is 70%,More than 20 countries
3)Lead times and shipment :
3~4months for standard machines. Tuber machine 2*40HQ, Bottomer machine 3*40HQ , Total: 5*40HQ
4)Install and Trainning :
2~4 Enginners 7-15days , and trainning 15-20days.
5) Where is your factory? How can i visit your company?
Our factory is located in Jiangmen City, Guangdong Province, China. Warmly welcomed to visit us.
