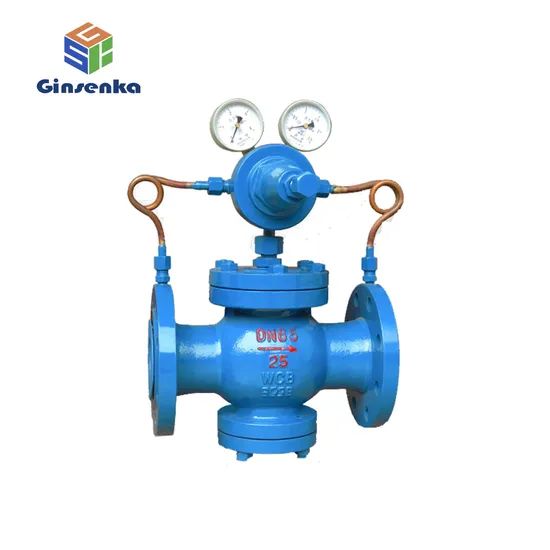

High-Performance Pilot-Operated Piston Type Pressure Reducing Valve Series for Industrial Gas Pipeline Applications
1 Piece
$45Product information
High-quality High-Performance Pilot-Operated Piston Type Pressure Reducing Valve Series for Industrial Gas Pipeline Applications supplied by Hainan Ginsenka Co., Ltd.. Bulk wholesale pricing is $45 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Body Material:
316 Stainless Steel (ASTM A351)
Material:
Cast Iron
Specification:
DN65
Seal Material:
FKM
Trade Term:
FOB, EXW, CIF, FCA, FAS, CFR, DAT, DDP, DAP, CPT, CIP
Connection:
Flange
Trademark:
Ginsenka
Origin:
Henan, China
Specifications
Body Material:
316 Stainless Steel (ASTM A351)
Material:
Cast Iron
Specification:
DN65
Seal Material:
FKM
Trade Term:
FOB, EXW, CIF, FCA, FAS, CFR, DAT, DDP, DAP, CPT, CIP
Connection:
Flange
Trademark:
Ginsenka
Origin:
Henan, China
Pressure Range:
Inlet (P1): 1.0-2.5MPa; Outlet (P2): 0.3-1.2MPa
Payment Term:
LC, T/T, D/P
Valve Type:
Pilot-Operated Diaphragm Type
Structure:
Piston
Port Of Loading:
Qingdao
Valve Seat:
Single-Seat
Transport Package:
Wooden Case
Model NO.:
Yk43X/F/Y PN16
Pressure Accuracy:
±3% of Set Pressure
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2024-08-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, EXW, CIF, FCA, FAS, CFR, DAT, DDP, DAP, CPT, CIP
Port Of Loading:
Qingdao
Product descriptions from the supplier
SONA2024 2.2.1
Yk43X/F/Y Series Pilot Operated Piston Type Gas Pressure Reducing Valve
This product is mainly used in gas pipelines, such as air, nitrogen, oxygen, hydrogen, liquefied gas, natural gas and other gases.
Specification
Product Features
These pressure reduction valves are classified as pilot piston operated units, consisting of a primary valve and a control valve.
2.The main valve is mainly composed of a valve seat, a main valve disc, a piston, a spring and other parts.
3.The pilot valve is mainly composed of a valve seat, a valve flap, a diaphragm, a spring, a regulating spring and other parts.
Technical Specifications
Applicable parameters | Range Table | ||
Nominal pressure Mpa | PN1.0-PN16 | ||
Shell test pressure Mpa | PN2.4-PN24 | ||
Pressure characteristic deviation Mpa | GB12246-1989 | ||
Flow characteristic deviation Mpa | GB12246-1989 | ||
Minimum pressure difference Mpa | 0.15-1 | ||
Main component materials
Valve body, valve cover, bottom cover | Valve seat, valve disc | Guide valve seat, guide valve stem | Main valve pilot valve spring | Piston | Guide valve body, guide valve cover | Cylinder liner |
WCB/CF8 | 2Cr13/304 | 2Cr13/304 | 50CrVA | 2Cr13 / Copper Alloy / Copper Alloy | 25/304 | 2Cr13/25/304 |
After Sales Service
1. After-sales file management:A comprehensive post-sale dossier is created for every item, logging the date of installation, service history, components swapped out, and more, enabling complete lifecycle monitoring. Clients may access the product’s service history anytime to maintain full visibility into its status.
2. Warranty period commitment:The warranty lasts 12 months starting from the date of receipt. While covered, any defects resulting from manufacturing flaws are addressed with complimentary repair or part replacement.
3. Commitment outside the warranty period:Spare parts and consumables are provided at cost price, and lifetime technical support is offered.
2. Warranty period commitment:The warranty lasts 12 months starting from the date of receipt. While covered, any defects resulting from manufacturing flaws are addressed with complimentary repair or part replacement.
3. Commitment outside the warranty period:Spare parts and consumables are provided at cost price, and lifetime technical support is offered.
Company Profile
Hainan Ginsenka Co., Ltd. operates as the international trade arm of KG Valve Co., Ltd. KG Valve is a specialized valve producer committed to manufacturing and innovating valve solutions. We aim to address real-world operational challenges across diverse sectors and deliver full-scale integrated solutions tailored to all customer needs. The enterprise is based in KG Industrial Park, Huojia County, Xinxiang City, Henan Province, spanning 95 mu with a factory footprint of 35,000 square meters. The company has maintained operations for over three decades.
Why Choose Us?
Other Products

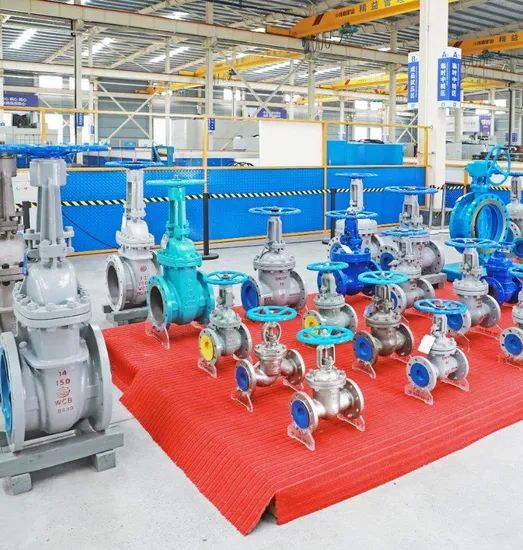

The facility houses state-of-the-art production and fabrication systems, such as CNC turning centers, automated drilling units, massive precision vertical lathes, plasma spray welding units, plasma cutting systems, fully automated paint coating lines, and more than 150 additional machine types including turning, milling, boring, drilling, and grinding equipment, along with dedicated machinery and a range of processing and quality control instruments.
Kaigao Valve Co., Ltd. specializes in industrial valve manufacturing, offering six product lines—including premium ball valves, premium butterfly valves, standard valves, control valves, hydraulics valves, and custom valves—with more than 1,600 models.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized size?
A: Absolutely! We offer tailored attachments.
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
