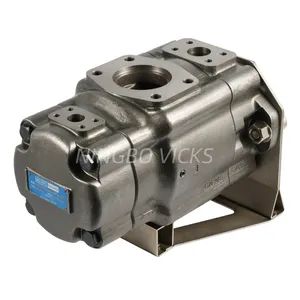

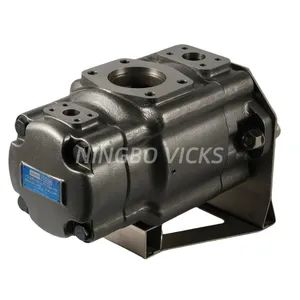

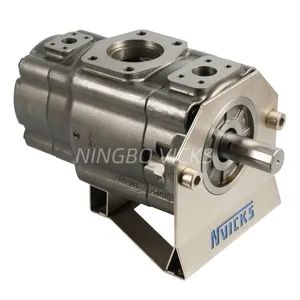

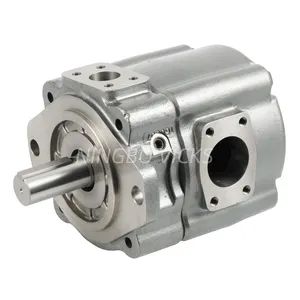

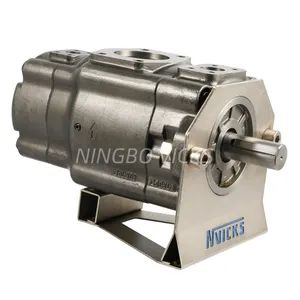

High-Performance Precision Hydraulic Servo Vane Pumps for Industry
1-9 Piece
$85910-49 Piece
$85550 Piece
$839Product information
High-quality High-Performance Precision Hydraulic Servo Vane Pumps for Industry supplied by Ningbo Vicks Hydraulic Co., Ltd.. Bulk wholesale pricing ranges from $839 to $859 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Flow:
100.5ml/R
Production Capacity:
20000PCS
Displacement:
24.9ml/R
Max Speed:
3000rpm
Max Pressure:
32MPa
Package Gross Weight:
40.000kg
Min Speed:
50rpm
Lead Time:
7 days (1 - 100 Pieces)To be negotiated ( > 100 Pieces)
Specifications
Flow:
100.5ml/R
Production Capacity:
20000PCS
Displacement:
24.9ml/R
Max Speed:
3000rpm
Max Pressure:
32MPa
Package Gross Weight:
40.000kg
Min Speed:
50rpm
Lead Time:
7 days (1 - 100 Pieces)To be negotiated ( > 100 Pieces)
Package Size:
80.00cm * 60.00cm * 40.00cm
HS Code:
8413603290
Model NO.:
ABT11T-6-6
Certification:
CE, ISO, RoHS
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Acting Form:
Double-Acting
Trade Term:
FOB, CIF, CFR, EXW
Name:
Hydraulic Vane Pump
Item:
Industrial Vane Pump
Specification:
Iron Casting
Payment Term:
LC, T/T, D/P, Western Union
Application:
Machinery Equipment
Seal Type:
NBR or Fkn
Port Of Loading:
Ningbo Port
Performance:
No Leak
Trademark:
Nvicks
Function:
Same as Denison Eaton
Payment Methods:
Support payments in USD
Type:
Vane Pump
Transport Package:
Wooden Carton
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2007-11-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
281
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port
Certificates:
CE
Product descriptions from the supplier
Our company is general channel business of Taiwan Delta, Austria KEBA product industry. Its the strategic partner of Phase servo motor, Yunshen servo motor, Haitain drive and Sumitomo pump.
Ningbo Vicks adhering to the development path of introduction, innovation and transcendence, and the business philosophy of high quality, high efficiency, low consumption, safety. Our company has become a world-renowned hydraulic pump manufacturer and one-stop solution expert of servo energy saving.
High pressure servo vane pump Albert hydraulic pump
ABT Series ServoPump
ABT Series Servo Pump is high performance servo hydraulic system special oil pump. It is researched and developed together by three party- Ningbo Vicks Hydraulic Co., Ltd. American Albert Fluid Power Co., Ltd. Zhejiang University Mechanical Control Engineering Research Institute. The core components are imported from America. We have the proprietary intellectual property hydraulic systems of rubber and plastic machines, shoe machines, forging and press machines, bending machines and shearing machines.
Main Features
1.Dowel pin type vane kits designation can make the pump with small resistance, low electric, and with more energy saving.
2.se outside leakage and leakage volume control designation low the oil temperature obviously. Based on the hydraulic components leakage volume, can adjust the oil leakage smartly, the pump pressure pulse is small at high pressure and low speed, the injection finished products will be more higher accuracy.
3.With the coordination of high pressure oil and vice spring structure, can make the pump run normally at low speed, can fit low and high speed shift, high and low pressure speed shift, right and left rotation shift etc working status of servo hydraulic system perfectly.
4. Double action and right-left rotation structure designation make the pump work more steadily, servo hydraulic system response more quickly.
5. High pressure, high speed structure and double cutting edges designation make the speed range more wide, and with more better pollution resistance, more longer working life.
6. Low noise structure designation and wide range of flow, can be customized according to different requirements.
7. Use the cartridge kit installation structure, repairing only needs to change the cartridge kit, more convenient for repairing and with more lower cost.
8. Double pump uses one inlet port and two outlet ports, the structure is more compact with small installation space.
9. There are four directions each at inlet and outlet port, installation is more flexible.
Model available:
Single pumps: ABT1T, ABT2T, ABT3
Double pumps: ABT11T, ABT22T, ABT21T,
Machine servo vane pump Albert Hydraulic Vane Pump High pressure
Model Designation
| ABT2T | -80 | -2 | R | 2 | -C | 1 |
| Series | Flow code | Shaft type | Rotation | Outlet Position | Design No. | Sealing level |
| ABT1T | 6, 10, 16, 20, 25, 32, 40, 50, 55, 64 | -1 -2 keyed shaft |
Viewed from shaft end of pump R- right hand for clockwise L- left hand for counter clockwise |
Viewed from shaft end of pump 00- opposite inlet port 01- inline with inlet 02- 90 CCW from inlet 03- 90 CW from inlet |
C | 1- S1 NBR 2- S2 HBNR |
| ABT2T | 64, 80, 100, 110, 125, 140. 160 | -2 keyed shaft |
||||
| ABT3T | 160, 180, 190, 200 | -1 keyed shaft |
Technical data
Other products may you like it
| DENISON T6 T7 | VICKERS V VQ | SERVO SYSTEM | Keba PLC |
 |
 |
 |
 |
Application as below, widely used for injection machine, shoe machines etc
| Part of servo system | Assembled servo system | Servo system for machine |
 |
 |
 |
Our production equipments
Our honors
Some Exhibitions we took part in, more fairs will be hold~
Q&A
Q1, are you supplier or manufacturer?
A1: we are manufacturer in Ningbo, Zhejiang Province, China
Q2, shall I get 1 pcs sample for a try.
A2: Yes, of couse. You can.
Q3: how many days for mass production.
A3, in the fact, we will make the products for 15-25days. Besides, we will prepare them in order of production line. If you need urgently, pls inform me in advance. we can process it in rush as soon as possible.
Q4: Is it can be replaced with original ones?
A4: Absolutely, yes. It is 100% similar with original one.
Q4, It is good with package.
A4: Yes. nice package which goods is no damaged when you received.
