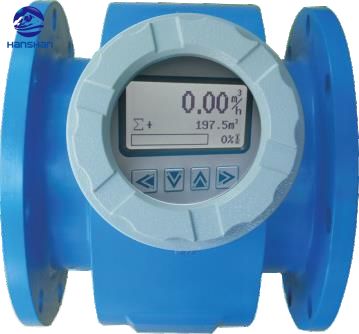

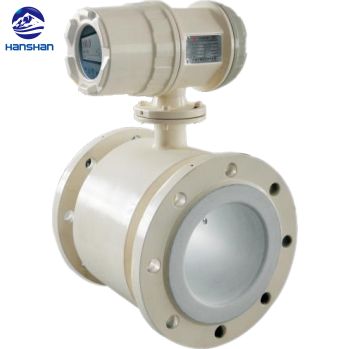

High-Performance Smart Flow Meter with Accurate Electromagnetic Technology
1 Piece
$667Product information
High-quality High-Performance Smart Flow Meter with Accurate Electromagnetic Technology supplied by Cold Valley Intelligent Technology (Shanghai) Co., Ltd.. Bulk wholesale pricing is $667 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
50000peices/Years
HS Code:
9026100000
Certification:
CE, ISO
Origin:
China
Measurement Object:
Closed Pipeline
Measuring Principle:
Electrical Principles
Type:
Electromagnetic Flow Meter
Trade Term:
FOB, EXW, CIF
Specifications
Production Capacity:
50000peices/Years
HS Code:
9026100000
Certification:
CE, ISO
Origin:
China
Measurement Object:
Closed Pipeline
Measuring Principle:
Electrical Principles
Type:
Electromagnetic Flow Meter
Trade Term:
FOB, EXW, CIF
Trademark:
Highpeak
Application:
Industrial Production
Payment Term:
LC, T/T, D/P, PayPal
Measuring Media:
Liquid
Port Of Loading:
Shanghai, ningbo
Model NO.:
Tiankang electromagnetic flowmeter
Transport Package:
Wooden
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2024-10-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
Shanghai, ningbo
Certificates:
Hanshan award 1, Hanshan award 2, SGS, Trademark Registration Certificate
Product descriptions from the supplier
Our state-of-the-art technology employs the internationally leading excitation techniques, ensuring unparalleled performance.
This cutting-edge excitation circuit is designed with simplicity, stability, and unwavering reliability, integrating the
sophisticated capabilities of artificial intelligence for enhanced functionality.
Ingeniously crafted, it features no moving parts and eliminates any flow-resistant components within the
pipeline, offering seamless operation.
Enjoy precise measurements without any additional pressure-loss, as our innovation ensures that
results remain unaffected by flow velocity distribution, fluid pressure, temperature, density, viscosity, or any other
physical parameters, delivering consistent accuracy.
Flexibility at its best: easily modify the range online to cater to the user's specific needs, adapting seamlessly to any scenario.
A versatile solution for measuring the flow of conductive fluids, such as tap water, sewage, mud, diverse beverages,
chemical materials, viscous liquids, and suspended solids. Enjoy its exceptional low conductivity measurement
capabilities, ensuring reliability across a wide array of applications.
functionality designed to perfection.
Designed with an Ex explosion-proof feature, this product meets national explosion-proof standards,
having successfully passed stringent identification and acceptance protocols. It is ideal for deployment in all types
of explosion-proof environments, ensuring safety and compliance.
The advanced fast response design, featuring high resistance, captures even the weakest signals without distortion,
This cutting-edge excitation circuit is designed with simplicity, stability, and unwavering reliability, integrating the
sophisticated capabilities of artificial intelligence for enhanced functionality.
Ingeniously crafted, it features no moving parts and eliminates any flow-resistant components within the
pipeline, offering seamless operation.
Enjoy precise measurements without any additional pressure-loss, as our innovation ensures that
results remain unaffected by flow velocity distribution, fluid pressure, temperature, density, viscosity, or any other
physical parameters, delivering consistent accuracy.
Flexibility at its best: easily modify the range online to cater to the user's specific needs, adapting seamlessly to any scenario.
A versatile solution for measuring the flow of conductive fluids, such as tap water, sewage, mud, diverse beverages,
chemical materials, viscous liquids, and suspended solids. Enjoy its exceptional low conductivity measurement
capabilities, ensuring reliability across a wide array of applications.
functionality designed to perfection.
Designed with an Ex explosion-proof feature, this product meets national explosion-proof standards,
having successfully passed stringent identification and acceptance protocols. It is ideal for deployment in all types
of explosion-proof environments, ensuring safety and compliance.
The advanced fast response design, featuring high resistance, captures even the weakest signals without distortion,
providing real-time reflection of flow changes with an impressive range ratio of 100:1.
Utilizing capacitive technology for empty and full pipe detection, it effectively prevents false alarms during emergencies.
Experience seamless operational consistency with the ability to swap converters without re-entering parameters, ensuring
effortless maintenance and adaptability. Choose from a wide range of power options (DC: 18V~36V AC: 85V~265V)
Our factory function safeguards your settings, ensuring there are no risks of parameter errors, maintaining instrument integrity.
Benefit from the convenience of infrared remote control and manual key operation, streamlining user interaction.
It boasts sensor zero correction and automatic zero calibration for unparalleled accuracy.
The user interface, available in Chinese and English, accommodates diverse user requirements with ease.
Enjoy added reliability with converter self-calibration and self-check capabilities, ensuring optimal performance.
Enhanced with anti-lightning protection and an anti-interference circuit, it thrives in harsh environmental conditions.
Seamless digital communication with RS485, RS232, Hart, Modbus, Profibus, and more, maximizing connectivity.
Versatile converters and sensors offer multiple protection levels and installation methods. The IP68 level is perfect for submerging installation applications.
Our inserted electromagnetic flowmeter offers remarkable advantages in large pipe flow measurement, with easy installation,
no disruption to the site, and hot tapping, providing both installation and cost benefits. Its measurement is solely
dependent on insertion depth, offering broad applicability and high interchangeability for various pipeline fluid measurement specifications.
Utilizing capacitive technology for empty and full pipe detection, it effectively prevents false alarms during emergencies.
Experience seamless operational consistency with the ability to swap converters without re-entering parameters, ensuring
effortless maintenance and adaptability. Choose from a wide range of power options (DC: 18V~36V AC: 85V~265V)
Our factory function safeguards your settings, ensuring there are no risks of parameter errors, maintaining instrument integrity.
Benefit from the convenience of infrared remote control and manual key operation, streamlining user interaction.
It boasts sensor zero correction and automatic zero calibration for unparalleled accuracy.
The user interface, available in Chinese and English, accommodates diverse user requirements with ease.
Enjoy added reliability with converter self-calibration and self-check capabilities, ensuring optimal performance.
Enhanced with anti-lightning protection and an anti-interference circuit, it thrives in harsh environmental conditions.
Seamless digital communication with RS485, RS232, Hart, Modbus, Profibus, and more, maximizing connectivity.
Versatile converters and sensors offer multiple protection levels and installation methods. The IP68 level is perfect for submerging installation applications.
Our inserted electromagnetic flowmeter offers remarkable advantages in large pipe flow measurement, with easy installation,
no disruption to the site, and hot tapping, providing both installation and cost benefits. Its measurement is solely
dependent on insertion depth, offering broad applicability and high interchangeability for various pipeline fluid measurement specifications.
| Model | TK1100 standard series | TK1200 high accuracy series |
| Caliberl | DN3-DN2200 | DN10-DN300 |
| Accuracy | 0.5% | 0.2%,0.3% |
| Installation method | Hold,flange | Hold,flange |
| Repeatability | 0.1% | 0.06%,0.1% |
| Measuring range | 0-12m/s(flow unit can be changed) | 0-12m/s(flow unit can be changed) |
| Connecting flange | GB/T9119-2000 or any other choice | GB/T9119-2000 or any other choice |
| Pressure | 4.0MPa~0.25 Mpa (classify by caliber) |
4.0MPa~0.25 Mpa (classify by caliber) |
| Lining material | PO,PTFE,PFA(negative pressure resistance), rubber,polyurethane) |
PO,PTFE,PFA(negative pressure resistance), rubber,polyurethane) |
| Electrode material | 316L,HC,HB,titanium,tantalum,platinum | 316L,HC,HB,titanium,tantalum,platinum |
| Electrode form | Standard,(scraper,it can be replaced by DN>350) | Standard,(scraper,it can be replaced by DN>350) |
| Protection level of sensor | IP65,IP67,IP68 | IP65,IP67,IP68 |
| Conductivity | >5μS/cm(water>20μS/cm) | >2μS/cm(water>20μS/cm) |
| Maximum temperature of medium | Integrated type≤90ºC,split type≤160ºC(rubber,PO≤70ºC) | Integrated type≤90ºC,split type≤160ºC(rubber) |
| Ambient maximum temperature | -30ºC~+65ºC | -30ºC~+65ºC |
| Converter installation mode | Integrated,split | Integrated,split |
| Output signal | 4-20mA current signal,frequency /pulse output | 4-20mA current signal,frequency/pulse output |
| Power supply | AC:85V~265V,DC:18V~36V | AC:85V~265V,DC:18V~36V |
| Self diagnosis | yes | yes |
| Zero setting of empty pipe | yes | yes |
| Communication | RS485/Modbus,HART,PROFIBUS | RS485/Modbus,HART,PROFIBUS |
| Explosion-proof | No explosion proof/explosion proof | No explosion proof/explosion proof |
| Language | Chinese,English | Chinese,English |
| Product standards | JB/T 9248-1999 | JB/T 9248-1999 |
| Model | TK1300 hygienic series | TK1500 battery powered series |
| Caliberl | DN3-DN150 | DN10-DN1200 |
| Accuracy | 0.2%,0.5% | 0.5% |
| Installation method | Thread,clamp | Hold,flange |
| Repeatability | 0.06%,0.1% | 0.15% |
| Measuring range | 0-12m/s(flow unit can be changed) | 0-10m/s(flow unit can be changed) |
| Connecting flange | GB/T9119-2000 or any other choice | |
| Pressure | The highest 4.0MPa | 4.0MPa~0.6 Mpa (classify by caliber) |
| Lining material | PFA(negative pressure resistance) | PO,PTFE,PFA(negative pressure resistance), rubber,polyurethane) |
| Electrode material | 316L,HC,HB,titanium,tantalum,platinum | 316L,HC,HB,titanium,tantalum,platinum |
| Electrode form | Standard | Standard,(scraper,it can be replaced by DN>350) |
| Protection leve of sensor | IP65,IP67,IP68 | IP65,IP67,IP68 |
| Conductivity | >2μS/cm(water>20μS/cm) | >5μS/cm(water>20μS/cm) |
| Maximum temperature of medium | Integrated type≤90ºC,split type≤160ºC | Lntegrated type≤90ºC,split type≤160ºC(rubber,PO≤70ºC) |
| Ambient maximum temperature | -30ºC~+65ºC | -30ºC~+65ºC |
| Converter installation mode | ntegrated,split | Lntegrated,split |
| Output signal | 4-20mA current signal,frequency/pulse output | Frequency 0-5kHz |
| Power supply | AC:85V~265V,DC:18V~36V | 3.6V |
| Self diagnosis | Yes | Yes |
| Zero setting of empty pipe | Yes | Yes |
| Communication | RS485/Modbus,HART,PROFIBUS | RS485/Modbus,GPRS |
| Explosion-proof | No explosion proof/explosion proof | |
| Language | Chinese,English | Chinese,English |
| Product standards | JB/T 9248-1999 |
| Model | TK1400 inserted type series | TK1600 electromagneticheat meter series |
| Caliberl | DN200-DN3000 | DN15-DN1200 |
| Accuracy | 1.5%;2.5% | 1.0%,2.0%,2.5% |
| Installation method | Flange,thread,on-line | Hold,flange,thread |
| Repeatability | 0.5% | 0.3%;0.5% |
| Measuring range | 0-10m/s(flow unit can be changed) | 0-12m/s(flow unit can be changed) |
| Connecting flange | GB/T9119-2000 or any other choice | GB/T9119-2000 or any other choice |
| Pressure | 1.6MPa | 4.0MPa~0.6Mpa (classify by caliber) |
| Lining material | POM,PTFE,PFA | PO,PTFE,PFA(negative pressure resistance), rubber,polyurethane) |
| Electrode material | 316L,HC,HB,titanium,tantalum,platinum | 316L,HC,HB,titanium,tantalum,platinum |
| Electrode form | Standard | Standard |
| Protection level of sensor | IP65,IP67,IP68 | IP65,IP67,IP68 |
| Conductivity | >5μS/cm(water>20μS/cm) | >5μS/cm(water>20μS/cm) |
| Maximum temperature of medium | Integrated type≤90ºC,split type≤130ºC(POM≤100ºC) | Integrated type≤90ºC,Splitype≤160ºC(rubber,POM≤70ºC) |
| Ambient maximum temperature | -30ºC~+65ºC | -30ºC~+65ºC |
| Converter installation mode | Integrated,split | Integrated,split |
| Output signal | 4-20mA current signal,frequency/pulse output | 4-20mA current signal,frequency /pulse output |
| Power supply | AC:85V~265V,DC:18V~36V | AC:85V~265V,DC:18V~36V |
| Self diagnosis | Yes | yes |
| Zero setting of empty pipe | Yes | yes |
| Communication | RS485/Modbus,HART,PROFIBUS | RS485/Modbus,HART,PROFIBUS |
| Explosion-proof | No explosion proof/explosion proof | No explosion proof/explosion proof |
| Language | Chinese,English | Chinese,English |
| Product standards | Refer to 9248-1999 JB/T |
Cold Valley Intelligent Technology (Shanghai) Co., Ltd. is a shining example of excellence, nestled within the esteemed Hanshan (Cold Mountain) Intelligent Technology Co., Ltd. group.
Established in the vibrant metropolis of Shanghai in 2013, Cold Valley is a proud member of the Hanshan Intelligent Technology Co., Ltd. family, celebrated for its pioneering leadership in the industry.
Our founding experts hail from elite international automation companies, collectively offering more than 20 years of expertise in automation and engineering. With a specialized focus on consulting and digital solutions spanning a decade, we are unwavering in our dedication to providing unmatched automation and digitization products and services from our headquarters in Shanghai.
Boasting a rich legacy of over 20 years in the sector, we are leaders in the petrochemical industry with profound insights into the automation and digitalization demands of enterprises at every stage. We are adept at delivering customized products and solutions that integrate advanced automation and digitalization, alongside comprehensive life cycle services across industries such as petroleum, chemicals, electric power, biomedicine, APIs, food and beverage, liquor, metallurgy, and non-ferrous metals.
Established in the vibrant metropolis of Shanghai in 2013, Cold Valley is a proud member of the Hanshan Intelligent Technology Co., Ltd. family, celebrated for its pioneering leadership in the industry.
Our founding experts hail from elite international automation companies, collectively offering more than 20 years of expertise in automation and engineering. With a specialized focus on consulting and digital solutions spanning a decade, we are unwavering in our dedication to providing unmatched automation and digitization products and services from our headquarters in Shanghai.
Boasting a rich legacy of over 20 years in the sector, we are leaders in the petrochemical industry with profound insights into the automation and digitalization demands of enterprises at every stage. We are adept at delivering customized products and solutions that integrate advanced automation and digitalization, alongside comprehensive life cycle services across industries such as petroleum, chemicals, electric power, biomedicine, APIs, food and beverage, liquor, metallurgy, and non-ferrous metals.
Frequently Asked Questions
How to Choose the Right Product?
A: Upon receiving your inquiry, we will swiftly provide a comprehensive technical document, allowing you to meticulously assess critical process parameters and technical specifications. Tailored to your unique requirements, we will suggest the ideal model precisely suited to your needs.
Desire a Confirmed Model?
A: Certainly. Once we receive your model specification, we will thoroughly confirm its appropriateness, offering additional cost-effective optimization recommendations if necessary. After confirmation, we will proceed with a detailed formal quotation.
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.5/5
0 Reviews
Cold Valley Intelligent Technology (Shanghai) Co., Ltd. is a company based in China that offers FOB trade terms and specializes in a wide range of advanced industrial sensors and measurement devices, including the Advanced 26GHz Frequency Meter for High Temperature Liquid Measurement, Advanced AMS 2140 Vibration and Gas Analyzer for Enhanced Machinery Health, Advanced Liquid Analysis pH Sensors with 3-Year Support, Advanced Remote Monitoring Industrial Pressure Sensor for Accurate Readings, Advanced Smart Used Compact Pressure Gauge Transducer Transmitter Gauge Sensor with IoT Sensor and Silicone Design, Advanced Three-Way Ball Valve Control System with Electromagnetic Integration, Advanced Wirelesshart Acoustic Temperature Monitoring System with Rosemount 708, AMS 2140 Advanced Machinery Health Analyzer with One-Channel Vibration Data, AMS 2140 Machinery Health Analyzer Vibration Analyzer A21402c99zhna9h Analysis Measurements, Ashcroft High-Performance Pressure Sensor for Liquid Measurement and Control Pressure, Durable MW50 Flow Switch for Precision Industrial Flow Measurement Solutions, Durable Pressure Transmitter for Oil, Gas, and Water Applications, Durable Rosemount Pressure Transmitter for Reliable Industrial Use, Eja 510e Eja 530e Yokogawa Compact Used Pressure Transmitter Guage Transducer Differential Pressure Eja 110e Ejx, Emerson High-Performance Wireless Vibration Sensor for Extreme Temperatures, High Precision Liquid Level Meter Using Advanced Wavelength Tech, High Precision Rosemount Pressure Sensor for Differential Measurement, High-Performance Pressure Switch for Reliable Readings and Longevity, High-Performance V-Type Pressure Reducing Valve for Fluid Control, High-Precision Mfi Series Gas Flow Meter for Industrial Applications, High-Temperature Liquid Level Meter with Innovative Signal Technology, Highpeak 26GHz Non-Contact Radar Level Meter for Liquid Measurement, Highpeak Precision Liquid Level Meter for Short Wavelength Measurement, Highpeak Precision Radar Liquid Level Meter for Accurate Measurement, Rate Multi-Stage Pressure Reducing Regulating Valve, Reliable Non-Contact Meter for Accurate Liquid Level Detection, Reliable Rosemount 1056 Liquid Analysis System for Turbidity, Reliable Temperature Resistant Pressure Sensor for Industrial Monitoring, Rosemount 1056 Dual Input Transmitter with Advanced Features, and Rosemount 3051CD Tg Ta Cg Coplanar Differential Submersible Remote Control Graphical Smart Display Used Compact Pressure Transmitter Gauge Transducer.
Company Verification
0/4
Profile Completeness
56%
Avg. Product Score
0/5
Responsiveness
0%
Certification
Hanshan award 1, Hanshan award 2, SGS, Trademark Registration Certificate
Related searches
Frequently Asked Questions (FAQs)
How can I buy & import Flow Meters from China?
You can contact verified China supplier Cold Valley Intelligent Technology (Shanghai) Co., Ltd. through platforms like Freshdi.com to purchase High-Performance Smart Flow Meter with Accurate Electromagnetic Technology. For direct inquiries, please contact Mr. Handy Han, the company’s representative. The supplier has a 3.5-star rating on Freshdi and has verified. You’ll receive product details, pricing, and shipping terms directly from supplier.
What are the payments and trade terms for High-Performance Smart Flow Meter with Accurate Electromagnetic Technology?
For High-Performance Smart Flow Meter with Accurate Electromagnetic Technology, Cold Valley Intelligent Technology (Shanghai) Co., Ltd. accepts LC, T/T, D/P, PayPal as the preferred payment method, the trade term is FOB, EXW, CIF, and shipments are typically arranged from port Shanghai, ningbo, ensuring secure and timely international delivery.
What is the current price of High-Performance Smart Flow Meter with Accurate Electromagnetic Technology?
The supplier Cold Valley Intelligent Technology (Shanghai) Co., Ltd. offers High-Performance Smart Flow Meter with Accurate Electromagnetic Technology at negotiation.
What are the specifications of High-Performance Smart Flow Meter with Accurate Electromagnetic Technology from China?
High-Performance Smart Flow Meter with Accurate Electromagnetic Technology is sourced from China and meets international export standards. Key specifications include: Measuring Media: Liquid, Transport Package: Wooden, Certification: CE, ISO, Model NO.: Tiankang electromagnetic flowmeter, Type: Electromagnetic Flow Meter, HS Code: 9026100000, Trade Term: FOB, EXW, CIF, Payment Term: LC, T/T, D/P, PayPal
You are viewing details for High-Performance Smart Flow Meter with Accurate Electromagnetic Technology. The information provided here is either posted directly by the supplier, who is responsible for its accuracy, or collected by Freshdi AI from publicly available sources. Freshdi strives to make product information as useful and reliable as possible, but we do not guarantee complete accuracy. If you notice any incorrect or misleading details, please use the Report Product option so our team can review and address it quickly.
$667
/ Piece
Min. order: 1 Piece
Mr. Handy Han
Year Established: 2024-10-27
Visit Store
