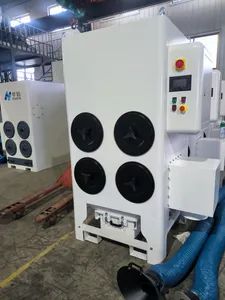

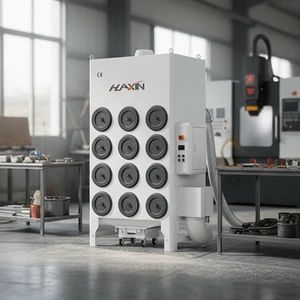

High-Performance Welding Dust Extraction System for Industrial Use
1-9 Piece
$3,00010-49 Piece
$2,95050 Piece
$2,900Product information
High-quality High-Performance Welding Dust Extraction System for Industrial Use supplied by Jinan Huaxin Automation Engineering Co., Ltd.. Bulk wholesale pricing ranges from $2,900 to $3,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Filter Size:
0.3um
Specification:
1300*940*2200MM
Package Size:
150.00cm * 130.00cm * 230.00cm
Voltage:
380V/400V/415V/220V
Weight:
420kgs
Package Gross Weight:
450.000kg
Power:
5.5kw
Production Capacity:
50000 Pieces/Year
Specifications
Filter Size:
0.3um
Specification:
1300*940*2200MM
Package Size:
150.00cm * 130.00cm * 230.00cm
Voltage:
380V/400V/415V/220V
Weight:
420kgs
Package Gross Weight:
450.000kg
Power:
5.5kw
Production Capacity:
50000 Pieces/Year
Filtration Area:
52m2
HS Code:
8421392990
Filtration Accuracy:
99.99%
OperationType:
Automatic
Medium Material:
Chemical Synthetic Fiber
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Dust Collecting Method:
Dry
Transport Package:
Export Packaging
Trade Term:
FOB, CIF
Type:
Filter Cartridge Dust Collector
Cleaning Way:
Full-Automatically Cleaning
Trademark:
Huaxin
Model NO.:
JG04
Payment Term:
LC
Port Of Loading:
Qingdao Port
Payment Methods:
Support payments in USD
Application:
Welding/Soldering/Lasering Position
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2010-03-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
113
Preferred Payment Term:
LC
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Qingdao Port
Certificates:
CE, ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
For Capturing:
- Grinding Dusts: Masterfully capture fine grinding dusts to protect workspaces from airborne pollutants.
- Dry Dusts: Effectively manage dry dust particles, maintaining a clean and pristine atmosphere.
- Soldering Dusts: Expertly handle and reduce soldering dusts, enhancing air purity.
- Powders: Perfect for capturing various industrial powders, ensuring outstanding workplace safety.
- Cutting: Seamlessly capture cutting debris, maintaining a cleaner and safer environment.
- Polishing: Reduce polishing dust effectively for a healthier work area.
Features:
- Airflow Range: 1000~50000m3/h: Provides a broad spectrum of airflow capacities to meet diverse operational needs.
- Equipped with a Spark Trap: Prevents ignition hazards, enhancing safety and reliability.
- Auto-Pulse Cleaning System: Maintains peak performance with minimal downtime through automatic maintenance.
- Compatibility: Laser Cutting Machine: Seamlessly integrates with laser cutting operations, ensuring optimal performance.
- Compatibility: Plasma Cutting Machine: Perfectly compatible with plasma cutting setups, maximizing efficiency.
- Compatibility: Welding Station: Tailored to fit seamlessly in welding stations for superior operation.
1. Our welding fume extractor and dust collector series offers exceptional airflow capacity, making it a perfect companion for dust collection systems. The robust motor is engineered for heavy-duty tasks, delivering extraordinary performance.
2. These dust collectors boast a versatile split-type design, adaptable to various application needs.
3. Experience the tranquility of our innovative fan isolation sound box and sound eliminator, reducing noise from the large airflow fan to a gentle whisper.
4. Safety is paramount with our advanced multi-stage resistance fire device, ensuring operational security and peace of mind.
5. From extensive welding and grinding workshops to robotic welding lines and plasma or laser cutting, our models are precisely crafted to match your operational demands.
6. We design highly effective fume capture devices and pipeline systems tailored to client-specific site conditions, selecting the optimal airflow dust collection system.
7. Our comprehensive model range is designed to effortlessly adapt to various site conditions.
8. We offer custom-designed welding rooms of any size and shape, along with manual, pneumatic, or electric hoods, plus other dust capture devices tailored to special site requirements.
| Product Name | Airflow m3/h |
Power kW |
Voltage V |
Filter Area m2 |
Filter Precision % |
Noise dB(A) |
Size mm |
| Dust Collector for Laser Cutting Machine JG04-JG12 | 4000 | 5.5KW | 380V/50Hz/3P 415V/50Hz/3P 220V/60Hz/3p |
94 | 99.50% | 82 | 1300*940*2200 |
| 6000 | 7.5kW | 140 | 99.50% | 83 | 1800*1050*2200 | ||
| 9000 | 11kW | 188 | 99.50% | 84 | 1800*1100*2820 | ||
| 10000 | 15kW | 284 | 99.50% | 85 | 1800*1200*3300 | ||
Q1: Is there any noise?
A 1: The fans will have sound insulation cotton and will not produce excessive noise.
Q2: Why is the plastic spraying process recommended for the surface treatment of the dust colector?
A 2: The paint is not easy to fal off , and it is more durable.
Q3: How to configure the air volume of the dust colector?
A 3: There is an exhaust port at the botom of the cutting platform, which is already standard when the laser cutting machine leaves the factory. You only need to measure the diameter of the pipe , and then tel us, by calculation, you can know how much air volume is needed for the dust collector .
Q4: Alot of sparks wil be generated during cutting, which may scald the filter material of the dust collector or burn the filter material directly, causing a fire accident . How to avoid such accidents?
A4 : Install spark catcher. There are three types of spark traps, embedded baffle type, pipe baffle type, and pipe swirl type.The spark catcher uses a labyrinth structure to make the spark enter the cold plate several times to extinguish it .
Q5: The dust and fume generated during cutting will polute the air in the workshop .How to eliminate such pollution?
A5 : The high - precision imported flame-retardant filter material is used as the standard filter cartridge filter unit to filter dust and smoke, similar to the filter element of an automobile engine .
Q6: Do you need to vent a chimney?
A 6: No need to discharge the chimney. High-precision filter material is used to filter 0.3Um dust , with a dust removal efficiency of over 99%, and it can be directly discharged indoors .
Q7: Can the environmental protection meet the standards?
A7: It can meet the standard.
Q8: Is it easy to install?
Q9 : Is there an after - sales warranty?
A9 : The warranty period is one year, and maintenance is free during the warranty period; only the cost of replacement parts is charged outside the warranty period .
A8: It is easy to instal .
Q9 : Is there an after - sales warranty?
A9 : The warranty period is one year, and maintenance is free during the warranty period; only the cost of replacement parts is charged outside the warranty period .
