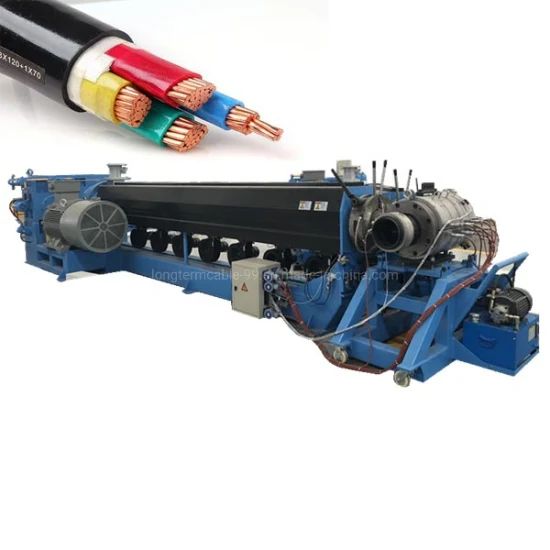

High Performance Wire Cable Extrusion Extruder Machines for Cable Insulation and Cable Jacketing
1-4 Set
$159,9995 Set
$139,999Product information
High-quality High Performance Wire Cable Extrusion Extruder Machines for Cable Insulation and Cable Jacketing supplied by Alpha Technical Industrial Co., Ltd.. Bulk wholesale pricing ranges from $139,999 to $159,999 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
100 Set Per Year
Screw Diameter:
100mm
Production Line Speed:
10~100m/Min
Warranty:
12 Months
Bobbin Size:
1250/2250mm
Maximum Haul Off Force:
1600kg
Production Range:
1mm~3mm
Maximum Sheathing Od:
40mm
Specifications
Production Capacity:
100 Set Per Year
Screw Diameter:
100mm
Production Line Speed:
10~100m/Min
Warranty:
12 Months
Bobbin Size:
1250/2250mm
Maximum Haul Off Force:
1600kg
Production Range:
1mm~3mm
Maximum Sheathing Od:
40mm
Max. Extrusion Output Capacity:
550kg±5%/H PVC
Bobbin Width:
950~1500mm
Trademark:
Alpha
Certification:
CCC, PSE, ISO, CE
Origin:
China
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW, Others
Payment Term:
LC, T/T, D/P
Condition:
New
Take Up Reelsize:
Pn1250~Pn2250
Pay Off Reel Size:
Pn1250~Pn2250
Port Of Loading:
Shanghai, Ningbo
Screw:
Single-Screw
Transport Package:
Wooden Box
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW, Others
Port Of Loading:
Shanghai, Ningbo
Certificates:
Quality management system certificate
Product descriptions from the supplier
Application:The machine is suitable for hot extrusion ofPVC, PE \XLPE etc. plastic material, for insulation of conductor or sheathing of cables.Operation Direction:Facing the cross head, pay off is at left side, take up is at right side.Requirement for Production Line Working Environment: Temperature:0~45 ºC
Power supply:3 phase 380±10%, 50 Hz with neutral wire.380±10%,50Hz
|
Maximum sheathing OD
|
40mm
|
|
production range
|
1mm~3mm
|
|
Production line speed
|
10~100m/min
|
|
Max. extrusion output capacity
|
550kg±5%/h PVC
|
|
Maximum haul off force
|
1600kg
|
|
Pay off reel size
|
PN1250~PN2250
|
|
Take up reel size
|
PN1250~PN2250
|
PN1250/2250 take up and pay off machine
Bobbin size: φ1250/2250mm
Bobbin width :950~1500mmAdaptor size: φ80mm,φ125mm,
Winding OD: φ7~45mm
Lifting motor: 1KW AC motor, speed reduction is by cyclo reducer.
Lifting speed: 4m/min
PINTLES closing motor:75KW AC motor.
Closing speed: 1m/min
Loading capacity: 5T
The bearings of main parts:Chinese high quality brand:HRB / ZWZ/ LYC
Lifting motor: 1KW AC motor, speed reduction is by cyclo reducer.
Lifting speed: 4m/min
PINTLES closing motor:75KW AC motor.
Closing speed: 1m/min
Loading capacity: 5T
The bearings of main parts:Chinese high quality brand:HRB / ZWZ/ LYC
500 Kgs Belt Pneumatic Take up and Pay off
Diameter of cable through: φ30mm (max)
Belt contactable length: 750 mm
Number of air cylinder: 3pairs
Machine center height:1000mm
The bearings of main parts:Chinese high quality brand:HRB / ZWZ/ LYC

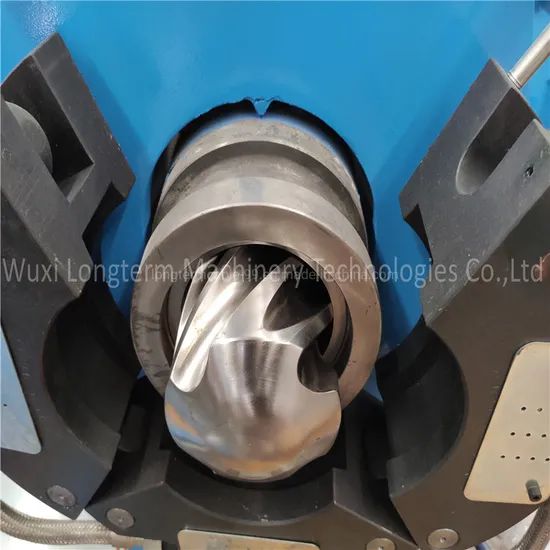

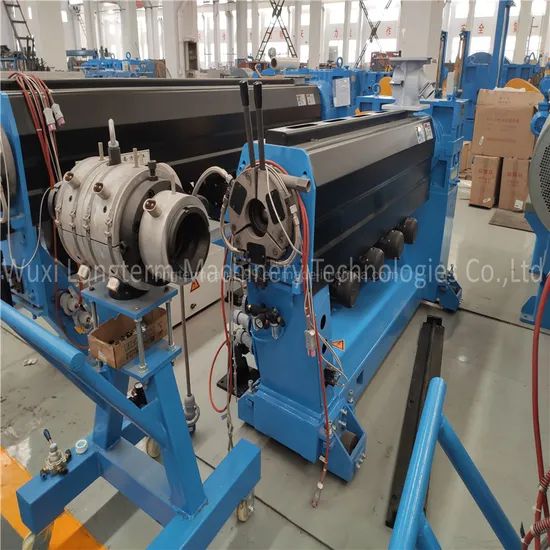

SJ-100x25 Plastic Extruder
Screw diameter: φ100mm
Screw material: 38CrMoAlA
L/D ratio: 25:1
Screw type: BM
Motor: 110kw Siemens beide AC frequency motor 110KW
Heating capacity: 30KW,
Heating temperature: 0~ 300ºC
Machine center height: 1000mm
Maximum output: 550 Kg/h (calculated for PVCsheathing material).
Cooing method:Feeding Zone - Water Cooled,barrel is air cooled
Connected with cross head by flange.
Screw material: 38CrMoAlA
L/D ratio: 25:1
Screw type: BM
Motor: 110kw Siemens beide AC frequency motor 110KW
Heating capacity: 30KW,
Heating temperature: 0~ 300ºC
Machine center height: 1000mm
Maximum output: 550 Kg/h (calculated for PVCsheathing material).
Cooing method:Feeding Zone - Water Cooled,barrel is air cooled
Connected with cross head by flange.
1600 Kgs Belt Pneumatic Take up and Pay off
Hauling speed: 120m/min(max)
diameter of cable through: φ50mm (max)
Belt contactable length: 1500 mm
Number of air cylinder: 5pairs
Motor capacity: 11Kw Siemens AC frequency motor
Machine center height: 1000mm
Operation direction: left to right
diameter of cable through: φ50mm (max)
Belt contactable length: 1500 mm
Number of air cylinder: 5pairs
Motor capacity: 11Kw Siemens AC frequency motor
Machine center height: 1000mm
Operation direction: left to right
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Cable stranding machineBobbin/Spool
Our company has a long history in Cable Production Line Manufacturing. The equipments of production line is popular all over the world and won great recognition from our esteemed customers. Our company has a technical administration team whom engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement win the trust from our domestic and overseas customers, the products are exported to United States, France,Spain,Portugal, New Zealand,Brazil, Mexico, Chile,South Africa, Zambia, Egypt, South Korea,Singapore, Indonesia, Thailand, Iran, etc.
− Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipments.− Q: What is your company's main production?
A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality,
high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
