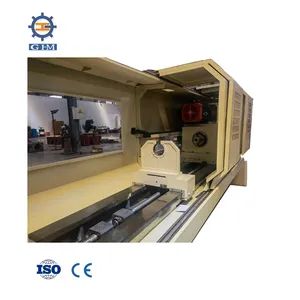

High Precision Deep Hole Gun Drilling Machine for Stainless Steel 808d System
1-4 Set
$44,9005 Set
$43,500Product information
High-quality High Precision Deep Hole Gun Drilling Machine for Stainless Steel 808d System supplied by Dezhou Guanghe Machine Tool Co., Ltd.. Bulk wholesale pricing ranges from $43,500 to $44,900 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Voltage:
220V/380V
Production Capacity:
800/Year
HS Code:
845921
Hole Diameter:
>200mm
Certification:
CE, ISO 9001
Controlling Mode:
CNC
Color:
Customized
Number Of Shaft:
Customized
Specifications
Voltage:
220V/380V
Production Capacity:
800/Year
HS Code:
845921
Hole Diameter:
>200mm
Certification:
CE, ISO 9001
Controlling Mode:
CNC
Color:
Customized
Number Of Shaft:
Customized
Specification:
Customized Product
Origin:
Dezhou City, Shandong Province, China
Trade Term:
FOB, CIF
Trademark:
Guanghe
Precision:
High Precision
Advantage:
High-Precision
Layout:
Horizontal
Structure:
Horizontal Drilling Machine
Transport Package:
Iron Container
Payment Term:
LC, T/T
Condition:
New
Core Component:
Pump, Motor, PLC
Port Of Loading:
Qingdao Port
Automatic Grade:
Semiautomatic
Motor:
Servo Motor
Model NO.:
TZK2102
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2007-04-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
27
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Qingdao Port
Certificates:
ISO14001, ISO45001:2018, Others, ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
CNC Deep Hole Drilling Machine
Introduction
Dezhou Guanghe CNC Deep Hole Drilling System is designed for efficient production of shaft components, utilizing a dual-spindle configuration to accurately create through or stopped holes (diameters from ø4 to ø20mm, up to 1000mm depth). Powered by Siemens 808D CNC control, it includes two 5.5kW servo drives operating at 5000 rpm, along with high-flow coolant delivery (100L/min, filtered to 20μm) and carbide-guided sleeves, ensuring straightness within ≤0.5mm over every 500mm and surface finish ranging from Ra 0.8 to 3.2μm. A built-in automated chip removal system combined with anti-vibration mounting structures ensures consistent performance on stainless steel and aluminum-based materials. Fully assembled and supported with ongoing technical service throughout its operational life.
Machine Tool Feature
Dezhou Guanghe CNC Deep Hole Drilling Machine offers battle-tested accuracy for holes ranging from ø4 to ø20mm at a 1000mm depth, meeting ≤0.5/500 straightness and a surface finish of Ra 0.8–3.2μm via three essential technological advancements:
1. Siemens 808D Intelligent Control: Dual 5.5kW servo spindles (5000 rpm) with real-time tool deflection compensation
2. High-Pressure Dynamic Cooling: 100L/min flow + 20μm triple filtration (magnetic/paper/mesh) for micro-hole cleanliness.
3.Anti-Vibration Stability: Carbide guide bushings + rubber damping sleeves eliminate chatter, enabling versatile through/blind hole machining in stainless steel/aluminum alloys.
1. Siemens 808D Intelligent Control: Dual 5.5kW servo spindles (5000 rpm) with real-time tool deflection compensation
2. High-Pressure Dynamic Cooling: 100L/min flow + 20μm triple filtration (magnetic/paper/mesh) for micro-hole cleanliness.
3.Anti-Vibration Stability: Carbide guide bushings + rubber damping sleeves eliminate chatter, enabling versatile through/blind hole machining in stainless steel/aluminum alloys.
CNC Deep Hole
Scraping and Rolling Machine
CNC Gun Drilling Machine
CNC Deep Hole Honing Machine
Details Image
Workpiece Bracket
Honing Bar Box
Used to fixed the workpieces, prevent the occurrence of bending and changes in straightness of the workpiece during the processing procedure.
The boring bar box serves as a dedicated storage solution for boring bars and assorted tools. It ensures these components remain undamaged and secure by preventing cross-contamination with other equipment, while also minimizing exposure to storage hazards like impact, pressure, dust, and humidity—helping preserve the precision and effectiveness of the boring bars.
Operation Pannel
Finished Product
The screen presents equipment conditions and settings via text, visuals, and other elements. Certain models include interactive tools to support user actions, enabling continuous tracking of device performance for swift issue resolution and upkeep.
The finished product processed by the CNC deep hole drilling and boring machine.
Scope of work | Drilling diameter range (mm) | Can be customized | |
Maximum drilling depth (mm) | Can be customized | ||
Maximum drilling depth (mm) | Can be customized | ||
Machine tool performance | Drill pipe box | Speed range (r/min) | 800-7000 |
Motor power (kW) | gun drilling:5.5 BTA:26 | ||
Tool feed (Z-axis) | Speed range (mm/min) | 10-500 | |
Fast moving speed (m/min) | 3000 | ||
Motor torque (Nm) | 7.7 | ||
T-slot worktable | Size (Z direction x X direction) (mm) | 1000×400/ 1500×400 | |
Lateral travel (X-axis) (mm) | 350 | ||
other | Total power of machine tool (approximately) (kw) | 26 | |
Maximum length to diameter ratio of drilling hole | 100:1 | ||
Total weight of machine tool (approximately) (t) | 5.3/6 | ||
Floor area of machine tool (m) | 4.5/5.5×4.5 | ||
Cooling system | Pressure range (MPa) | 1-10 | |
Flow range (L/min) | 6-100 | ||
Filtering accuracy (μm) | 20 | ||
BTA CNC deep hole Drilling machine
(Custom configurations available upon request)
Exceptional accuracy is achieved by fusing BTA technology with CNC machining, delivering results at the micrometer scale. Outstanding productivity comes from a high-speed spindle and robust feed mechanism, significantly reducing operation time.
3. Wide Adaptability: Suitable for various materials such as alloy steel and titanium alloy.
4. Large Depth - Diameter Ratio: Capable of handling complex processes like deep hole boring.
5. Easy to Operate: Graphical programming for quick mastery.
6. High Reliability: High - strength structure ensures long - term accuracy retention and low maintenance costs.
7. Customization: Provide customized machine configurations and process solutions as required.
3. Wide Adaptability: Suitable for various materials such as alloy steel and titanium alloy.
4. Large Depth - Diameter Ratio: Capable of handling complex processes like deep hole boring.
5. Easy to Operate: Graphical programming for quick mastery.
6. High Reliability: High - strength structure ensures long - term accuracy retention and low maintenance costs.
7. Customization: Provide customized machine configurations and process solutions as required.
Company Profile
Dezhou Guanghe Machine Tool Co., Ltd.
Dezhou Guanghe Machine Tool Co., Ltd. is situated in Dezhou, Shandong Province. The company focuses on research, manufacturing, and distribution of advanced deep-hole machining systems. Key offerings consist of deep-hole boring machines, integrated drilling and boring systems, scraping and rolling tools, as well as deep-hole honing solutions and various CNC deep-hole machines. These solutions are designed to fulfill diverse customer requirements and support tailored configurations.
Founded in 2007, Dezhou Guanghe Machine Tool Co., Ltd. brings 17 years of expertise in the machine tool sector. The company employs over 300 skilled professionals, featuring more than 50 dedicated R&D personnel focused on advancing CNC machinery innovation, along with 20+ service hubs designed to address your needs promptly. We hold key certifications including ISO 9001 and CE, reflecting our strong commitment to quality and reliable support. Currently, we possess a portfolio of over 30 patented technologies that have significantly expanded our customer base and strengthened our path toward sustainable growth.
Dezhou Guanghe Machine Tool Co., Ltd. strives to deliver top-tier products and support to all our clients. Our skilled production and attention to detail have earned us strong acclaim across the industry. By consistently advancing our methods and embracing innovation, we aim to deliver greater benefits to our customers. Should you wish to learn more about our offerings, reach out to us—we’ll ensure you receive genuine and reliable support.
Dezhou Guanghe Machine Tool Co., Ltd. strives to deliver top-tier products and support to all our clients. Our skilled production and attention to detail have earned us strong acclaim across the industry. By consistently advancing our methods and embracing innovation, we aim to deliver greater benefits to our customers. Should you wish to learn more about our offerings, reach out to us—we’ll ensure you receive genuine and reliable support.
FAQ
Q: How about after-sales service?
A: 1. We can provide free training in our company.
2. If you need, our engineers are available to service machinery overseas.
Q: What should I do when I have some problems or questions?
A: Please don't hesitate to contact us, we will reply you as soon as possible.
A: Please don't hesitate to contact us, we will reply you as soon as possible.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for
his mistake. And we will solve your problem.
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for
his mistake. And we will solve your problem.
Q: Can I buy samples placing orders?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
A:Yes.Please feel free to contact us.
Q: What is your lead time?
Delivery time varies based on order size and when you place it. Small orders typically take 7 to 15 days, while larger ones take around 30 days.
Q: why choose us?
A:1. Quality assurance: The use of international well-known brand spare parts and the equipment has been tested layer by layer from
research and development to production to ensure that there are no omissions in each process before it will be sent to the
customer.
research and development to production to ensure that there are no omissions in each process before it will be sent to the
customer.
2. Company strength: With a huge R&D and production team, the products have always been far ahead in terms of quality,
technology, ease of use and other aspects.
technology, ease of use and other aspects.
3. Intimate after-sales service: ultra-long warranty, 24/7 online service.
