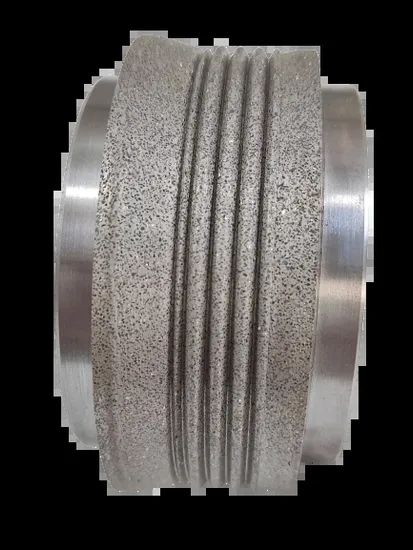

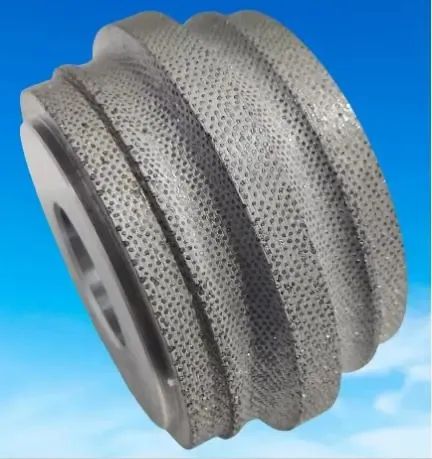

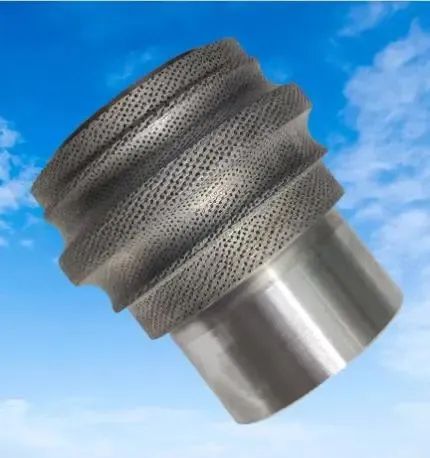

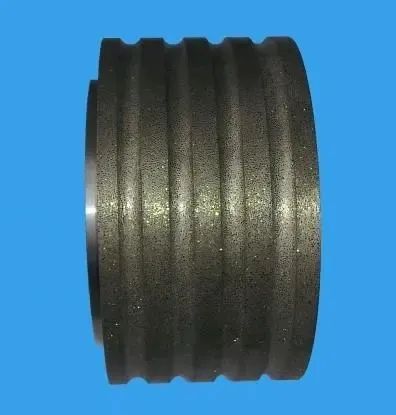

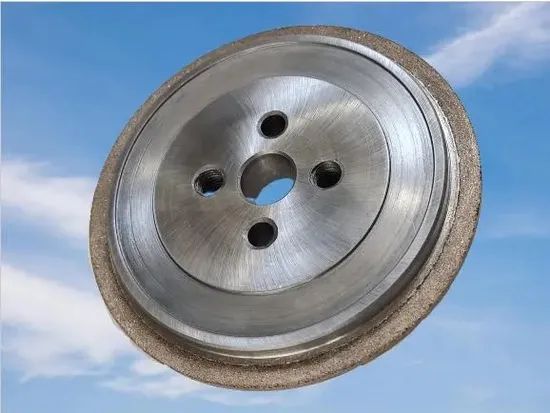

High Precision Diamond Roller and Diamond Dresser
1-3 Piece
$2,7004 Piece
$2,646Product information
High-quality High Precision Diamond Roller and Diamond Dresser supplied by Baoding Feifan Trading Co., Ltd.. Bulk wholesale pricing ranges from $2,646 to $2,700 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Tolerance 2:
0.5 Degree
Package Gross Weight:
2.500kg
Production Capacity:
25000 Pieces/Year
Tolerance 1:
2um
Production Cycle:
35 Days After Drawing Confirmed
Package Size:
36.00cm * 25.00cm * 36.00cm
HS Code:
6804210000
Origin:
China
Specifications
Tolerance 2:
0.5 Degree
Package Gross Weight:
2.500kg
Production Capacity:
25000 Pieces/Year
Tolerance 1:
2um
Production Cycle:
35 Days After Drawing Confirmed
Package Size:
36.00cm * 25.00cm * 36.00cm
HS Code:
6804210000
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Range Of Size:
Customized Production According to Customer Needs
Model NO.:
Customized production according to customer needs
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Bonding Agent:
Metal
Diamond Types:
Natural Diamond or Artificial Diamond
Wheel Base:
Steel
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Transport Package:
Wooden Box
Specification:
customer specific product
Trademark:
jiu li jing gang
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-07-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
3
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Tianjin Port
Certificates:
Continuous Improvement, EHS, logo, Trademark, trademark 2, trademark 3
Product descriptions from the supplier
Application field of diamond roller
(1) Auto parts industry: crankshaft, valve body, piston ring, oil needle, oil needle body, ball cage universal joint, oil nozzle oil pump, etc.
(2) Gear industry: double piece single cone, single piece double cone, gear tooth tip, full tooth surface, etc.
(3)Machine tool industry: guide rail, sliding block, ball screw, etc.
(4) Bearing industry: ball bearing groove, linear track pair, cone bearing, column bearing groove, textile bearing, etc.
(5) The amount of cutting tool industry: caliper, drill, saw blade, milling cutter slotting cutting edge, tap thread, etc.
(6) Light industry: refrigerator compressor, bicycle shaft, etc.
(7) Hydraulic industry: plunger pump connecting rod, etc.
Our advantages
(1)High efficiency---Simple operation, high dressing efficiency, long service life, stable quality
(2) Consistent precision---A grinding wheel featuring intricate surfaces, unattainable through alternative dressing techniques, can be shaped effectively, ensuring consistent surface finish and dimensional accuracy
(3) Tight tolerance---The angular symmetry of the diamond dressing roller is maintained at 0.5°, with the arc deviation kept below 2μm
(4) setup duration is minimal---The diamond roller significantly cuts dressing duration, boosts output speed, and lowers mechanical wear
(5) Customize---Provide customized service according to customer requirements and drawings
Customized information (Buyer fill in)
Installation of diamond roller
• The motor shaft of the dressing device shall be cleaned with a clean towel;
• The runout of the dressing shaft should be checked before installation, less than 0.002mm;
• With a clean towel, apply lubricating oil to clean the inner hole of the roller and remove impurities;
• Be careful not to overtighten the screws when installing
(nuts about 100 Newtons*Meters of torque, the bolt is about 10-32 Newtons*Meters of torque);
• Do not use too much force or knock when installing the roller on the dressing shaft;
• After installation, check the axial and radial runout of the roller after installation.
Note:When installing, avoid excessive pressure—particularly hammering or applying external stress—and refrain from exposing the roller to high heat to prevent any harm!
Cooling
• Cool the alignment grinding area
• The flow rate of the coolant should be equal to the speed of the grinding wheel;
• Flow rate and pressure depend on coolant velocity and nozzle size;
• The cooling pressure of the forming roller should not be less than 10Bar.
Some successful cases photos
(1) Auto parts industry: crankshaft, valve body, piston ring, oil needle, oil needle body, ball cage universal joint, oil nozzle oil pump, etc.
(2) Gear industry: double piece single cone, single piece double cone, gear tooth tip, full tooth surface, etc.
(3)Machine tool industry: guide rail, sliding block, ball screw, etc.
(4) Bearing industry: ball bearing groove, linear track pair, cone bearing, column bearing groove, textile bearing, etc.
(5) The amount of cutting tool industry: caliper, drill, saw blade, milling cutter slotting cutting edge, tap thread, etc.
(6) Light industry: refrigerator compressor, bicycle shaft, etc.
(7) Hydraulic industry: plunger pump connecting rod, etc.
Our advantages
(1)High efficiency---Simple operation, high dressing efficiency, long service life, stable quality
(2) Consistent precision---A grinding wheel featuring intricate surfaces, unattainable through alternative dressing techniques, can be shaped effectively, ensuring consistent surface finish and dimensional accuracy
(3) Tight tolerance---The angular symmetry of the diamond dressing roller is maintained at 0.5°, with the arc deviation kept below 2μm
(4) setup duration is minimal---The diamond roller significantly cuts dressing duration, boosts output speed, and lowers mechanical wear
(5) Customize---Provide customized service according to customer requirements and drawings
Customized information (Buyer fill in)
| Part name | |
| Workpiece material | |
| Surface roughness requirement | |
| Grinding wheel specifications | |
| Drawing of diamond grinding wheel or drawing of diamond roller |
|
| Current pain point |
• The motor shaft of the dressing device shall be cleaned with a clean towel;
• The runout of the dressing shaft should be checked before installation, less than 0.002mm;
• With a clean towel, apply lubricating oil to clean the inner hole of the roller and remove impurities;
• Be careful not to overtighten the screws when installing
(nuts about 100 Newtons*Meters of torque, the bolt is about 10-32 Newtons*Meters of torque);
• Do not use too much force or knock when installing the roller on the dressing shaft;
• After installation, check the axial and radial runout of the roller after installation.
Note:When installing, avoid excessive pressure—particularly hammering or applying external stress—and refrain from exposing the roller to high heat to prevent any harm!
Cooling
• Cool the alignment grinding area
• The flow rate of the coolant should be equal to the speed of the grinding wheel;
• Flow rate and pressure depend on coolant velocity and nozzle size;
• The cooling pressure of the forming roller should not be less than 10Bar.
Some successful cases photos
