High Precision Grinding Gear Rack Linear Motion Transmission Engine Parts Laser Cutter
10 Piece
$1010 Piece
$30Product information
High-quality High Precision Grinding Gear Rack Linear Motion Transmission Engine Parts Laser Cutter supplied by Changzhou Zhihai Machinery Co., Ltd.. Bulk wholesale pricing ranges from $10 to $30 per Piece with a minimum order of 10 Piece. Inquiry for latest prices.
Package Gross Weight:
10.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Production Capacity:
20000PCS/Month
HS Code:
8483900090
Type:
All
Material:
All
Gear Position:
All
Toothed Portion Shape:
All
Specifications
Package Gross Weight:
10.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Production Capacity:
20000PCS/Month
HS Code:
8483900090
Type:
All
Material:
All
Gear Position:
All
Toothed Portion Shape:
All
Manufacturing Method:
All
Model NO.:
CHTGH02010
Origin:
China, Jiangsu, Changzhou
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Export Standard Packing or Customized
Transport Package:
Export Standard Packing or Customized
Trademark:
Export Standard Packing or Customized
Position:
External Gear
Trade Term:
FOB
Hard:
Hardened Tooth Surface
Manufacturing:
Sintered Gear
Toothed Portion:
Spur
Payment Methods:
Support payments in USD
Payment Term:
To be discussed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
ISO9001:2015
Product descriptions from the supplier
High precision Grinding Gear Rack
1. DescriptionThe company owns the world's top processing equipment, specialized in the production of high precision grinding gear rack.The precision of grinding tooth rack can reach the German standard DIN3962 of level 5. The module m1-m22 and the length can reach 2.5 meters.
2. Characters
| High precision:Feed precision and positioning precision approximate the precision of the screw. |
| Low noise and vibration:No unpleasant tapping and rolling sound when high precision grinding gear rack meshing. |
| Long distance and high speed can be realized: long distance transmission can be realized, and high-speed movement over 200m/min can be carried out. |
| High bearing capacity: the max allowable bearing capacity of high precision grinding gear rack is about 2-3 times than precision milling rack. |
3. Technical Data
| Code | Module | L | L2 | Tooth No. | B | A0 | A1 | D | I | Hole No. | A | C1 | C2 | E | D1 | I1 | C3 | ||
| CHTGH | 010 | 05 | 1 | 500.00 | 3.14 | 150 | 15 | 15 | 14 | - | - | - | - | - | - | - | - | - | - |
| CHTGH | 015 | OS | 1.5 | 500.00 | 6.7 | 100 | 19 | 19 | 17.S | 62.50 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.6 | 5.7 |
| CHTGH | 015 | 10 | 1.5 | 1000.00 | 6.7 | 200 | 19 | 19 | 17.5 | 62.50 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 |
| CHTGH | 020 | 05 | 2 | 500.00 | 8.5 | 75 | 24 | 24 | 22 | 62.50 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.6 | 5.7 |
| CHTGH | 020 | 10 | 2 | 1000.00 | 8.5 | 150 | 24 | 24 | 22 | 62.50 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 |
| CHTGH | 030 | 05 | 3 | 500.00 | 10.3 | 50 | 29 | 29 | 26 | 62.50 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.0 | 7.7 |
| CHTGH | 030 | 10 | 3 | 1000.00 | 10.3 | 100 | 29 | 29 | 26 | 62.50 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 |
| CHTGH | 040 | 05 | 4 | 506.67 | 13.8 | 38 | 39 | 39 | 35 | 62.50 | 125 | 4 | 12 | 10 | 15 | 9 | 33.3 | 433.0 | 7.7 |
| CHTGH | 040 | 10 | 4 | 1000.00 | 13.8 | 75 | 39 | 39 | 35 | 62.50 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 |
| CHTGH | 050 | 05 | 5 | 500.00 | 17.4 | 30 | 49 | 39 | 34 | 62.50 | 125 | 4 | 12 | 14 | 20 | 13 | 37.5 | 425.0 | 11.7 |
| CHTGH | 050 | 10 | 5 | 1000.00 | 17.4 | 60 | 49 | 39 | 34 | 62.50 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.0 | 11.7 |
| CHTGH | 060 | 05 | 6 | 500.00 | 20.9 | 25 | 59 | 49 | 43 | 62.50 | 125 | 4 | 16 | 18 | 26 | 17 | 37.5 | 425.0 | 15.7 |
| CHTGH | 060 | 10 | 6 | 1000.00 | 20.9 | 50 | 59 | 49 | 43 | 62.50 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.0 | 15.7 |
| CHTGH | 080 | 05 | 8 | 480.00 | 28.0 | 18 | 79 | 79 | 71 | 60.00 | 120 | 4 | 25 | 22 | 33 | 21 | 120.0 | 240.0 | 19.7 |
| CHTGH | 080 | 10 | 8 | 960.00 | 28.0 | 36 | 79 | 79 | 71 | 60.00 | 120 | 8 | 25 | 22 | 33 | 21 | 120.0 | 720.0 | 19.7 |
| CHTGH | 100 | 10 | 10 | 1000.00 | 35.11 | 30 | 99 | 99 | 89 | 62.50 | 125 | 8 | 32 | 33 | 48 | 32 | 125.0 | 750.0 | I 19.7 |
| CHTGH | 120 | 10 | 12 | 1000.00 | 42.56 | 25 | 120 | 120 | 108 | 40.00 | 125 | 8 | 40 | 39 | 58 | 38 | 125.0 | 750.0 | 19.7 |
| Price List | ||||
| PRODUCT NAME | MODEL SPECIFICATION | UNIT | USD | |
| Precision Milled High-Frequency Blackened Rack | 2M-1000mm Right Helica | PC | 16 | |
| 3M-1000mm Right Helical | PC | 25 | ||
| 4M-1000mm Right Helical | PC | 43 | ||
| 5M-1000mm Right Helical | PC | 66 | ||
| 6M-1000mm Right Helical | PC | 116 | ||
| 8M-1000mm Right Helical | PC | 176 | ||
| Ground Rack | 2M-1000mm Right Helical | PC | 18 | |
| 3M-1000mm Right Helical | PC | 35 | ||
| 4M-1000mm Right Helical | PC | 72 | ||
| 5M-1000mm Right Helical | PC | 99 | ||
| 6M-1000mm Right Helical | PC | 155 | ||
| 8M-1000mm Right Helical | PC | 352 | ||
| Price List | ||||
| PRODUCT NAME | MODEL SPECIFICATION | UNIT | USD | |
| Precision Milled High-Frequency Blackened Rack | 2M-1000mm Spur | PC | 15 | |
| 3M-1000mm Spur | PC | 24 | ||
| 4M-1000mm Spur | PC | 42 | ||
| 5M-1000mm Spur | PC | 64 | ||
| 6M-1000mm Spur | PC | 112 | ||
| 8M-1000mm Spur | PC | 170 | ||
| Ground Rack | 2M-1000mm Spur | PC | 17 | |
| 3M-1000mm Spur | PC | 34 | ||
| 4M-1000mm Spur | PC | 70 | ||
| 5M-1000mm Spur | PC | 96 | ||
| 5M-1000mm Spur | PC | 150 | ||
| 5M-1000mm Spur | PC | 340 | ||

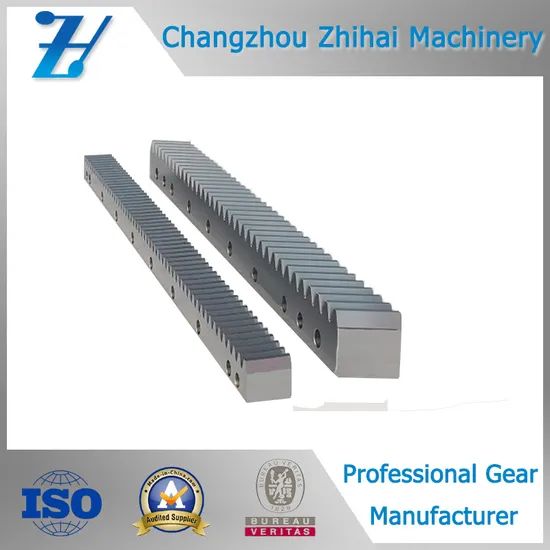

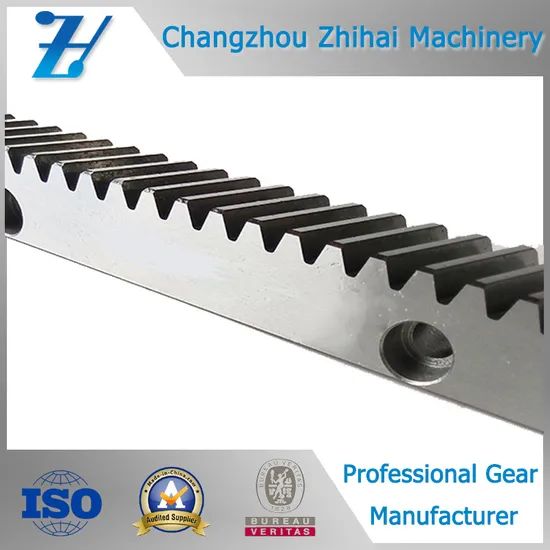

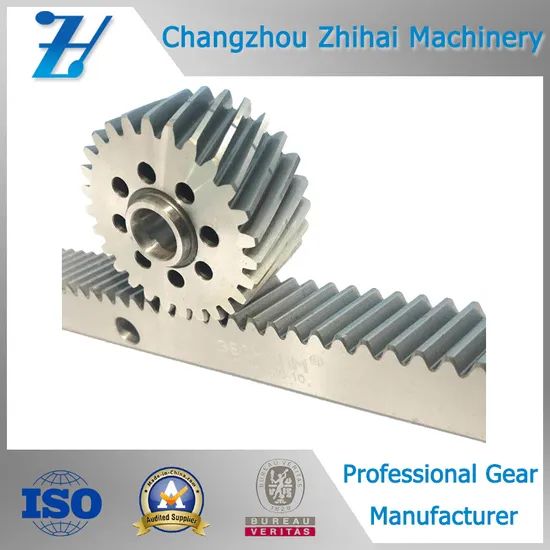

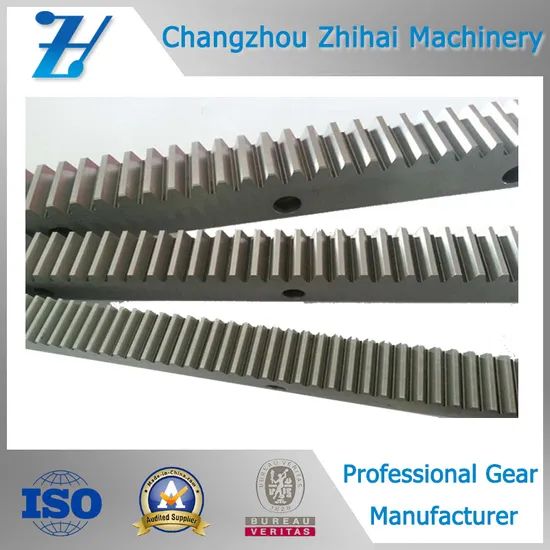

4. photos
5. Order process
a. Customer sends us the drawing or sample, If only sample, our company supply the CAD drawing.
b. Our company supplies the processing technique and quotation.
c. Our company supplies the sample after customer confirmed processing technique and quotation.
d. Customer places the order after confirm the sample.
e. Customer pay 50% deposit
f. Quantity production.
g. Pay the balance after the acceptance and confirmation.
h. Delivery.
