High-Precision Laser Alignment Tool for Robotic Welding Solutions
Set
Negotiable
Product information
High-quality High-Precision Laser Alignment Tool for Robotic Welding Solutions supplied by Wuxi Taohua Machinery Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Tilting Angle:
0-90°
Rotaion Speed:
0.05-0.5rpm
Production Capacity:
100 Sets/Month
Voltage:
110V/220V
Max Eccentricity Distance:
150mm
Load:
600
HS Code:
84688000
Origin:
China
Specifications
Tilting Angle:
0-90°
Rotaion Speed:
0.05-0.5rpm
Production Capacity:
100 Sets/Month
Voltage:
110V/220V
Max Eccentricity Distance:
150mm
Load:
600
HS Code:
84688000
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Specification:
HB-6
Quality:
High
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Warranty:
One Year
Timing Mode:
Rotation Speed Vpd Control
Port Of Loading:
Shanghai Port
Trademark:
Taohua
Welding Tilter Type:
Traditional Special
Transport Package:
Wooden
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-09-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
Our factory
Product descriptions from the supplier
Product Introduction

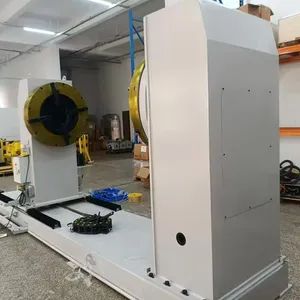

The Welding Positioner is a precision-engineered rotating workholding device designed to optimize welding efficiency and quality across industrial applications. This robust equipment securely holds and automatically rotates workpieces at adjustable speeds (typically 0.1-1.2 RPM), enabling welders to maintain ideal torch angles in flat/horizontal positions for consistent, high-strength joins. Featuring a heavy-duty steel construction with load capacities from 50kg to 20+ tons, it accommodates pipes, vessels, and structural components with diameters up to 3 meters. The variable frequency drive ensures smooth, jerk-free rotation while integrated tilt mechanisms (0-135°) enhance accessibility. Compatible with MIG, TIG, and arc welding systems, our positioner reduces operator fatigue by 60% and increases throughput by 40% through ergonomic positioning. Safety features include overload protection, non-slip chucks, and emergency stop buttons. Ideal for aerospace, automotive, and heavy fabrication industries, it supports both manual and automated welding cells with optional CNC interface integration. The powder-coated finish resists spatter damage, and sealed bearings ensure longevity in harsh workshop environments.
Stable and Secure Hold
The toothed structure provides a stable and secure hold on the workpiece during welding. Once the workpiece is positioned, the interlocking of the teeth prevents any unwanted movement or slippage. This is crucial in welding operations, as even a slight movement can lead to poor - quality welds or welding defects. In heavy - duty welding applications where the workpiece may be large and heavy, the stability provided by the toothed component is essential.
Precise Control
The electrical control cabinet houses components like the inverter shown. It enables precise adjustment of the welding positioner's speed, rotation angle, and movement. For example, during complex welding tasks that require slow, steady rotation for detailed welds or fast positioning for large - scale workpiece reorientation, the cabinet's controls allow operators to set and maintain exact parameters, ensuring high - quality welds.
Type | HB-1 | HB-3 | HB-6 | HB-12 | HB-30 | HB-50 | HB-100 | |
Load(kg) | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 | |
Table rotating speed(rpm) | 0.1~1 | 0.05~0.5 | 0.05~0.5 | 0.05~0.5 | 0.05~0.5 | 0.05~0.5 | 0.02~0.2 | |
Table turning speed(rpm) | Manual | 0.67 | 0.5 | 0.5 | 0.25 | 0.15 | ||
Table diameter(mm) | φ400 | φ600 | φ1000 | φ1200 | φ1400 | φ1500 | φ2000 | |
Table turning angle(°) | 0-90 | 0-105 | 0-120 | |||||
Timing Mode | Rotation speed VPD control | |||||||
Motor power(kw) | Rotating | 0.18 | 0.37 | 0.75 | 1.1 | 1.1 | 1.5 | 3 |
Turning | 0.18 | 0.37 | 0.75 | 1.1 | 2.2 | 3 | 4 | |
Max gytating angle(mm) | φ600 | φ800 | φ1200 | φ1500 | φ1600 | φ1800 | φ2500 | |

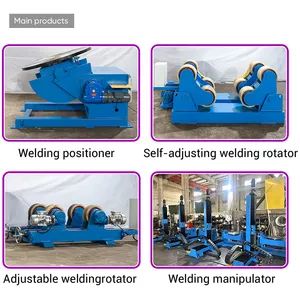

Main Products

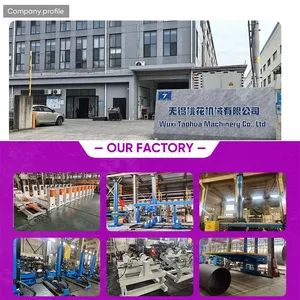

Company Profile
Wuxi Taohua Machinery is a factory specializing in the production of welding equipment. It mainly manufactures welding wheel frames, welding positioners, and welding operation machines, among other welding equipment. The factory integrates R&D, production, and sales. It is committed to meeting customers' demands for high-quality products at reasonable prices. The factory can also design products according to customer needs and customize the products that customers want. It also provides OEM services. The product warranty period is one year, allowing customers to not worry about after-sales issues and not have concerns about future worries.
