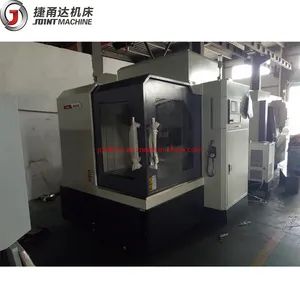

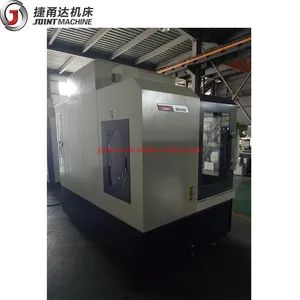

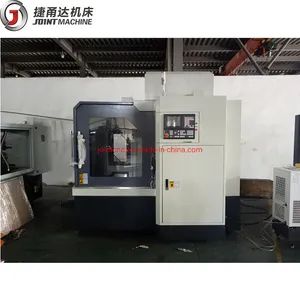

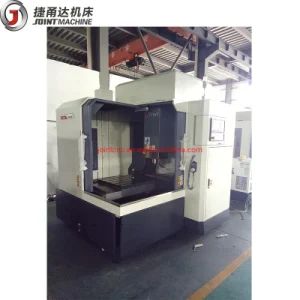

High Precision Vertical CNC Engraving and Milling Machine for Metal
set
Negotiable
Product information
High-quality High Precision Vertical CNC Engraving and Milling Machine for Metal supplied by Shenzhen Joint Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
X/Y/Z Axes Motor Rate:
1.3kw
Three Axes Rapid Movement Speed:
10m/Min
Specification:
1880*1800*2645/1880*2326*2645
Spindle Rotation Speed (Electric Spindle:
24000rpm
Dimension:
2560*2020*2880/2560*2540*2880
Production Capacity:
300
Z Axis Travel:
330/310
Gross Weight:
4300kgs
Specifications
X/Y/Z Axes Motor Rate:
1.3kw
Three Axes Rapid Movement Speed:
10m/Min
Specification:
1880*1800*2645/1880*2326*2645
Spindle Rotation Speed (Electric Spindle:
24000rpm
Dimension:
2560*2020*2880/2560*2540*2880
Production Capacity:
300
Z Axis Travel:
330/310
Gross Weight:
4300kgs
Spindle Motor Rate:
5.5kw
X Axis Travel:
720/670 with Tool Magazine
X/Y/Z Axes Max Output Torque:
8.34/8.34/8.34n.M
Y Axis Travel:
800
Gantry Width:
800
Max Load Of Working Table:
800kgs
HS Code:
84596190
Working Table Size:
860*720
Three Axes Feed:
8m/Min
Drive Type:
AC Servo Drive
Model NO.:
CM870
Control:
CNC
Origin:
China
Spindle Taper:
Er25/Bt30*Er32*
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Trademark:
JOINT
Payment Term:
LC, T/T, D/P, Western Union
Usage:
Metal, Mould
Port Of Loading:
Shenzhen
Power:
Small Power
Transport Package:
Wooden Pallet or/and Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2002-04-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Port Of Loading:
Shenzhen
Certificates:
Chinese TOP 10 BRAND OF MILLING MACHINE, HI-TECH ENTERPRISE, ISO, SHENZHEN TOP BRAND, TOP 500 ENTERPRISE IN SHENZHEN, VICE CHAIRMAN
Product descriptions from the supplier
Product Characteristics:
Product Details:
Product specifications:
Industrial Applicant:
Standard Accessories:
1. CM650B spindle 5.5kw/θ125/24000rpm,ER25;
2. Taiwan LNC 5800 control system;
Japan YASKAWA absolute three axes servo motor;
Taiwan C5 level precision ball screw;
Three axes Japan NSK P4 level bearing;
Taiwan HIWIN/PMI linear guideway;
Germany coupling;
3. ER25 chuck; vise; clamping kit; spindler oil cooler;
4. Pneumatic system;
5. Auto lubrication system;
6. Work piece coolant system;
7. Three axes inner encoder reflection system;
8. Hand unit;
9. Interface;
10. Warning light;
11. Working light;
12. Tool and toolbox;
13. Technical documents
Optional Accessories:
1. Japan tool setting;
2. ER25 spindle change to BT30;
3. 10T tool magazine(with BT30 spindle);
4. ER25/5.5KW spindle change to ER32/7.5KW spindle
5. It can be dry graphite machine
( but must add ball screww cover; fully closed cover; high protective cover; industrial dust clean equipment)
Package:
Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
1. X/Y/Z three-direction guideways are linear guideways. The standard speed of three-axis fast forward is 10m/min, and the CM650B can also be specially matched with 24m/min.
2. The body structure through the finite element analysis, high precision and rigidity, at high speed still maintain the stability of processing.
3. CM650B spindle body by special reinforced design, cutting strength is more than 20% higher than similar models.
4. Coupling, bearing, ball screw and other key parts are made of Germany, Japan and Taiwan top brands, which ensure high quality and stability of the machine.
5. CM650B and CM860 models can be equipped with BT30 spindle and hat knife store (Taiwan).Protective roof cover and ventilation system can be configured to achieve fully sealed protective processing.
Product Details:
Product specifications:
| Model | CM870 | |||
| Table size | mm | 720*860 | ||
Travel |
Longitude (X) | mm | 720 | |
| Crossward (Y) | mm | 800 | ||
| Vertical (Z) | mm | 330/310(BT30 spindle) | ||
| Width of gantry | mm | 800 | ||
| Work table T slot (No,-Size*Pitch) | Mm | 5-18*100 | ||
| Spindle | Installment diameter | mm | Φ125 | |
| Rotation speed | rpm | 24000 | ||
| Taper | ER25/BT30*/ER32* | |||
| Motor | kw | 5.5 | ||
| Max torque | Nm | 4.4 | ||
Three- axis |
Rapid moving speed |
Longitude (X) | m/min | 10 |
| Crossward (Y) | m/min | 10 | ||
| Vertical (Z) | m/min | 10 | ||
| Max torque | NM | 8.34/8.34/8.34 | ||
| Motor rate | Kw | 1.3 | ||
| Cutting feed | m/min | 8 | ||
| Optional accessory Tool magazine (umbrella type) |
Tool capacity | T | 10 | |
| Max tool diameter/length/weight | mm/mm/kg | 16/150/8 | ||
| Tool change time | s | 8 | ||
| Positioning accuracy(X/Y/Z) | mm | 0.006/0.006/0.005 | ||
Dimension (L*W*H) |
mm |
2560*2020*2880 2560*2540*2880 (with tool magazine) |
||
| Net weight | kgs | 4300 | ||
| Max load of table | kgs | 800 | ||
Industrial Applicant:
1. CM650B spindle 5.5kw/θ125/24000rpm,ER25;
2. Taiwan LNC 5800 control system;
Japan YASKAWA absolute three axes servo motor;
Taiwan C5 level precision ball screw;
Three axes Japan NSK P4 level bearing;
Taiwan HIWIN/PMI linear guideway;
Germany coupling;
3. ER25 chuck; vise; clamping kit; spindler oil cooler;
4. Pneumatic system;
5. Auto lubrication system;
6. Work piece coolant system;
7. Three axes inner encoder reflection system;
8. Hand unit;
9. Interface;
10. Warning light;
11. Working light;
12. Tool and toolbox;
13. Technical documents
Optional Accessories:
1. Japan tool setting;
2. ER25 spindle change to BT30;
3. 10T tool magazine(with BT30 spindle);
4. ER25/5.5KW spindle change to ER32/7.5KW spindle
5. It can be dry graphite machine
( but must add ball screww cover; fully closed cover; high protective cover; industrial dust clean equipment)
Package:
Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
