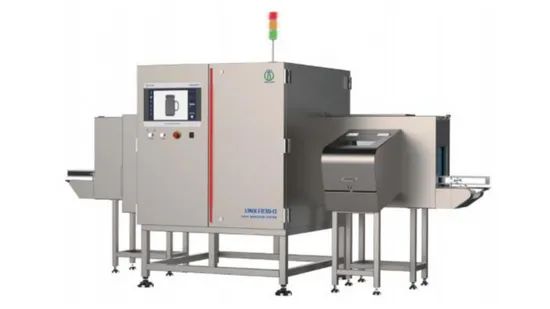

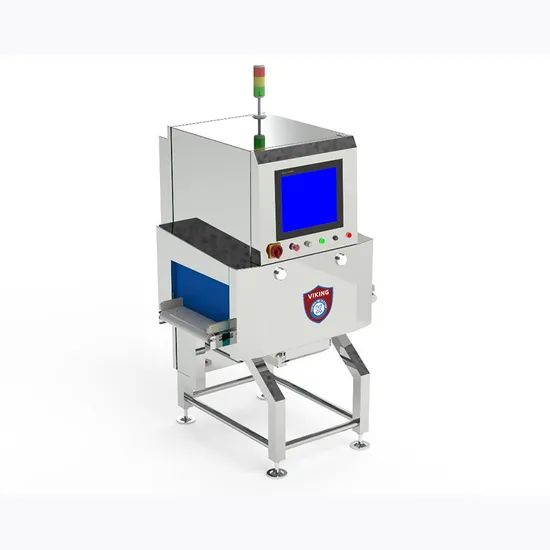

High-Precision X-ray Inspection Machine for Food Products
1 Piece
$22,000Product information
High-quality High-Precision X-ray Inspection Machine for Food Products supplied by Dongguan Viking Technology Co., Ltd.. Bulk wholesale pricing is $22,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Environmental Temperature:
0~40°c
Production Capacity:
1000
Specification:
1178mm(L)*1051mm(W)*1854mm(H)
Display:
17-Inch Full-Color Touch Screen, Shiwei (China)
Power Supply:
220V 50Hz
Environmental Humidity:
30~90%, No Frosting
HS Code:
9022199090
Alarm Form:
Audible Alarm
Specifications
Environmental Temperature:
0~40°c
Production Capacity:
1000
Specification:
1178mm(L)*1051mm(W)*1854mm(H)
Display:
17-Inch Full-Color Touch Screen, Shiwei (China)
Power Supply:
220V 50Hz
Environmental Humidity:
30~90%, No Frosting
HS Code:
9022199090
Alarm Form:
Audible Alarm
Certification:
CE
Detection Accuracy:
Ceramic Ball 1.0 mm
Origin:
China
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Machine Detection Accuracy:
Glass Ball 1.0 mm
Image Management:
Image Save/Print/Analysis
Temperature Control:
Industrial Air Conditioning for Automatic Temperat
Type:
Industrial High-definition X-ray Detector
Supported Data Interfaces:
LAN Port, USB Port
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Portable:
Non Portable
Application:
Security Check, Industrial
Port Of Loading:
Shenzhen Port, Guangzhou Port
Empty Machine Detection Accuracy:
Stainless Steel Ball 0.4 mm
Operation Method:
Touch Screen Operation
Model NO.:
VNX4025
Trademark:
Viking
X Ray Source:
Vjx Ixs100 150W 80kv, Vj (United States), Single
Form:
Whole Machine
Operating System:
Windows 11
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-10-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
6
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port, Guangzhou Port
Certificates:
CE
Product descriptions from the supplier
Food X-ray Inspection Machine
A Food X-ray Inspection Machine is a specialized equipment used in the food industry to detect contaminants and foreign objects inside food products. It ensures the safety and quality of food by using X-ray technology to inspect and identify potential hazards such as metals, glass, stones, plastics, and other foreign materials. The machine provides highly accurate detection while ensuring compliance with food safety standards.Key Features:
1.High Sensitivity Detection
Capable of identifying very small contaminants, such as metal fragments or glass shards, ensuring high-quality standards for food products.
2.X-ray Tube Power
The machine utilizes an X-ray tube with adjustable power (measured in kilovolts and milliamps) for optimal penetration and clarity, ensuring accurate detection even through complex packaging.

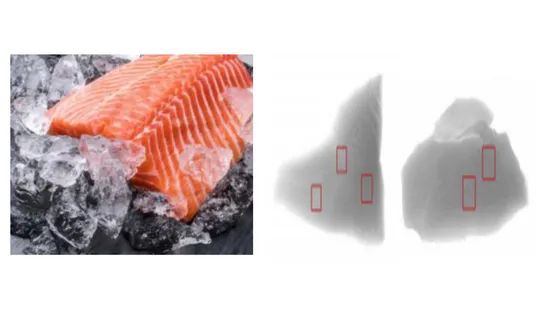

3.Real-time Imaging
Provides real-time X-ray imaging, allowing operators to quickly identify and analyze any defects or contaminants in the food products.
4.High Resolution Imaging
Equipped with high-resolution sensors, the machine generates clear and detailed images of the food contents, enabling accurate detection of both small and large foreign objects.
5.Automatic Contaminant Detection
Built-in software with advanced algorithms automatically detects and marks foreign objects such as metals, glass, and plastics, reducing the need for manual inspection.
6.Adaptability to Different Food Types
The machine is capable of inspecting various types of food products, including solid foods, liquids, semi-solids, and even frozen or heat-treated items.
7.Fast Throughput
Designed to inspect food products at high speeds, ensuring efficient processing and high-volume production lines. It typically measures throughput in units per hour or kilograms per hour.
8. Product Size Range
Can accommodate a wide range of food product sizes, from small packaged goods to large bulk food items.
9.Data Management and Reporting
The machine's software allows for easy data logging, real-time monitoring, and detailed reporting on detected contaminants, inspection results, and machine performance.
10. Compliance with Safety Standards
Meets international food safety regulations and certifications (e.g., FDA, EU) ensuring that food inspection processes are compliant with health and safety guidelines.
11.User-Friendly Interface
Features an intuitive touchscreen interface for easy operation and customization of inspection parameters, with minimal training required for operators.
12.Hygienic Design and Easy Cleaning
Designed for ease of cleaning and maintenance, with smooth, stainless steel surfaces and features that meet hygiene standards for the food industry.
13.Multi-language Support
Supports multiple languages in the software interface, allowing operators in various regions to use the machine effectively.
Applications:
Food X-ray inspection machines are commonly used in:- Food Processing Plants: To ensure food products are free from foreign contaminants during production.
- Packaged Food: For inspecting sealed packages to detect any internal defects or contamination.
- Frozen and Fresh Foods: To detect foreign objects in items ranging from frozen meat to fresh produce.
Advantages:
- Non-destructive Testing: X-ray inspection does not damage food products, ensuring that the integrity of the items is maintained.
- High Precision: Capable of detecting very small contaminants that may be missed by traditional metal detectors or visual inspections.
- Increased Efficiency: Automated detection speeds up the inspection process, reducing the need for manual checks and improving overall production efficiency.
Safety Features:
- The X-ray machine is designed with radiation shielding to ensure safe operation, and it complies with industry-standard radiation safety protocols.
| Model | VNX4025 | |
| Best Empty Machine Detection Accuracy | Stainless steel ball: Φ 0.4mm Glass ball: Φ1.0 mm; Ceramic ball: Φ 1.0 mm |
|
| Detecting objectsize | DetectingMaxheight. | 170 mm |
| DetectingMaxwidth. | 400 mm | |
| Conveyor Device Parameters | Conveyor belt speed | 20~70 m/min |
| Conveyor belt width | 400 mm | |
| Max height of the conveyor window | 250 mm | |
| Max load of the conveyor device | 20KG | |
| X-ray Source | VJX IXS100 150W 80kV, VJ (United States), single light source | |
| Detector | DT X-Scan C 0.4 mm, DT (Finland), single detector | |
| Display | 17-inch full-color touch screen, Shiwei (China) | |
| Host | Dell (USA) | |
| Operating System | Windows 11 | |
| Operation Method | Touch screen operation | |
| Supported Data Interfaces | LAN port, USB port | |
| Product Management | Complete product log | |
| Parameter Adjustment | Self-learning/Manual learning options available | |
| Image Management | Image save/print/analysis | |
| Power Supply | AC 220V, 1.2KVA,50/60Hz | |
| Belt Motor | Delta servo motor, Taiwan, China | |
| Overall Equipment Size | L*W*H:1177*1151*1896mm | |
| Cleaning Method | Easy to clean | |
| Temperature Control | Industrial air conditioning for automatic temperature control | |
| Environmental Temperature | 0~40°C | |
| Environmental Humidity | 30~90%, no frosting | |
| X-ray Leakage | < 1µSv/ h | |
| Overall Material | 304 stainless steel | |
| Protection Level | IP65 | |
| Conveying Weight | 10KG | |
| Protection Method | Removable protective curtain/protective cover | |
| Belt Direction | from left to right/ Optional from right to left | |
| Ejection Mechanism (Optional) | Paddle/pusher/flipper/blow-off | |
