High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Pizza Boxes
1 Set
$32,000Product information
High-quality High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Pizza Boxes supplied by Wenzhou Hongshuo Machinery Co., Ltd.. Bulk wholesale pricing is $32,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Air Pressure Comsumption:
0.25m²/Min,0.5MPa
Max Cutting Area:
1160*610mm
Total Power:
12kw
Paper Gram Weight:
135-600g
Max Roller Diameter:
1600mm
Max Cutting Pressure:
300 T
Production Capacity:
30sets/Month
Power Supply:
380V/50Hz
Specifications
Air Pressure Comsumption:
0.25m²/Min,0.5MPa
Max Cutting Area:
1160*610mm
Total Power:
12kw
Paper Gram Weight:
135-600g
Max Roller Diameter:
1600mm
Max Cutting Pressure:
300 T
Production Capacity:
30sets/Month
Power Supply:
380V/50Hz
Lead Time:
40 days (1 - 1 Sets)To be negotiated ( > 1 Sets)
Specification:
4500*2200*1800mm
Package Size:
500.00cm * 250.00cm * 220.00cm
HS Code:
844110000
Package Gross Weight:
9000.000kg
Weight:
9000kgs
Automatic Grade:
Automatic
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Species:
Die Cutting and Creasing Machine
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
HS
Model NO.:
HS-MQJ
Placing Form Of Template:
Horizontal
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Ningbo Port, Shanghai Port
Application:
Paper Packaging Materials
Imprinting Type:
Platen
Die Cutting Tool:
Steel Plate
Payment Methods:
Support payments in USD
Transport Package:
Wooden Pallet
Cutting Precision:
±0.15mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-07-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
10
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
CE
Product descriptions from the supplier
SONA2024 2.2.1
Product Description

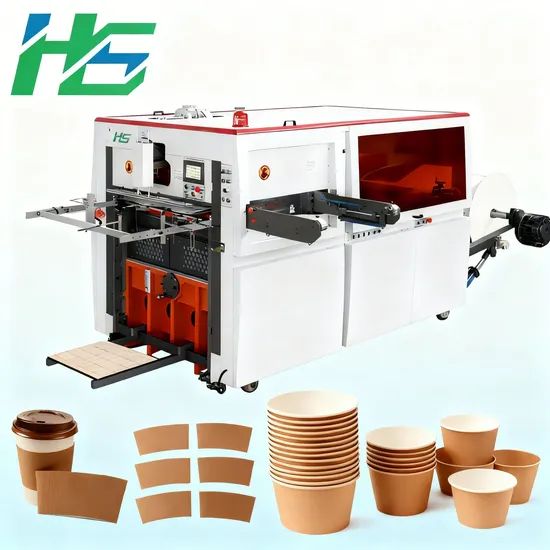

Roll Paper Die Cutting Machine
HS-MQJ series automatic web die-cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it's widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability.
Specification
Model NO. | HS-MQJ640 |
Imprinting Type | Platen |
Die Cutting Tool | Wooden Die |
Automatic Grade | Automatic |
Max Cutting Area | 1160*610MM |
Paper Gram Weight | 135-600g |
Air Pressure Requirement | 0.5 MPA |
Max Cutting Pressure | 300T |
Max Roller Diameter | 1600MM |
Overall Dimension | 5500*2000*1800MM |
Specification | 16CBM |
Origin | China |
Production Capacity | 300 Sets Per Year |
Species | Die Cutting and Creasing Machine |
Placing Form of Template | Horizontal |
Computerized | Computerized |
Application | Printing and Packaging |
Cutting Precision | 0.2 mm |
Capacity | 100-200 Times/MIN |
Air Pressure Consumption | 0.25m³/Min |
Weight | 9000KGS |
Total Power | 12 KW |
Specific description
1.Worm Gear Structure: Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed, has features of low noise, smooth running and high cutting pressure.
2.Lubrication System: Adopts forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life, machine will shut down for protection if oil pressure is low. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.
3. The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.
4. Electrical control pressure: accurate and fast to achieve die-cutting pressure adjustment, The pressure is automatic adjusted through the motor to control the four feet by HMI.It is very convenient and accurate.
5. It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.
6. Electrical cabinet
Motor: Frequency converter controls the main motor, with features of low energy and high efficiency.
7. Die cutting department adopts pneumatic lock version of the device to avoid come off from the machine. Die cutting knife plate and plate frame can be take out so that it can save plate-changing time.
8. Feeding Unit: Adopts chain type pneumatic roller unwind, tension controls unwind speed, and that's hydraumatic, it could support at least 1.5T. Max roll paper diameter 1.6m.
2.Lubrication System: Adopts forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life, machine will shut down for protection if oil pressure is low. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.
3. The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.
4. Electrical control pressure: accurate and fast to achieve die-cutting pressure adjustment, The pressure is automatic adjusted through the motor to control the four feet by HMI.It is very convenient and accurate.
5. It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.
6. Electrical cabinet
Motor: Frequency converter controls the main motor, with features of low energy and high efficiency.
7. Die cutting department adopts pneumatic lock version of the device to avoid come off from the machine. Die cutting knife plate and plate frame can be take out so that it can save plate-changing time.
8. Feeding Unit: Adopts chain type pneumatic roller unwind, tension controls unwind speed, and that's hydraumatic, it could support at least 1.5T. Max roll paper diameter 1.6m.
Worm Gear Structure
Motor
Die cutting plate
Feeding Unit

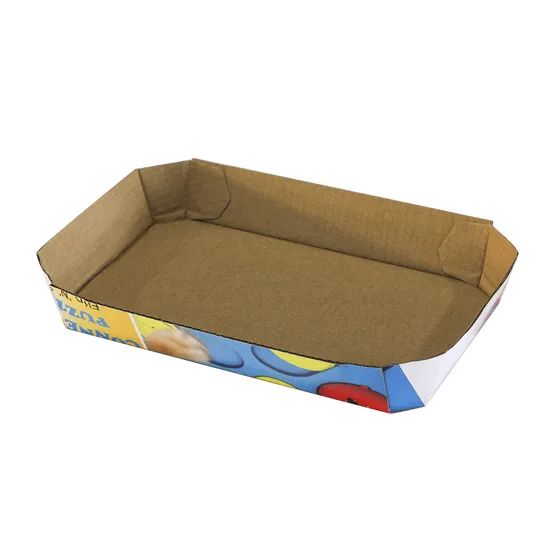

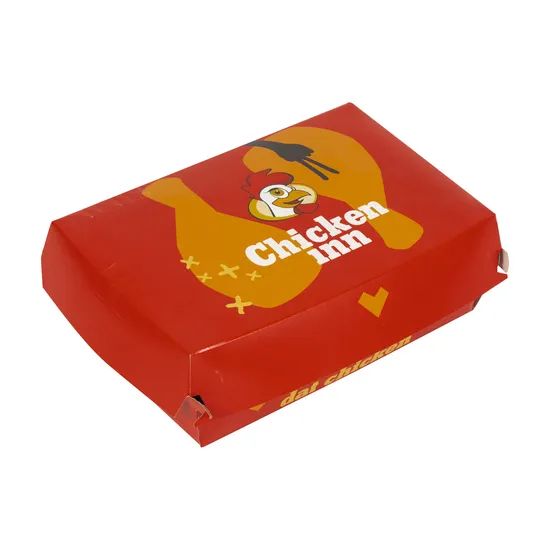

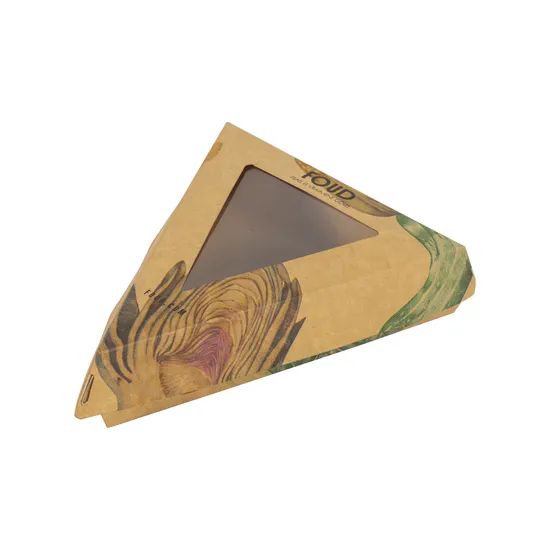

Product Sample
Advantages
Packaging & Shipping
After Sales Service
Warranty service
1,The warranty period is 1 year, and on-site installation and debugging services are provided during the warranty period. (fees to be paid by buyer)
2, Provide text, pictures, video and other network technical support during the non-warranty period.
Pre-sale service
In-sale service
Professional sales staff will explain the product's efficacy and usage in detail, and provide you with suggestions according to the different situations of customers.
After-sales service
Specially equipped with a group of professional and experienced technical masters to provide full tracking services, answer various difficult questions and needs of customers, and help customers train technical personnel.
Professionals and training provide you with comprehensive technical consultation and training, fully understand the performance characteristics of the product, on-site trainingand practical exercises,so that you not only buy equipment,but also masterthe technology.
After-sales service countries
Europe, Central and South America, EasternEurope, Croatia, Russia, Uzbekistan, RomaniaNorth Macedonia, Lithuania, Albania, BulgariaSerbia, Ukraine, Poland.
