High Pressure Cylinder Inner & Outer Shot Blasting Machine
Piece
Negotiable
Product information
High-quality High Pressure Cylinder Inner & Outer Shot Blasting Machine supplied by Wuxi Longterm Machinery Technologies Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Steel Shot Or Steel Cut Wire Shot:
1.0~1.5
Cartridge Number:
12
Conveyor System Speed:
1~4r/Min
Blasting Capacity:
250kg/Min
Amount Of Steel Shot:
3 T
Max Rate Of Flow:
300 Kg/Min
Efficiency:
40 PCS/H
Rotary Conveying Capacity:
45t/H
Specifications
Steel Shot Or Steel Cut Wire Shot:
1.0~1.5
Cartridge Number:
12
Conveyor System Speed:
1~4r/Min
Blasting Capacity:
250kg/Min
Amount Of Steel Shot:
3 T
Max Rate Of Flow:
300 Kg/Min
Efficiency:
40 PCS/H
Rotary Conveying Capacity:
45t/H
Production Capacity:
5000PCS/Year
Power:
50kw
Dirt Catcher Power:
7.5kw
HS Code:
8424300000
Automation:
Automatic
Certification:
CE, CB, ETL, RoHS, UR
Name:
CNG Cylinder Shot Blasting Machine
Type:
Crawler Abrator
Feature:
Critical Cleaning / Residue Free
Customized:
Customized
Color:
Customized
Fuel:
Electric
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW
Cleanliness:
High Cleanliness
Shot Blaster:
Hj360 Shotblaster
Origin:
Jiangsu, China
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.:
LTM
Discharged Dust Consistence:
Lower Than 80mg/M3
Machine Noise:
Lower Than 90 dB
Condition:
New
Application:
Pharmaceutical Cleaning
Port Of Loading:
Shanghai, Ningbo
Transport Package:
Standard Seaworthy Package
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2003-07-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW
Port Of Loading:
Shanghai, Ningbo
Certificates:
CE, CE of hydraulic pressure testing machine scale, CE of residual liquid removal machine, FACTORY ACCEPTANCE INSPECTION CERTIFICATE, intertek_1, intertek_2, ISO9001:2000 Quality Management Certificates, PRE-SHIPMENT INSPECTION CERTIFICATE, pressure parts safety registration, pressure vessel manufacturing license
Product descriptions from the supplier
High Pressure Seamless/CNG cylinder Inner Sand Blasting Machine Outer Shot Blasting Machine~
Production Induction:

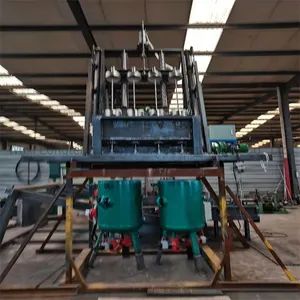

1.Cylinder internal sand blasting machine
Sandblasting is a method of using compressed air to blow out quartz sand at high speed to clean the surface of parts.The main function of sandblasting is to remove rust and scale on the surface, such as parts after heat treatment.Sandblasted sand, which is just river sand, is no different from that used in construction, except that the sandblasted sand is screened, contains less mud, and has a particle size specification. Of course, some industries are also different. For example, the shot blasting in the shipbuilding industry uses real steel shot, and the sand blasting uses metal ore (not river sand-quartz sand).
1. During the sandblasting process, clean up the attachments, welding slag, grease and other dirt on the metal surface;
2. During the sandblasting process, the air temperature should also be kept below 85 degrees;
3. The compressed air used in the sandblasting process needs to be treated by a cooling device and an oil-water separator to ensure that the compressed air is dry and oil-free;
Fourth, the best choice of abrasive is ceramic sand and iron sand. The abrasive is required to be angular, clean, dry and free of oil.

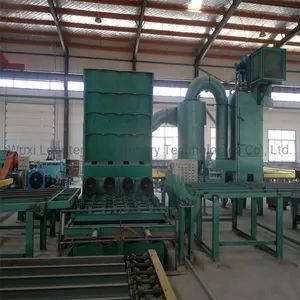

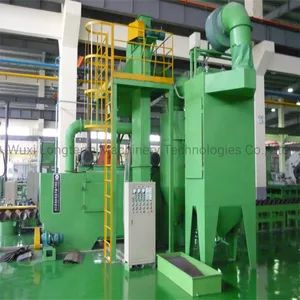

2.External shot blasting machine
The shot blasting machine refers to the casting equipment that uses the high-speed projectile thrown by the shot blasting machine to clean or strengthen the surface of the casting. The shot blasting machine can shake out, de-core and clean the castings at the same time. In some areas, it is also called a sandblaster and a sandblaster.
1. Shot blasting is to use a high-speed rotating impeller to throw small steel shot or small iron shot out to hit the surface of the part at high speed, so the oxide layer on the surface of the part can be removed.
2. Shot blasting has many functions and functions. It not only removes rust and oxide scale, but also improves surface roughness, removes machining burrs, eliminates internal stress of parts, reduces deformation of parts after heat treatment, and improves surface wear resistance of parts. pressure capacity, etc.
3. The steel shot and iron shot used in shot blasting are not actually shot in the real sense. To be precise, it is a small steel wire or a small steel rod, which only looks like a ball after a period of use.
The shot blasting machine refers to the casting equipment that uses the high-speed projectile thrown by the shot blasting machine to clean or strengthen the surface of the casting. The shot blasting machine can shake out, de-core and clean the castings at the same time. In some areas, it is also called a sandblaster and a sandblaster.
1. Shot blasting is to use a high-speed rotating impeller to throw small steel shot or small iron shot out to hit the surface of the part at high speed, so the oxide layer on the surface of the part can be removed.2. Shot blasting has many functions and functions. It not only removes rust and oxide scale, but also improves surface roughness, removes machining burrs, eliminates internal stress of parts, reduces deformation of parts after heat treatment, and improves surface wear resistance of parts. pressure capacity, etc.
3. The steel shot and iron shot used in shot blasting are not actually shot in the real sense. To be precise, it is a small steel wire or a small steel rod, which only looks like a ball after a period of use.
Technical parameters:
1.Cylinder internal sand blasting machine
1.Cylinder internal sand blasting machine
| No. of Stations: | 2 |
| Roughness of the surface | 20-50um |
| Efficiency of the cleanness | 150-180pcs/8h |
| Dimension | 4200×5000×3300mm |
| Shot blasting machine type | ST60-DC-2D |
| No. of guns | 2 |
| Working pressure | 0.8MP |
| Volume | 0.5t |
| Total consumption of compressed air | 12m3/min |
| Speed | (1200-1500)kg/h |
| Dust collector | Filter cartridge dust collector |
| Total power | 7.5KW |
2.External shot blasting machine
Processing Details:
CNG Cylinder Production Line Flow Chart
| NO | Product Name | QTY | Main Parameters |
| 1 | Workpiece size | Dia:Φ219-Φ406mm | |
| Length:800-2100mm | |||
| 2 | Cleaning requirement | Meet standard of | |
| GB8923-88 A-B Sa21/2 | |||
| 3 | Production speed | Max size:Φ41040pcs/h | |
| 4 | Shot blaster | 2 | Type:Q034 Power: 2×15KW |
| 5 | Steel shot | Steel shot or steel cut wire shotΦ1.0~1.5 | |
| 6 | Amount of steel shot | 3 T | |
| 7 | Conveyor system | 1 | Speed:1~4r/min |
| (electromagnetic speed control) | |||
| 8 | Bucket elevator | 1 | Capacity: 45t/h |
| 9 | Rotary conveying | 1 | Capacity: 45t/h |
| 10 | Segregator | 1 | Capacity: 45t/h speed:4~5 m/s |
| 11 | Steel shot controller | 2 | Pneumatic valve |
| Max rate of flow:300 kg/min | |||
| 12 | Dirt catcher | 1 | Cartridge number:12 |
| Power: 7.5kW | |||
| Cyclone dust removal+ cartridge | |||
| 13 | Discharged dust consistence | ≤80mg/m3 | |
| 14 | Machine Noise | ≤90 dB | |
| 15 | Total Power | ~50kW |
Processing Details:
CNG Cylinder Production Line Flow Chart
Related Machines:
Hot Spinning Machine
The key process of CNG gas cylinder processing is bottom closing and month closing.These two processes use special equipment to spin seamless steel pipes. The entire bottle body is one body, and no welds are allowed.
The key process of CNG gas cylinder processing is bottom closing and month closing.These two processes use special equipment to spin seamless steel pipes. The entire bottle body is one body, and no welds are allowed.
LONGTERM is the manufacturer in the field of hot spinforming machinery in China, with a well established reputation for outstanding performance.
CNG Gas Cylinder Threaded Screw Machine
1.The machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as
well as threading, which are realized by NC programming.
2.Single station device is adopted for input and output materials(semi-automatic);
3.The work piece clamping adopts the front top
bowl positioning.
CNG Gas Cylinder Stamping Machine
Hydraulic system is a two-pump dual hydraulic system (piston pump and gear pump), and the two pumps can operate independently.
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons (excluding hydraulic system and loading and unloading systems).
Hydraulic system is a two-pump dual hydraulic system (piston pump and gear pump), and the two pumps can operate independently.
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons (excluding hydraulic system and loading and unloading systems).
Package and delivery:
Package: Standard seaworthy package for CNG cylinder making machines
Delivery: 30 days after your advance payment
Our company:
Wuxi Longterm Machinery Technologies Co.,Ltd:
Wuxi Longterm Machinery Technologies Co.,Ltd:
LONGTERM is the manufacturer in the field of CNG Cylinder Making Machines in China, with a well established reputation for outstanding performance.
Recognized worldwide for its proprietary design and manufacturing know how. LONGTERM has been involved in this industry since 1990. We got here on the basis of providing strong support to clients who buy our machinery.
When you 'down' - our job is get you back 'up'
Servicing on our machinery has been greatly facilitated by advances in remote control software. This allows us to troubleshoot issues half way around the world and gets you up and running in time frames!
We understand what our customers need to stay competitive:
* Custom quality parts
* At an affordable rate
* In the fastest possible
Meeting these goals requires precision in everything we do.
We are proud to offer these hot spinforimng services. But more importantly, we're proud we've helped our customers meet their component manufacturing demands, to grow their business.
