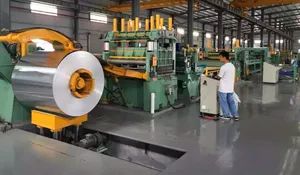

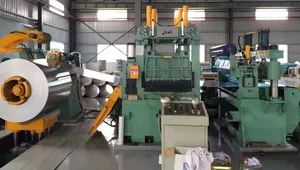

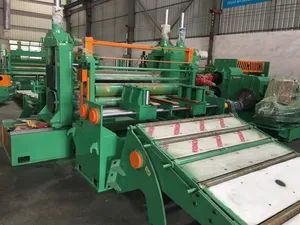

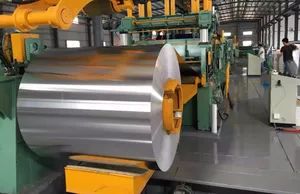

High Production Efficiency Metal Cut to Length Machine Shearing Line
Set
Negotiable
Product information
High-quality High Production Efficiency Metal Cut to Length Machine Shearing Line supplied by Taicang Global Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Coil Thickness:
0.3 - 20.0 mm
Warranty:
12 Months
Coil Width:
300 - 2300mm
Cutting Length:
300-12000 mm
Production Capacity:
50sets/Year
HS Code:
8462312000
Feature:
Automation
Certification:
CE
Specifications
Coil Thickness:
0.3 - 20.0 mm
Warranty:
12 Months
Coil Width:
300 - 2300mm
Cutting Length:
300-12000 mm
Production Capacity:
50sets/Year
HS Code:
8462312000
Feature:
Automation
Certification:
CE
Material:
Carbon Steel & Stainless Steel & Galvanized Steel
Origin:
China
Customized:
Customized
Trade Term:
FOB, EXW, CFR, CIF
Payment Term:
LC, T/T
Line Speed:
Max 100m/Min
Cutting Accuracy:
Min. 0.5mm
Condition:
New
Contro System:
PLC
Port Of Loading:
Shanghai, Tianjin, Qingdao
Trademark:
TGMCO
Advantage:
Use Widely
Transport Package:
Wood Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2018-02-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Shanghai, Tianjin, Qingdao
Certificates:
SGS
Product descriptions from the supplier
Welcome to Taicang Global Machinery Co., Ltd
At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements.Contact us right now!
Summary
A steel mill never delivers a flat sheet directly; instead, the material begins as a rolled coil. Through a Cut-To-Length system, the coil is unspooled, flattened, precisely cut to the desired size, and then assembled into stacks. This process results in a flat sheet with exact dimensional accuracy. To design the right Cut-To-Length setup for your needs, key factors must be evaluated: material thickness, composition, target sheet length, and the annual volume of material to be handled—all of which directly affect the system’s design and performance.
Technical process
1: Coil saddle
2: Loading car

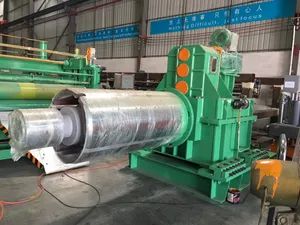

3: Hydraulic cantilever arm uncoil + hydraulic support
4: Guiding plat for feeding device
5: Pinch and 4-hi leveling machine
6: Loop
7: Side guiding & deviation correcting device
8: Pinch & 5 roller fine leveler
9: Pneumatic shearing machine
10: Belt conveyor
11: Pnumatic discharging frame
12: X type lifting table
13: Unloading car
14: Hydraulic system
15: Pneumatic system
16: Electrical control system
Light Duty Cut to length Machine Line
Heavy Duty Cut to length Machine Line
High speed fly shear cut to length line
Pickling coil Cut to length line
Certificate
Main Customers
Packing & Delivery
Not only the Good Machine, but also the Most Attentive Service
Integrity Solution & Turnkey Project
Creat the Value of Steel
At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements.Contact us right now!
Summary
A steel mill never delivers a flat sheet directly; instead, the material begins as a rolled coil. Through a Cut-To-Length system, the coil is unspooled, flattened, precisely cut to the desired size, and then assembled into stacks. This process results in a flat sheet with exact dimensional accuracy. To design the right Cut-To-Length setup for your needs, key factors must be evaluated: material thickness, composition, target sheet length, and the annual volume of material to be handled—all of which directly affect the system’s design and performance.
Technical process
1: Coil saddle
2: Loading car
3: Hydraulic cantilever arm uncoil + hydraulic support
4: Guiding plat for feeding device

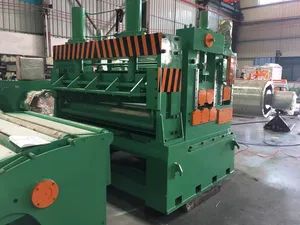

5: Pinch and 4-hi leveling machine
6: Loop
7: Side guiding & deviation correcting device
8: Pinch & 5 roller fine leveler
9: Pneumatic shearing machine
10: Belt conveyor
11: Pnumatic discharging frame
12: X type lifting table
13: Unloading car
14: Hydraulic system
15: Pneumatic system
16: Electrical control system
Light Duty Cut to length Machine Line
| Model | 0.3-2.0×800 | 0.3-2.0×1250 | 0.5-3.0×1250(1600) |
| Coil Material | δs≤230N/mm2, Cold-rolled Coil, Stainless Steel Coil, Galvanized Coil | ||
| Coil Thickness | 0.3~2.0mm | 0.3~2.0mm | 0.5~3.0mm |
| Coil Width | 300~800mm | 800~1250mm | 800~1250mm(1600mm) |
| Coil Weight | ≤10 tons | ≤20 tons | ≤20(25) tons |
| Coil ID | ф508mm | ф508mm | ф508mm(ф610mm) |
| Coil OD | ≤ф1800mm | ≤ф1800mm | ≤ф1800mm |
| Cutting length | 300~3000mm | 300~4000mm | 300~4000mm |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Line Speed | 0~100m/min | 0~100m/min | 0~100m/min |
| Control System | PLC | PLC | PLC |
Heavy Duty Cut to length Machine Line
| Model | 1-6×1600 | 3-12×2000 | 4-16×2100 | 8-25×2300 |
| Coil Material | δs≤230N/mm2, Hot-rolled Coil, Stainless Steel Coil | |||
| Coil Thickness | 1.0~6.0mm | 3.0~12.0mm | 4.0~16.0mm | 8.0~25.0mm |
| Coil Width | 800~1600mm | 800~2000mm | 1000~2100mm | 1000~2300mm |
| Coil Weight | ≤25 tons | ≤25 tons | ≤30 tons | ≤40 tons |
| Coil ID | ф508 & 610 & 760mm | ф610~ф820mm | ф610~ф820mm | ф610~ф820mm |
| Coil OD | ≤ф2000mm | ≤ф2000mm | ≤ф2000mm | ≤ф2200mm |
| Cutting length | 500~6000mm | 500~12000mm | 500~12000mm | 500~12000mm |
| Cutting Accuracy | ±1.0mm | ±1.5mm | ±1.5mm | ±2.0mm |
| Line Speed | 0~35m/min | 0~25m/min | 0~25m/min | 0~20m/min |
| Control System | PLC | PLC | PLC | PLC |
High speed fly shear cut to length line
| Model | 0.25-2×1250 (1600) | 0.5-2.5×1250 (1600) |
| Coil Material | Copper coil, Aluminum coil, Stainless Coil, Galvanized Coil | |
| Coil thickness | 0.25~2mm | 0.5~2.5mm |
| Coil width | 300~1250mm(1600mm ) | 300~1250mm(1600mm ) |
| Coil weight | ≤20T (25T) | ≤20T (25T) |
| Coil ID | φ508mm | φ508mm |
| Coil OD | ≤φ1800mm | ≤φ1800mm |
| Cutting Accuracy | ≤±0.5mm | ≤±0.5mm |
| Line Speed | 70~100m/min | 70~100m/min |
| Electrical Control System | PLC | PLC |
Pickling coil Cut to length line
| Model | 1.0-6.0×1250 | 1.0-6.0×1600 (1800) | 1.0-6.0×2000 |
| Coil material | Pickling coil | ||
| Coil thickness | 1.0~6.0mm | 1.0~6.0mm | 1.0~6.0mm |
| Coil width | 500~1250mm | 500~1600mm(1800mm) | 500~2000mm |
| Coil weight | ≤20T | ≤25T (28T) | ≤30T |
| Coil ID | ф508 ф610 ф760mm | ф508 ф610 ф760mm | ф508 ф610 ф760mm |
| Coil OD | ≤ф2000mm | ≤ф2000mm | ≤ф2000mm |
| Length range | 750~6000mm | 750~6000mm | 750~6000mm |
| Cutting accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Line speed | 0~60m/min | 0~60m/min | 0~60m/min |
| Electrical control | PLC | PLC | PLC |
Certificate
Main Customers
Packing & Delivery
Not only the Good Machine, but also the Most Attentive Service
Integrity Solution & Turnkey Project
Creat the Value of Steel
