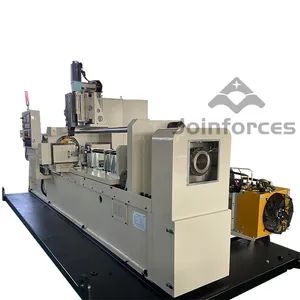

High Productivity Automatic Drive Shaft Friction Welding Machine
Piece
Negotiable
Product information
High-quality High Productivity Automatic Drive Shaft Friction Welding Machine supplied by Zhonghe Machinery Technology (Dalian) Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Upsetting Force:
10 Tons
Production Capacity:
100PCS/Year
Specification:
3000*1000*2000mm
HS Code:
8468800000
Electric Current:
AC
Origin:
China
Type:
Continues Drive Friction Welder
Style:
Cusrtomized
Specifications
Upsetting Force:
10 Tons
Production Capacity:
100PCS/Year
Specification:
3000*1000*2000mm
HS Code:
8468800000
Electric Current:
AC
Origin:
China
Type:
Continues Drive Friction Welder
Style:
Cusrtomized
Trade Term:
FOB
Frequency Range:
High Frequency
Trademark:
Joinforces
Flash Removal System:
Optional
Transport Package:
Standard
Payment Term:
To be discussed
Model NO.:
ZHFW-20A
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
CE
Product descriptions from the supplier
Basic Machine Information of ZHFW-20A
| Machine Model | ZHFW-20A |

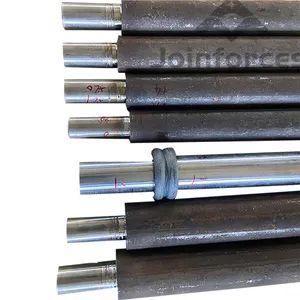

| Workpiece information | Short Shafts (take Outer Dia. 50mm-80mm, Length 700mm for example) |
| Welding Point dia. | Φ10mm -38mm |
| Welding Accuracy | Coaxiality: ≤0.45mm (test the weld 10-15mm from the shaft or standard test rod) |
| Spindle speed | When friction welding 0-2000 r/min |
| Rotary clamping pressure | 22KN |
| Spindle motor | DC 30KW Configuring DC Drives |
| Oil pump motor | 380V, 50HZ, AC 7.5KW |
The electrical system consists of power cabinet, control box and welding quality monitoring
Power cabinet:
1, The power cabinet is a tailored combination with two doors. Internal high and low voltage distribution partition configuration;
2, The power cabinet is equipped with constant temperature and dehumidification air conditioner. Ensure that the environment of the components inside the electric cabinet is stable;
3, The main electrical components consist imported brands, CTB drive, Siemens industrial control, Chint Electric ;
4, The power cabinet and the host are arranged separately;
5, The cable of the whole machine is laid with a bridge, which is safe and beautiful.
The control box and welding quality monitoring are independent systems
1, The quality monitoring system is Siemens 15-inch integrated touch panel industrial computer ;
2, The human-computer interaction interface is composed of Siemens 10-inch touch screen and physical buttons ;
3, The welding data of each product is stored independently in the welding quality monitoring system and can be exported ;
4, The system provides MES communication interface ;
5, Welding quality monitoring real-time detection of welding parameters, When the measured data deviates from the preset data, the system will alarm and prompt an error.
Welding Quality Monitoring System
1, Record product welding data and automatically store graphic curves in PDF form
2, Batch piece data stores welding parameters in tabular form
3, Record historical error information
4, Users can choose automatic laser/pneumatic coding to complete the traceability of workpieces ;
| MODEL | Max.upset force(KN) | Max.welding area(mm²) | Welding dia. | Speed(rpm) |
| ZHFW-2A | 20 | 20-140 | 5-13 | 5000 |
| ZHFW-5A | 50 | 50-260 | 8-18 | 3000 |
| ZHFW-10A | 120 | 150-700 | 14-30 | 1500 |
| ZHFW-20A | 200 | 150-1020 | 14-36 | 1500 |
| ZHFW-30A | 300 | 314-1600 | 20-45 | 1200 |
| ZHFW-40A | 400 | 500-2400 | 25-55 | 1100 |
| ZHFW-63A | 630 | 960-3400 | 35-64 | 1000 |
| ZHFW-80A | 800 | 1300-5000 | 40-75 | 950 |
| ZHFW-100A | 1000 | 1600-6000 | 45-86 | 890 |
| ZHFW-125A | 1250 | 2000-7800 | 50-100 | 600 |
| ZHFW-160A | 1600 | 4300-8792 | 89-160 | 580 |
| ZHFW-200A | 2000 | 5100-12500 | 102-189 | 500 |
| ZHFW-250A | 2500 | 3850-15500 | 70-140 | 500 |
| ZHFW-320A | 3200 | 6400-20000 | 90-160 | 380 |
| ZHFW-400A | 4000 | 8000-25000 | 100-180 | 350 |
| ZHFW-500A | 5000 | 8000-31400 | 100-200 | 320 |
| ZHFW-700A | 7000 | 8000-44000 | 100-240 | 320 |
Joinforces Team has a experience of serving imported friction welding companies for 18 years! Through careful study and practice, our company has improved its control over the core technologies through the imported equipment. Joinforces began to actively cooperate with China Harbin Institute of Technology, Dali Institute of Technology, and Wuhan University in 2018, to promote the application of friction welding technology in many industies fields, and achieved technological innovation in many industrial fields by replacing imported welding machine with China welding machine.
Our company is the only certified service factory of Japan's SAKAE Industry in China and is responsible for SAKAE's friction welding-related business in China, including complete equipment sales, installation and commissioning, technical services, new product development and parts supply.
Our company is the only certified service factory of Japan's SAKAE Industry in China and is responsible for SAKAE's friction welding-related business in China, including complete equipment sales, installation and commissioning, technical services, new product development and parts supply.
Our international customers include Hengli Hydraulics, Japan Bridgestone, Korea Hyundai, Deburgoz, Japan KYB, Japan Sumitomo, American ITM and other well-known companies. Our products are also exported to Australia, Brazil, Italy, Russia, Belarus, Poland, Ukraine, Romania, Turkey, India and other countries.
Q1: Does your company have sufficient export experience?
A: Yes, we have more than 10 years export experience
Q2: Does your company have any export qualifications?
A: Yes, we are CE,ISO Certificated
Q3: How is your after-sales service?
A: We have one-year paid warranty, and our engineers can go abroad to help with machine maintenance, we have 24 hours online service for problem shooting.
