High Purity Graphite Plate Graphite Mold
20 Ton
$2Product information
High-quality High Purity Graphite Plate Graphite Mold supplied by Shijiazhuang Jinshi Graphite Co., Ltd.. Bulk wholesale pricing is $2 per Ton with a minimum order of 20 Ton. Inquiry for latest prices.
Grain Size:
125μm
Production Capacity:
3000tns Per Month
HS Code:
380110
F.C Content:
99.9%Min
Expansion Ratio:
>150ml/g
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Class:
Fine Grain Graphite and Medium Grain Graphite Good
Specifications
Grain Size:
125μm
Production Capacity:
3000tns Per Month
HS Code:
380110
F.C Content:
99.9%Min
Expansion Ratio:
>150ml/g
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Class:
Fine Grain Graphite and Medium Grain Graphite Good
Crystal Morphology:
Flake Graphite
Composition:
Graphite
Type:
Graphite Rod
Specification:
ISOSTATIC AND MOLDED GRAPHITES
Forming Way:
Isostatic Graphite
Trademark:
JINSHI
Model NO.:
JS-GB
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Transport Package:

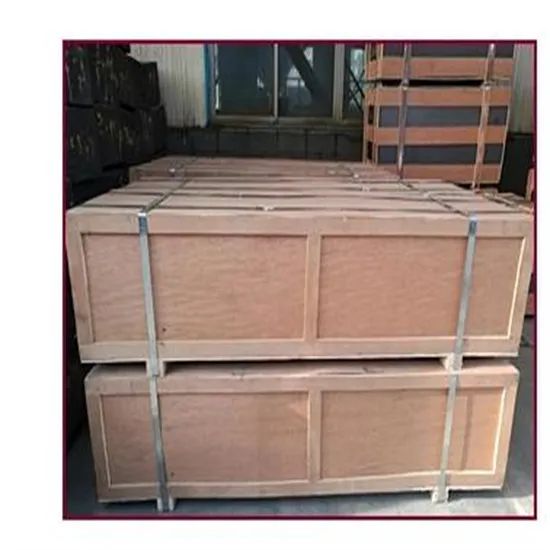

Packing by Wooden Cases
Port Of Loading:
Shanghai port, Qingdao port
For Usage:
Sintering and Continuous Casting;PV;EDM;3D Moulds
Grade:
UHP
Size:
as to Customised
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-08-29
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai port, Qingdao port
Certificates:
BV, CCIC, certificate for safe, SGS
Product descriptions from the supplier
Vibrating,Extruded,Molded,Isostatic Graphite Block uses the particle size in 2 and 0.8 mm ,15μm and etc for different types of graphite blocks has advantages such as high temperature resistance, oxidation resistance, low content of impurities, single large size, low manufacturing cost advantages. Medium Grain Graphite has good mechanical, electrical and thermal properties, with low ash content.

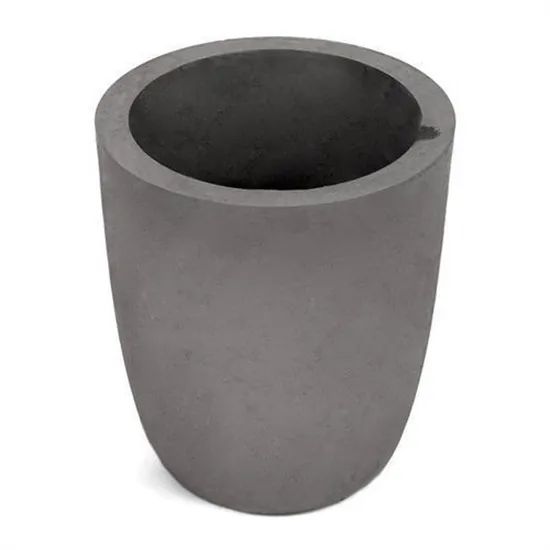

Machined parts, such as plates, bricks, discs, crucibles and sleeves canalso be manufactured.
Application:Solar photovoltaic, EDM, Semiconductor Metal Continuous Casting, Mold Industry, Precision Ceramic Sintering, High Temperature Corrosion Resistant Containers, Automobile Industry, Mobile Communication Industry, etc.
High Purity Graphite Performanace
|
grain size
μm |
bulk density ≥ g/cm3 |
flexural strength ≥ Mpa |
Compressive strength ≥ Mpa |
CTE ≤ |
elastic modulus ≤ |
resistance ≤ |
|
|
moulded graphite |
10 15 |
1.45 |
20 |
40 |
4.0 |
10-14 |
|
|
1.68 |
25 |
48 |
|||||
|
1.75 |
33 |
63 |
|||||
|
isostatic pressing graphite |
10 15 |
1.70 |
25 |
45 |
4.5 |
10 |
15 |
|
1.80 |
33 |
65 |
|||||
|
1.85 |
45 |
83 |
|||||
|
1.90 |
55 |
100 |
|
grain size mm |
bulk density ≥ g/cm3 |
flexural strength ≥ Mpa |
Compressive strength ≥ Mpa |
elastic modulus ≤ |
CTE ≤ |
ash %≤ |
resistance ≤ |
|
0.8 |
1.70 |
10 |
24 |
9 |
2.5 |
0.3 |
8.5 |
|
1.73 |
12 |
31 |
|||||
|
2 |
1.58 |
6.0 |
18 |
9 |
2.5 |
0.3 |
9.5 |
|
4 |
1.58 |
6.0 |
18 |
9 |
2.5 |
0.3 |
9.5 |
| Molded graphite materials for sintering and continuous casting industries | |||||||||||
| Model | Bulk density | Electrical resistance | Thermal conductivity(100ºC) | CET(-600ºC) | Shore hardness | Flexural strength | Compressive strength | Elastic modules | ASH | ||
| g/cm³ | µΩ.m | W/m.k | 10¯6/ºC | HDS | Mpa | Mpa | Gpa | PPM | |||
| 1.72 | |||||||||||
| JSM-5 | 1.8 | 8-10 | 125 | 4.9 | 45 | 40 | 80 | 9.5 | 500 | ||
| 1.82 | |||||||||||
| 1.9 * | |||||||||||
| Isostatic graphite materials for sintering, continuous casting, high temperature casting industry | |||||||||||
| Model | Bulk density | Electrical resistance | Thermal conductivity(100ºC) | CET(-600ºC) | Shore hardness | Flexural strength | Compressive strength | Elastic modules | ASH | ||
| g/cm³ | µΩ.m | W/m.k | 10¯6/ºC | HDS | Mpa | Mpa | Gpa | PPM | |||
| JSI-1 | 1.9 | 8-10 | 135 | 3.6 | 55 | 55 | 105 | 12 | 500 | ||
| Isostatic graphite materials for PV industry | |||||||||||
| Model | Bulk density | Electrical resistance | Thermal conductivity(100ºC) | CET(-600ºC) | Shore hardness | Flexural strength | Compressive strength | Elastic modules | ASH | ||
| g/cm³ | µΩ.m | W/m.k | 10¯6/ºC | HDS | Mpa | Mpa | Gpa | PPM | |||
| JSI-2 | 1.72 | 10-13 | 100 | 5 | 40 | 30 | 65 | 9.2 | 500 | ||
| JSI-3 | 1.81 | 11-14 | 120 | 4.5 | 60 | 45 | 90 | 10.5 | 500 | ||
| Isostatic graphite materials for EDM industrysize:500*300*200 | |||||||||||
| Model | Bulk density | Electrical resistance | Shore Hardness | Rockwell Haedness | Flexural Strength | Grain Size | |||||
| g/cm³ | µΩ.m | HDS | HRL | Mpa | µm | ||||||
| JSI-4 | 1.76 | 12-16 | 40 | 94 | 40 | 8 | |||||
| JSI-5 | 1.78 | 12-16 | 45 | 100 | 45 | 4 | |||||
| JSI-6 | 1.84 | 12-16 | 70 | 105 | 55 | 6 | |||||
| Isostatic graphite materials for 3D molds industry and other industry | |||||||||||
| Model | Bulk density | Electrical resistance | Thermal conductivity(100ºC) | CET(-600ºC) | Shore hardness | Flexural strength | Compressive strength | Elastic modules | Grain Size | ||
| g/cm³ | µΩ.m | W/m.k | 10¯6/ºC | HDS | Mpa | Mpa | Gpa | µm | |||
| JSI-7 | 1.88-1.92 | 10-14 | 110 | 3.9 | 75 | 60 | 125 | 12 | 2 | ||
| JSI-8 | 1.81 | 15-19 | 80 | 5.8 | 80 | 43 | 130 | 7.5 | 12 | ||
| JSI-9 | 1.85 | 12-16 | 105 | 4 | 55 | 50 | 105 | 10 | 8 | ||
| JSI-10 | 1.85 | 12-16 | 110 | 4 | 60 | 55 | 120 | 11 | 4 | ||
We often participate in metal and foundry fairs all over the world to have good communication with our clients and friends.
2018------IFEX INDIA
2019------IFEX INDIA
2019------METAFO IRAN
2019------GIFA FIAR GERMANY
2019------FENAF BRAZIL
2019------METAL-EXPO RUSSIA
2021------METAL CHINA SHANGHAI
2021------METAL-EXPO RUSSIA
2022------METAL-EXPO RUSSIA
2023------GIFA FIAR GERMANY
2024------METAL CHINA SHANGHAI
2025------METAL CHINA TIANJIN
2025------METAL-EXPO RUSSIA
2025------METAL&STEEL MIDDLE EAST EGYPT
JinShi Graphite/Carbon Co.,Ltd is specialized in manufacturing and exporting many kinds of raw materials used in steel mill and foundry factory .
Our factory covering an area of 54,450 square meters.production capacity is 30,000 tons each year .there are professional quality control system,technical team ,sales team,service team,our company focuses on carbon product for more than 10 years.
Our main goods contain RP graphite electrode,HP graphite electrode,UHP graphite electrode,high pure artificial graphite,artificial graphite square,graphite rods,graphite petroleum coke ,calcined petroleum coke,gas calcined anthracite(GCA),electrical calcined anthracite(ECA),silicon carbide,carbon raiser,graphite electrode powder,graphite electrode block.
Sincerely hope to create future with you .
Q1. Are you a manufacturer or trading company?
A1. We have stable co-operated factory and can provide long-time high quality and reasonable prices goods for all the world importers.
Q2. Could I have sample before I place the real order ?
A2.Sure.We can supply little quantity sample for free and charges in freight only.
Q3. What products can you supply ?
A3. Our main products are Graphite electrodes and GPC,CPC,Carbon Raiser,EGC,,Silicon carbide,high purity graphite and other raw material related with steel mill and casting factory.
Q4. What is the delivery time?
A4. It is depend on your order quantity.Usually, it will take 7~15 days.
