High Quality API 10d Integral Spring Casing Centralizer 7 Y 8 1 2
Pieces
Negotiable
Product information
High-quality High Quality API 10d Integral Spring Casing Centralizer 7 Y 8 1 2 supplied by Puyang Zhongshi Group Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Lead Time:
15 Days After Order
Plate Thickness:
3.8 mm
Size:
4-1/2" to 20"
Sample Time:
5 Days
Production Capacity:
50000 Set Per Month
HS Code:
73072900
Specification:
API 10D
Origin:
China
Specifications
Lead Time:
15 Days After Order
Plate Thickness:
3.8 mm
Size:
4-1/2" to 20"
Sample Time:
5 Days
Production Capacity:
50000 Set Per Month
HS Code:
73072900
Specification:
API 10D
Origin:
China
Surface Treatment:
Electrostatic Painting
Trade Term:
FOB, CIF, CFR
Use:
Horizontal Oil Well and Straight Wells
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Trademark:
PYZS
Port Of Loading:
Qingdao Port
Color:
Red, Black, Orange or Others
Transport Package:
Standard Export Packaging, Wooden Case
Model NO.:
ZSICCLYP1
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
1997-12-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
CCC
Product descriptions from the supplier
1. Product Description

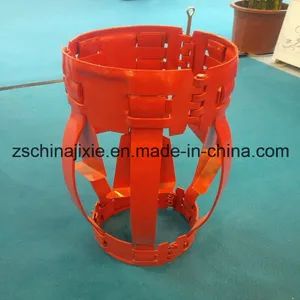

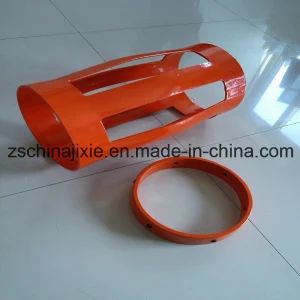

Premium API 10D built-in spring casing centralizer (7" Y 8-1/2"). The bow springs are crafted from spring steel, subjected to heat treatment and hardening followed by tempering to maintain reliable and uniform spring performance.
Premium API 10D Built-in Spring Casing Centralizer (7" Y 8-1/2"). The end collar joints are angled inward. This design reduces collar deformation when the centralizer meets tapered sections, which are typical in specific pipe joints.
Features a reinforced rib molded into the end collar. Premium API 10D integral spring casing centralizer (7" Y 8-1/2"). This design enhances structural integrity and maintains its cylindrical shape throughout shipping. Custom centralizers with integrated stop mechanisms and non-standard dimensions can be provided upon specific request.

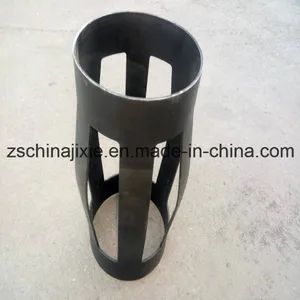

Flexible steel centralizer
2. Function
Let the casing pipe center on the well all the way.
Take casing to designed position by reducing sticking while casing going down.
Balance liquid pressure in annular space by reducing adhesion phenomenon.
Improving replacing ratio of mud and boosting cementing quality by reducing channeling effect.
3. Our Services
Premium API 10D Integral Spring Casing Centralizer (7" Y 8-1/2). Our offerings and operations are deeply rooted in oil well drilling and cementing processes. We offer integral casing centralizers, welded casing centralizers, bow spring centralizers, float shoe, float collar, Suck Rod Pump, API pumping unit, Thread Protector, Thread Gauge, API Valve Ball and Valve Seat, coupling components, and pump plungers.
4. Packing and Shipping
Wooden case, standard export packaging, firm enough for long distance sea-shipped, air transportation and even railway transportation.
5. Company Information
Puyang Zhongshi Group Co. Ltd originated as the Fifth Machine Repair Facility at Puyang Zhongyuan Oilfield, Sinopec. In 1997, following a transformation into a modern enterprise structure, it was rebranded as Puyang Zhongshi Group Co. Ltd.
The Puyang Zhongshi Group holds a registered capital of $10.15 million and operates through nine affiliated entities, comprising eight production facilities and one distribution firm. Spanning 200,000 square meters in total footprint, the group features a 50,000 square meter manufacturing zone. Its inventory of industrial machinery is valued at $6.5 million, enabling robust mechanical fabrication capabilities.
Our core offerings include API 10D integral spring casing centralizer (7" Y 8-1/2), pumping systems, tubing pumps and sucker rod pumps, cementing equipment, downhole instrumentation, wellhead assemblies (X-mas tree), drilling solid control systems, pressure vessels, camping shelters, air cannons, belt feeders, and more. These items are primarily exported to Central Asia, Southeast Asia, Africa, the Middle East, and numerous additional international markets.
Zhongshi Group serves as Sinopec's primary internet service provider. The company has earned ISO9001 accreditation for its quality control processes and is now authorized to display API seals on its oil equipment. To date, it has achieved compliance with API 5CT, API 10D, API 11AX, API 11E, and additional standards are currently being pursued.
We would like to faithfully cooperate with friends from all circles with classic products and service to achieve common development.
Flexible steel centralizer
| Model | ID (mm) | Thickness (mm) | Total Height (mm) | Max OD (mm) | Spring PCS | |
| 5 1/2 * 8 1/2 | 142-148 | 3.8 | 650 | 225 | 5 | |
| 6 * 8 1/2 | 154-158 | 3.8 | 650 | 225 | 5 | |
| 13-3/8 * 17-1/2 | 342-349 | 3.8 | 650 | 450 | 6 | |
| 20*26" | 510-518 | 3.8 | 650 | 670 | 10 |
