High Quality Customized Bellows Rolling Embossing Shaping Machine
Set
Negotiable
Product information
High-quality High Quality Customized Bellows Rolling Embossing Shaping Machine supplied by Comflex Industrial Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
1000sets/Year
Max Wave Height:
100mm
Bellow Suitable Diameter:
1500mm-10000mm
Max Number Of Waves Without Flipping:
4
Max Thickness:
5mm (Multi-Layer)
Min Wave Distance:
80mm
Type:
Bellow Rolling Forming Machine
Origin:
China
Specifications
Production Capacity:
1000sets/Year
Max Wave Height:
100mm
Bellow Suitable Diameter:
1500mm-10000mm
Max Number Of Waves Without Flipping:
4
Max Thickness:
5mm (Multi-Layer)
Min Wave Distance:
80mm
Type:
Bellow Rolling Forming Machine
Origin:
China
Trademark:
Comflex
Customized:
Customized
Specification:
Customized
Trade Term:
FOB, CFR, CIF, EXW
Application:
Industry
Theory:
Inverter
Payment Term:
LC, T/T, Western Union
Condition:
New
Port Of Loading:
Shanghai, Qingdao, Hangzhou
Transport Package:
Standard Seaworthy Package
Model NO.:
comflex
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shanghai, Qingdao, Hangzhou
Certificates:
Flexible Metal Hose Forming Machine
Product descriptions from the supplier
High Quality Customized Bellows Rolling Embossing Shaping Machine
The Bellow rolling forming machine: toprocess stainless steel pipe blanks into compensators of certain specifications.
The machine usesdual hydraulic motorsto drive the rotation of the main and driven rollers respectively, and uses the friction force to drive the tube blank to rotate.
At the same time, the hydraulic cylinder drives the axial and radial feed of the roller to gradually roll the tube blank into shape.
At the same time, the hydraulic cylinder drives the axial and radial feed of the roller to gradually roll the tube blank into shape.

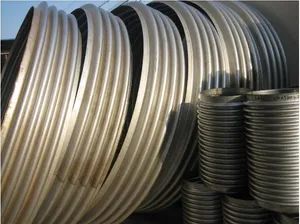

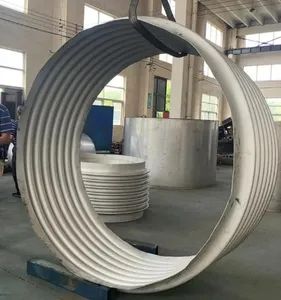

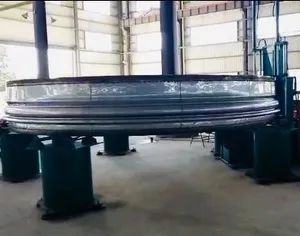

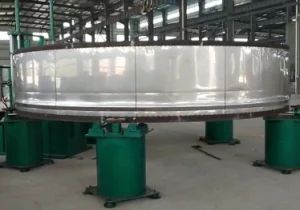

Finished products:
Equipment structure diagram as below:
1. Hydraulic system part
2. Oil tank and valve parts
3. Lower driven wheel part
4. Electrical control part
5. Upper driven wheel part
6. Driving wheel part
7. Propulsion cylinder
8. Support shaft ( 2 pieces)
9. Left and right upper auxiliary wheel part
10. Left and right lower auxiliary wheel
2. Oil tank and valve parts
3. Lower driven wheel part
4. Electrical control part
5. Upper driven wheel part
6. Driving wheel part
7. Propulsion cylinder
8. Support shaft ( 2 pieces)
9. Left and right upper auxiliary wheel part
10. Left and right lower auxiliary wheel
| No. | Technical description | Value |
| 1 | Bellow suitable diameter | 1500mm-10000mm |
| 2 | Max wave height | 100mm |
| 3 | Min wave distance | 80mm |
| 4 | Max thickness | 5mm (multi-layer) |
| 5 | Max number of waves without flipping | 4 ( straight tube length does not exceed 1200mm) |
| 6 | Equipped motor | Y132M-4-7.5KW ; Y90L-4-1.5KW |
| 7 | Motors | Hydraulic |
Our Bellows Expansion Joints Making Machines
Bellow Re-rolling Machine
PLC control and automatic
PLC control and automatic
Mechanical Bellow Expanding/Punching Machine
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.
We are Comflex Industrial Co.,Ltd, professional manufacturer of different bellow/hoses forming machine, such asbellow rolling & forming machinesfrom China, with more than 30 years'experience.Due to high quality, competitive price and good service, ourmachines have been exported to many countries, such asRussia, USA, Australia,Ukraine, etc.
With very good quality and excellent delivery time. We provide overseas after-sale service and effective training.We had the honor to serve customers from different countries.
Q: Why choose us for auto exhaust bellow forming and assembly line?
A: We are most professional manufacturer ofdifferent bellow/hoses forming machinewith more than 30 years of experience.
Q:Can you customize it for us?
A: Yes, we can accept customization.
Q: How many different types of machine can you make?
A: Different types of bellow forming machines
B: Bellow compressing machine
C: Bellow end trimming machine
D. Cap crimping machine
E. Interlock hose making machines
F. Wire braiding machines etc...
We need to know following information to quote you correct machineries:
1. Size range you want to make.
2. Technical drawing of the bellow, so that we can check the convolution details.
