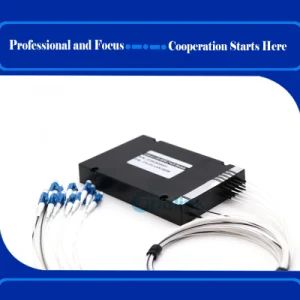

High Quality LAN-Wdm Module, Factory Price 4CH Optical Lwdm Mux Demux Module
Piece
Negotiable
Product information
High-quality High Quality LAN-Wdm Module, Factory Price 4CH Optical Lwdm Mux Demux Module supplied by Shenzhen Opelink Communication Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Pigtail:
0.9mm
Pigtail Length:
1-2m
Wavelength:
1270/1610 at Random;1271-1611 at Random
Production Capacity:
20, 000/Month
Model NO.:
4CH LAN-WDM MUX DEMUX Module
Package:
5.5X38mm Steel Tube
Specification:
5.5x38mm
HS Code:
85176222
Specifications
Pigtail:
0.9mm
Pigtail Length:
1-2m
Wavelength:
1270/1610 at Random;1271-1611 at Random
Production Capacity:
20, 000/Month
Model NO.:
4CH LAN-WDM MUX DEMUX Module
Package:
5.5X38mm Steel Tube
Specification:
5.5x38mm
HS Code:
85176222
Certification:
CE, ISO, RoHS
Transport Package:
Carton Box
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Fiber Type:
G652D, G657A1
Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Connector:
LC/FC/Sc/St/Mu
Product Type:
Mux /Demux
Condition:
New
Trademark:
OPELINK/OEM
Port Of Loading:
Shenzhen Port
Express Port:
Yes/No
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-08-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Product descriptions from the supplier
High Quality LAN-wdm module, Factory Price 4CH optical LWDM Mux demux module
Description:
Optical LAN-WDM module is a based on TFF technology and a free-space packaging solution that can be used for 2/4 channel
wavelength multiplexing/demultiplexing with wavelengths in the range of 1260-1360nm. LAN-WDM Mux Demux is designed to
help network operators build the optical fiber foundation for 5G networks
Optical LAN-WDM module is a based on TFF technology and a free-space packaging solution that can be used for 2/4 channel
wavelength multiplexing/demultiplexing with wavelengths in the range of 1260-1360nm. LAN-WDM Mux Demux is designed to
help network operators build the optical fiber foundation for 5G networks
Features:
Ultra low insertion loss
High isolation
Mux & demux
Compact size
High reliability
Epoxy-free optical path
Telcordia GR 1221 and GR-1209 compliant
Application:
Optimized package for CFP transceiver modules
According to 100 Gbps IEEE 802.3ba standard
Wdm system for local area network
OpticalSpecifications:
| Parameter | Value |
| Center Wavelength (nm) | 1295.56,1300.06.1304.59.1309.14 |
| PASS Band(0.5db) | λITU±1 |
| Insertion Loss(dB) | MAX 1.5 |
| Pass band Ripple(dB) | <0.15 |
| Adjacent Isolation(dB) | >28 |
| Non-Adjacent Isolation(dB) | >40 |
| PDL(dB) | <0.1 |
| PMD(PS) | <0.1 |
| Return Loss(dB) | >45 |
| Directivity(dB) | >50 |
| Max. Power Handling (mW) | 500 |
| Operating Temperature (ºC) | -5~70 |
| Storage Temperature (ºC) | -40~85 |
| Fiber Type | G657A fiber |
| Connector&Adaptor Type | CUSTOMIZE |
| Package Dimension(mm) | ABS 80*60*12 or 100*80*10 |
FAQ:
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping
also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q7:What action will you take if there are some product problems?
A:If there are defective ones in the batch of products, we will offer spare ones for.
