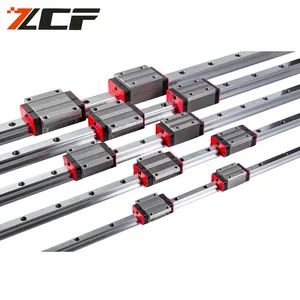

High Quality Only Zcf Linear Guide Rail
Piece
Negotiable
Product information
High-quality High Quality Only Zcf Linear Guide Rail supplied by Jiangsu Zcf Precision Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Block Weight:
0.15 Kg
Rail Weight:
1.25 Kg/M
Rail Height:
12.5mm
Size:
15
Rail Width:
15mm
Static Load(C0):
16.19 Kn
Package Size:
20.00cm * 20.00cm * 20.00cm
Production Capacity:
200001 Meter Per Year
Specifications
Block Weight:
0.15 Kg
Rail Weight:
1.25 Kg/M
Rail Height:
12.5mm
Size:
15
Rail Width:
15mm
Static Load(C0):
16.19 Kn
Package Size:
20.00cm * 20.00cm * 20.00cm
Production Capacity:
200001 Meter Per Year
Assembly Height:
24 mm
Block Width:
34 mm
Specification:
4000 mm
Max Length:
4000 mm
Package Gross Weight:
5.000kg
Block Length:
56.8 mm
Pitch Row:
60 mm
Dynamic Load(C):
7.83 Kn
HS Code:
8466910000
Model NO.:
CEH
Series:
Ceh
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR
Material:
High-Carbon Steel
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Plating:
Optional
Rail Material:
S55c
Port Of Loading:
Shanghai Port
Shape:
Straight
Payment Methods:
Support payments in USD
Type:
Universal
Flange Shape:
W/O
Flange:
Without
Transport Package:
Wooden Case
Trademark:
ZCF
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-09-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
5
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
Patent
Product descriptions from the supplier
ZCF CHH SERIES - Linear guide of good quality and good accuracy.
ACCURACY LEVEL
CE series linear rails offer accuracy in five distinct grades: standard, high, precision, super-precision, and ultra-precision. Users can select the appropriate accuracy class based on their machine's performance needs.
2. ACCURACY OF NON-INTERCHANGEABLE LINEAR GUIDE:
| MODEL | CE - 15, 20 unit : mm | ||||
| ACCURACY LEVEL | COMMON | HIGH | PRECISION | HIGH-PRECISION | ULTRA-PRECISION |
| (C) | (H) | (P) | (SP) | (UP) | |
| TOLERANCE OF H | ± 0.1 | ± 0.03 | 0- 0.03 | 0- 0.015 | 0- 0.008 |
| TOLERANCE OF N | ± 0.1 | ± 0.03 | 0- 0.03 | 0- 0.015 | 0- 0.008 |
| TOLERANCE OF MUTUAL H | 0.02 | 0.01 | 0.006 | 0.004 | 0.003 |
| TOLERANCE OF MUTUAL N | 0.02 | 0.01 | 0.006 | 0.004 | 0.003 |
| MOTION PARALLELISM OF C ON A | MOTION ACURACY | ||||
| MOTION PARALLELISM OF D ON B | MOTION ACURACY | ||||
| MODEL | CE - 25,30 unit : mm | ||||
| ACCURACY LEVEL | COMMON | HIGH | PRECISION | HIGH-PRECISION | ULTRA-PRECISION |
| (C) | (H) | (P) | (SP) | (UP) | |
| TOLERANCE OF H | ± 0.1 | ± 0.04 | 0- 0.04 | 0- 0.02 | 0- 0.01 |
| TOLERANCE OF N | ± 0.1 | ± 0.04 | 0- 0.04 | 0- 0.02 | 0- 0.01 |
| TOLERANCE OF MUTUAL H | 0.02 | 0.015 | 0.007 | 0.005 | 0.003 |
| TOLERANCE OF MUTUAL N | 0.03 | 0.015 | 0.007 | 0.005 | 0.003 |
| MOTION PARALLELISM OF C ON A | MOTION ACURACY | ||||
| MOTION PARALLELISM OF D ON B | MOTION ACURACY | ||||
4. MOTION ACCURACY CHART
| RAIL LENGTH (mm) | ACCURACY LEVEL (µm) | |||||
| C | H | P | SP | UP | ||
| ~ | 100 | 12 | 7 | 3 | 2 | 2 |
| 100 ~ | 200 | 14 | 9 | 4 | 2 | 2 |
| 200 ~ | 300 | 15 | 10 | 5 | 3 | 2 |
| 300 ~ | 500 | 17 | 12 | 6 | 3 | 2 |
| 500 ~ | 700 | 20 | 13 | 7 | 4 | 2 |
| 700 ~ | 900 | 22 | 15 | 8 | 5 | 3 |
| 900 ~ | 1,100 | 24 | 16 | 9 | 6 | 3 |
| 1,100 ~ | 1,500 | 26 | 18 | 11 | 7 | 4 |
| 1,500 ~ | 1,900 | 28 | 20 | 13 | 8 | 4 |
| 1,900 ~ | 2,500 | 31 | 22 | 15 | 10 | 5 |
| 2,500 ~ | 3,100 | 33 | 25 | 18 | 11 | 6 |
| 3,100 ~ | 3,600 | 36 | 27 | 20 | 14 | 7 |
| 3,600 ~ 4,000 | 37 | 28 | 21 | 15 | 7 | |
Advanced equipments & Rigorous quality control plan
Jiangsu ZCF Precision Technology Co.,Ltd.
is a professional manufacturer of linear guide, Our company specializes in linear modules and ball screws among other precision components. Based in Suzhou, Jiangsu, China, our manufacturing facility spans 33,333 square meters, with a total built-up area of 16,000 square meters. Thanks to more than a decade of dedicated work by our team and the consistent confidence and backing from our valued clients, we have proudly established ourselves as a leading Chinese brand delivering internationally recognized quality. Our mission is to offer global customer reach through reliable and high-performance solutions.
