High Quality Solar Energy System Home Power Solar System 30kw
5000 Watt
$0.75000 Watt
$1.3Product information
High-quality High Quality Solar Energy System Home Power Solar System 30kw supplied by Rosen Solar Energy Co., Ltd.. Bulk wholesale pricing ranges from $0.7 to $1.3 per Watt with a minimum order of 5,000 Watt. Inquiry for latest prices.
Production Capacity:
100000watt/Week
Work Time (H):
24hours/Day
Load Power:
30kw
PV Cable:
4/6/10mm^2 etc
Output Frequency:
50/60Hz
HS Code:
8543709990
Battery Type:
AGM/Gel/Lithium Battery
Origin:
China
Specifications
Production Capacity:
100000watt/Week
Work Time (H):
24hours/Day
Load Power:
30kw
PV Cable:
4/6/10mm^2 etc
Output Frequency:
50/60Hz
HS Code:
8543709990
Battery Type:
AGM/Gel/Lithium Battery
Origin:
China
Output Voltage:
EU: 380/400/480V Us: 240/480V etc
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Application:
Home, Industrial, Commercial, Agriculture Irrigation
Certification:
ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Accessories:
Mc4 Spanner, Crimping Pliers etc
Solar Panel Type:
Mono / Poly Solar Panel
Port Of Loading:
Ningbo Port, Shanghai Port, Shenzhen Port
Specification:
Normal, 30KW
Model NO.:
RS30KW-HY
Mounting Brackets:
Roof/Ground Installation
Trademark:
Rosen Solar
Inverter:
Three Phase, 3L/N/PE
Monitoring:
WiFi/GPRS Device
Transport Package:
Wooden Box / Carton Packing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
Ningbo Port, Shanghai Port, Shenzhen Port
Certificates:
CE for Battery Factory, CE for Solar Panel Factory, cnas for battery factory, ISO 14001:2018 for Solar Panel Factory, ISO 9001:2018 for Solar Panel Factory, ISO14001-Battery-Factory, ISO9001 for battery factory, Lifepo4 battery CE-EMC certification, Lifepo4 battery CE-LVD certification, LIfepo4 battery ROHS certification, OHSAS18001-Battery-Factory, Rosen MSDS, Rosen UN38.3, SA 8000:2014 for battery factory, Solar panel CE-EMC certification, Solar panel CE-LVD certification, Solar panel ROHS certification, Solar Panel TUV, TUV certificate for Solar Panel Factory, UL certificate for Battery Factory
Product descriptions from the supplier
Principle of solar energy
The hybrid solar system is an electricity generating solar PV power system that is connected to the utility(State) grid, and can be connected with batteries for electricity storage. Users can sell electricity to the Utility Grid, as well as storing power in the battery packs. Working Modes priority will be set during installation.
It consists of solar panels, Hybrid Inverter, Battery, Mounting Brackets and solar system connection equipments such as MC4, PV Cable and Installation Tool Box.
Users can store the excess power in the batteries for backup or sell to local State Grid. The inverter converts the DC power into AC for loads single phase (110/120V;220/230/240Vac) or three phase(240V;380V;480Vac)etc, in the meantime charge the batteries. It is also called Energy Storage System(ESS)
Ready for Installation Package and Delivery

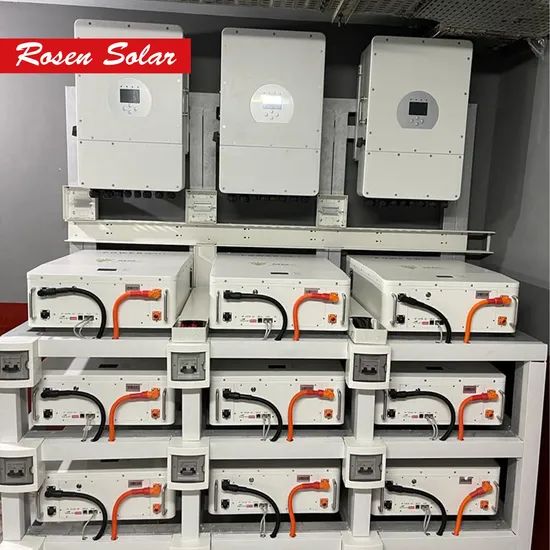

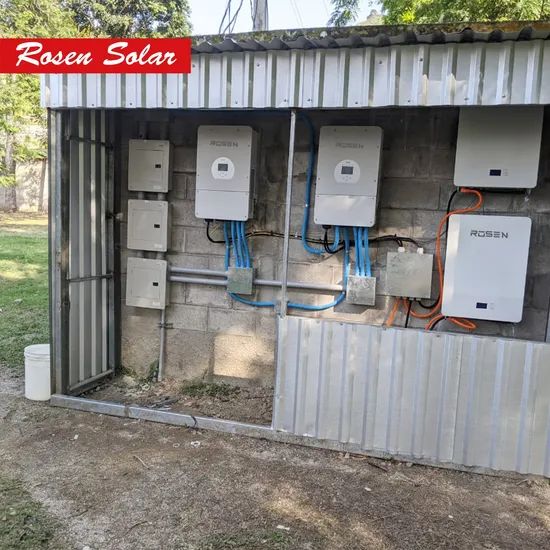

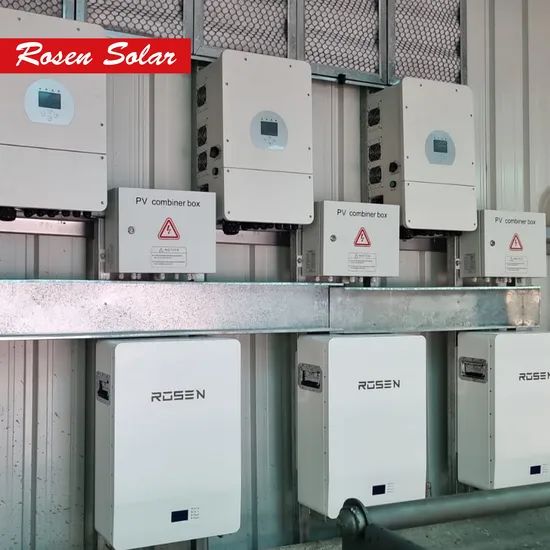

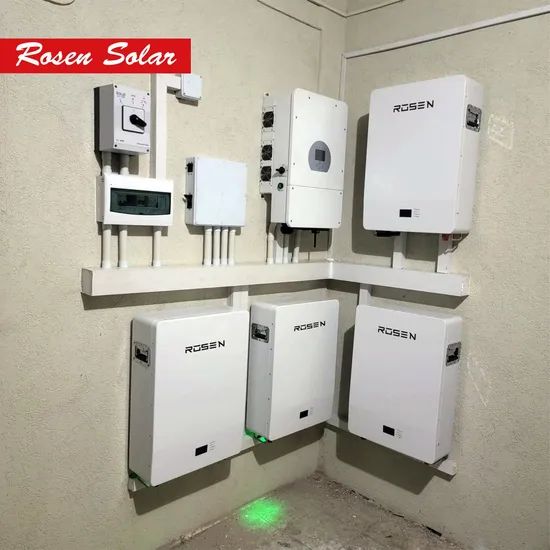

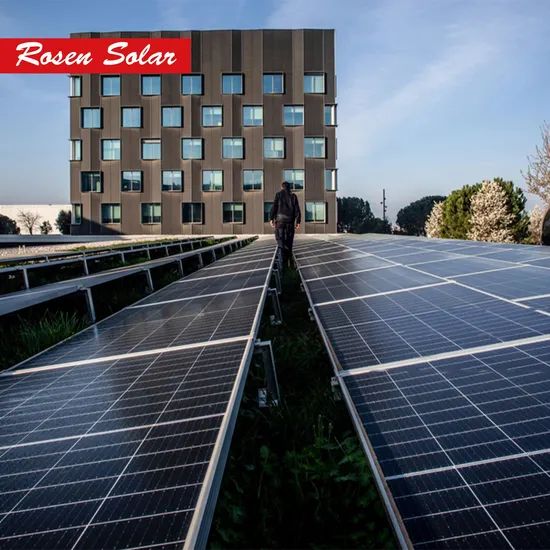

Our Projects
Rosen hybrid Projects are installed all around the world, mainly in Europe, Oceania, Asia, South America, and Africa,for rooftop or ground installation.3kw to 30kw storage systems are more installed for residential homes, and 50kw, 100kw up for commercial and industrial.
The hybrid solar system is an electricity generating solar PV power system that is connected to the utility(State) grid, and can be connected with batteries for electricity storage. Users can sell electricity to the Utility Grid, as well as storing power in the battery packs. Working Modes priority will be set during installation.
It consists of solar panels, Hybrid Inverter, Battery, Mounting Brackets and solar system connection equipments such as MC4, PV Cable and Installation Tool Box.
Users can store the excess power in the batteries for backup or sell to local State Grid. The inverter converts the DC power into AC for loads single phase (110/120V;220/230/240Vac) or three phase(240V;380V;480Vac)etc, in the meantime charge the batteries. It is also called Energy Storage System(ESS)

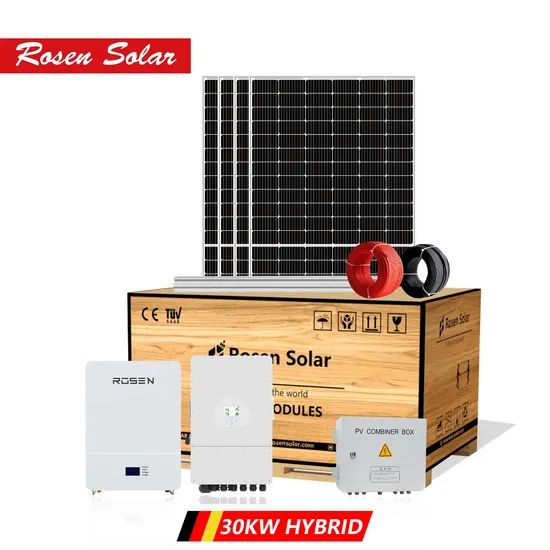

| 30KW HYBRID GRID SOLAR SYSTEM CONFIGURATION | |||||
| No. | Photo | Item | Specification | Quantity | Warranty |
| 1 |  |
Solar Panels | Rosen PV Module Model:RS550M-144 Mono 550W 144cells Dimension: 2279*1134*35mm Weight: 27kg |
54 pcs | 25 Years |
| 2 |  |
PV Combiner Box | Rosen DC Combiner Box 2 inputs 2 outputs (Switches,Breaker, SPD, Anti-lightning) |
3 pcs | 10 Years |
| 3 |  |
Hybrid Inverter | Hybrid MPPT Inverter 10KW Three Phase EU: 380/400Vac, US: 400Vac Frequency: 50/60Hz |
3 pcs | 10 Years |
| 4 |  |
Lithium/Lead Acid Battery | Lithium battery 48V 200Ah (10kwh) With BMS, Cable, Connectors 12/2V lead Acid Optional |
4 pcs | 10 Years |
| 5 |  |
Mounting Bracket | Aluminium Alloy / Galvanized steel Mounted on the flat/pitched roof or Ground For roof wind speed up to 40m/s Customized |
1 sets | 20 Years |
| 6 |  |
PV Cable | Single-core PV Cable 4/6/10mm² (+;-) etc, UV Protection |
300 mts | 20 Years |
| MC4 compatible connector | 30A 1000Vdc, Male/Female/Fuse IP67 Rated |
30 pairs | 15 Years | ||
| Installation Tools | Wire stripper; wire cutters; Crimping pliers For TYCO connector etc |
1 sets | 10 Years | ||
Ready for Installation Package and Delivery
Our Projects
Rosen hybrid Projects are installed all around the world, mainly in Europe, Oceania, Asia, South America, and Africa,for rooftop or ground installation.3kw to 30kw storage systems are more installed for residential homes, and 50kw, 100kw up for commercial and industrial.
