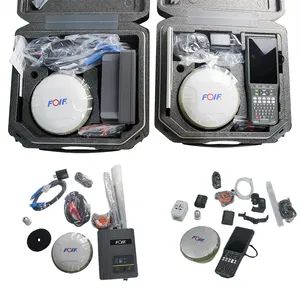

High Quality Surveying Instruments Cheapest Price Foif A60 PRO GPS Rtk Base and Rover Gnss
1 Set
$3,2002-3 Set
$3,1504 Set
$3,100Product information
High-quality High Quality Surveying Instruments Cheapest Price Foif A60 PRO GPS Rtk Base and Rover Gnss supplied by SHANGRAO HAODI IMP&EXP TRADING CO., LTD.. Bulk wholesale pricing ranges from $3,100 to $3,200 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
1000PCS/Month
Warranty:
3 Years
Package Gross Weight:
30.000kg
Package Size:
55.00cm * 45.00cm * 70.00cm
HS Code:
8526919090
Model NO.:
A60 Pro
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Specifications
Production Capacity:
1000PCS/Month
Warranty:
3 Years
Package Gross Weight:
30.000kg
Package Size:
55.00cm * 45.00cm * 70.00cm
HS Code:
8526919090
Model NO.:
A60 Pro
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Carrier Frequency:
Dual-Frequency
Trade Term:
FOB, EXW, CIF, DDP
Trademark:
FOIF
Transport Package:
Hard Plastic Case
Payment Term:
LC, T/T, PayPal, Western Union
Chip:
MStar
Port Number:
Multichannel
Port Of Loading:
SHANGHAI, NINGBO, SHENZHEN
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-07-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CIF, DDP
Port Of Loading:
SHANGHAI, NINGBO, SHENZHEN
Certificates:
battery
Product descriptions from the supplier
| A60 PRO | ||
| GNSS | Channels | 1408 |
| Satellite Signals | GPS:L1 C/A,L1P,L1C,L2C,L2P,L5 | |
| BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC | ||
| GLONASS: G1, G2, G3 | ||
| Galileo: E1, E5a, E5b, ALTBOC, E6 | ||
| QZSS: L1C/A, L1C, L2C, L5, LEX | ||
| SBAS:L1,L5 | ||
| L-Band: optional | ||
| Update Rate | 10Hz standard, 20Hz optional | |
| Accuracy | Static | H: ±(2.5+0.5×10-6D)mm ; V: ±(5+0.5×10-6D)mm |
| RTK | H: ±(8+1×10-6D)mm; V: ±(15+1×10-6D)mm | |
| Power supply | Battery capacity | Built-in battery, 4.2V, 6800mAh*2 |
| working duration | lasts for 10h (rover) | |
| input voltage | 9~28V DC | |
| System | Operating System | Linux+A7 |
| Memory | 8G, no TF card slot | |
| Bluetooth | V5.0+EDR, downward compatibility/ BLE | |
| WIFI | 802.11 b/g/n | |
| Network | Full Netcom 4G; | |
| LTE FDD: B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz |
||
| radio | TRM101,410-470MHz | |
| RTKFusion | Positioning accuracy of 30° bar tip within 2cm and 60° bar tip within 5cm Note: 1.8 m bar height | |
| Data link | TNC | used to connect inner radio antenna |
| Type-C port | used for charge and date transmission | |
| 5 Pin Port | Used to connect external power and external radio | |
| Esim | ESim embedded, no need to insert a card can be implemented network mode operation | |
| SIM Card slot | Dual-card slot compatible design, embedded ESIM, external SIM card.If the SIM card is inserted, it will use the SIM card by default. If the SIM card is not inserted, it will use ESim by default.At the same time, the user can also choose the use scheme | |
| Physical | Size | 148mm*74.5mm, weights about 1.0kg |
| vioce | supprt | |
| Screen | Smart Touch Screen, work as a controller | |
| turn on/ off | 1) Long press for 3 seconds to turn off the device. (2) Short press once to broadcast the current state, and the four battery level indicator lights will be on for 5s according to the battery level and then off. Shutdown state: (1) Long press for 3 seconds to start the device (2) Shutdown and charging state: four battery level indicators. (3) Short press once (slightly longer than in the power-on state) : the four battery level indicator lights will be on for 5s and then go off. |
|
| Breathing Light Red Red always bright: self - check fault Breathe in Red: Charge less than 25% Red flash: abnormal communication on board card Green 5S one time (500ms green) overlay mixed color: data records, including static, base station, mobile station data records purple Chang Liang: Fixed solution Blink: data link receiving and sending Breathing: single point, successful positioning |
||
| Flash: Not positioned Purple turns blue when bluetooth is connected Yellow boot in.. Yellow flicker self check.. The yellow breath firmware is being upgraded.. Red-green-blue cycle built-in module upgrade...Including network module firmware, board card firmware, sensor firmware, radio firmware 4 electric quantity indicator lights In the charging state, the light flashes according to the remaining charge 75% to 100% electric quantity, representing 25%/50%/75% electric quantity light is always green, only the fourth electric quantity light flashes The battery level is 50%-75%, representing 25% and 50% of the battery level lights are always green, and only the third battery level light flashes The battery level is 25%-50%, representing 25% of the battery level light is always green, and only the second battery level light flashes When the battery is below 25%, only the first battery light flashes every second Power 75-100%, 4 lights are all bright, green is always bright Power 50%-75%, 3 lights on, green light Electricity 25%-50%, 2 lights on, green light is always on When the electric quantity is lower than 25%, only one light is left and the green light is always on |
||
| Environment | Work Temperature | -30ºC ~ +65ºC |
| Storage | '-40ºC ~ +80ºC | |
| Temperature | ||
| Down Fall | Resistance to 2m fall with pole (hardwood ground), 1.2m free fall. | |
| Waterproof & dustproof | IP67 | |
| Humidity | anti-condensation 100% | |
