High-Quality Welding Accessories Origin China Condition New HS Code 732690 Size Customized Surface Nitrided Voltage
1 Set
$688Product information
High-quality High-Quality Welding Accessories Origin China Condition New HS Code 732690 Size Customized Surface Nitrided Voltage supplied by Hebei Fadetong Machinery Manufacturing Co., Ltd.. Bulk wholesale pricing is $688 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Tilting Angle:
0-90°
Rotaion Speed:
0.3-3rpm
Height:
100/150/200
Specification:
1000*2000*200
Max Eccentricity Distance:
100mm
Voltage:
110V/220V
Hole Size:
28mm/16mm
Product Name:
3D Welding Table
Specifications
Tilting Angle:
0-90°
Rotaion Speed:
0.3-3rpm
Height:
100/150/200
Specification:
1000*2000*200
Max Eccentricity Distance:
100mm
Voltage:
110V/220V
Hole Size:
28mm/16mm
Product Name:
3D Welding Table
Production Capacity:
50000 Sets/Year
HS Code:
732690
Welding Turning Rolls Type:
Adjustable
Origin:
China
Accessories:
Clamps Fixture
Size:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Fadetong
Welding Tilter Type:
Flexible Combination
Certificate:
ISO 9001
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Usage:
Laser Welding
Condition:
New
Surface:
Nitrided
Transport Package:
Standard Export Packages
Material:
Steel/Cast Iron
Port Of Loading:
Tianjin Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-11-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
19
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
CE, ISO 9001
Product descriptions from the supplier
3D Steel New Metal Welding Workbench with Clamps for Robotic Welding and Soldering Stations
3D welding table /welding platform is a device used in welding processes, mainly for automated and precise welding operations. It is usually equipped with a three-dimensional motion control system that can move freely on multiple axes to accommodate workpieces of different shapes and sizes. Such equipment can improve the efficiency and accuracy of welding and is often used in manufacturing, the automotive industry, and aerospace.
Material:A Q355 steel plate welding,B, high hardness steel plate welding Aperture:A = φ28.065 -- φ28.149mm.
Hole spacing:L1=100±0.05mm
Flatness:0.1/1000mm.
Bearing:Standard type 2T, frame type: 5T.
Hardness:Hardness of material body and nitriding layer: HV450-HV630
How to use a 3D fixture table for better and quicker woking?
1. Choose a suitable work platform:
Choose a suitable 3D welding platform according to the size and shape of the product. For example, sheet metal and small steel structures mostly use D16 series welding tables; large steel structures and heavy machinery industries mostly use D28 series welding tables.
2. Configure the corresponding fixtures:

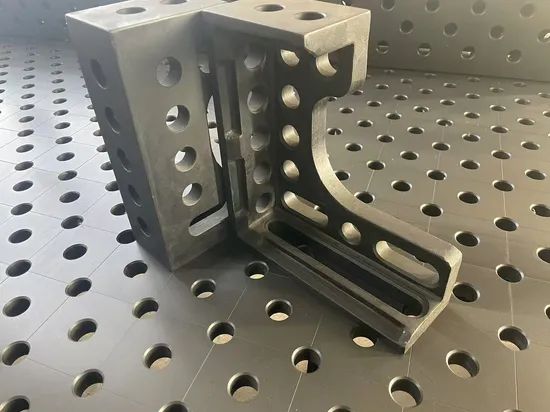

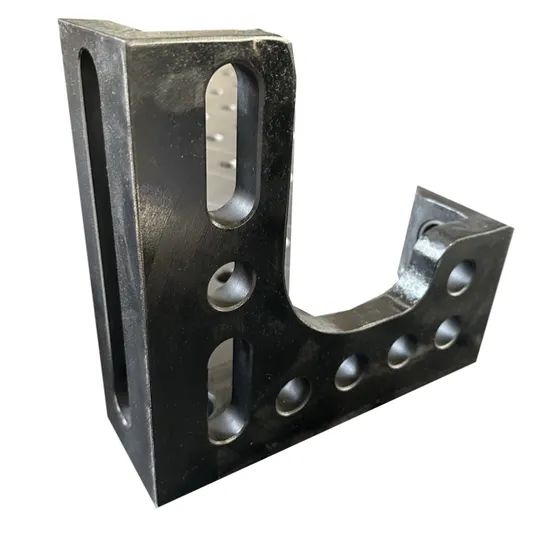

Choose the corresponding accessories according to the shape, size and complexity of the workpiece. When the platform cannot meet the size of the workpiece, support parts such as U-shaped square boxes, L-shaped square boxes, and support angle irons can be used for expansion and extension.
3. Quick assembly and positioning:
Using the modular design and standard hole system of the platform, the various accessories can be quickly assembled into the required tooling, and accurately positioned by quick locking pins.
4. Welding and assembly:
After positioning and clamping, welding operations can be carried out. Due to the high precision and stability of the modular welding tables and accessories, welding quality can be ensured and work efficiency can be improved
Production Specification
The Type of Welding Table
How to use a 3D fixture table for better and quicker woking?
1. Choose a suitable work platform:
Choose a suitable 3D welding platform according to the size and shape of the product. For example, sheet metal and small steel structures mostly use D16 series welding tables; large steel structures and heavy machinery industries mostly use D28 series welding tables.
2. Configure the corresponding fixtures:
Choose the corresponding accessories according to the shape, size and complexity of the workpiece. When the platform cannot meet the size of the workpiece, support parts such as U-shaped square boxes, L-shaped square boxes, and support angle irons can be used for expansion and extension.
3. Quick assembly and positioning:
Using the modular design and standard hole system of the platform, the various accessories can be quickly assembled into the required tooling, and accurately positioned by quick locking pins.
4. Welding and assembly:
After positioning and clamping, welding operations can be carried out. Due to the high precision and stability of the modular welding tables and accessories, welding quality can be ensured and work efficiency can be improved
3D welding table -- D16 series
Be made of steel or cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.
Be made of steel or cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.
Five hole for welding table : customized
With scale : customized
Treatment : Nitriding or not
Size : according your request
3D welding table -- D28 series
Be made of steel or cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs Five hole for welding table : customized
With scale : customized
Treatment : Nitriding or not
Size : according your request
Be made of steel or cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs Five hole for welding table : customized
With scale : customized
Treatment : Nitriding or not
Size : according your request
R-angle processing,
a"radius" machining from
each hole or edge of each
workpiece, greatly
increases service life
a"radius" machining from
each hole or edge of each
workpiece, greatly
increases service life
Production Specification
| 3D Welding Table | ||||
| Item No. | Specification(LxW)mm | Height (mm) | Material | Hole Diameter (mm) |
| 1 | 4000mmx2000mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 2 | 3000mmX2000mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 3 | 3000mmx1500mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 4 | 2500mmx2000mm |
200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 5 | 2500mmx1500mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 6 | 2000mmx2000mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 7 | 2400mmx1200mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 8 | 2000mmx1500mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 9 | 1500mmx1500mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 10 | 2000mmx1000mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 11 | 1200mmx1200mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 12 | 1200mmx1000mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 13 | 1000mmx1000mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
| 14 | 1000mmx800mm | 200/150/100 | Q355/Q235/Cast iron/Stainless steel | D28/D16 |
The Type of Welding Table
2D Welding Table with Steel 3D Welding Table with Steel 3D Steel Welding Table with Nitriding
Details of 3D Nitriding Welding Table

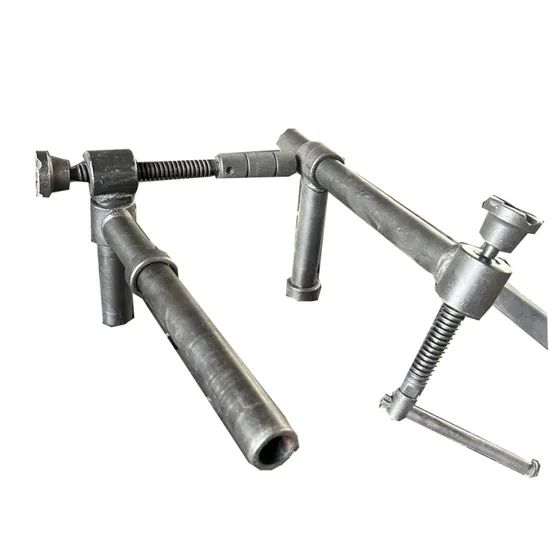

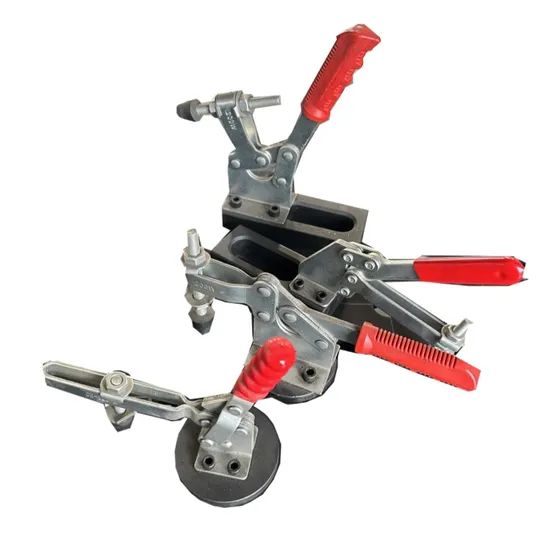

Clamps for Welding Table
Export Package for 3D welding table System
Export Package for welding table clamps
FAQ
We are based in Hebei, China, built in 2011 year .,sell to Oceania(60.00%),Northern Europe(30.00%),Eastern Asia(10.00%). There are 50-100 people in our company .
2. How can we guarantee quality?
Always a pre-production sample before mass production; and final Inspection before shipment;
3.What can you buy from us?
Welding Table, Welding Fixture and so on .
4. Why should you buy from us not from other suppliers?
Our company has 13 years of design and production experience, serving hundreds of foreign companies. The welding
table is all made of steel and cast iron and is nitrided after aging treatment to make it rust-proof and durable.
5. What services can we provide?
Accepted Delivery Terms: EXW,FOB,CIF ,DAP,DDP and so on
Accepted Payment Currency: USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Shipping by sea ,by air , by train ,by truck .
